MERCURY OUTBOARD CARBURETOR KITS

(U.S.-MADE MARINER OUTBOARDS ARE THE SAME APPLICATIONS)

V6 MOTORS

MODELS THROUGH 35 HP

MODELS  40 - 150  HP INLINE MOTORS

TIP: CARB NUMBERS ARE USUALLY LOCATED ON THE
CARB MOUNTING FLANGE OR ON THE FLOAT BOWL

Carb kits are PER CARBURETOR, unless noted. You need one kit for each carb you're repairing.
FLOATS are not included in carb kits and need to be purchased separately if needed, but they rarely do need replacing.

MODEL & HP SERIAL NUMBER
RANGE
CARB NUMBERS GASKETS
ONLY KIT
FUEL PUMP
KIT
GASKET KIT
with NEEDLE
FLOAT COMPLETE
KIT
V-105 JET 0D082000 - 06303045 WMH-13, 13B, 23, 31 USE KIT w/NEEDLE 1812 7213-1 810738 1395-811691-2
V-105 JET 0G303046 and up WMV-2, 2A 7214 1812 7214-1 810738 1395-811691-3
V-135 0A904646 - 0C239552 WH-33, 40, 48 USE KIT w/NEEDLE DISCONTINUED 1136 DISCONTINUED 1395-8506
V-135 0A904646 - 0C239552 WH-32, 35, 38 USE KIT w/NEEDLE DISCONTINUED 1136 DISCONTINUED 1395-7826
V-135 0C239553 -0G303045 WMH- 8, 8A, 12A.
12B, 28, 30
USE KIT w/NEEDLE 1812 7213-1 810738 1395-811691-2
V-135 0G303046 and up WMV-1, 1A 7214 1812 7214-1 810738 1395-811691-3
V-140 JET 06303046 and up WMV-5, 5A 7214 1812 7214-1 810738 1395-811691-3
V-140 JET 0G082000 - 0G303045 WMH-16, 21,34, 39 USE KIT w/NEEDLE 1812 7213-1 810738 1395-811691-2
V-150 0A904646 - 0C239552 WH-35. 38 USE KIT w/NEEDLE DISCONTINUED 1136 DISCONTINUED 1395-7826
V-150 0A904646 - 0C239552 WH-40, 48 USE KIT w/NEEDLE DISCONTINUED 1136 DISCONTINUED 1395-8506
V-150 0C239553 - 0G303045 WMH-1, 2, 7, 13,
13B, 23, 31
USE KIT w/NEEDLE 1812 7213-1 810738 1395-811691-2
V-150 0G303046 and up WMV-2, 2A, 3A 7214 1812 7214-1 810738 1395-811691-3
MODEL & HP SERIAL NUMBER
RANGE
CARB NUMBERS GASKETS
ONLY KIT
FUEL PUMP
KIT
GASKET KIT
with NEEDLE
FLOAT COMPLETE
KIT
V-150 (150, 1500) All WH-29 USE KIT w/NEEDLE DISCONTINUED 1136 DISCONTINUED 1395-8506
V-150 (150,1500) All WH-12 USE KIT w/NEEDLE DISCONTINUED 1136 DISCONTINUED 1395-7826
V-150 (150,1500) All WH-9 USE KIT w/NEEDLE DISCONTINUED 1136
NEEDLES IN THIS
KIT NOT FOR
THIS CARB. ORDER
2 SEPARATELY.
1395-7624 1395-7826
V-150 (XR4, MAG II) 0C239553 - 0G303045 WMH-6, 14A, 25, 32A USE KIT w/NEEDLE 1812 7213-1 810738 1395-811691-2
V-150, XR4, XR6,
       MAG III
0G303046 and up WMV-3, 3A, 16 7214 1812 7214-1 810738 1395-811691-3
V-150 (XR4,MAG II) 0B242885-0C239552 WH-41, 41A USE KIT w/NEEDLE DISCONTINUED 1136 DISCONTINUED 1395-8506
V-150 (XR4,MAG II) 0C100861 -0C239552 WH-41A USE KIT w/NEEDLE DISCONTINUED 1136 DISCONTINUED DISCONTINUED
MODEL & HP SERIAL NUMBER
RANGE
CARB NUMBERS GASKETS
ONLY KIT
FUEL PUMP
KIT
GASKET KIT
with NEEDLE
FLOAT COMPLETE
KIT
V-175 (175, 1750) 4301235 - 0C100860 WH-17 USE KIT w/NEEDLE 114 1136 DISCONTINUED 1395-7826
V-175 (175, 1750) 4301235 - 0C100860 WH-7A USE KIT w/NEEDLE 114 1136 1395-7624 1395-7826
V-175 (175, 1750) 4301235 - 0C100860 WH-17R, 30, 34 USE KIT w/NEEDLE 114 1136 DISCONTINUED 1395-8506
V-175 (175, 1750) 4301235 - 0C100860 WH-1, 4. 7, 28,39,46 USE KIT w/NEEDLE 114 1136 DISCONTINUED 1395-7826
V-175 (175, 1750) 4301235 -0C100860 WH-13 USE KIT w/NEEDLE 114 1136 DISCONTINUED 1395-7826
V-175 (175, 1750) 8058870 - 8064249
(Australia)
WH-17R,30. 34 USE KIT w/NEEDLE 114 1136 DISCONTINUED 1395-8506
V-175 (175, 1750) 8058870 - 8064249
(Australia)
WH-7A, 17 USE KIT w/NEEDLE 114 1136 DISCONTINUED 1395-7826
V-175 (175, 1750) 8058870 - 806424
(Australia)
WH-1, 4, 7, 28, 39, 46 USE KIT w/NEEDLE 114 1136 1395-7624 1395-7826
V-175 (175, 1750) 8058870 - 8064249
(Australia)
WH-13 USE KIT w/NEEDLE 114 1136 DISCONTINUED 1395-7826
V-175 0C00861 - 0C239552 WH-34 USE KIT w/NEEDLE DISCONTINUED 1136 DISCONTINUED 1395-8506
V-175 0C239553 -0G303045 WMH-2. 11, 15. 22,33 USE KIT w/NEEDLE 1812 7213-1 810738 1395-811691-2
V-175 0G303046 and up WMV-4, 4A, 18 7214 1812 7214-1 810738 1395-811691-3
V-175 0G760300 and up WMV-4A 1395-6452 DISCONTINUED 1136 DISCONTINUED 1395-7826
MODEL & HP SERIAL NUMBER
RANGE
CARB NUMBERS GASKETS
ONLY KIT
FUEL PUMP
KIT
GASKET KIT
with NEEDLE
FLOAT COMPLETE
KIT
V-200 0C100861 - 0C291519 WH-46 USE KIT w/NEEDLE 114
(oval fuel pump)
1812
(square fuel pump)
1136 DISCONTINUED 1395-7826
V-200 0C291520 - 0D081999 WMH-3, 16, 21,34, 39 USE KIT w/NEEDLE 1812 7213-1 810738 1395-811691-2
V-200 0G303046 and up WMV-5. 5A 7214 1812 7214-1 810738 1395-811691-3
V-200 (V-200, V-2000) USA
4839034 - 0C100860
WH-3A, 11, 14, 16, 18, 20, 28, 29, 39,46 USE KIT w/NEEDLE 114
(oval fuel pump)
1812
(square fuel pump)
1136 DISCONTINUED 1395-7826
V-200 (V-200, V-2000) USA
4839034 -0C100860
WH-3 (NOT 3A above) NLA DISCONTINUED DISCONTINUED DISCONTINUED NLA
V-200 (V-200, V-2000) Australia
8058870 - 8065672
WH-3A, 11, 14, 16, 18, 20, 28, 29, 39,46 USE KIT w/NEEDLE 114
(oval fuel pump)
1812
(square fuel pump)
1136 DISCONTINUED 1395-7826
V-200 (V-200, V-2000) Australia
8061595 - 865672
WH-3 (NOT 3A above) USE KIT w/NEEDLE DISCONTINUED 1136 DISCONTINUED 1395-7826
V-225 (2.4L) 5628028 and up WH-5. 20 USE KIT w/NEEDLE DISCONTINUED 1136 DISCONTINUED 1395-7826
MODEL & HP SERIAL NUMBER
RANGE
CARB NUMBERS GASKETS
ONLY KIT
FUEL PUMP
KIT
GASKET KIT
with NEEDLE
FLOAT COMPLETE
KIT
V-225 (3.0L) 0G303046 - 0G760299 WMV-7. 13 7214 1812 7214-1 810738 1395-811691-3
V-225 (3.0L) 0G760300 and up WMV-13 7214 1812 7214-1 810738 1395-811691-3
V-225 (3.0L)
Sea/Marathon
0G245605 - 0G303045 WMH-45 USE KIT w/NEEDLE 1812 7213-1 810738 1395-811691-2
V-225 (3.0L)
Sea/Marathon
0G303046 and up WMH-6, 11A 7214 1812 7214-1 810738 1395-811691-3
V-225 (3.0L)
Sea/Marathon
All WMV-11 7214 1812 7214-1 810738 1395-811691-3
V-225(3.0L) 0D280813 - 0G303045 WMH-19, 46, 47 USE KIT w/NEEDLE 1812 7213-1 810738 1395-811691-2
V-250/V-275 (3.4L) 0C101891 and up WD-8A, 9, 9A 1395-9062 DISCONTINUED DISCONTINUED 18-7061 DISCONTINUED
V-300 (3.4L) 5611648 and up WD-3, 5 1395-9062 DISCONTINUED DISCONTINUED 18-7061 DISCONTINUED


MERCURY CARB COMPONENTS
DESCRIPTION PART # and IMAGE SELECT

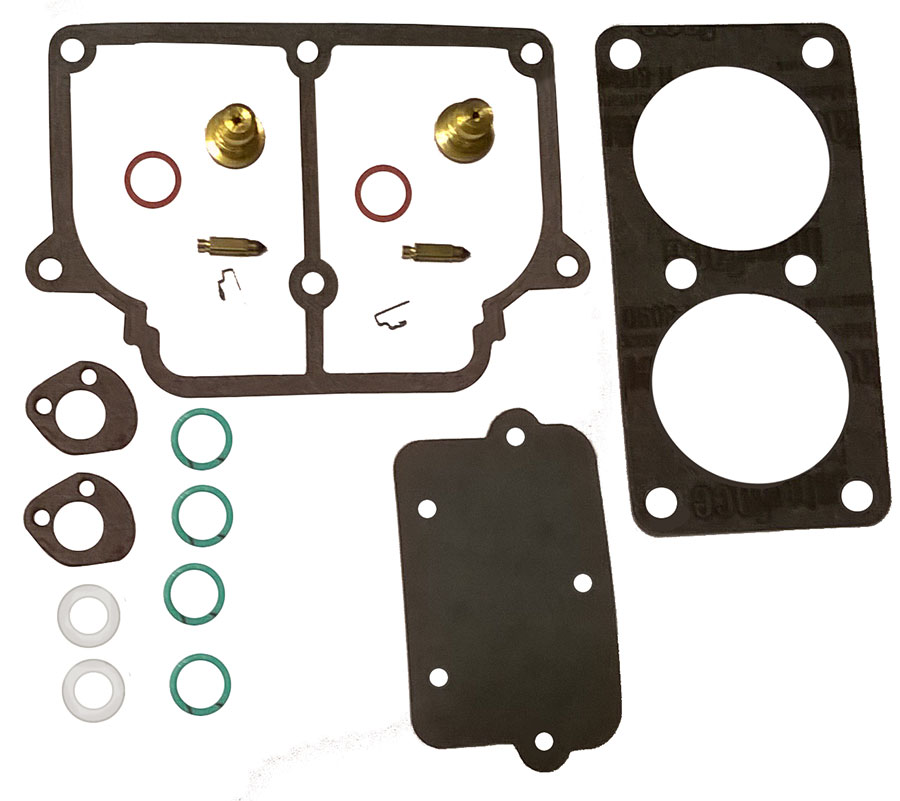

GASKET KIT
     w/NEEDLES & SEATS
1136
Click Image For Larger
$29.50
NEEDLE & SEAT 1139 $12.75
NEEDLE & SEAT 1395-7624 $33.80
CARB KIT FULL 1395-7826 $140.00

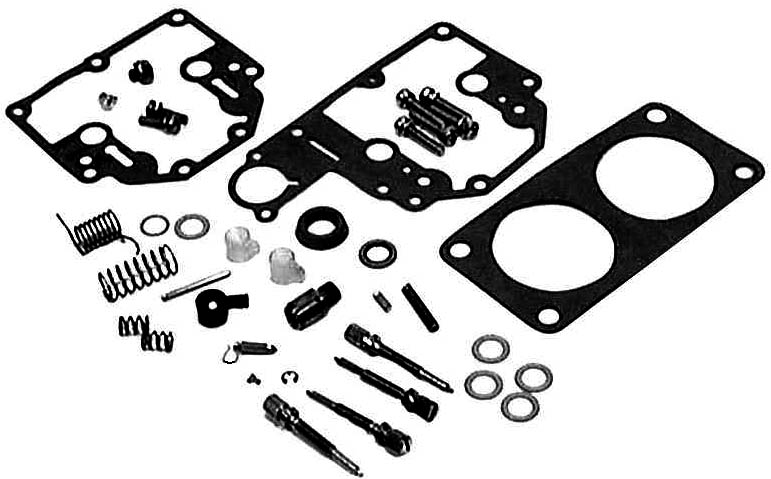

CARB KIT FULL 1395-811691-2
$136.00
CARB KIT FULL 1395-811691-3 $
CARB KIT FULL 1395-8506 $119.00
GASKET KIT 1395-9062
DISCONTINUED,
limited number available
CONTACT US

WE WILL TRY TO FIND ONE
NEEDLE & SEAT 690 $12.00
NEEDLE & SEAT 7061 $6.00
GASKET KIT 18-7213 $11.00
GASKET & NEEDLE VALVE KIT 7213-1
as above, with needle & seat

$18.00
GASKET KIT 18-7214 $23.00
GASKET & NEEDLE VALVE KIT 7214-1 $27.50
FLOAT 810738 $23.00
DIAPHRAGM KIT 114
$12.00

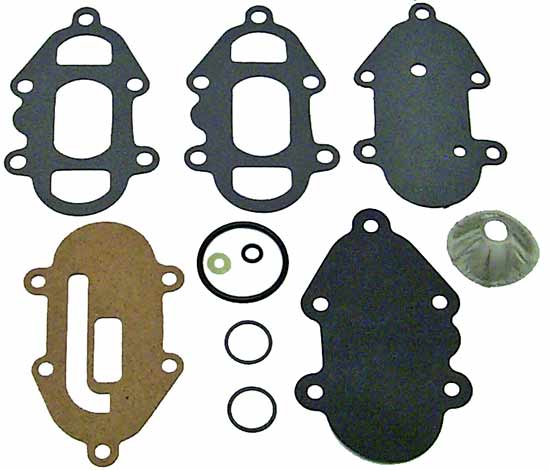

FUEL PUMP KIT

NOTE:
Modification of Holes
in Fuel Pump Body
Necessary.
SEE HERE
This needs to be done
with factory kits also
1812
$34.00
