MERCURY OUTBOARD CARBURETOR KITS

(U.S.-MADE MARINER OUTBOARDS ARE THE SAME APPLICATIONS)

MOTORS THROUGH 35 HP

40 HP - 150 HP INLINE MOTORS

V6 MODELS

TIP: CARB NUMBERS ARE USUALLY LOCATED ON THE
CARB MOUNTING FLANGE OR ON THE FLOAT BOWL

Carb kits are PER CARBURETOR, unless noted. You need one kit for each carb you're repairing.
FLOATS are not included in carb kits and need to be purchased separately if needed, but they rarely do need replacing.

HP CARB NUMBER GASKET
KIT ONLY 		FUEL PUMP
KIT		 GASKET KIT
with NEEDLE		 FLOAT COMPLETE
KIT
NOTE: Most Tillotson AJ, KA, and KB-series carbs for INLINE motors though the late 1970's can use
kit # 7013 , which has what is usually required. See chart below for alternate smaller & larger kits.
2.5 SERIAL #987385 & Up
(Belgian-made Mercury)		 NONE NONE NONE 95259 855546A4
2.5 SERIAL #987445 & Up
(Belgian-made Mariner)		 NONE NONE NONE 95259 855546A4
3.3 SERIAL #987265 & Up
(Belgian-made Mercury)		 NONE NONE NONE 95259 855546A4
3.3 SERIAL #987355 & Up
(Belgian-made Mariner)		 NONE NONE NONE 95259 855546A4
3.9 (39) KB-7A,KB-7B 7006-1 31503A1 7013 7208 1395-9262-1
4 (40) (1 cyl) KB-10A 7006-1 53245A1 7013 7208 1395-9262-1
4 (1cyl) WMD-1 7006-1 53245A1 KIT 3 7208 NONE
4 (1 cyl) SERIAL #0A855097 & Up
(USA-made)		 NONE 53245A1 NONE 16253 855546A1
4 (1 cyl) SERIAL #9589154 & Up
(Belgian-made)		 NONE 53245A1 NONE 16253 855546A1
4 (2 cyl) LMO-1 1395-5901 NONE NONE 1395-5898 NONE
4 (2 cyl) LMO-2 NONE NONE NONE 1395-5898 NONE
4 (2 cyl) LMO-3 NONE NONE NONE 1395-5898 NONE
4 (2 cyl) LMO-4 NONE NONE NONE 1395-5898 NONE
HP CARB NUMBER GASKET
KIT ONLY 		FUEL PUMP
KIT		 GASKET KIT
with NEEDLE		 FLOAT COMPLETE
KIT
4 (4-Stroke) SERIAL #0R000001 & UP
(USA-made)		 NONE NONE NONE NONE 18-7738
4 (4-Stroke) SERIAL #0P073456 & UP
(Belgian-made)		 NONE NONE NONE NONE NONE
4.5 (1 cyl) KB-10A 7006-1 53245A1 7013 7208 1395-9262-1
4.5 (1 cyl) WMD-1 7006-1 53245A1 KIT 3 7208 NONE
5 (1 cyl) SERIAL #0A855097 & UP
(USA-made)		 NONE NONE NONE 16253 855546A1
5 (1 cyl) SERIAL #9589154 & UP
(Belgian-made)		 NONE NONE NONE 16253 855546A1
5 (4-Stroke) SERIAL #0R000001 & Up
(USA-made)		 NONE NONE NONE NONE NONE
5 (4-Stroke) SERIAL# 0P073456 & UP
(Belgian-made) 		NONE NONE NONE NONE NONE
HP CARB NUMBER GASKET
KIT ONLY 		FUEL PUMP
KIT		 GASKET KIT
with NEEDLE		 FLOAT COMPLETE
KIT
6 WMC-5, 5A, 5B, 7, 7A,
17, 17B, 17C, 18, 18B, 19, 19A, 20		 18-7212 INCLUDED IN
CARB GASKET
KIT 		KIT 1 NONE 1395-9648-1
6 WMC-23, 28, 34, 39, 41 , 41A,
47, 47A, 49, 49A, 57, 66, 78A		 18-7212 INCLUDED IN
CARB GASKET
KIT 		KIT 1 NONE 1395-823707-2
6 KB-6A, 6B 7006-1 31503A1 7013 7208 1395-9262-1
6 AJ-57A NONE NONE 7013 7208 NONE
6 (4-Stroke) SERIAL #0R000001 & Up
(USA-made)		 NONE NONE NONE NONE NONE
6 (4-Stroke) SERIAL #0P073456
(Belgian-made) 		NONE NONE NONE NONE NONE
7.5 (7.5, 75) BB-2A, 2B, 2C, 4A, 5A,
5B, 5C, 5D, 7A, 7C		 7007 7815 KIT 8 7209 879194026
7.5 (7.5, 75) KB-9A, 12A 7006-1 53245A1 7013 7208 1395-9262-1
7.5 WMB-2, 4 1395-9027 INCLUDED IN
CARB GASKET
KIT 		NONE 7209 1395-9026
8 WMC-5, 5A, 5B, 7, 7A, 17, 17B, 17C, 18, 18A, 18B, 19, 19A, 20, 22 18-7212 INCLUDED IN
CARB GASKET
KIT 		KIT 1 NONE 1395-9648-1
8 WMC-23, 28, 34, 39, 41 ,
41A, 47, 47A, 49, 49A, 57, 61, 74, 79A		 18-7212 INCLUDED IN
CARB GASKET
KIT 		KIT 1 NONE 1395-823707-2
8 (4 Stroke) (232 cc) SERIAL #0H000058 & Up
(USA-made)		 NONE NONE NONE 827470M 827493M
8 (4 Stroke) (323 cc) SERIAL #0P086824
(Belgian-made) 		NONE NONE NONE 809569 802706A1
9.8 (9.8, 110) BB-1A, 1B, 1C, 3A, 3B,
3C, 6A, 6C		 7007 7815 KIT 8 7209 879194026
9.8 (9.8, 110) KB-5A, 8A, 11A 7006-1 53245A1 7013 7208 1395-9262-1
9.8 WMB-1, 3 1395-9027 INCLUDED IN
CARB GASKET
KIT 		NONE 7209 1395-9026
HP CARB NUMBER GASKET
KIT ONLY 		FUEL PUMP
KIT		 GASKET KIT
with NEEDLE		 FLOAT COMPLETE
KIT
9.9 WMC-5, 5A, 5B, 7, 7A, 17, 17B, 17C, 18, 18A , 18B, 19, 19A, 20, 22 18-7212 INCLUDED IN
CARB GASKET
KIT 		KIT 1 9169 1395-9648-1
9.9 WMC-23, 28, 34, 39, 41, 41A, 47, 47A, 49, 49A, 57, 61, 80A 18-7212 INCLUDED IN
CARB GASKET
KIT 		KIT 1 9169 1395-823707-2
9.9 (4Stroke) (232cc) SERIAL #0H000058 - 0H017099
(USA-made)		 NONE NONE NONE 827470M 827493M
9.9 (4Stroke) (323cc) SERIAL #0G760300 & Up
(Belgian-made) 		NONE NONE NONE 809569 802706A1
10 (100) KB-1A, 4A 7006-1 109 7013 7208 NONE
10 (100) AJ-56AB 7006-1 109 7013 7208 NONE
10 (Sea Pro, Marathon) WMC-33, 33A, 40, 42, 50,
50A, 50B, 55, 55A		 18-7212 INCLUDED IN
CARB GASKET
KIT 		KIT 1 NONE 1395-823707-2
10 (XR10, Magnum 10) WMC-23, 48, 48A, 49, 49A 18-7212 INCLUDED IN
CARB GASKET
KIT 		KIT 1 NONE 1395-823707-2
15 (150) KB-1A, 4A 7006-1 109 7013 7208 NONE
15 WMC-5, 5A, 5B, 7, 7A, 17,
17B, 17C, 18, 18A, 18B,
19, 19A, 20, 2		 18-7212 INCLUDED IN
CARB GASKET
KIT 		KIT 1 9169 1395-9648-1
15 WMC-23, 28, 34, 39, 41,
41A, 47, 47A, 49, 49A, 57		 18-7212 INCLUDED IN
CARB GASKET
KIT 		KIT 1 9169 1395-823707-2
15 (Super 15, 15X0) WMC-13, 13A, 14, 14A,
15A, 16A, 24, 25, 26, 27,
29, 30, 31, 31A, 36, 37		 18-7212 INCLUDED IN
CARB GASKET
KIT 		KIT 1 NONE 1395-823707-2
15 (Sea Pro, Marathon) WMC-33, 33A, 36, 37, 40, 42, 50, 50A, 50B, 55, 55A 18-7212 INCLUDED IN
CARB GASKET
KIT 		KIT 1 NONE 1395-823707-2
15 (4 Stroke) SERIAL #0G590000 & Up
(USA-made)		 NONE NONE NONE 809569 802706A1
18 WMC-1, 2, 3, 4, 9, 10, 11, 12 18-7212 INCLUDED IN
CARB GASKET
KIT 		KIT 1 NONE 1395-9648-1
18 WMC-13, 13A, 14, 14A,
15A, 16A, 24, 25, 26, 27,
29, 30, 31, 31A, 36, 37		 18-7212 INCLUDED IN
CARB GASKET
KIT 		KIT 1 NONE 1395-823707-2
HP CARB NUMBER GASKET
KIT ONLY 		FUEL PUMP
KIT		 GASKET KIT
with NEEDLE		 FLOAT COMPLETE
KIT
18 BC-1A, 1B, 1C, 2A, 2B, 2D 1399-8154 INCLUDED IN
CARB GASKET
KIT 		NONE NLA 1399-8153
20(200) KA-22A,22B,22C,23A,25A 7006-1 31503A1 KIT 21 7208 1395-9262-1
20 (20,200) BA-1A, 2A, 2B, 2C, 2D, 2E 7007 7815 NONE 7209 1399-5199-1
20 (20,200) BC-1A, 1B, 1C, 2A, 2B, 2D 1399-8154 INCLUDED IN
CARB GASKET
KIT 		NONE NLA 1399-8153
20 WMC-1, 2, 3, 4, 9, 10, 11, 12 18-7212 INCLUDED IN
CARB GASKET
KIT 		KIT 1 NONE 1395-9648-1
20 WMC-13, 13A, 14, 14A, 15A,
16A, 24, 25, 26, 27, 29, 30,
31, 31A, 36, 37		 18-7212 INCLUDED IN
CARB GASKET
KIT 		KIT 1 NONE 1395-823707-2
20 JET WMC-45, 53A 18-7212 INCLUDED IN
CARB GASKET
KIT 		KIT 1 NONE 1395-823707-2
25 (2cyl) WMC-1, 2, 3, 4, 9, 10, 11, 12 18-7212 INCLUDED IN
CARB GASKET
KIT 		KIT 1 NONE 1395-9648-1
25 (2cyl) WMC-13, 13A, 14, 14A, 15A,
16A, 24, 25, 26, 27, 29,
30, 31, 31A, 32, 36, 37		 18-7212 INCLUDED IN
CARB GASKET
KIT 		KIT 1 9169 1395-823707-2
25 (2cyl) BC-1A, 1B, 1C, 2A, 2B, 2D 1399-8154 INCLUDED IN
CARB GASKET
KIT 		NONE NLA 1399-8153
25 (4 Stroke) ALL NONE NONE NONE 854253 600-14
(minus float)
30 (300) (4 cyl) KB-2A 7006-1 109 7013 7208 NONE
30 (300) (4 cyl) AJ-54A NONE 109 7013 7208 NONE
HP CARB NUMBER GASKET
KIT ONLY 		FUEL PUMP
KIT		 GASKET KIT
with NEEDLE		 FLOAT COMPLETE
KIT
30 (2cyl) (644cc) WME-36, 36A, 37, 37A, 38, 39A, 42, 42A, 63, 64, 65, 66, 67 7211-1 7817 INCLUDED IN
CARB GASKET
KIT 		18-72000 18-7750
30 JET (3 cyl) WME 53, 68, 69 7211-1 7817 INCLUDED IN
CARB GASKET
KIT 		18-72000 18-7750
30 JET (4 cyl) WMA10, 13 1395-9651 7817 Gasket Kit Only
Needle Discontinued		 1395-823620 18-7226
30 (4-Stroke) (3 cyl) SERIAL #0T178500 & Up
(USA-made)		 NONE NONE NONE 854253-1 600-14
(minus float)
30 (4-Stroke) (3 cyl) SERIAL #0P153500 & Up
(Belgian-made)		 NONE NONE NONE 854253-1 600-14
(minus float)
30 (4-Stroke) (3cyl) SERIAL # 06760300-0T178499
(USA-made)		 NONE NONE NONE 854253 600-14
(minus float)
35 (350) (4 cyl) AJ-54A NONE 109 7013 7208 NONE
35 (350) (4cyl) KB-2A 7006-1 109 7013 7208 NONE
35 (2 cyl) KC-4A, 8A, 9A, 9B, 9C, 13A 7006-1 112 KIT 3 7208 1395-9262-1
35 (2 cyl) WMK-1, 8, 21 , 24 , 31, 33, 34, 38 USE 7021 112 MTM-7021 7208 1395-5109-1

MERCURY CARB COMPONENTS
DESCRIPTION PART # & IMAGE SELECT
FUEL PUMP KIT 109
$10.00
FUEL PUMP KIT 112
$6.00
CARB KIT 1395-5109-1
$66.50
FLOAT 1395-5898 Discontinued
No Longer Available
FLOAT 1395-823620
$61.00
GASKET KIT 1395-5901 No Longer Available
Sometimes we can find one
usually about $20.00
Contact Us
CARB KIT MTM-7021
7021
Click Image For Larger

$19.00

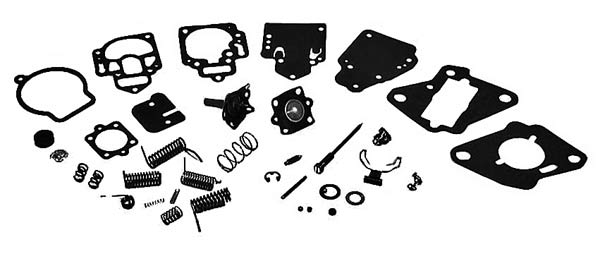

CARB KIT 1395-823707-2
Click Image For Larger

$131.00
CARB KIT 1395-9026
Click Image For Larger

$72.00
GASKET KIT 1395-9027
$29.50
CARB KIT 1395-9648-1
Click Image For Larger

$167.00
GASKET KIT 1395-9651
$10.75
CARB KIT 1399-5199-1
Click Image For Larger

$112.00
CARB KIT 1399-8153
NOTE: THIS KIT DOES NOT CONTAIN FLOAT NEEDLE.
MERCURY HAS DISCONTINUED THE NEEDLE, WE HAVE NO SOURCE FOR IT.
$64.00

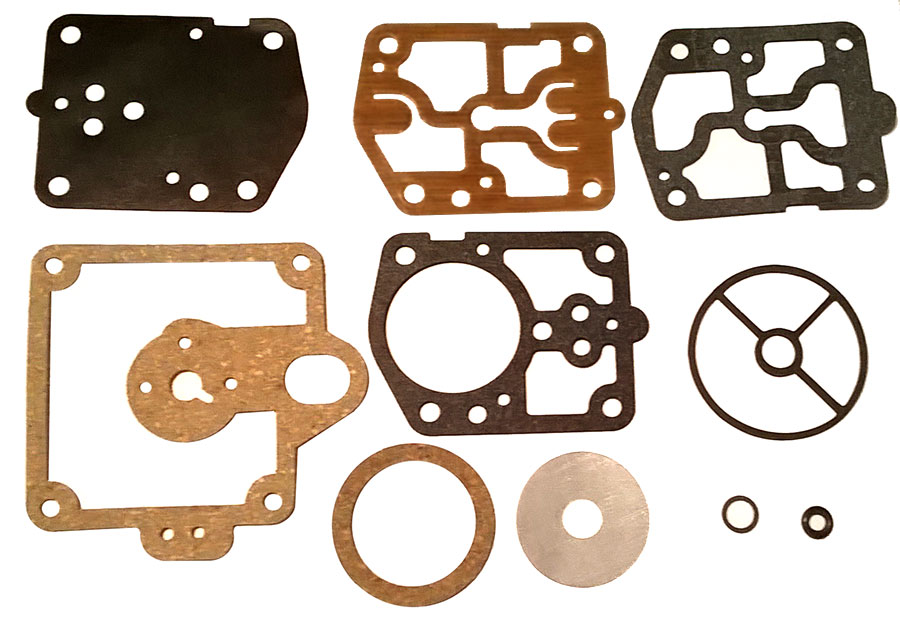

GASKET KIT 1399-8154
Click Image For Larger

$30.50
CARB KIT 1399-879194026
$112.50
FLOAT 16253
$48.00
FUEL PUMP KIT 18-7817
$20.50
FLOAT 18-72000
$22.50
FLOAT 9169 1395-9169
$12.25
CARB KIT 18-7226
$75.00
FUEL PUMP KIT 18-7815
$11.50
FUEL PUMP KIT 31503A1
$9.75
FUEL PUMP KIT 53245A1
$9.10
GASKET KIT 7006-1 7006-1 $9.75

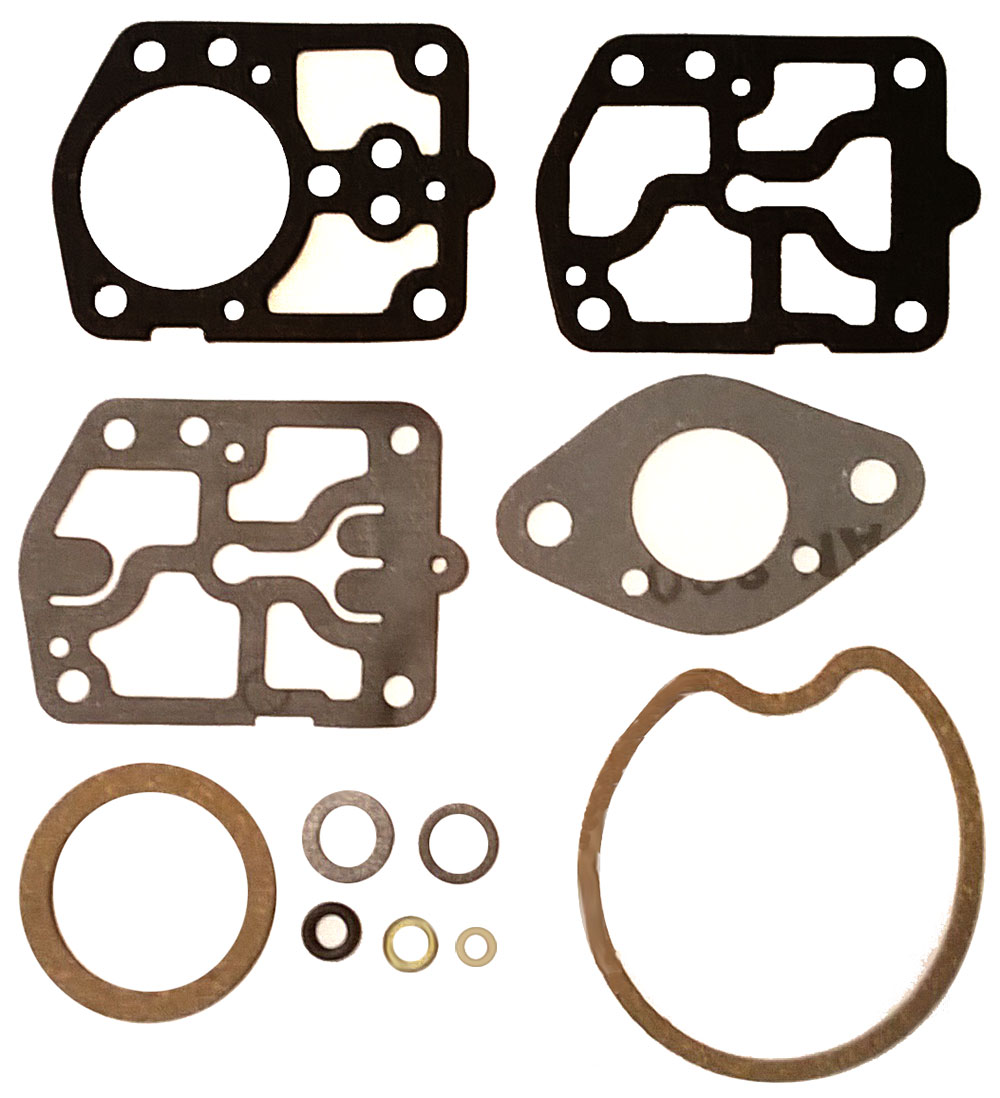

GASKET KIT 7007 1399-5135
Click Image For Larger

$9.50
CARB KIT 1395-9262-1
Click Image For Larger

$99.25

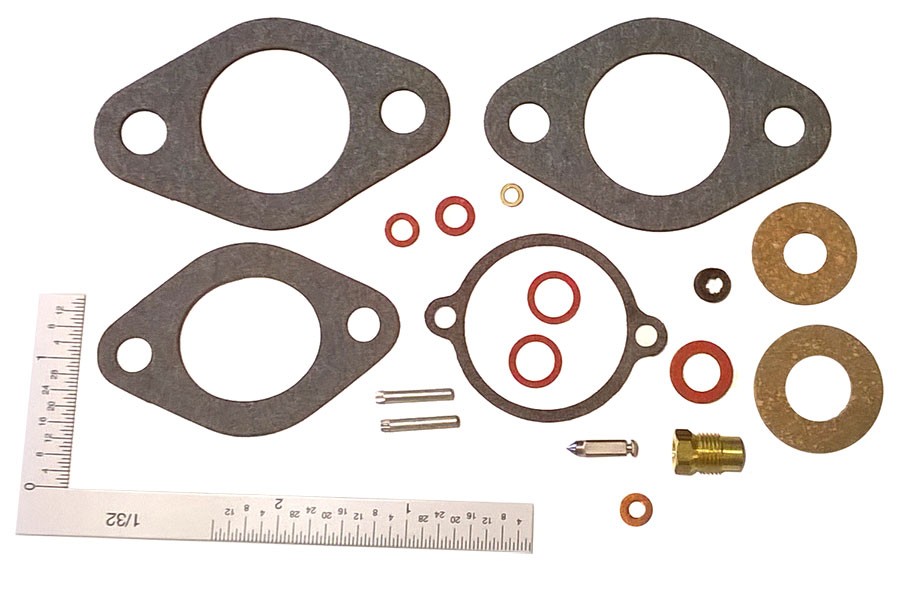

GASKET / NEEDLE KIT 7013
Also replaces above # 1395-9262-1, all AJ, KA, & KC series carbs, but does not include most of the hardware
Click Image For Larger

$18.25
FLOAT 7208
$13.50
FLOAT 7209
$20.25
GASKET KIT 7211-1
$11.00
GASKET KIT 18-7212
Click Image For Larger

$69.00
CARB KIT 18-7750
$51.00
CARB KIT 18-7738
$59.75
FLOAT 809569
$23.00
FLOAT 827470M
DISCONTINUED 		DISCONTINUED
CARB KIT 827493M DISCONTINUED
NO PARTS
AVAILABLE
FLOAT 854253
$37.25
FLOAT 854253-1
$34.50
CARB KIT 600-14
$54.00
CARB KIT 855546A1
SUBSTITUTING TOHATSU
# 369871221M
(ABOUT $30.00 LESS;
this is a rebranded
Tohatsu motor)
$84.50
CARB KIT 855546A3
SUBSTITUTING TOHATSU
3F0871221M # 3F0871221M
 (ABOUT $20.00 LESS)
(this is a rebranded Tohatsu motor)
$48.75
CARB KIT 855546A4
309871220M, 314871221M SUBSTITUTING TOHATSU
# MTM309871220M
(this is a rebranded
Tohatsu motor)
$

Merc price, identical kit, is $70.25
FLOAT 95259
$18.75
GASKET / NEEDLE KIT KIT 1
$59.75
GASKET / NEEDLE KIT KIT 3
$15.00
GASKET / NEEDLE KIT KIT 8

FUEL PUMP DIAPHRAGM is NOT included. Add Fuel Pump Kit 7815 if needed!
$18.75
GASKET / NEEDLE KIT KIT 21
$21.00
