MERCURY OUTBOARD CARBURETOR KITS

(U.S.-MADE MARINER OUTBOARDS ARE THE SAME APPLICATIONS)

40 - 150 HP INLINE MODELS

MODELS THROUGH 35 HP

V6 MODELS

TIP: CARB NUMBERS ARE USUALLY LOCATED ON THE
CARB MOUNTING FLANGE OR ON THE FLOAT BOWL

Carb kits are PER CARBURETOR, unless noted. You need one kit for each carb you're repairing.
FLOATS are not included in carb kits and need to be purchased separately if needed, but they rarely do need replacing.

HP CARB NUMBER GASKET
KIT ONLY
FUEL PUMP
KIT
GASKET KIT
with NEEDLE
FLOAT COMPLETE
KIT
NOTE: Most Tillotson AJ, KA, and KB-series carbs for INLINE motors though the late 1970's can use
kit # 18-7013 , which has what is usually required. See chart below for alternate smaller & larger kits.
40 (400) (4cyl) KA-2A, 9A 7006-1 109 7013 7208 NONE
40 (40, 400, 402) (2 cyl) KC-1A, KD-5A 7006-1 112 7013 7208 1395-9262-1
40 (40, 400, 402) (2 cyl) WMK-1, 8, 21 , 24 , 31, 33, 34, 38 7006-1 112 MTM-7021 7208 1395-5109-1
40 (2cyl) (644cc) WME-36, 36A, 37, 37A, 38,
39A, 42, 42A, 63, 64, 65, 66, 67
7211-1 1812 INCLUDED IN
CARB GASKET
KIT
18-72000 18-7750
40 (3 cyl) WME-53, 68, 69 7211-1 1812 INCLUDED IN
CARB GASKET
KIT
18-72000 18-7750
40 (4 cyl) WMA-4 336002 INCLUDED IN
IN CARB KIT
KIT 14 7209 1395-9023
40 (4 cyl) WMA-7B 1395-9651 1812 KIT 10 7209 18-7226
(minus float)
40 (4 cyl) WMA-9, 10, 13 1395-9651 1812 KIT 10 823620 18-7226
(minus float)
40 (4-Stroke) (4 cyl) SERIAL# USA 0T228405 & Up
(USA-made)
NONE NONE NONE 854253-1 600-14
(minus float)
40 (4Stroke) (4cyl) SERIAL #0G231123 & Up
(USA-made)
NONE NONE NONE 809569 809594A1
40 (4-Stroke) (3 cyl) SERIAL #0T178500 & Up
(USA-made)
NONE NONE NONE 854253-1 600-14
(minus float)
40 (4-Stroke) (3cyl) SERIAL #0P153500 & Up
(Belgian-made)
NONE NONE NONE 854253-1 600-14
(minus float)
40 (4-Stroke) (3cyl) SERIAL #0G760300-0T178499
(USA-made)
NONE NONE NONE 854253 600-14
(minus float)
HP CARB NUMBER GASKET
KIT ONLY
FUEL PUMP
KIT
GASKET KIT
with NEEDLE
FLOAT COMPLETE
KIT
45 (450) (4cyl) KA-17A, 19A 7006-1 109 7013 7208 1395-9262-1
45 {4 cyl) WMA-4 336002 INCLUDED IN
IN CARB KIT
KIT 14 7209 1395-9023
45 (4 cyl) WMA-6 1395-9651 1812 KIT 10B 7209 18-7226
(minus float)
45 (4cyl) WMA-7B 1395-9651 1812 KIT 10 7209 18-7226
(minus float)
45 (4 cyl) WMA-9, 10, 13 1395-9651 1812 KIT 10 823620 18-7226
(minus float)
45 (4 Stroke, Bodensee) SERIAL# USA-0G231123 & Up NONE NONE NONE 809569 809594A1
45 JET (3 cyl) WME-57, 58 7211-1 1812 INCLUDED IN
CARB GASKET
KIT
18-72000 18-7750
50 (4 cyl) KA-13A, 18A, 19A, 21A, 21B,
21C, 21D, 24A, 26A, 26B, 27A
7006-1 109 7013 7208 1395-9262-1
50 (4 cyl) BA-3A, 3B, 3C, 3D, 4A 7007 7815 KIT 8 7209 1399-5199-1
50 (4 cyl) WMA-1, WMA-3 336002 INCLUDED IN
IN CARB KIT
KIT 14 7209 1395-9023
50 (4cyl) WMA-6 series 1395-9651 1812 KIT 10B 7209 18-7226
(minus float)
50 (4 cyl) WMK-8 7006-1 NONE KIT 3 7208 1395-5109-1
50 (3 cyl) WM-13, 13A, 15, 15A, 16,
16A, 18
7004 112 KIT 18 18-7249
INCL NEEDLE
812953
50 (3 cyl) WME-22, 22B, 23, 24, 26,
27, 28, 35, 43, 44, 45, 53,
68, 69
7211-1 1812 INCLUDED IN
CARB GASKET
KIT
18-72000 18-7750
HP CARB NUMBER GASKET
KIT ONLY
FUEL PUMP
KIT
GASKET KIT
with NEEDLE
FLOAT COMPLETE
KIT
50 (4 Stroke) (935 cc) SERIAL #0G231123-0T178499
(USA-made)
NONE NONE NONE 809569 809594A1
50 (4-Stroke) (995cc) SERIAL #0T178500 & Up
(USA-made)
NONE NONE NONE 854253-1 600-14
(minus float)
55  (3-cyl ) WM-13, 13A, 15, 15A, 16,
16A, 18
7004 112 KIT 18 18-7249
INCL NEEDLE
812953
55  (3-cyl ) WME-22, 22B, 23, 24, 26, 27,
28,
35, 43, 44, 45, 57, 58
7211-1 1812 INCLUDED IN
CARB GASKET
KIT
18-72000 18-7750
60 (600) (6cyl) KB-3A 7006-1 56678A1 7013 7208 NONE
60 (3 cyl) WM-13, 13A, 15, 15A, 16,
16A, 18
7004 112 KIT 18 18-7249
INCL NEEDLE
812953
60 (3 cyl) WME-22, 226, 23, 24, 26, 27,
28, 35, 43, 44, 45, 57, 58
7211-1 1812 INCLUDED IN
CARB GASKET
KIT
18-72000 18-7750
60 (4-Stroke) (995 cc) SERIAL # 0T178500 & Up
(USA-made)
NONE NONE NONE 854253-1 600-14
(minus float)
65 (650) (3 cyl) WM-4 7004 110 KIT 20 7208 812953
65 (650) (3 cyl) WMK-5, 12, 13, 20 110 MTM-7021 7208 1395-5109-1
65 (650) (3cyl) WM-2 7004 110 KIT 20 7208 NONE
65 (650) (4cyl) KC-2A, 5A, 5B, 5C, 11A, 15A 7006-1 109
THRU S#2803561
56678A1
S#2803562-UP
7013 7208 1395-9262-1
HP CARB NUMBER GASKET
KIT ONLY
FUEL PUMP
KIT
GASKET KIT
with NEEDLE
FLOAT COMPLETE
KIT
65 JET (3 cyl) WME-29, 30, 31 , 41 , 46, 47,
48, 49, 59, 60, 61 , 62, 75,
76, 77, 7
7211-1 1812 IN GASKET KIT 18-72000 18-7750
70 (700) (6cyl) KA-8A, 12A 7006-1 109 7013 7208 1395-9262-1
70 (3 cyl)
    S# 4571652-6428680
WM-6, 8, 9, 11 7004 112 KIT 20 18-7249
INCL NEEDLE
812953
70 (3 cyl)
    S# A966142-UP
WME-1, 1A, 1B, 4, 5, 6, 6A,
7, 7B, 8, 9, 10, 10A, 15, 15A,
17, 18,
7211-1 2721 INCLUDED IN
CARB GASKET
KIT
18-72000 18-7750
75 (3 cyl) WME-1, 1A, 1B, 4, 5, 6, 6A,
7, 7B, 8, 9, 10, 10A, 15,
15A, 17, 18,
7211-1 S #A996142-C221199
2721
INCLUDED IN
CARB GASKET
KIT
18-72000 18-7750
2721
(90° CHECK VALVE)
1812
(INLINE CHECK VALVE)
S #D283222-UP
1812
75 (4 cyl) WM-14, 17 7004 1812
(SQUARE PUMP)
111
(TRIANGLE PUMP)
KIT 18 18-7249
INCL NEEDLE
812953
75 (4-Stroke) SERIAL #0G960500 & Up
(USA-made)
NONE NONE NONE 804184 18-7743
75 (4-Stroke) SERIAL #0P094500 & Up
(Belgian-made)
NONE NONE NONE 804184 18-7743
HP CARB NUMBER GASKET
KIT ONLY
FUEL PUMP
KIT
GASKET KIT
with NEEDLE
FLOAT COMPLETE
KIT
80 (80, 800)
(4 cyl)
WM-5, 10, 12, 14, 17 7004 109
(DUAL
FUEL PUMP;
1 KIT FOR
EACH PUMP)
111
(SINGLE
FUEL PUMP)
KIT 20 18-7249
INCL NEEDLE
812953
80 (80, 800)
(4 cyl)
WMK-2 ~~~ 109
(DUAL
FUEL PUMP;
1 KIT FOR
EACH PUMP)
111
(SINGLE
FUEL PUMP)
MTM-7021 7208 1395-5109-1
80 (80, 800)
(4 cyl)
KD-4A NONE 109
(DUAL
FUEL PUMP;
1 KIT FOR
EACH PUMP)
111
(SINGLE
FUEL PUMP)
KIT 3 7208 1395-9262-1
80 (800)
(6cyl)
KA-10A, 11A, 14A, 16A,KC-3A NONE 109 7013 7208 NONE
80 (3 cyl) WME-1, 1A, 1B, 4, 5, 6, 6A,
7, 7B, 8, 9, 10, 10A, 15,
15A, 17, 18,
7211-1 2721 INCLUDED IN
CARB GASKET
KIT
18-72000 18-7750
80 JET (4 cyl) WME-32, 32A, 50, 79 7211-1 1812 INCLUDED IN
CARB GASKET
KIT
18-72000 18-7750
85 (850) (4cyl) WM-3, 5 7004 111 KIT 20 18-7249
INCL NEEDLE
812953
85 (850) (4cyl) WMK-4, 16, 17 NONE 111 MTM-7021 7208 1395-5109-1
85 (850) (6cyl) KA-10A, 11A, 14A, 16A,KC-3A 1300-00135 109 7013 7208 NONE
90 (90, 900) (6 cyl) WMK-23, 27, 30, 35, 39 NONE 115
(OLD STYLE)
1812
(NEW STYLE)
MTM-7021 7208 1395-5109-1
HP CARB NUMBER GASKET
KIT ONLY
FUEL PUMP
KIT
GASKET KIT
with NEEDLE
FLOAT COMPLETE
KIT
90 (900) (6cyl) KC-6A NONE 109 7013 7208 1395-9262-1
90 (3 cyl) WME- SERIES (ALL) 7211-1 NONE INCLUDED IN
CARB GASKET
KIT
18-72000 18-7750
90 (4-Stroke) SERIAL #06960500 & Up
(USA-made)
NONE NONE NONE 804184 18-7743
90 (4-Stroke) SERIAL # 0P094500 & Up
(Belgian-made)
NONE NONE NONE 804184 18-7743
95 (950) (6 cyl) KC-6A NONE 109 7013 7208 1395-9262-1
100 (1000) (6 cyl) KC-1A, 7A, 7B, 10A, 14A NONE 109 7013 7208 1395-9262-1
100 (4 cyl) WME-11, 14, 20, 20A, 21,
21A, 32, 32A, 50, 79
7211-1 2721
(HAS 90°
CHECK VALVE)
1812
(HAS INLINE
CHECK VALVE)
INCLUDED IN
CARB GASKET
KIT
18-72000 18-7750
110 (1100) (6cyl) KC-1A, 7A, 7B, 10A, 14A NONE 109 7013 7208 1395-9262-1
HP CARB NUMBER GASKET
KIT ONLY
FUEL PUMP
KIT
GASKET KIT
with NEEDLE
FLOAT COMPLETE
KIT
115 (115, 1150) (6cyl) KD-6A, 6B NONE 110
(OLD STYLE)
115
(NEW STYLE)
KIT 3 7208 1395-9262-1
115 (115, 1150) (6cyl) WMK-3, 10, 15, 18, 26,
28, 32, 36, 40, 41
~~~ 110
(OLD STYLE)
115
(NEW STYLE)
MTM-7021 7208 1395-5109-1
115 (4 cyl) WME-1 1 , 14, 20, 20A, 21 ,
21 A, 33, 40, 40A
7211-1 2721
(HAS 90°
CHECK VALVE)
1812
(HAS INLINE
CHECK VALVE)
INCLUDED IN
CARB GASKET
KIT
18-72000 18-7750
125 (1250) (6 cyl) KD-1A, 1B, 2A, 3A NONE 109 NONE 7208 1395-9262-1
* not for KD-1A
125 (4 cyl) WME-34, 52, 81 7211-1 1812 INCLUDED IN
CARB GASKET
KIT
18-72000 18-7750
135 (1350) (6 cyl) KD-7A, 7B NONE 110 KIT 21 7208 1395-9262-1
135 (1350) (6cyl) WMK-4 NONE 110 KIT 3 7208 1395-5109-1
HP CARB NUMBER GASKET
KIT ONLY
FUEL PUMP
KIT
GASKET KIT
with NEEDLE
FLOAT COMPLETE
KIT
140 (140, 1400) (6cyl) WMK-7, 9, 25, 29 NONE 110
(OLD STYLE)
115
(NEW STYLE)
KIT 3 7208 1395-5109-1
150 (1500) (6cyl) WMK-11, 14, 19, 22 110
(OLD STYLE)
115
(NEW STYLE)
KIT 3 7208 1395-5109-1

MERCURY CARB COMPONENTS
DESCRIPTION PART # & IMAGE SELECT
FUEL PUMP KIT 109 $10.00
FUEL PUMP KIT 110 $6.00
FUEL PUMP KIT 111 $6.00
FUEL PUMP KIT 112 $6.00
FUEL PUMP KIT 115 $11.50
CARB KIT MTM-7021
7021
Click Image For Larger

$19.00

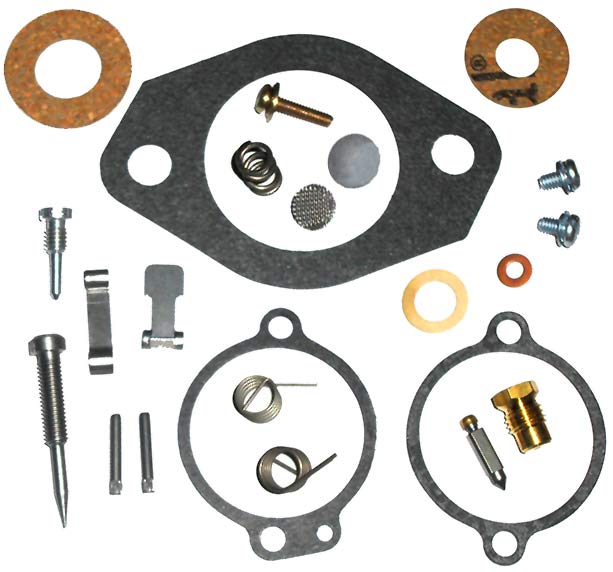

CARB KIT 1395-5109-1 $66.50

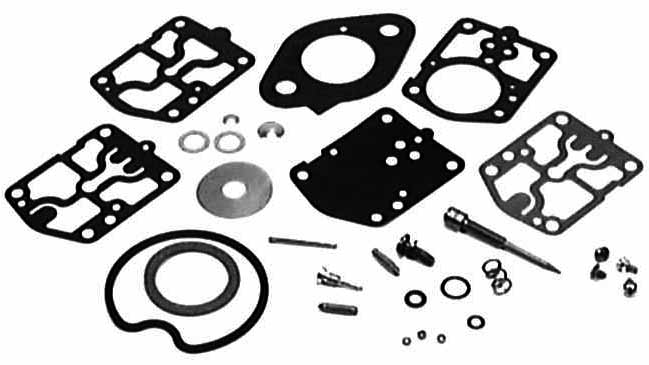

CARB KIT 1399-5199-1 $112.00
FLOAT 1395-5898
DISCONTINUED
FLOAT 1395-823620 $61.00
CARB KIT 1395-823707-2 $131.00
GASKET KIT 1395-9023 $81.00
CARB KIT 1395-9026
Click Image For Larger
$72.00
GASKET KIT 1395-9027 $29.50
CARB KIT 1395-9262-1
most AJ, KA, & KC series carbs also see next kit below
NOT For KD-1A, although most of the parts likely will fit. The KD-1A specific kit is discontinued.
Click Image For Larger
$99.25
CARB KIT 7013
Also replaces above #1395-9262-1, many AJ, KA, & KC series carbs, but does not include most of the hardware or the big gasket in dark blue above 18-7013
$18.25
CARB KIT 1395-9648-1 $167.00
GASKET KIT 1395-9651 $10.75
CARB KIT 1399-8153
NOTE: THIS KIT DOES NOT
CONTAIN FLOAT NEEDLE.
MERCURY HAS DISCONTINUED THE NEEDLE AND THERE IS NO SOURCE AVAILABLE FOR IT.
$64.00
GASKET KIT 1399-8154 1399-8154
Click Image For Larger
$30.50
CARB KIT 1399-879194026 $112.50
FLOAT 16253 $48.00
FLOAT 18-72000 $22.50

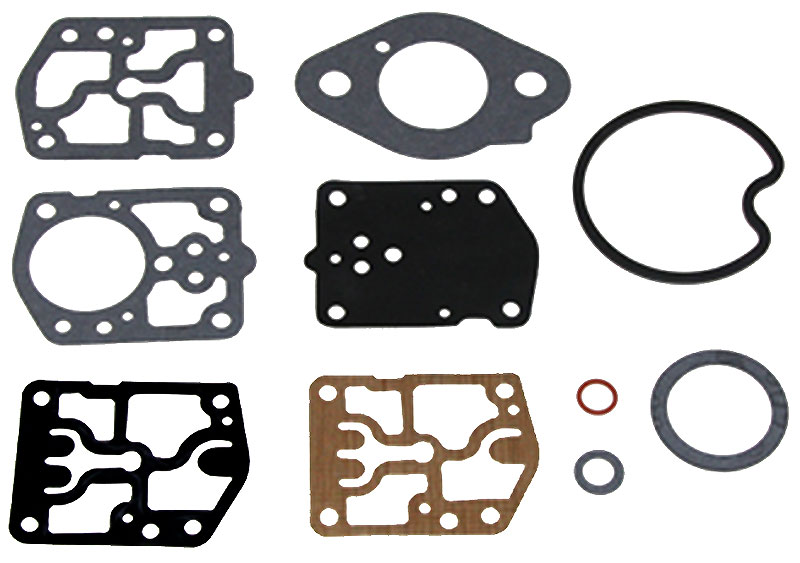

GASKET KIT 336002
Click Image For Larger
$10.00
CARB KIT 18-7226 $75.00
FLOAT KIT
w/NEEDLE & SEAT
18-7249 $25.00
FUEL PUMP KIT 18-7750 $51.00
FUEL PUMP KIT 18-7815 $11.50
FUEL PUMP KIT 2721 $15.00
FUEL PUMP KIT 31503A1 $9.75
FUEL PUMP KIT 53245A1 $9.10
FUEL PUMP KIT 56678A1
DISCONTINUED
No Longer Made
GASKET KIT 7004 $5.00
GASKET KIT 7006-1 7006-1 $9.75
GASKET KIT 7007 7007 $9.50
FLOAT 7208 $13.50
FLOAT 7209 $20.25
GASKET KIT 7211-1 $11.00
GASKET KIT 18-7212 $69.00
CARB KIT 18-7738 $59.75
FLOAT 804184 $39.75
CARB KIT 7743-1 $120.25
FLOAT 809569 $23.00
CARB KIT 809594A1 $0.00

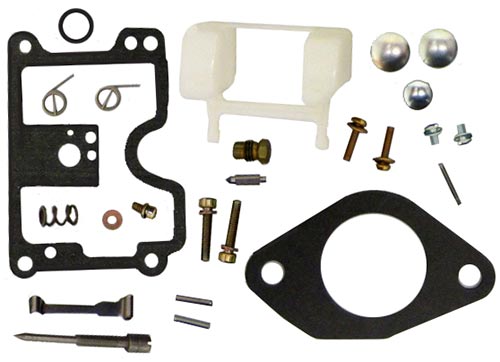

CARB KIT 812953 $132.25
FLOAT 827470M
DISCONTINUED
DISCONTINUED
CARB KIT 827493M DISCONTINUED
NO PARTS
AVAILABLE
FLOAT 854253 $37.25
FLOAT 854253-1 $34.50
CARB KIT 600-14
$54.00
CARB KIT 855546A1
SUBSTITUTING TOHATSU
# 369871221M

(ABOUT $30.00 LESS)
(this is a rebranded Tohatsu motor)
$84.50
CARB KIT 855546A3
3F0871221M SUBSTITUTING TOHATSU
# 3F0871221M
(ABOUT $20.00 LESS
(this is a rebranded Tohatsu motor)
$48.75
CARB KIT 855546A4
309871220M, 314871221M SUBSTITUTING TOHATSU
# MTM309871220M
(ABOUT $30.00 LESS)
(this is a rebranded Tohatsu motor)
$
FLOAT 95259 $18.75
GASKET / NEEDLE KIT KIT 1 $59.75
GASKET / NEEDLE KIT KIT 10
needle attached with clip
$20.00
GASKET / NEEDLE KIT KIT 10B
needle has spring attached
$20.00
GASKET / NEEDLE KIT KIT 14 $20.00
GASKET / NEEDLE KIT KIT 18 $24.75
GASKET / NEEDLE KIT KIT 20 $12.00
GASKET / NEEDLE KIT KIT 21 $21.00
GASKET / NEEDLE KIT KIT 3 $15.00
GASKET / NEEDLE KIT KIT 8 $18.75
FUEL PUMP KIT

NOTE:
Modification of Holes
in Fuel Pump Body
Necessary.
SEE HERE
This needs to be done
with factory kits also
1812
$34.00



We pay the freight out in USA on all orders over $100.00. Orders less than this amount will have a shipping and handling charge of $8.75 added. Some bulky and heavy items will incur additional charges. You will be notified beforehand if this is the case. All orders normally ship via USPS. Remember, all orders receive free technical support from the MasterTech!




Please review our Warranty, Returns & Refunds policies before you place an order.

DISCLAIMER

The information provided on these pages is correct to the best of my knowledge, however the MasterTech makes no warranty, express or implied, regarding the use of, results of, or liability created from, application of this data. This information is disseminated in good faith, however MasterTech assumes NO LIABILITY whatsoever in regard to this service. The information, software, products, and services published on this web site may include inaccuracies or typographical errors. Changes are periodically added to the information herein. Mastertech may make improvements to this site at any time. Parts ordered from this website may or may not be in dealer stock at the time of order. Thank you for reading.
