POWERHEAD GASKET SETS

FIND THE GASKET KIT YOU NEED IN THE TABLES BELOW. THEN CLICK ON THE ITEM # IN SHOPPING
CART TO PURCHASE, OR USE THE SECURE ORDER FORM.

HEAD GASKETS ARE LISTED HERE
MOST GASKET SETS INCLUDE CRANK SEALS, UNLESS NOTED
contact Us for those not listed, they're sold individually, not available in kit form

3-Cylinder
V4 Crossflow
V4 Looper
V6 Crossflow
V6 & V8 Looper

EVINRUDE JOHNSON COMPLETE GASKET SETS 1 & 2 CYLINDER MOTORS. All include head gasket.
APPLICATION DESCRIPTION	PART #	SELECT
1.5, 2 HP, MATE, JUNIOR • 1968-90	439080	NLA Contact Us, we might be able to get some of it
4 HP • 1978-82 2.5, 4, 4.5, EXCEL & ULTRA • 1983-90	439081 DISCONTINUED, LIMITED AVAILABILITY	NLA OEM ONLY $75.00
3, 4 HP • 1991 UP	433426	OEM ONLY $83.50
5, 6 HP • 1984-90 6, 7.5 HP • 1981-83 8 HP • 1980-90	439082	OEM ONLY $62.50
5, 6, 8 HP • 1996-98	433419	OEM ONLY $67.50
6 HP • 1964-79	387321 Click Image For Larger	OEM ONLY $69.75
9.9, 15 HP • 1974-92	500-118 Click Image For Larger	$39.00
9.9, 15 HP • 1993 UP (2 STROKE)	500-119 Click Image For Larger	$39.00
18, 20, 25 HP • 1959-76	384960 With 322332 HEAD GSKT. Click Image For Larger	OEM ONLY $105.25
25 HP • 1977-78 35 HP • 1976-78	387849	NLA Contact Us, we might be able to find one
20, 25, 30, 35 HP • 1979 UP	500-120 Click Image For Larger	$57.00
40 HP • 1960-80	NLA Some Gaskets Available Individually	CONTACT US
50 HP • 1979-1980	2194 Click Image For Larger	$83.50
• 40 HP 1984-05 • 45 HP 1985-90 (Commercial) • 48 HP 1987-96 • 50 HP 1981-05 • 55 HP 1980-00 • 60 HP 1980-85	500-125 Click Image For Larger	$62.75

EVINRUDE JOHNSON COMPLETE GASKET SETS 3 CYLINDER MOTORS. All include head gasket.
APPLICATION DESCRIPTION	PART #	SELECT
55, 60 HP (45 CID MODELS) • 1968-1971	383306 OEM only	NLA Contact Us, we might be able to find one

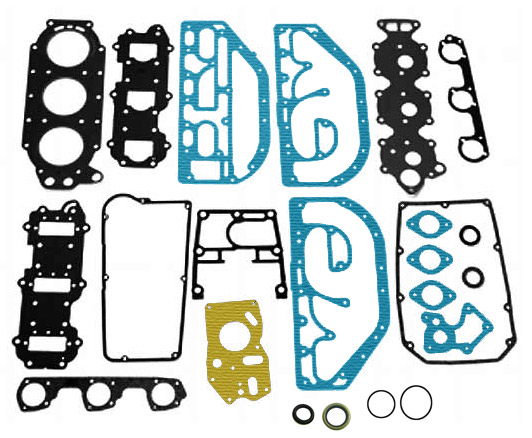

60 HP •1986-88 65 HP • 1972-86 70 HP • 1974-85 75 HP • 1975-89	500-135 Click Image For Larger	$78.00
40 JET, 50, 60, 70 HP (56 CID MODELS) • 1986 UP 3.187" bore	500-136 Click Image For Larger	$50.00

EVINRUDE JOHNSON COMPLETE GASKET SETS V4 CROSSFLOW 4 CYLINDER MOTORS. All kits include head gaskets.
APPLICATION DESCRIPTION	PART #	SELECT
85 HP • 1979-80 • 1991-95 SPL 88 • 1988-92	500-130 Click Image For Larger (Click Images For Larger)	$114.00
110 • 1986-89 115 • 1979-83	500-130 Click Image For Larger	$114.00
88 • 1993-96 90 • 1981-98 65 & 80 Jet • 1991-97 115 1993-99 115 TurboJet • 1994-97	500-130 Click Image For Larger	$114.00
115, 135, 140 HP • 1973-77	1506KIT2 Click Image For Larger	$107.00

EVINRUDE JOHNSON COMPLETE GASKET SETS V6 CROSSFLOW 6 CYLINDER MOTORS. All kits include head gaskets.
APPLICATION DESCRIPTION	PART #	SELECT
150 HP, 1978-91 155 HP, 1986-91 175 HP, 1977-85 175 HP, 1977-85 185 HP, 1984-85 200 HP, 1976-83 235 HP, 1978-79	500-140 Click Image For Larger	$120.75

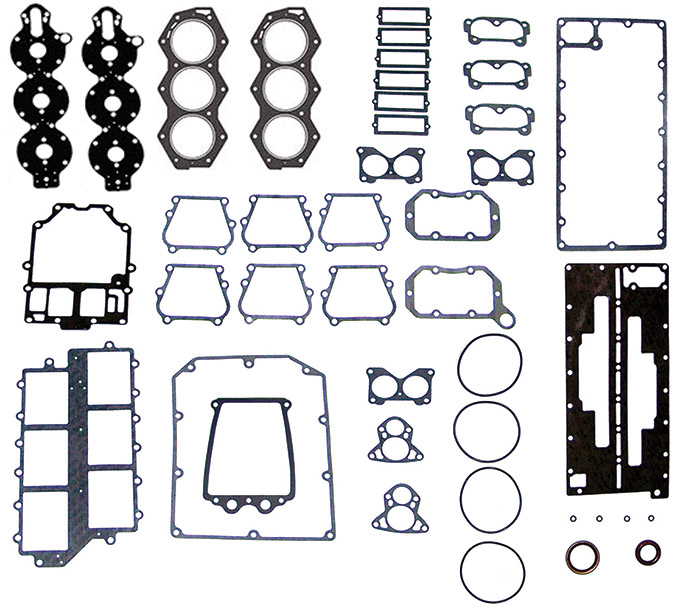

175 HP, 1986-91 235 HP, 1980-85	500-141 Click Image For Larger	$131.50
235XP/GT, 1983-85	(2 required) 329774 HEAD GASKETS ONLY (NO KIT, OTHER GASKETS SOLD SEPARATELY)	OEM Only $51.50 each change quantity in cart if desired, defaults to 2

EVINRUDE JOHNSON COMPLETE GASKET SETS V4 LOOPER 4 CYLINDER MOTORS. All kits include head gaskets.
APPLICATION DESCRIPTION	PART #	SELECT
90° 120, 140 HP • 1985-87	500-131 Click Image For Larger	$104.25
90° 120, 130, 140 HP • 1988 UP	500-132 Click Image For Larger	$109.00

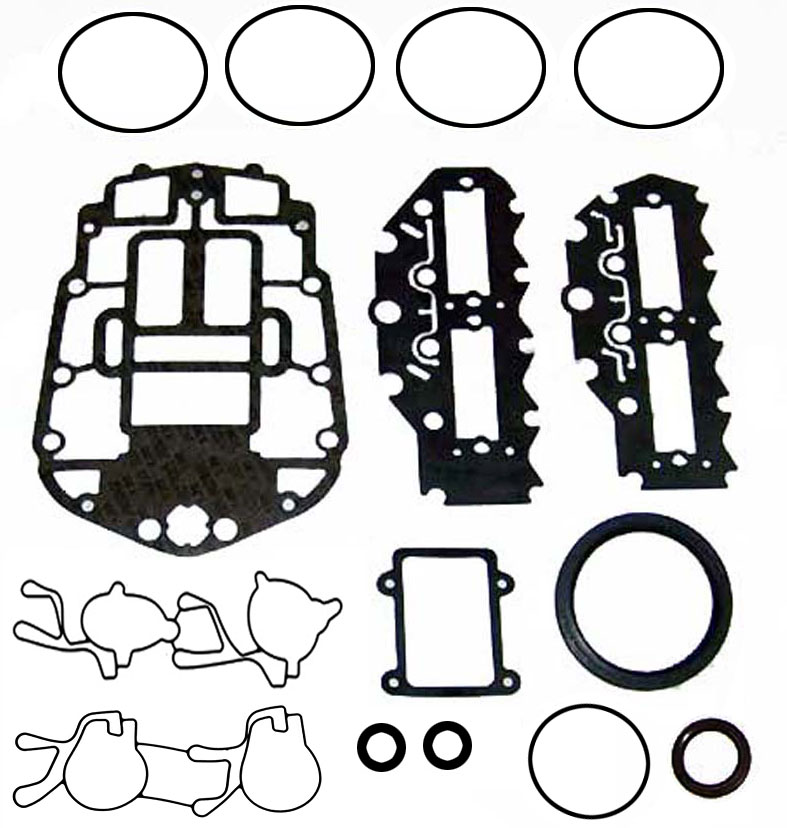

60° 90, 115HP • 1995-06	500-133 Click Image For Larger	$105.75
60° 90-115 FFI • 1998 UP	500-134 Click Image For Larger	$88.25

EVINRUDE JOHNSON COMPLETE GASKET SETS V6, V8 LOOPER MOTORS. All kits include head gaskets.
APPLICATION DESCRIPTION	PART #	SELECT
90° 200, 225 HP • 1985-87 Small Bore	500-144 Click Image For Larger	$113.00
90° 200, 225 HP • 1988-93	500-145 Click Image For Larger	$122.00
90° 200, 225 HP • 1994 UP	500-146 Click Image For Larger	$126.50
60° 150, 175 HP • 1991 UP	500-147 Click Image For Larger	$122.75
60° 150, 175 HP FFI • ALL	500-150 Click Image For Larger	$92.50
275 HP 3.6 LITRE V8 • 1985-87	(2)3840 HEAD GASKET ONLY (OTHER GASKETS SOLD SEPARATELY) Click Image For Larger	$120.00/ PAIR
250, 275, 300 HP V8 • 1988 UP	500-152 Click Image For Larger	$154.00

Please review our Warranty, Returns & Refunds policies before you place an order.
