ELECTRICAL PARTS
CD IGNITION 1973 - 1984

Mastertech is your source for quality electronic ignition parts for all makes of US outboard motors. Some components of the outboard electrical system are not available from CDI, our preferred source; in this case we have listed the OEM or alternate aftermarket part in its place.

Engine wiring harnesses are also available for most motors. Please CONTACT US for price & availability.



FOR NEWER MOTORS, GO TO THIS INDEX


OMC APPLICATION GUIDE
POWER PACK TYPE IGNITION (TERMINAL BLOCK) THRU 1977
HP
YEAR
CD MODULE
TYPE
STATOR
IGNITION
COIL
SENSOR
RECTIFIER/
REGULATOR
50 - 55 71-77 113-1397 PP2 173-1232 183-2091 133-0875K1 AR103
66 - 75 72-78 113-1726 PP3 173-1235 183-2303 133-1251 AR103
85 - 140
V4
73-77 113-1731 PP4 173-1225 183-4632 133-1900 AR103
150 - 200
V6
76-77 113-1726 PP3/6 173-1867 183-2303 133-1486 AR103


OMC APPLICATION GUIDE
POWER PACK TYPE IGNITION (TERMINAL BLOCK) 1978-84
HP
YEAR
CD MODULE
TYPE
STATOR
IGNITION
COIL
SENSOR
RECTIFIER/
REGULATOR
6 - 35 78-84 113-2453 CD2 173-1651 (e)
173-1670 (c)
18-5176 133-3387 (m) 153-1778
50 - 60 78-84 113-2453 CD2 173-1651 18-5176 In Stator 153-1778
40 - 60 83-84 113-2453 CD2 173-1670 (c) 18-5176 133-3387 153-1778
70 - 75 79-84 113-2138 CD3/6 173-3724 18-5176 133-3387 AR103
85 - 140
V4
78-84 113-2125 CD4 173-3672 18-5176 133-3376 AR103
150 - 235
V6
79-84 113-2138 CD3/6 173-3672 (d)
173-3668 (f)
18-5176 133-3387 153-1778
(e) Electric Start         (m) Rope Start         (c) Coil Only         (d) 10 Amp         (f) 35 Amp


CDI ELECTRONICS IGNITION COMPONENTS
DESCRIPTION PART NUMBER PRICE ORDER
POWERPACK 113-1397

581397, 764708, 113-1397
Click Image For Larger

POWER PACK

$164.50
POWERPACK 113-1726

581726, 113-1726
Click Image For Larger

EV-JO POWERPACK

$139.75

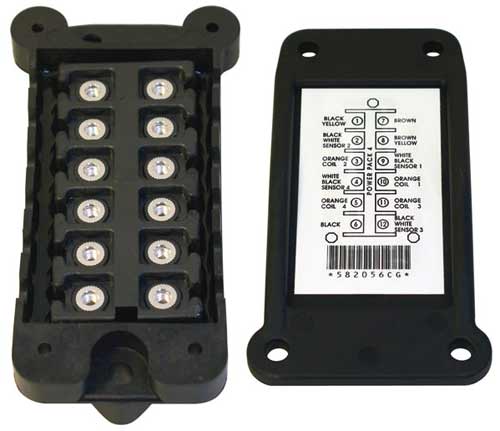

POWERPACK 113-1731


Click Image For Larger

POWER PACK V4

$178.25
POWERPACK 113-2125


Click Image For Larger

P-pack V4

$111.95
POWERPACK 113-2138

582138, 582400, 582642, 582556, 113-2138
Click Image For Larger

EV-JO POWERPACK

$149.35
POWERPACK 113-2453

582453, 583380,  582452, 113-2453
Click Image For Larger

P-PACK EV-JO 2 CYL 9.9 - 35 HP

$94.24

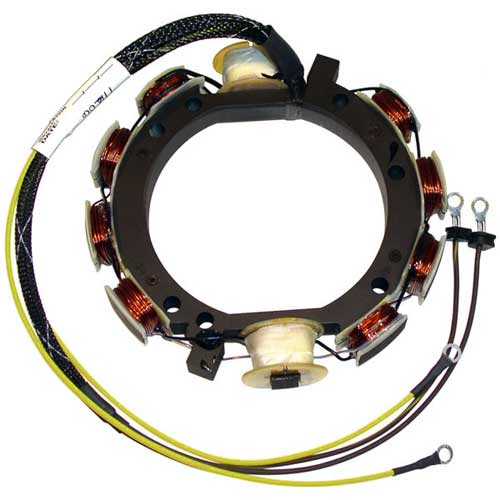

STATOR 173-1225


Click Image For Larger

STATOR 6A V4

$486.29
STATOR 173-1232

580809, 581232, 775530, 173-1232
Click Image For Larger

STATOR EV-JO 50-55 HP 71-77

$242.00
STATOR 173-1235

581301, 580950, 581235, 763771, 173-1235
Click Image For Larger

STATOR 6A 3-CYL

$253.00

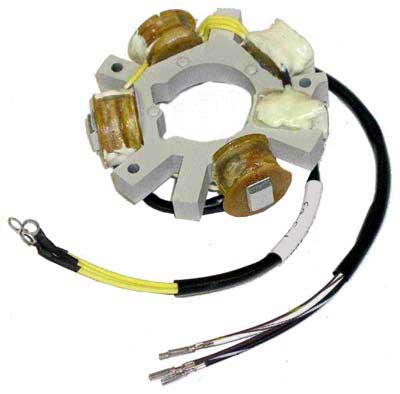

STATOR 173-1651

581651, 585087, 763770, 173-1651
Click Image For Larger

STATOR 5A 2-CYL 9.9-60 HP

$402.00
STATOR (COIL ONLY) 173-1670

581670, 173-1670
Click Image For Larger

STATOR COIL ONLY

$34.50
STATOR 173-1867

581867, 173-1867
Click Image For Larger

STATOR V6 9A

$192.48
STATOR 173-3668


Click Image For Larger

STATOR 35A V6

$441.00
STATOR 173-3672

583672, 173-3672
Click Image For Larger

STATOR 9A V4 V6

$302.75
STATOR 173-3724

581957, 583724, 173-3724
Click Image For Larger

STATOR 3-CTL EV-JO

$248.00

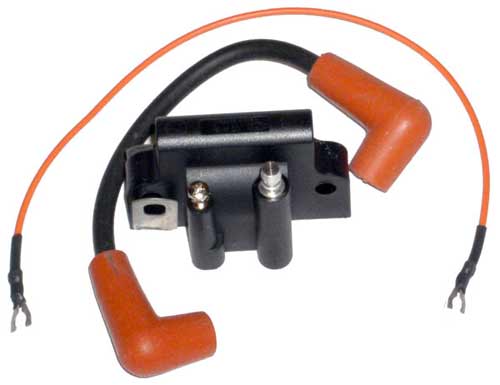

IGNITION COIL 183-2091


Click Image For Larger

IGNITION COIL

$53.00
IGNITION COIL 183-2303

502886, 183-2303
Click Image For Larger

COIL KIT

$45.50
IGNITION COIL 18-5176


Click Image For Larger

IGNITON COIL PRO 5176

$42.25

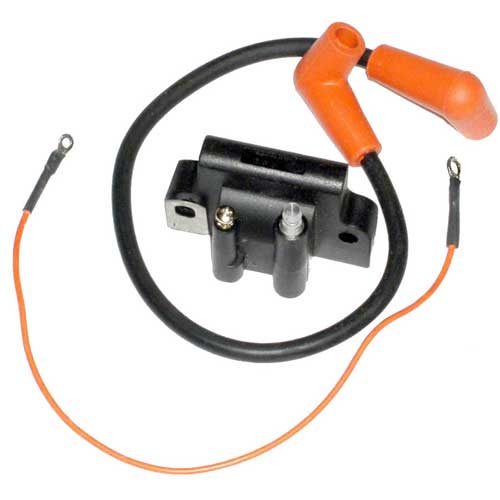

IGNITION COIL 183-4632

502890, 183-4632
Click Image For Larger

IGNITION COIL

$47.00
SENSOR COIL 133-0875K1


Click Image For Larger

TIMER BASE KIT

$158.65

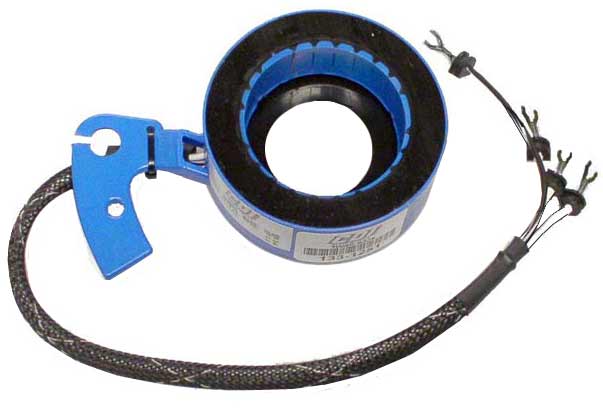

TIMER BASE 133-1251

580970, 581251, 133-1251
Click Image For Larger

TIMER BASE 3-CYL

$370.75

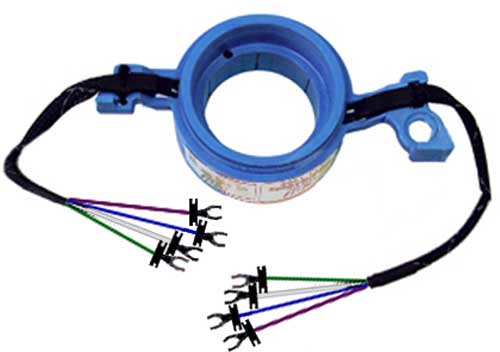

TIMER BASE 133-1486

581486, 133-1486
Click Image For Larger

TIMER BASE V6

$346.00
TIMER BASE 133-1900


Click Image For Larger

TIMER BASE V4 EV-JO

$393.00
TIMER BASE 133-3376

581812, 582041, 583376, 133-3376
Click Image For Larger

EV-JO TIMER BASE V4

$327.00
TRIGGER/ SENSOR 133-3387

584716, 583387, 133-3387
Click Image For Larger

TRIGGER-SENSOR EV-JO

$55.43
RECTIFIER 153-1778

581778, 153-1778
Click Image For Larger

RECTIFIER 4-WIRE RING TERMINALS

$54.00
RECTIFIER AR103

582399, 583408, 153-3408
Click Image For Larger

RECTIFIER 3-WIRE RING TERMINAL PRO 5708

$29.00
