ELECTRICAL PARTS 4 THRU 50 HP
2 STROKE ONLY

Electrical parts for Merc's OVER 50 HP  HERE

NOTE: SOME EARLY MARINER MODELS ARE ACTUALLY YAMAHA MOTORS. THESE ARE NOT COVERED HERE and WE HAVE VERY FEW AVAILABLE FOR YAMAHA or JAPANESE MARINER MOTORS. FOR THESE PLEASE USE OUR QUOTE FORM

ITEMS WITH PREFIX R ARE REPAIR AND RETURN ONLY


IF YOU HAVE A QUESTION AS TO WHAT YOU HAVE PLEASE NOTE IN CART COMMENT BOX. BE SURE TO INCLUDE YOUR
   MOTOR'S SERIAL NUMBER IN THE SHOPPING CART


Please use your serial number to find the correct part. Mercury does nothing by years
(the year ranges below are for GENERAL reference only).



DISTRIBUTOR DRIVE BELT
ALL MODELS		 20140
# 20140
$0.00
SPARK PLUG WIRE 9"
Fits Many Motors Except CDM Ignition
# 3026
$6.00
SPARK PLUG WIRE
Fits CDM Ignition Models		 CDM plug wire
# 3027
$7.00



MERCURY/U.S. MARINER ELECTRICAL
HP &
MODEL		 CYL YEAR SERIAL # SWITCHBOX STATOR TRIGGER RECTIFIER
REGULATOR
4 GNAT
4		 1 76-80
1980 		9075839-UP
5598202-5595531		 114-6222 174-6120K1 NA NA
4
4.5		 1 80-89
75-80 		5595532-A855096
4107220-5595531		 R336-4516 174-4469
(LOW SPEED)

174-4470
(HIGH SPEED)		 -NA NA-
6, 8, 9.9, 10
S15		 2 86-96
88-93		 A197112-G289100 114-7452A3¹
114-7452¹		 174-6617 -NA
6, 8, 9.9 2 97-00 A197112-UP 114-5713 174-6617 98450A10 NA
7.5 MODEL 75 2 72-73 3274633-
3801457		 R336-4516 174-4469
(LOW SPEED)

174-4470
 (HIGH SPEED)		 NA NA
7.5 MODEL 75 2 74-86 3801458-
A197111		 114-6222 174-6120K1 CALL 5707
7.5, 9.8,
20 (MODEL 200)		 2 70-71 2810637-
3274632		 IN STATOR 174-3996 NA NA
HP &
MODEL		 CYL YEAR SERIAL # SWITCHBOX STATOR TRIGGER RECTIFIER
REGULATOR
9.8 2 72-73 3263263-
3795658		 R336-4516 174-4469
(LOW SPEED)

174-4470
(HIGH SPEED)		 NA NA
9.8,
9.8 MODEL 110		 2 74-78 3795659-
5206549		 114-6222 174-6120K1 NLA 5707
9.8,
9.8 MODEL 110		 2 79-85 5206550- UP 114-6222 174-6120K1 NLA NA
10
S15		 2 86-96
88-93		 A197112-0G289100
B238464-0G044365		 114-7452 114-6617K1 98450A10 NA
10 2 97-00 0G760300-0G830999 114-5713 174-6617
*for versions with plug:
6617A17		 98450A10 NA
15, S15, 20, 25 2 88-93 B238464-
0G044365		 114-7452A3¹
114-7452¹		 174-6617
*for versions with plug:
6617A17		 NA NA
15XD, S15 2 94-96 0G044027-
0G437999		 114-4952 174-6617
*for versions with plug:
6617A17		 98450A10 5707
15XD, S15 2 96-97 0G438000-0G760299 114-7452 174-6617
*for versions with plug:
6617A17		 98450A10 5707
18
18 XD 		2 80-93
79-87		 5837437-0G044026
58374367-B114230		 114-7452A3 174-6617
*for versions with plug:
6617A17		 98450A10 NA
HP &
MODEL		 CYL YEAR SERIAL # SWITCHBOX STATOR TRIGGER RECTIFIER
REGULATOR
20 MODEL 200 2 72-73 3226958- 3537530 R336-4516 174-4469
 (LOW SPEED)

174-4470
(HIGH SPEED) 		NA NA
20 MODEL 200 2 73-77 3537531-4709592 114-4911 R64638A1 R3394996A1 NA
20 2 77-80 4709593-5837436 114-6222 174-6120K1 NLA NA
20 2 80-87 5837437-B2384763 114-7452A3 174-6617
*for versions with plug:
6617A17		 98450A10 NA
20, 25 2 88-94 0B238464-0G044026 114-7452 174-6617
*for versions with plug:
6617A17		 98450A10 NA
20, 25 2 94-96 0G044027- 0G437999 114-4952 174-6617
*for versions with plug:
6617A17		 98450A10 5707
20 JET 2 94-97 0G044027- 0G437999 114-4952 174-6617
*for versions with plug:
6617A17		 98450A10 5707
20 SEA PRO 2 96-97 0G438000- 0G760299 114-7452 174-6617
*for versions with plug:
6617A17		 98450A10 5707
20 2 97-98 0G438000- 0G760299 114-4952 174-6617
*for versions with plug:
6617A17		 98450A10 5707
20, 25 2 98-00 0G760300- UP 114-5713 174-6617
*for versions with plug:
6617A17		 98450A10 5707
25
25 XD 		2 79-87 5705532-0B238463
5837437-B114230		 114-7452A3 174-6617
*for versions with plug:
6617A17		 98450A10 NA
25 XD 2 1998-07 0G760300 - 0T979999 114-5713 174-5721 98450A10 5707
HP &
MODEL		 CYL YEAR SERIAL # SWITCHBOX STATOR TRIGGER RECTIFIER
REGULATOR
30
ELECT. START 		2 95-96 0G053314-0G380074 114-7509 (CDM)
3251A 5 (TPM)) 		174-9710 134-9021-2 5279
30
ROPE START 		2 95-96 0G053314-0G380074 114-7509 (CDM)
3251A 5 (TPM) 		174-9710 134-9021-2 5279
30
ELECT. START 		2 96-98 0G380075-0G589999 114-7509K1 (CDM)
3251A6 (TPM) 		174-9710 134-9021-2 5279
30
ROPE START 		2 96-98 0G380075-0G589999 114-7509K1 (CDM)
3251A6 (TPM) 		174-9710 134-9021-2 5279
30
ROPE START 		2 98-99 0G590000-UP 114-7509
CDM Unit 		174-9710 3960-2 NA
30
ELECT. START 		2 98-99 0G590000-UP 114-7509
CDM Unit 		2075K2 3960-2 5279
30 JET 3 89-97 C159200-0G589999 114-5772 1-94-5454
9A BOLT-IN MAGNETS 		134-6452 5707
30 JET 3 98-01 0G590000-UP 114-7509
CDM Unit 		2075K2 134-4512-3 5279
35 HP
ELECT. START 		2 84-89 6445633-B393190 114-7452A3 174-6617

R92431A6

REPAIR & RETURN ONLY

 5707
35 HP
ROPE START 		2 84-89 6445633-B393190 114-7452 174-6617

R92431A6

REPAIR & RETURN ONLY

 NA
40 HP
(MODEL 400)
ELECT. START 		2 70-71 2874704-3336237 R332-4172 174-4424
incl. Rectifier 		NA
-- Use Stator
Kit -- 		5707
40 HP
(MODEL 400)
ROPE START 		2 70-71 2874704-3336237 R332-4172 174-4424 NA NA
HP &
MODEL		 CYL YEAR SERIAL # SWITCHBOX STATOR TRIGGER RECTIFIER
REGULATOR
40 HP
(MODEL 402)
ELECT. START 		2 72-81 3336258-5823917 114-4911 174-5255 338-4731A8 5707
40 HP
(MODEL 402)
ROPE START 		2 72-81 3336258-5823917    114-4911 174-5255 338-4731A8 NA
40 HP
ELECT. START		 2 81-84 5823918-6999999 114-4911 174-5255 338-4731A8 NA
40 HP
ROPE START		 2 81-84 5823918-6999999 114-7452A3 174-6617 NLA NA
40 HP
ELECT. START

40 JET 		4 89-91


89-97 		C159200-D055047


C159200-0G589999 		114-5772 1-94-5454
9A BOLT-IN MAGNETS 		134-6452 5707
40 HP
ROPE START		 4 89-91 C159200-UP 114-5772 1-94-5454
9A BOLT-IN MAGNETS 		134-6452 NA
40 HP
ELECT. START		 4 91-97 D055048 - G589999
Standard Ignition		 114-5772 174-8778
9A GLUED-IN MAGNETS 		134-6452 5707
40 HP
ELECT. START		 4 91-96 D055048- 0G291031 114-5772
 174-9710
16A System		 134-6452 5279
40 HP
ROPE START		 3 97-99 0G531301-0G760299 114-7509
CDM Unit 		174-9710 NA NA
HP &
MODEL		 CYL YEAR SERIAL # SWITCHBOX STATOR TRIGGER RECTIFIER
REGULATOR
40 HP
ELECT. START		 3 97-99 0G531301-0G760299 114-7509
CDM Unit 		2075K1 4512-3 5279
45 HP
ELECT. START		 4 81-89 5531630-B393190 114-5772 1-94-5454
9A BOLT-IN MAGNETS 		134-6452 5707
45 HP
ROPE START		 4 81-89 5531630-B393190 114-5772

R76314A3

REPAIR & RETURN ONLY

 134-6452 NA
45 JET 3 91-99 D000750-0G589999 114-9052 174-9710 134-9021-3 5279
45 JET 3 2000-UP 0G589000-UP 114-9052 2075K2 4512-3 5279
50 HP
(MODEL 500) 		4 1967 2116318-2305100 114-2986 NOT AVAILABLE NA 5707
50 HP
ELECT. START 		4 70-75 2858814-4357639 R333-3213 174-3175
(RED)

174-3176
(BLUE)		 NA 5707
50 HP
ELECT. START 		4 76-85 4357640-6428680 114-5772 1-94-5454
9A BOLT-IN MAGNETS 		134-6452 5707
50 HP
ROPE START 		4 76-85 4357640-6428680 114-5772

R76314A3

REPAIR & RETURN ONLY

 NA NA
HP &
MODEL		 CYL YEAR SERIAL # SWITCHBOX STATOR TRIGGER RECTIFIER
REGULATOR
50 HP 3 84-90 6428681- D000749 114-7778 1-94-5454
9A BOLT-IN MAGNETS 		134-6453 5707
50 HP 3 91-97 D000750-0G589999 114-9052 174-9710 9021-3 5279
50 HP
ROPE START		 3 97-99 0G531301-0G760300
(CDM Ignition)		 114-7509
CDM Unit		 174-9710 4512-3 NA
50 HP
ELECT. START		 3 97-99 0G531301-0G833000
(CDM Ignition)		 114-7509
CDM Unit 		2075K2 4512-3 5279
¹  NOTE 1   For switchbox with stud & nut connections use 114-7452A3, for wire connections use 114-7452K1.

MERCURY/MARINER ELECTRICAL
DESCRIPTION PART # PRICE SELECT
SWITCHBOX

114-7778332-7778A5, 332-7778A12, 114-7778



Click Image For Larger
Switchbox

$386.11
STATOR
(RED 9 AMP)

(Example of original)		 2075K1

Replaces EXISTING Mercury RED STATOR only

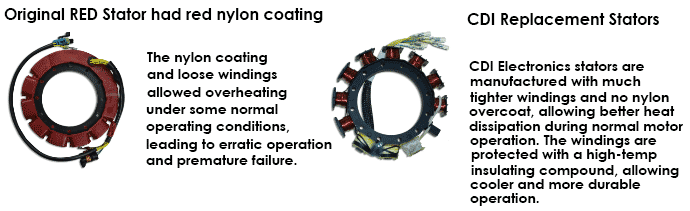

about red stators
 398-832075A
Click Image For Larger
MERCURY RED STATOR REPLACEMENT 9A

$295.50
STATOR
(RED 16 AMP)

(Example of original)		 2075K2

Replaces EXISTING Mercury RED STATOR only

about red stators
 398-832075A21, 398-832075T18, 174-2075K1
Click Image For Larger
MERCURY RED STATOR REPLACEMENT 16A

$277.00

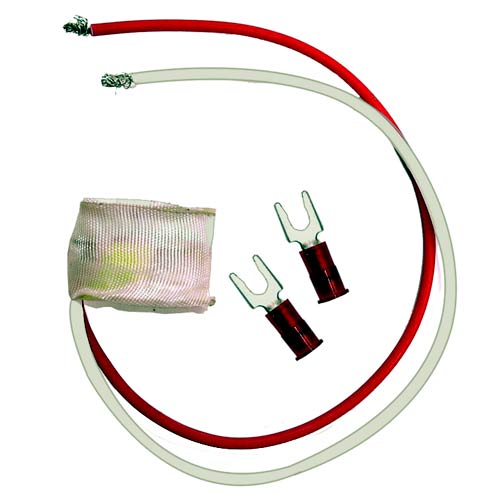

STATOR 333-3175, 174-3175174-3175
(RED COIL ONLY)





Click Image For Larger
STATOR, RED COIL

$68.50
STATOR 333-3176, 174-3176 174-3176
 (BLUE COIL ONLY)





Click Image For Larger
STATOR BLUE COIL

$57.50
STATOR 336-3996A7 174-3996





Click Image For Larger
STATOR 2 CYLINDER

$377.50
STATOR 398-4424, 174-4424 174-4424





Click Image For Larger
STATOR with RECTIFIER KIT

$246.50

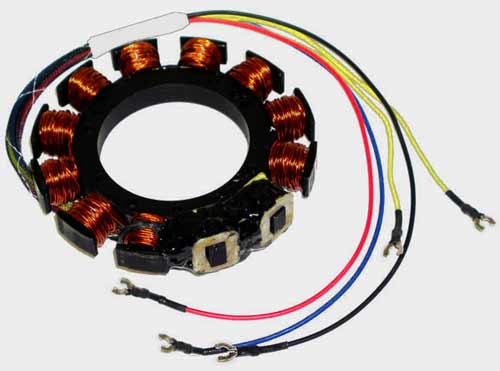

STATOR 398-5255, 174-5255 174-5255





Click Image For Larger
STATOR MERC 2-CYLINDER

$327.75
SWITCHBOX 332-2986, 114-2986 114-2986





Click Image For Larger
UPGRADE SWITCHBOX-COIL ASSEMBLY

$410.00
SWITCHBOX 114-4911 332-4911A8, 114-4911





Click Image For Larger
SWITCHBOX 2-CYL

$470.00
SWITCHBOX 114-4952 18495A13
Replaces Mercury
#18495A13





Click Image For Larger
POWER PACK FORCE MERC

$352.00
SWITCHBOX 114-4953
Replaces Mercury 18495A2618495A26





Click Image For Larger
SWITCHBOX MERC L3

$425.67
SWITCHBOX 114-5713 855713A





Click Image For Larger
SWITCHBOX MERC 2-CYL

$286.00
SWITCHBOX 114-5772 332-5772A7





Click Image For Larger
Switchbox

$386.11

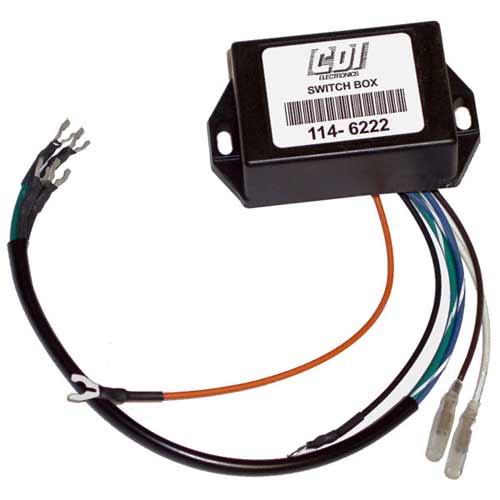

SWITCHBOX 114-6222339-6222A





Click Image For Larger
SWITCHBOX MERC 2-CYL

$313.00
CDM Unit 114-7509827509A10 827509T7





Click Image For Larger
MERC CDM w/WIRE

$108.72
CDM Module
Upgrade Kit		 7509K1827509A121
Replaces Mercury 827509A121




Click Image For Larger
MERC CDM Module Upgrade Kit

$178.25
SWITCHBOX 7452A3 339-7452
with NUT TERMINALS





Click Image For Larger
SWITCHBOX MERC 2-CYL

$192.50
SWITCHBOX 114-7452339-7452A
with BULLET CONNECTORS





Click Image For Larger
SWITCHBOX BULLET TERMINALS

$253.00
SWITCHBOX 114-9052 19052A8










Click Image For Larger
SWITCHBOX MERC

$422.00
SWITCHBOX 333-3213A3333-3213A3
Click Image For Larger
SWITCHBOX OEM

$442.25
SWITCHBOX 336-4516 R336-4516
  (REPAIR & RETURN)



Click Image For Larger
SWITCHBOX R&R ONLY

$144.00
SWITCHBOX R332-4172
(REPAIR & RETURN)
SWITCHBOX R&R ONLY

$324.00
LOW SPEED STATOR COIL ONLY 174-4469 336-4469A1






Click Image For Larger
STATOR COIL LOW SPEED

$51.00
HIGH SPEED STATOR COIL ONLY 174-4470336-4470A1






Click Image For Larger
STATOR COIL HIGH SPEED

$51.00
STATOR 9A 1-94-5454


BOLT-IN MAGNET DESIGN ONLY!!

GLUED-IN MAGNETS USE 174-8778




Click Image For Larger
MERC STATOR 9A
(174-5454)

$204.25
STATOR 174-5721855721T8








Click Image For Larger
STATOR, C-BRACKET

$159.42

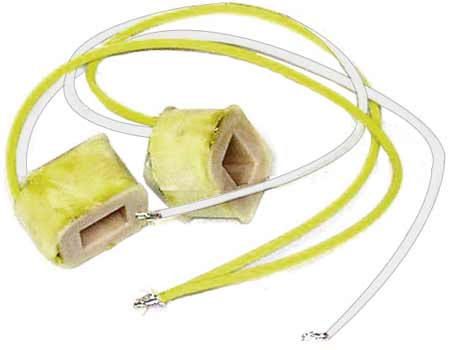

STATOR SET 174-6120339-6119A1 339-6120A1






Click Image For Larger
STATOR COIL SET 2-CYL

$92.00
STATOR 174-661786617A20







Click Image For Larger
STATOR, C-BRACKET

$170.93
STATOR 661786617A20A17
as above, but 3-wire with plug







Click Image For Larger
MERC STATOR with PLUG 3-WIRE

$209.50
STATOR 9A 174-8778398-8778A29


GLUED-IN MAGNETS ONLY!!

BOLT-ON MAGNETS USE 174-5454




Click Image For Larger
STATOR 9A MERC FORCE

$335.00
STATOR 174-9710398-9710A









Click Image For Larger
STATOR 16A MERC FORCE

$388.25
STATOR

R64638A1

REPAIR & RETURN ONLY

64638A1
STATOR R&R ONLY

$230.00
STATOR

R76314A3

REPAIR & RETURN ONLY76314A3
STATOR MERC 40-50 HP

$286.25
RECTIFIER 18-5707816770T 8M0058226






Click Image For Larger
RECTIFIER 18-5707

$32.25
REGULATOR 5279
 w/ Bullet Terminals5279





Click Image For Larger
VOLT REG 16A-40A Systems

$123.00
REGULATOR 194-5279
 w/ Bullet Terminals

AS ABOVE, but CDI brand5279





Click Image For Larger
CDI VOLTAGE REG 16A-40A MERC

$271.00
TRIGGER 3960-2 134-3960-2





Click Image For Larger
MERC TRIGGER SHORT ARM 2-CYL

$117.00
TRIGGER 96452A4 134-6452
with Straight Arm






Click Image For Larger
MERC TRIGGER STRAIGHT ARM

$121.00
TRIGGER 134-645396455A8







Click Image For Larger
MERC TRIGGER 3-CYL

$215.85
TRIGGER 4512-3 854512T





Click Image For Larger
MERC TRIGGER 3-CYL

$118.00
TRIGGER 9021-2 99021A14







Click Image For Larger
MERC TRIGGER 2-CYL

$1166.00
TRIGGER 9021-3






Click Image For Larger
TRIGGER SHORT ARM 3-CYL USE 1-93-99021

$98.95
TRIGGER 338-4731A8
Original Equipment








Click Image For Larger
 NLA Discontinued
TRIGGER R92431A6
  (REPAIR & RETURN) 92431A6
TRIGGER R & R ONLY

$119.00
TRIGGER 98450A1098450A10









Click Image For Larger
TRIGGER OEM ONLY

$95.50
TRIGGER 4996A198450A10
TRIGGER OEM ONLY *NLA*

$130.00
TRIGGER 89312A389312A3 NLA
Discontinued
TPM UNIT 3251A598450A10







Click Image For Larger
TPM MODULE

$456.50
TPM UNIT 3251A698450A10







Click Image For Larger
TPM MODULE

$458.50
DON'T SEE WHAT YOU NEED? JUST ASK.
 QUICK QUOTE FORM

We pay the freight out in USA on all orders over $100.00. Orders less than this amount will have a shipping and handling charge of $8.75 added. Some bulky and heavy items will incur additional charges. You will be notified beforehand if this is the case. Remember, all orders receive free technical support from the MasterTech!




Please review our Warranty, Returns & Refunds policies before you place an order.

DISCLAIMER

The information provided on these pages is correct to the best of my knowledge, however the MasterTech makes no warranty, express or implied, regarding the use of, results of, or liability created from, application of this data. This information is disseminated in good faith, however MasterTech assumes NO LIABILITY whatsoever in regard to this service. The information, software, products, prices, and services published on this web site may include inaccuracies or typographical errors. Changes are periodically added to the information herein. Mastertech may make improvements to this site at any time. Parts ordered from this website may or may not be in dealer stock at the time of order. Thank you for reading.


Revised
