TRIM MOTORS
YAMAHA TRIM TILT MOTORS
BRAND NEW REPLACEMENTS, 1 YEAR WARRANTY! |
| APPLICATION & DESCRIPTION |
PRICE |
SELECT |
 PT600NM-3
FITS YAMAHA:
115 THRU 200 HP, 1987 - 1996
225 HP, 1990-1991
Repl. YAMAHA 6G5-43880-02-00
2 WIRE MOTOR, 3 BOLT MOUNT,
O RING INCLUDED
Click Image For Larger |
$160.00 |
|

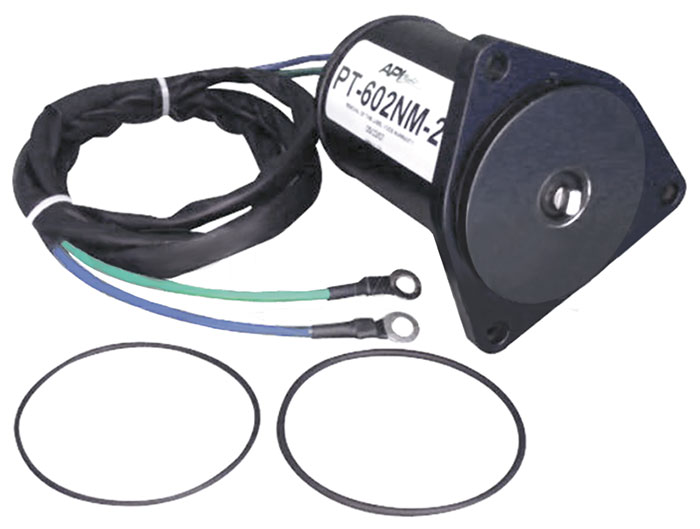

 PT602NM
FITS YAMAHA:
40 HP 1994,
50 HP, 1992 - 1995
50 & 60 HP 2000-2001
70 & 90 HP 1992 - 2009
Click Image For Larger
Repl. YAMAHA
# 6H1-43880-02-00
2 WIRE MOTOR, 3 BOLT MOUNT,
O RING INCLUDED. |
was $142.50
CLEARANCE!!
$149.00 |
|

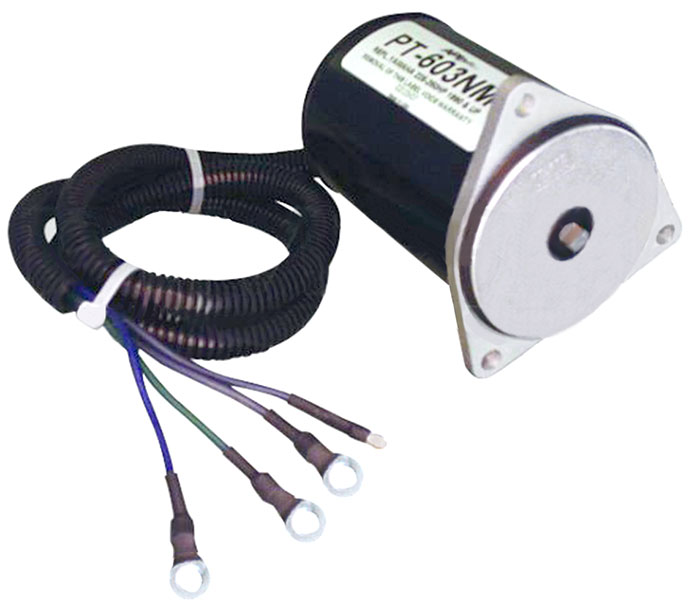

 PT603NM-3
FITS YAMAHA 2-STROKE
225 HP 1994-2003
250 HP 1990-2003
Repl. YAMAHA
61A-43880-01-00,
61A-43880-02-00
Click Image For Larger
4 WIRE MOTOR, 3 BOLT MOUNT,
O RING INCLUDED
|
$189.00 |
|

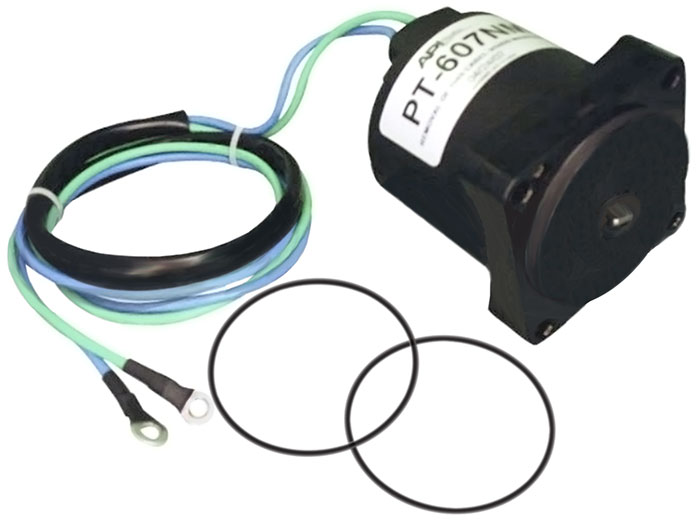

 PT607NM
FITS YAMAHA:
115 THRU 225 HP, 1997 - 2006
115-v150 2004-2009
F115 & LF115 4-STROKE 2000-2009
150-300 HP 2003-2009
Click Image For Larger
Repl.
YAMAHA 64E-43880-00-00,
64E-43880-01-00
68V-43880-04-00
2 WIRE MOTOR, 4 BOLT MOUNT,
O RING INCLUDED.
shaft protrudes approximately 3/16"
from base
|
was $160.00
CLEARANCE!!
$149.00 |
|

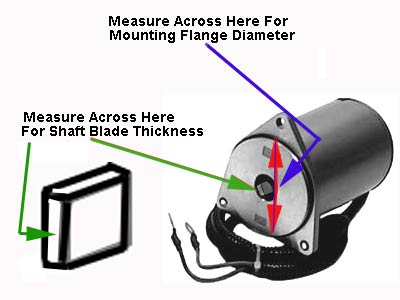

| Caution! PT 608NK, PT 609NK, & PT 612NK look very similar. The difference is in the mounting flange diameter & armature shaft flat blade thickness. See here for an explanation of the differences. If you are still confused about your application, then please contact us before ordering! |

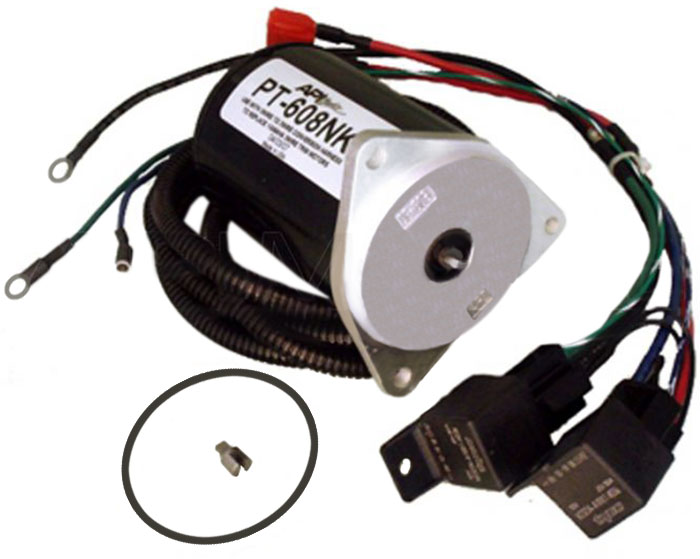

 PT608NK-3
Replaces Original 3-Wire Motor With a High-Performance
2-Wire Motor and Harness/Relay Kit
115 THRU 225 HP, 1987 - 91,
Click Image Above For Larger
Repl. YAMAHA
6G5-43880-00-00,
6G5-43880-01-00,
6G5-43880-02-00
2 WIRE MOTOR, 3 BOLT MOUNT,
 O RING INCLUDED
Mounting Flange Diameter Measures 68.3 mm across
Shaft Blade Measures 2 mm Thick |
$178.00 |
|
| Caution! PT 608NK, PT 609NK, & PT 612NK look very similar. The difference is in the mounting flange diameter & armature shaft flat blade thickness. See here for an explanation of the differences. If you are still confused about your application, then please contact us before ordering! |

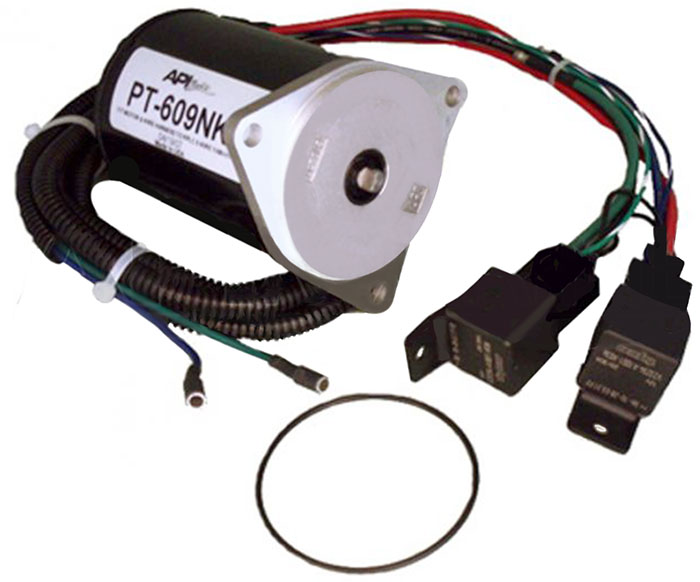

 PT609NK-3
Replaces Original 3-Wire Motor With a High-Performance
2-Wire Motor and Harness/Relay Kit
60 THRU 90 HP, 1987-91
Click Image Above For Larger
Repl. YAMAHA
6H1-43880-00-00
2 WIRE MOTOR, 3 BOLT MOUNT,
 O RING INCLUDED
Mounting Flange Diameter Measures 70.5 mm across
Shaft Blade Measures 4 mm Thick |
$178.00 |
|
| Caution! PT 608NK, PT 609NK, & PT 612NK look very similar. The difference is in the mounting flange diameter & armature shaft flat blade thickness. See here for an explanation of the differences. If you are still confused about your application, then please contact us before ordering! |

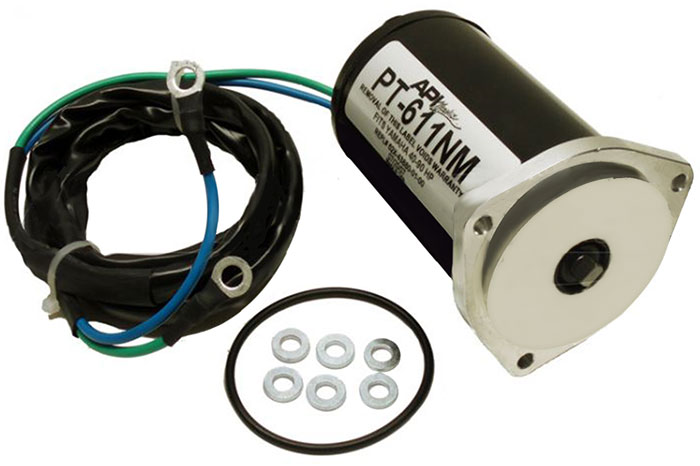

 PT611NM
FITS YAMAHA 40 - 50 HP, 1995 - 2002
Repl. YAMAHA
62X-43880-09-00
2 WIRE MOTOR, 3 BOLT MOUNT,
O RING INCLUDED.
ALSO SEE PT614NM BELOW
Click Image For Larger |
$139.00 |
|

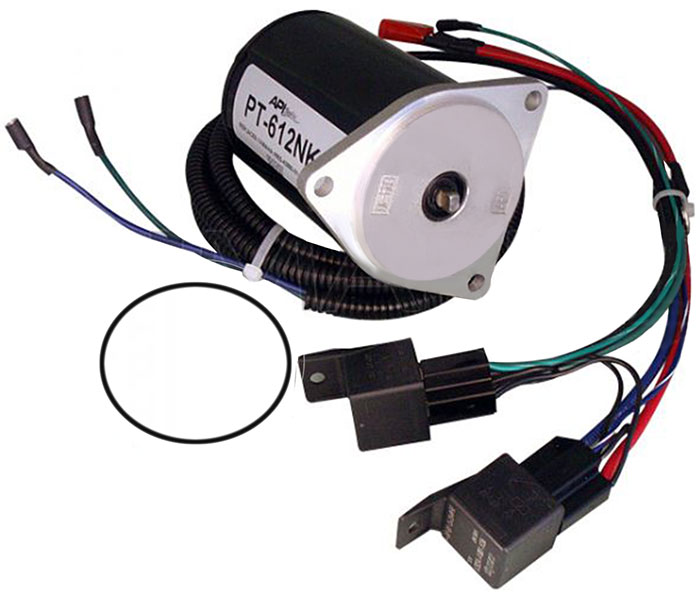

 PT612NK-3
Replaces Original 3-Wire Motor With a High-Performance
2-Wire Motor and Harness/Relay Kit
50 THRU 200 HP, 1985 - 1986
Click Image Above For Larger
Repl. YAMAHA
6E5-43880-01-00,
6E5-43880-02-00,
688-43880-11-00
2 WIRE MOTOR, 3 BOLT MOUNT,
 O RING INCLUDED
Mounting Flange Diameter Measures 68.3 mm across
Shaft Blade Measures 4 mm Thick |
$178.00 |
|

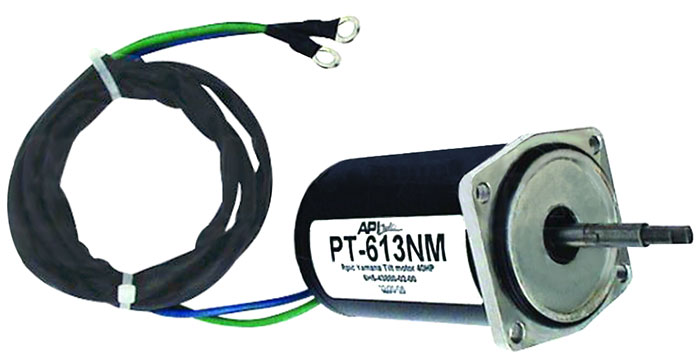

 PT613NM
40 HP, 1985 - 1997, 50 HP 1985-92
Repl. YAMAHA
6H5-43880-02-00
2 WIRE MOTOR, 4 BOLT MOUNT,
O RING & COUPLER INCLUDED
Click Image For Larger |
was $196.25
CLEARANCE!!
$159.00 |
|

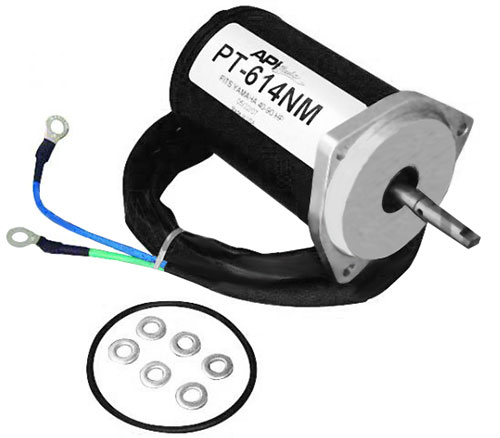

 PT614NM
4-stroke
F50 2001-2004, F60 2002-2004
2-stroke
40TLR 2001-2006,
50TLR 25003-2009
Repl. YAMAHA
CS3-43880-00-00,
62Y-43880-01-00,
69W-43880-00-00
2 WIRE MOTOR, 3 BOLT MOUNT,
O RING & COUPLER INCLUDED
 LOOKS THE SAME
AS PT611NM ABOVE
BUT
WITH LONGER
SHAFT (APPROXIMATELY
1-1/2 INCH
FROM OIL SEAL TO
FLAT BLADE)
2 STROKE & 4-STROKE MOTORS
Click Image For Larger |
$142.25 |
|

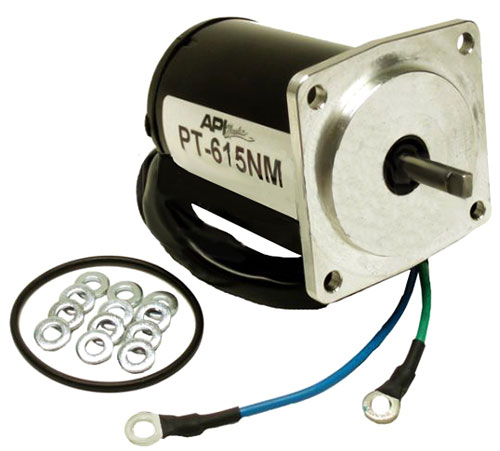

 PT615NM
4-stroke MOTORS
F75 & F90 2003-2004, F80 & F100 1999-2003
Repl. YAMAHA
67F-43880-00-00
2 WIRE MOTOR, 4 BOLT MOUNT,
O RING INCLUDED
Click Image For Larger |
was $232.50
CLEARANCE!!
$149.00 |
|
 PT616NM
2002-2009 4-stroke
F200, F225, F250
LF200, LF225, LF250
2002-2009 2-stroke
LZ250, LZ300, Z250, Z300
Repl. YAMAHA
69J-43880-00-00,
69J-43880-01-00
2 WIRE MOTOR, 3 BOLT MOUNT,
O RING INCLUDED
Click Image For Larger |
$209.50 |
|

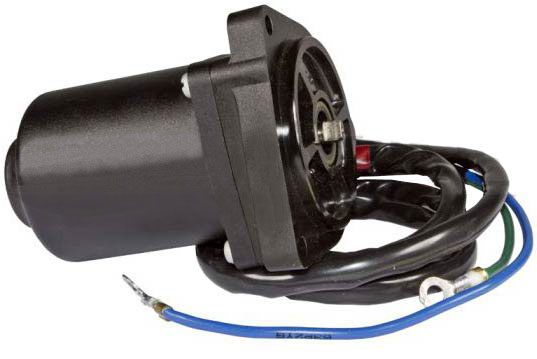

 PT617NM
2002-2009 4-stroke
F150 2011-2013
Repl. YAMAHA
63P-43880-10-00
2 WIRE MOTOR, 3 BOLT MOUNT,
O RING INCLUDED
Click Image For Larger |
$178.00 |
|

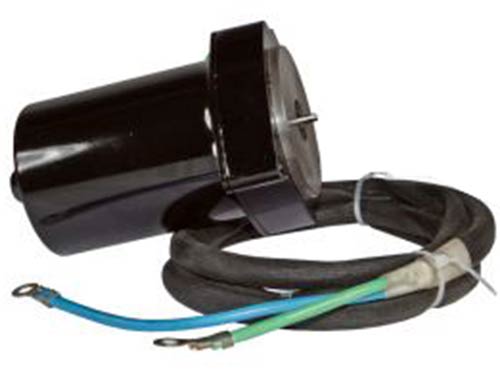

 PT618NM
2002-2009 4-stroke
F350
Repl. YAMAHA
6AW-43880-01-00
2 WIRE MOTOR, 3 BOLT MOUNT,
O RING INCLUDED
Click Image For Larger |
$219.25 |
|

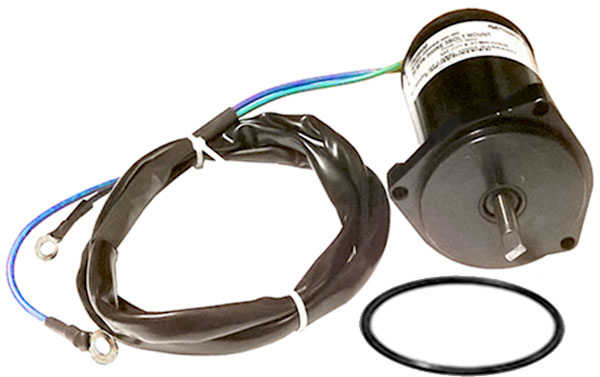

 PT625NM
F50 & F60 4-stroke 2005 -2009
Repl. YAMAHA
6C5-43880-01-00
2 WIRE MOTOR, 3 BOLT MOUNT,
O RING INCLUDED
4-STROKE MOTORS
Click Image For Larger |
was $196.25
CLEARANCE!!
$149.00 |
|

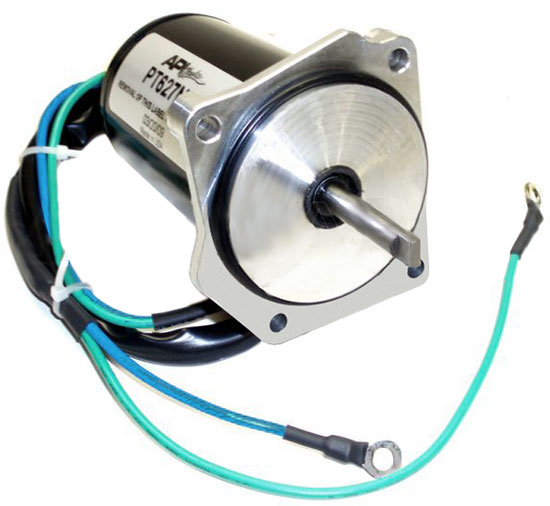

 PT627NM
F75, F90 2005-UP
4-stroke
YAMAHA # 6D8-43880-00-00,
6D8-43880-01-00
long shaft (roughly 1-3/8")
4 BOLT MOUNT, O-RING INCLUDED
Some models have a 3/4" shaft. There's a long plastic coupler in the valve body that you replace with the short one included with the new motor to make this work with those trims.
Click Image For Larger |
was $214.25
CLEARANCE!!
$179.00 |
|
