YAMAHA OUTBOARD ENGINE GASKET KITS -- MASTERTECH MARINE

Wondering
"Where-'n-'Ell"
to get great parts for your outboard?

Right Here!

Typical Yamaha
V4 Gasket Kit

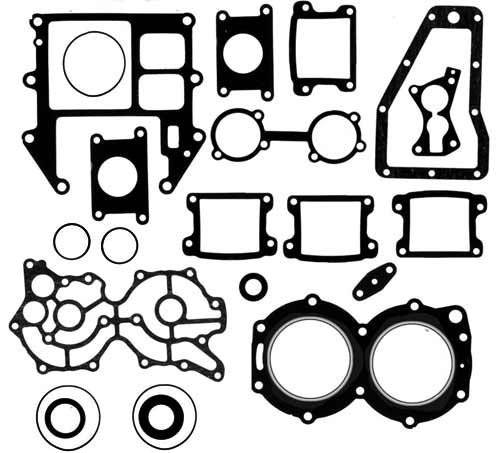

Typical Yamaha Gasket Kit

Meet the MasterTech!
(click picture)

If your Mfgr. says:

That motor's 7 years old!!
Part is no longer available.
We lose $$ on service!
EPA made me do it!
Part's at central warehouse, you'll get it next month.
We don't make parts for those.
We only do warranty work.
Our techs only fix late models.
No clue what's wrong! So we'll work time & material.

Baloney!!

Contact
the Mastertech!

2-STROKE POWERHEAD GASKETS & SEAL KITS
ALL 2-STROKE GASKET KITS INCLUDE CRANK SEALS

YAMAHA GASKET SETS & HEAD GASKETS
HP & MODEL	MODEL YEAR	# CYL.	POWERHEAD GASKET KIT	HEAD GASKET
9.9 & 15 HP	1984-97	2	4411	506-30
25 & 30 HP 2-cyl	1984-87	2	2333	3804
25 HP 2-cyl	1988-94	2	4422	506-21
C25, CV25	1990-93	2	4417	3849
25 HP 3-cyl	1996-99	3	4425	3829
30 HP 3-cyl	1987-93	3	4425	3829
40 HP (except C40) 50 HP, P50 (exc. below)	1984-UP	3	2144	506-07
C40 (6R6)	1991	2	500-312	506-23
C40	1992-93	2	4413	506-23
50	1992-93	2	500-313	506-07
PRO 50, 50 (6H5)	1984-94	3	2144	506-07
CV55, C55	1989, 1991-94	2	697-W0001-02P	3848
60, 70 HP	1984-98	3	2145	3831
75, 80, 85, 90 HP 90 (6H1)	1984-UP	3	500-335	506-12
C85E	1989-UP	3	N/A	506-12
HP & MODEL	MODEL YEAR	# CYL.	POWERHEAD GASKET KIT	HEAD GASKET
V4 115 HP V4 130 HP	1986-UP 1988-UP	4	500-340	506-14
150, 275, 200 HP HPDI	2.6L 90° BLOCK	6	2850	3893
150 - 200 HP EFI	2.6L 90° BLOCK 1999-UP	6	2849-1	506-16
HORIZONTAL REEDS V6 150 HP (CARB & EFI) PRO V 150 175 200 90° BLOCK 225 90° BLOCK	1984-98 1986-88 1984-87 1984-87 1990-94	6	2849	506-16
VERTICAL REEDS V6 90° CARB MOTORS	1990-95, 2000-03	6	500-345	506-16
200, 225 HP L250 (61A), 250 (61B)	76° BLOCK 1990, 1992-01 76° BLOCK CARB ONLY	6	500-353	506-18
225, 250 HP ALL EFI 0X66	76° BLOCK	6	500-355	506-18
225-250 HP 3.3L HPDI	2000-UP	6	2850-1	506-34
300 HP 3.3L HPDI	2000-UP	6	2850-2	506-34
POWERHEAD GASKET KITS CONTAIN ALL NECESSARY O-RINGS AND CRANK SEALS.

DON'T SEE WHAT YOU NEED? JUST ASK.
QUICK QUOTE FORM

YAMAHA HEAD GASKETS
DESCRIPTION	PART #	PRICE	ORDER
HEAD GASKET REPLACES YAMAHA 689-11181-02-00	3804 Click Image For Larger	$39.25
HEAD GASKET REPLACES YAMAHA 688-11181-AG-00	506-12 Click Image For Larger	$34.00
HEAD GASKET REPLACES YAMAHA 6E7-11181-A1-00	506-30 Click Image For Larger	$14.50
HEAD GASKET REPLACES YAMAHA 6J8-11181-A1-00	3829 Click Image For Larger	$37.50
HEAD GASKET REPLACES YAMAHA 6H4-11181-00-00	506-07 Click Image For Larger	$26.10
HEAD GASKET REPLACES YAMAHA 6H3-11181-01-00	3831 Click Image For Larger	$34.25
HEAD GASKET REPLACES YAMAHA 6E5-11181-02-00	506-14 Click Image For Larger	$35.00
HEAD GASKET REPLACES YAMAHA 6L2-11181-A1-00	506-21 Click Image For Larger	$29.75
HEAD GASKET REPLACES YAMAHA 697-11181-A0-00	3848 Click Image For Larger	$40.75
HEAD GASKET REPLACES YAMAHA 695-11181-A1-00	3849 Click Image For Larger	$26.00

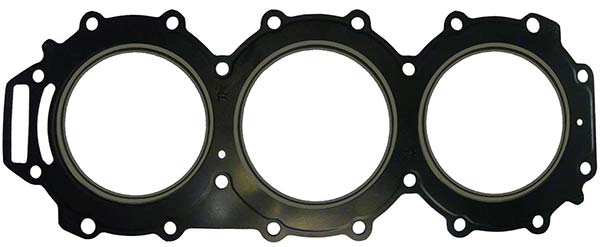

HEAD GASKET 3.3L HPDI REPLACES YAMAHA 6D0-11181-00-00	506-34 Click Image For Larger	$49.00
HEAD GASKET 76° V6 REPLACES YAMAHA 61A-11181-00-A0	506-18 Click Image For Larger	$43.75
HEAD GASKET REPLACES YAMAHA 676-11181-A1-00	506-23 Click Image For Larger	$28.00
HEAD GASKET 90° V6 HPDI REPLACES YAMAHA 68F-11181-00-00	3893 Click Image For Larger	$53.50
HEAD GASKET 90° V6 REPLACES YAMAHA 6G5-11181-A3-00	506-16 Click Image For Larger	$29.00
YAMAHA GASKET SETS INCLUDES HEAD GASKETS or O-RINGS AND SEALS
GASKET SET REPLACES YAMAHA 6F3-W0001-04-00, 6F3-W0001-A4-00	500-340 Click Image For Larger	$158.00
GASKET SET REPLACES YAMAHA 63D-W0001-00-00	2144-1 Click Image For Larger	$76.00
GASKET SET REPLACES YAMAHA 6H4-W0001-01-00, 6H4-W0001-A1-00	2144 Click Image For Larger	$86.00

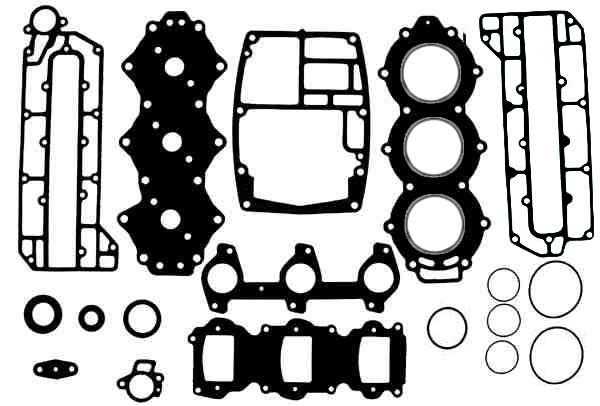

GASKET SET REPLACES YAMAHA 6H3-W0001-00-00, 6H3-W0001-A0-00	2145 Click Image For Larger	$91.00
GASKET SET REPLACES YAMAHA 6H1-W0001-00-00, 6H1-W0001-A0-00	500-335 Click Image For Larger	$89.00
GASKET SET REPLACES YAMAHA 689-W0001-04-00, 689-W0001-A4-00	2333 Click Image For Larger	$61.25
GASKET SET REPLACES YAMAHA 6G5-W0001-03-00, 6G5-W0001-A3-00	2849 Click Image For Larger	$189.00
GASKET SET REPLACES YAMAHA 67H-W0001-00-00	2849-1 Click Image For Larger	$118.00
GASKET SET REPLACES YAMAHA 68F-W0001-01-00	2850 Click Image For Larger	$258.95
GASKET SET HPDI REPLACES YAMAHA 60V-W0001-00-00	2850-1	$269.00
GASKET SET REPLACES YAMAHA 6D0-W0001-01-00	2850-2	$0.00
GASKET SET REPLACES YAMAHA 61A-W0001-01-00, 61A-W0001-A1-00	500-353 Click Image For Larger	$166.75
GASKET SET REPLACES YAMAHA 65L-W0001-02-00	500-355 Click Image For Larger	$205.00
GASKET SET REPLACES YAMAHA 6H4-W0001-04-00	500-313 Click Image For Larger	$89.00
GASKET SET REPLACES YAMAHA 6R3-W0001-A3-00	500-345 Click Image For Larger	$175.00
GASKET SET REPLACES YAMAHA 6E7-W0001-01-00 68F-W0001-01-00 682-W0001-A3-00	4411 Click Image For Larger	$168.50
GASKET SET REPLACES YAMAHA 6R6-W0001-01-00	4413 Click Image For Larger	$126.00
GASKET SET REPLACES YAMAHA 6R6-W0001-02-00	500-312 Click Image For Larger	$88.25
GASKET SET REPLACES YAMAHA 695-W0001-A2-00	18-4417 Click Image For Larger	$90.00
GASKET SET REPLACES YAMAHA 697-W0001-00-00, 697-W0001-A0-00	697-W0001-02P Click Image For Larger	$108.75
GASKET SET REPLACES YAMAHA 6L2-W0001-02-00	4422-1 Click Image For Larger	$141.00
GASKET SET REPLACES YAMAHA 6J8-W0001-01-00	500-319 Click Image For Larger	$105.75

DON'T SEE WHAT YOU NEED? JUST ASK.
QUICK QUOTE FORM

We pay the freight out in USA on all orders over $100.00. Orders less than this amount will have a shipping and handling charge of $8.75 added. Some bulky and heavy items will incur additional charges. You will be notified beforehand if this is the case. Remember, all orders receive free technical support from the MasterTech!

Please review our Warranty, Returns & Refunds policies before you place an order.
