OMC STRINGER (400/800) DRIVES

IGNITION PARTS
THRU 1985-1/2 (1986)

OMC DISCONTINUED THE STRINGER DRIVES IN MID-YEAR 1985 WITH THE INTRODUCTION OF THE OMC COBRA DRIVES.
MANY WERE STILL MARKETED AS 1986 MODELS.

OMC STRINGER APPLICATION GUIDE
APPLICATION	MINOR TUNE-UP KIT (POINTS, ROTOR, CONDENSER)	MAJOR TUNE-UP KIT (POINTS, ROTOR, CONDENSER, & CAP)	CAP	YEARS	ENGINE TYPE	WIRE SET
4 CYLINDER	64235K	64459K	64459	72-73 65-86	100 HP 120, 140, 2.5L, 3.0L	93020
6 CYL. INLINE	64235K	5269	64765	72-76	165 INLINE 6	___
V6 w/PRESTOLITE CLIP-DOWN CAP	83010	83078	83370	81-86	3.8L, 4.3L	18-8801-1
V8 w/PRESTOLITE CLIP-DOWN CAP	5258	83080	83393	75-80 74-77 79-82	175, 185 HP 190 HP 200, 230, 260, 5.0L, 5.7L	18-8803-2
V8 w/PRESTOLITE SCREW-DOWN CAP	83010	83079	83088	83-86	230, 260, 5.0L, 5.7L	18-8803-2
V8 w/MALLORY CLIP-DOWN CAP	81002	5271	83360	78-80 79-86 78 80-82	185 HP 200, 230, 260, 5.0L, 5.7L 225 INBOARD 305, 350, 454 CID	18-8803-2
IGNITION COIL ALL POINTS DISTRIBUTOR MODELS				64529

OMC COBRA STERN DRIVES

IGNITION PARTS
1986 THRU 1990

OMC INTRODUCED THE COBRA STERN DRIVES MID-YEAR 1985 AS 1986 MODELS.

OMC COBRA APPLICATION GUIDE
APPLICATION	MINOR TUNE-UP KIT (POINTS, ROTOR, CONDENSER)	MAJOR TUNE-UP KIT (POINTS, ROTOR, CONDENSER, & CAP)	CAP	YEARS	ENGINE TYPE	WIRE SET
4 CYLINDER DELCO POINTS IGN.	64235K	64459K	64459	86-90	120, 140, 2.5L, 3.0L	93020
4 CYLINDER MALLORY IGN.	81002	N/A	5397	87-90	FORD 2.3L	18-8807-1

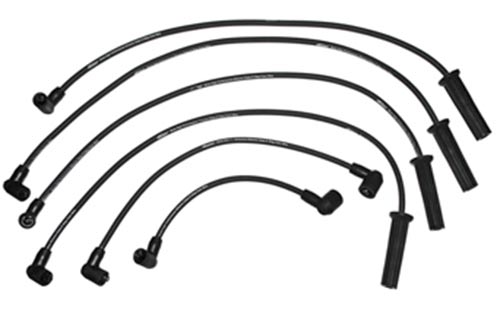

4 CYLINDER PRESTOLITE IGN.	83010	N/A	986933 (OEM ONLY)	90	FORD 2.3L	93035
4 CYLINDER DELCO EST IGN.	N/A	*64635K	64360	90-91	GM 3.0L	93028
V6 wPRESTOLITE SCREW-DOWN CAP	83010	83078	83370	86-90 1989	4.3L INBOARD 262 CID	18-8801-1
V8 w/MALLORY CLIP-DOWN CAP	81002	5271	83360	86-89 80-82	230, 260, 5.0L, 5.7L INBOARD 350 CID	18-8803-2
V8 w/PRESTOLITE CLIP-DOWN CAP	5258	83080	83393	88-89 87-89 89-90	INBOARD 350 CID 7.5L FORD 5.0L, 5.8L	93026
V8 w/PRESTOLITE SCREW-DOWN CAP	83010	83079	83088	86-90	230, 260, 5.0L, 5.7L	18-8803-2
* EST electronic Ignition Kit contains Cap & Rotor Only
IGNITION COIL ALL POINTS DISTRIBUTOR MODELS				64529

OMC COBRA SX STERN DRIVES

IGNITION PARTS
1991 thru 1998

OMC INTRODUCED THE COBRA SX STERN DRIVES IN PARTNERSHIP WITH VOLVO PENTA IN 1991.
FOR THE MOST PART, UNTIL THE END OF THE 1998 MODEL YEAR WHEN OMC SOLD ITS INTEREST IN THE PARTNERSHIP
BACK TO VOLVO, THE IGNITION PARTS ARE THE SAME FOR BOTH.

OMC COBRA SX APPLICATION GUIDE
APPLICATION	TUNE-UP KIT (POINTS, ROTOR, CONDENSER)	CAP & ROTOR KIT	CAP	ROTOR	YEARS	ENGINE TYPE	WIRE SET
4 CYLINDER EST IGN.	N/A	64635K	64360	63463	91-98	3.0L	93028
V6 POINTS IGN.	83010	83078*	83370	82530	91-93	4.3L W/ PRESTOLITE DISTR.	18-8801-1
V6 EST IGN.	N/A	64484K	5362	5408	94-98	4.3L	18-8810-1
V8 POINTS IGN.	83010	83079*	83088	82530	91-98	CARB 5.0L, 5.7L,5.8L (PRESTOLITE DISTR.)	18-8803-2
V8 FORD EFI MODELS	N/A	N/A	5248	5413	93-98	5.0L, 5.8L	18-8820-1
V8 CHEVY EFI MODELS	N/A	N/A	5354	5405	96-98	5.7L (350 CID), 7.4L (454 CID) BIG BLOCK	3888325
V8 CHEVY DDS IGN.	N/A	N/A	5352	NLA	91-98	7.4L (454 CID) BIG BLOCK	18-8843-1
* THIS CAP/ROTOR KIT ALSO INCLUDES POINTS & CONDENSER
IGNITION COIL ALL POINTS DISTRIBUTOR MODELS					64529

Please take the time to enter the model number of your motor in the shopping cart
This will enable us to verify correct parts application.
Thanks!

OMC IGNITION PARTS PRICING
DESCRIPTION	PART #	SELECT
TUNE-UP KIT (LESS CAP)	64235K Click Image For Larger	$29.75
TUNE-UP KIT (LESS CAP)	81002 Click Image For Larger	$27.75
TUNE-UP KIT (LESS CAP)	5258 Click Image For Larger	$24.00
TUNE-UP KIT (WITH CAP)	64459K Click Image For Larger	$31.75
TUNE-UP KIT (WITH CAP)	5269 Click Image For Larger	$52.50

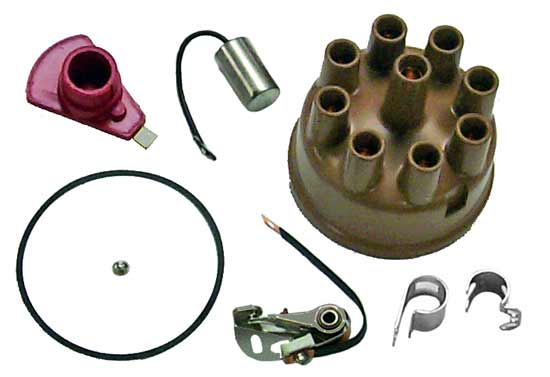

TUNE-UP KIT (WITH CAP)	5271 Click Image For Larger	$56.00
TUNE-UP KIT (WITH CAP)	83079 Click Image For Larger	$49.50
TUNE-UP KIT (WITH CAP)	83078 Click Image For Larger	$52.75

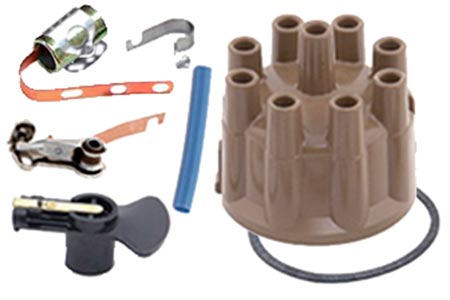

TUNE-UP KIT (WITH CAP)	83080 Click Image For Larger	$69.50
CAP/ROTOR KIT	64484K Click Image For Larger	$36.50
CAP/ROTOR KIT	64635K Click Image For Larger	$15.50
DISTRIBUTOR CAP	83088 Click Image For Larger	$27.25
DISTRIBUTOR CAP	83370 Click Image For Larger	$38.00
DISTRIBUTOR CAP	5248	$41.75
DISTRIBUTOR CAP	5354 Click Image For Larger	$30.00
DISTRIBUTOR CAP	64360 Click Image For Larger	$11.00
DISTRIBUTOR CAP	5362 Click Image For Larger	$29.00
DISTRIBUTOR CAP	83360 Click Image For Larger	$35.25
DISTRIBUTOR CAP	64459 Click Image For Larger	$15.00

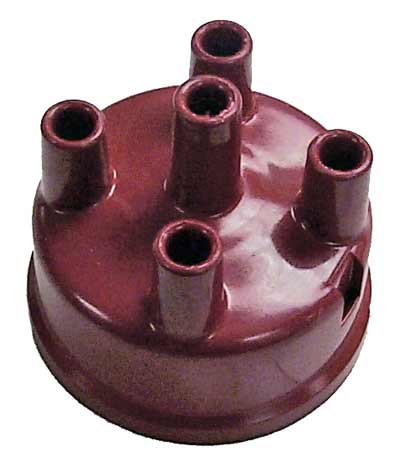

DISTRIBUTOR CAP	5397 Click Image For Larger	$0.00
DISTRIBUTOR CAP	986933 Discontinued	No Longer Available
DISTRIBUTOR CAP	64765 Click Image For Larger	$14.25

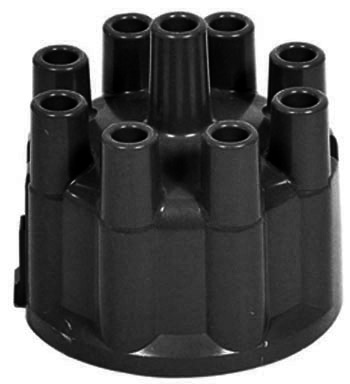

DISTRIBUTOR CAP	83393 Click Image For Larger	$36.25
ROTOR	82530 Click Image For Larger	$15.25
ROTOR	5405 Click Image For Larger	$14.75
ROTOR	63463 Click Image For Larger	$5.00
ROTOR	5408 Click Image For Larger	$8.75
ROTOR	5413 Click Image For Larger	$18.00
TUNE-UP KIT (LESS CAP)	83010 Click Image For Larger	$25.50
ROTOR	3854134 DISCONTINUED	No Longer Available

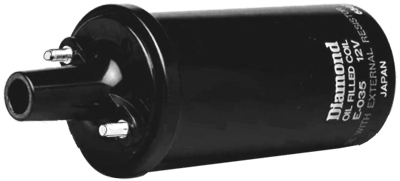

IGNITION COIL	64529 Click Image For Larger	$35.50

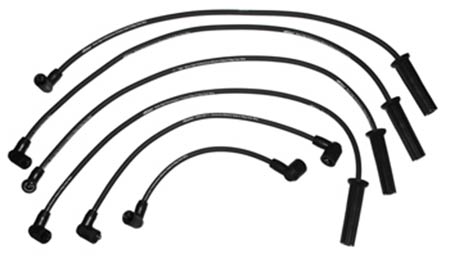

WIRE SET	18-8807-1 Click Image For Larger	$53.50

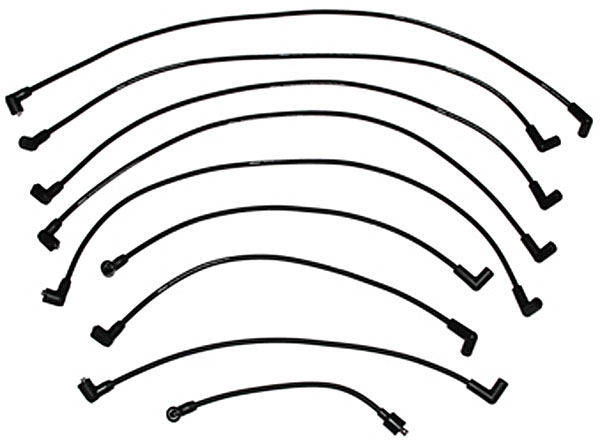

WIRE SET	93026 Click Image For Larger	$56.00
WIRE SET	93028 Click Image For Larger	$39.00
WIRE SET	93020 Click Image For Larger	$31.50
WIRE SET	18-8801-1 Click Image For Larger	$64.50
WIRE SET	18-8803-2 Click Image For Larger	$64.50
WIRE SET	18-8810-1 Click Image For Larger	$51.50
WIRE SET	18-8820-1 Click Image For Larger	$86.00
WIRE SET	3888325 IMAGE NOT AVAILABLE. Purchase from a Volvo-Penta dealer; no longer sold by Bombardier (OMC)	---
WIRE SET	18-8843-1 Click Image For Larger	$86.00

We pay the freight out in USA on all orders over $100.00. Orders less than this amount will have a shipping and handling charge of $8.75 added. Some bulky and heavy items will incur additional charges. You will be notified beforehand if this is the case. Remember, all orders receive free technical support from the MasterTech!
