Evinrude Johnson

MAGNETO AND COIL APPLICATIONS
IGNITION TUNE-UP KITS

MASTERTECH presents a grouping of the most commonly used coils and magneto parts.

Here's a link to a site showing Johnson "H" and "T" series points ignition adjusting & testing, as well as a few other tips for these old outboards!

POINTS & CONDENSER KITS

COIL  Applications


warning symbol  NOTE!! You MUST PROVIDE THE MODEL I.D. when ordering. We cannot send you the correct parts otherwise!
Please take the time to enter the model and serial number in the shopping cart . Thanks!

3022 SPARK PLUG WIRE, MOST V4-V6 CD IGNITION
9-inch 305446
QTY:



$8.25 Each
305446305446 DISTRIBUTOR TIMING BELT MECHANICAL SHIFT MOTORS

$84.50
IGNITION PARTS FOR THE OMC " FLYWHEEL MAGNETO" USED
ON ALL 1 AND 2 CYL MODELS 1.5 THRU 40 HP UP 1951 THRU 1974,
AND MANY LATER MODEL 2 THRU 4 HP
USED ON PART NUMBER ORDER!
1 CYL
1.5, 2 HP 1968-90
172521
172521
Contains :
(1) 580148 breaker
(1)580321 condenser
Click Image For Larger

$23.00
3 HP1952-68
4 HP 1969-76, 81-92
5 HP 1965-68
5.5 HP 1954-64
6 HP 1965-76
7.5 HP
1954-58
9.5 HP1964-73
172522
172522
Contains:
(2) 580148 breakers
(2)580321 condensers
Click Image For Larger

$38.00
10 HP 1954-63
15 HP
1953-56
18 HP
1957-61
25 HP
1954-55
30 HP
1956
35 HP
1957-59
40 HP 1960-61
172522

Contains:
172522
Click Image For Larger
(2) 580148 breakers
(2)580321 condensers




$38.00
18, 20 HP 1962-73
25 HP 1969-76
28 HP 1962-64
33 HP 1965-70
40 HP 1962-73
172523

Contains:172523
(2) 580148 breakers
(2)581419 condensers
Click Image For Larger

$34.00
9.9, 15 HP 1974-76
35 HP 1976
40 HP 1974-76
40 HP COMMERCIAL 1981-83

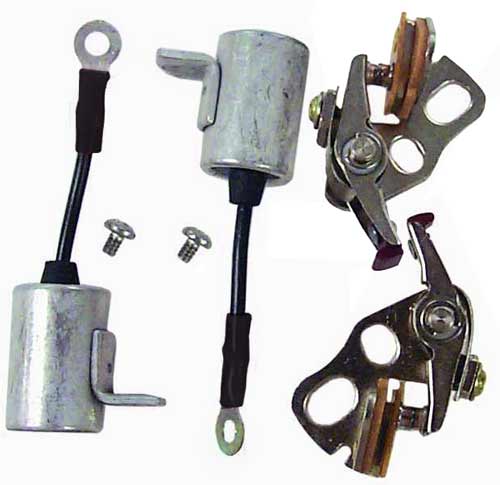

172806

QUICK RISE IGNITION172806
(EXTERNALLY MOUNTED
COILS)
Contains:
(2)581207 Breaker points
(2) 581419 Condensers
Click Image For Larger

$45.25
PARTS FOR OLDER V4 AND 3 CYLINDER MODELS FROM 1958 THRU 1972
MAGNETO MOTORS
ALL V4 Thru 1966
580290 Contact Set580290
(2 rquired per motor)


$19.99
580256
580256 Condenser
(2 rquired per motor)


$9.00
CD IGNITION
CAP UNDER FLYWHEEL
4 CYLINDER 1969-72
383522 DISTRIBUTOR CAP
NO LONGER MADE but we can possibly find one
usually $275.00 +
NLA
CD IGNITION
CAP UNDER FLYWHEEL
3, 4 CYLINDER 1968-72
ROTOR        NO LONGER AVAILABLE NLA
BATTERY IGNITION
ALL V4 1958-1966

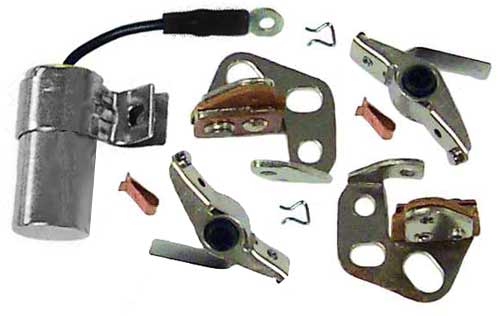

172525
TUNE-UP KIT172525
Contains:
(2) 590290 breakers
(1) 580256 condenser
Click Image For Larger

$40.00
BATTERY IGNITION
60 HP 1967
75, 80 HP 1961-67
90 HP 1964-65
100 HP 1966
(ROUND CAP ON TOP)
580327 DISTRIBUTOR CAP
(also fits 1967 100 HP)
NO LONGER AVAILABLE
We might be able to find one, would be around $235.00
Email us!
NLA
DON'T SEE WHAT YOU NEED? JUST ASK.
QUICK QUOTE FORM


IGNITION COILS FOR ELECTRONIC & CDI IGNITION SYSTEMS
USED ON KIT/PART # ORDER!
1.5 THRU 40 HP
ALL w/COIL MOUNTED
UNDER FLYWHEEL
5181
Replaces 584477 COIL 584477
$36.00 each
QTY:

2.5 HP Ultra/Excel 1987-88
3, 4, 6, 8 HP 1991 up
4 Ultra/Excel 1987-88
9.9/15 HP 1993 up
40, 50 HP 2 CYL 1989 up
90, 115 LOOPER 1995 up
150, 175 LOOPER 1991 up
150, 175 FFI 1997-98
3740
Replaces 583740 COIL583740
$51.75 each
QTY:

4 Deluxe 1985 up
6, 8 HP 1985-90
9.9, 15, 20, 25, 30 HP 1985 up
40 thru 50 2 CYL 1985-88
3 CYL thru V8 1985 up
5179
Replaces 582508 COIL 582508
$45.00 each
QTY:

4 HP 1977-80
4. 5, 6, 7.5, 8 HP
1980-84
9.9, 15, 20, 25, 30 HP 1977-84
50, 55, 60 HP 1978-84
65, 70, 75 HP 1979-84
V4's 1978-84
V6's 1979-84
OMC Seadrive 1984-85
5176
Replaces 584561 COIL584561
$64.50 each
QTY:

QUICK RISE
9.9, 15 HP 1974-76
40 HP 1974
5196
Replaces 502880 COIL 502880
Click Image For Larger
$44.75 each
QTY:

9.9, 15 4-STROKE 1994 UP 584451 COIL
DISCONTINUED, NO LONGER AVAILABLE 584451
NLA
QUICK RISE
20 HP 1973
25 HP
1973-76
35 HP 1976
40 HP
1975-83

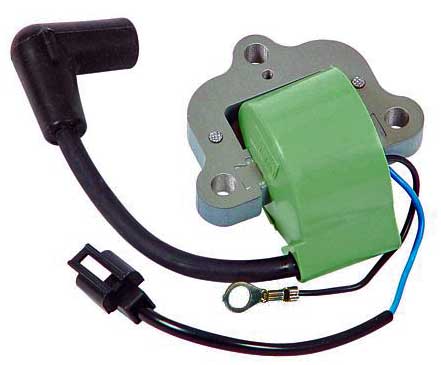

502881 COIL 502881
Click Image For Larger
$67.75 each
QTY:

60 HP 1970-71 5193
Replaces 582382 COIL582382
Click Image For Larger
$60.70 each
QTY:

50, 55 HP 1976-77
70, 75 HP 1976-78

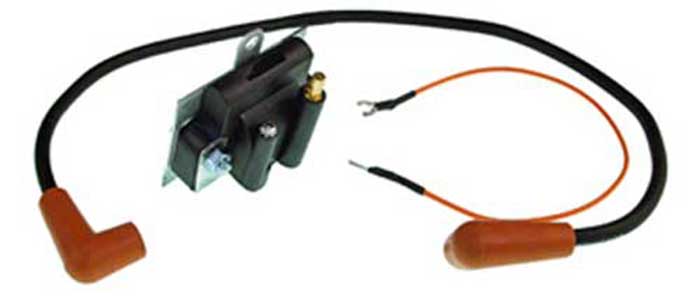

183-2303
Replaces 502886 COIL 502886
Click Image For Larger
$60.70 each
QTY:

50, 65 HP 1971-75
70, 75 HP 1974-75
85 HP 1973-75
115 HP
1973-74
135 HP 1973-75
5194
Replaces 502890 COIL 502890
Click Image For Larger
$39.25 each
QTY:

65, 85 HP 1968
55 HP 1968-69
85 HP 1969-72
100 HP 1971-72
115 HP 1969-70
125 HP 1971-72
5193
Replaces 582382 COIL 582382
Click Image For Larger
$60.70 each
QTY:

85, 115 HP 1976-77
135 HP 1976
140 HP 1977
150, 175, 200, 235 HP 1976-78

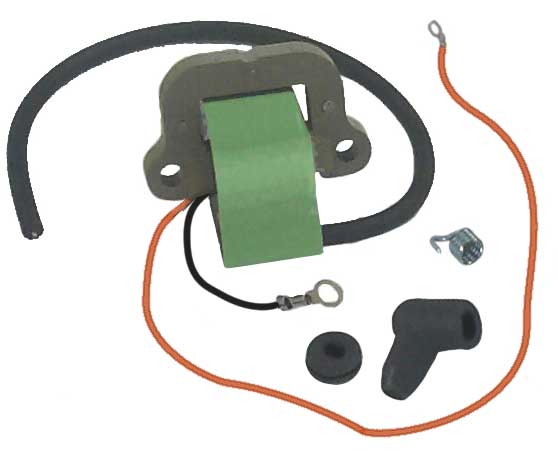

502888 COIL 502888
Click Image For Larger
$69.00 each
QTY:

MAGNETO IGN.

50 HP 1958-59
60 HP 1964-66
75 HP 1960-65 |
80 HP 1966
580243 COIL OEM $259.00 each
BATTERY IGNITION
60 HP 1967
75, 80 HP 1961-67
90 HP 1964-65
100 HP 1966
379569 COIL
No Longer Made379569
NLA
Not Available
Can Use 12V
NON-RESISTOR
Automotive Coil
100 HP 1967-68 433659 COIL 433659 $67.00 each
QTY:




DON'T SEE WHAT YOU NEED? JUST ASK.
QUICK QUOTE FORM
