ELECTRICAL PARTS
OMC SEA DRIVE ALL MODELS

Flywheel Magnets Came Off Your V4 or V6 35-Amp Charging System
(90° Motors Only) ??
Don't buy a new flywheel; Get magnet kits HERE

Mastertech is your source for quality electronic ignition parts for all makes of US outboard motors. Some components of the outboard electrical system are not available from CDI, our preferred source; in this case we have listed the OEM or alternate aftermarket part in its place.

Engine wiring harnesses are also available for most motors. Please CONTACT US for price & availability.

OMC APPLICATION GUIDE

HP
MODEL
YEAR
CYL
POWER PACK
& RPM LIMIT
STATOR
RECTIFIER/
REGULATOR
TRIGGER
(TIMER
BASE)
IGNITION
COIL
1.6L - 83 4 113-2125
CD4/8 No Limit
173-3672 AR103 133-3376 5176
1.6L S V4 84 4 113-2125
CD4/8 No Limit
173-3672 193-5204 133-3376 5176
1.6L - 85 4 113-2811
CD4/8 No Limit
173-3672 193-5204 133-3376 5179
1.6L - 86 4 113-3110
CD4/8 No Limit
173-3672 193-5204 133-3376 5179
1.6L - 87 4 113-3110
CD4/8 No Limit
173-3672 193-5204 133-3376 5179
1.6L - 88 4 113-3101
CD4/8AL 6100
173-3536 193-4204 133-3379 5179
1.6L - 89 4 113-4030
CD4/8 5800
173-3536 193-4204 133-3379 5179
1.6L - 90 4 113-4028
CD4/8 No Limit
173-3536 193-4204 133-3379 5179
1.8L - 87 4 113-3101
CD4/8AL 6100
173-4291 193-3689 133-3379 5179
2.0L - 88-90 4 113-4041
CD4AL 6700
173-4288 193-3689 133-3508 5179
2.5L - 82-83 6 113-2138
CD3/6 No Limit
173-3672 AR103 133-3377 5176
2.5L - 84 6 113-2556
CD3/6 5800
173-3668 193-5204 133-3377 5176
2.5L - 85 6 113-2651
CD3/6AL 5800
173-3668 193-5204 133-3377 5179
HP
MODEL
YEAR
CYL
POWER PACK
& RPM LIMIT
STATOR
RECTIFIER/
REGULATOR
TRIGGER
(TIMER
BASE)
IGNITION
COIL
2.6L - 82 6 113-2138
CD3/6 No Limit
173-3672 AR103 133-3377 5176
2.6L 10 Amp 83 6 113-2556
CD3/6 5800
173-3672 AR103 133-3377 5176
2.6L 35 Amp 83 6 113-2138
CD3/6 No Limit
173-3668 193-5204 133-3377 5176
2.6L - 84 6 113-2556
CD3/6 5800
173-3668 193-5204 133-3377 5176
2.6L - 85 6 113-2651
CD3/6AL 5800
173-3668 193-5204 133-3377 5179
2.6L - 86 6 113-3114
CD3/6 5800
173-3668 193-3689 133-3377 5179
2.7L - 87 6 113-3605
CD3/6AL 6200
173-3668 193-3689 133-3048 5179
3.0L - 88-90 6 113-4037
CD6AL 6700
173-4287 193-3689 133-3533 5179
3.6L - 87 8 113-3101
CD4/8AL 6100
173-3117 193-3689 58-3375 5179
4.0L - 89-90 8 113-4035
CD8AL 6700
173-4287 193-3689 NLA 5179



CDI ELECTRONICS IGNITION COMPONENTS
DESCRIPTION PART # PRICE SELECT

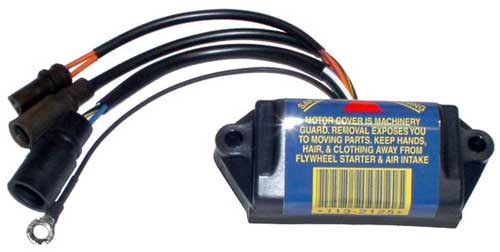

POWERPACK 113-2125


Click Image For Larger

P-pack V4

$111.95

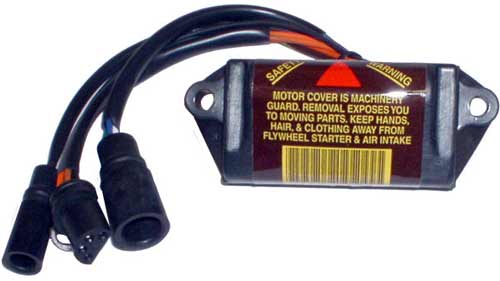

POWERPACK 113-2138

582138, 582400, 582642, 582556, 113-2138
Click Image For Larger

EV-JO POWERPACK

$149.35

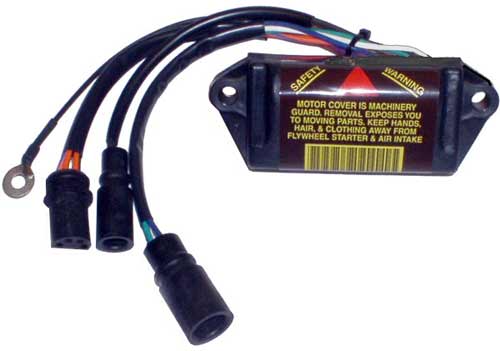

POWERPACK 113-2556


Click Image For Larger

P-PACK STB 5800 RPM V6

$203.75

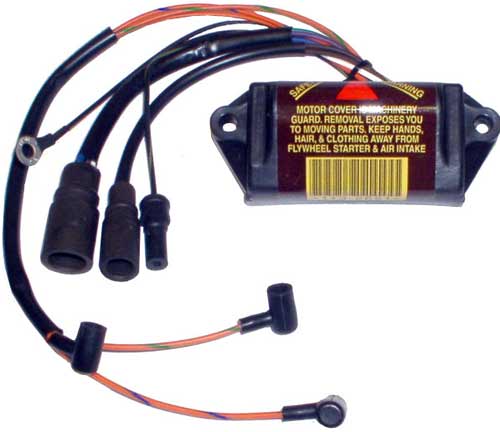

POWERPACK 113-2651

582817, 582651, 763792, 113-2651
Click Image For Larger

EV-JO POWERPACK

$193.00

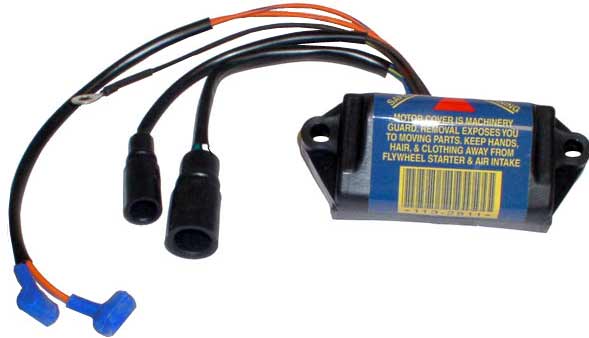

POWERPACK 113-2811


Click Image For Larger

P-PACK NO REV LIMIT V4

$193.00

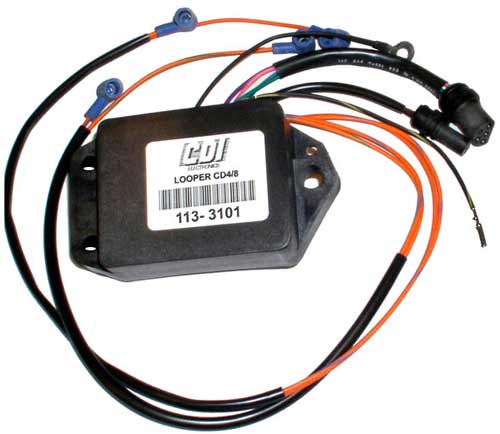

POWERPACK 113-3101


Click Image For Larger

P-PACK 6700 REV V4-V8 LOOPER

$169.50

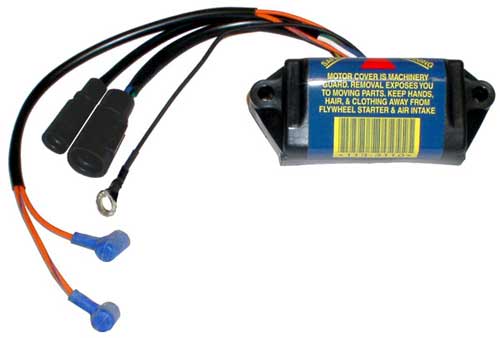

POWERPACK 113-3110


Click Image For Larger



$

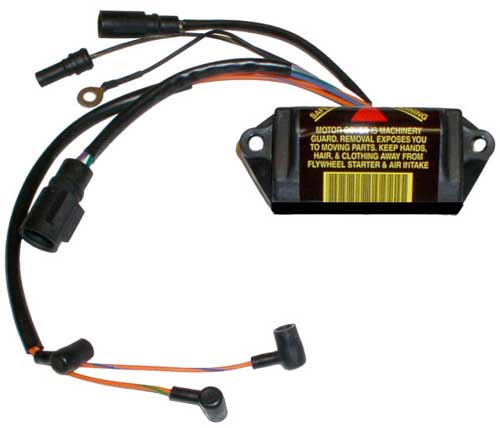

POWERPACK 113-3114


Click Image For Larger



$

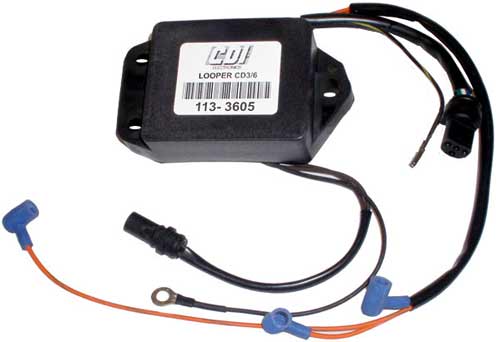

POWERPACK 113-3605

583030, 583605,763800, 113-3605
Click Image For Larger

P-PACK V6 6700 REV LIMIT

$190.75

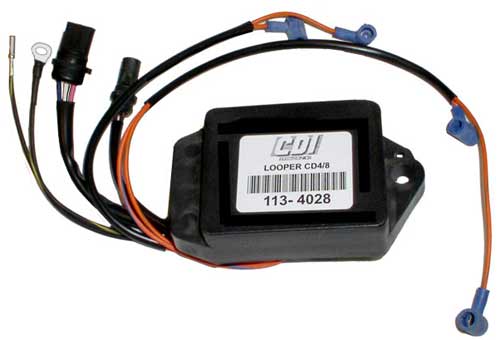

POWERPACK 113-4028


Click Image For Larger

P-PACK NO LIMIT V4

$141.50

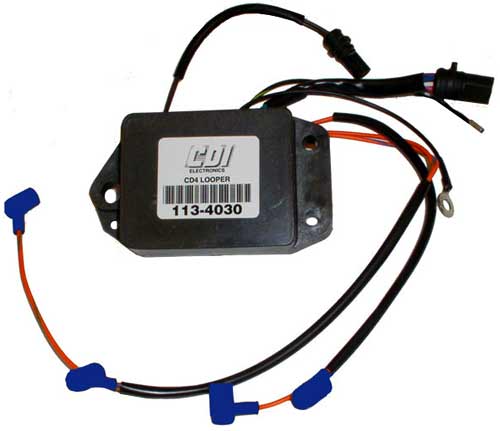

POWERPACK 113-4030


Click Image For Larger

P-PACK 5800 RPM V4

$185.50

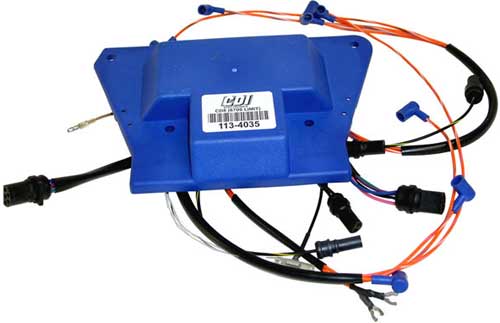

POWERPACK 113-4035


Click Image For Larger

P-PACK V8 6700 LIMIT

$344.81

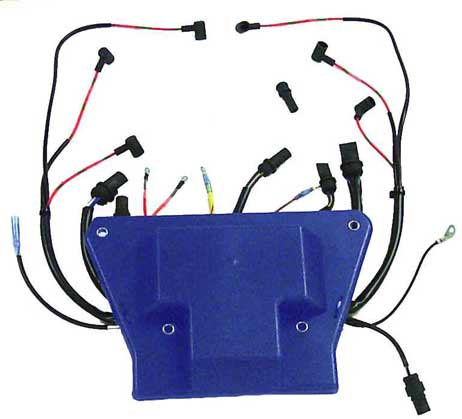

POWERPACK 113-4037

586667, 113-4037
Click Image For Larger

P-PACK V6 6700 REV LIMIT

$257.50

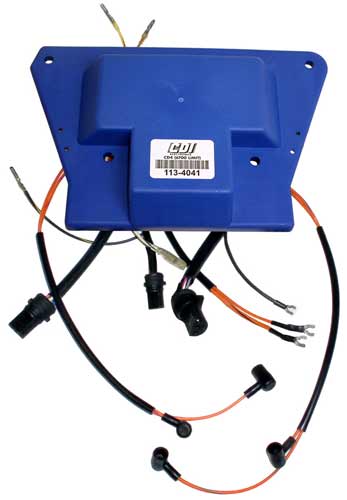

POWERPACK 113-4041


Click Image For Larger

OPTICAL POWERPACK

$242.54

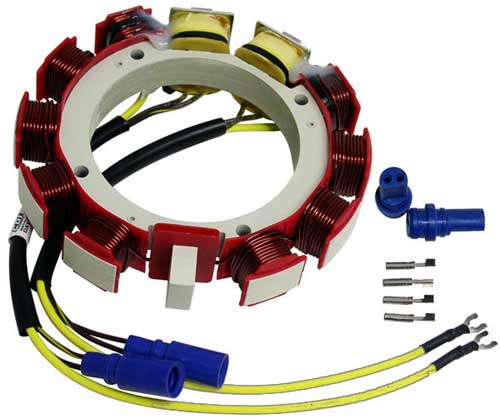

STATOR 173-3117

583670, 173-3117
Click Image For Larger

STATOR 35A V6 V8

$484.00

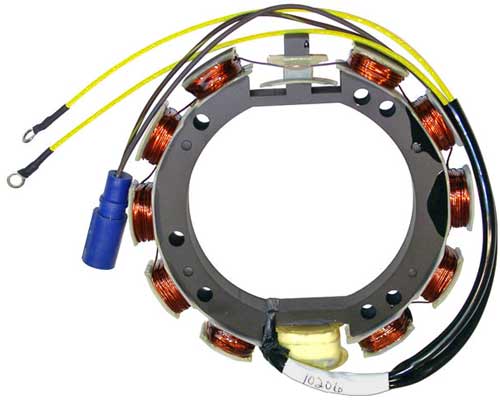

STATOR 173-3536

583340, 763767, 173-3536
Click Image For Larger

V4 X-FLOW STATOR 9A

$308.50

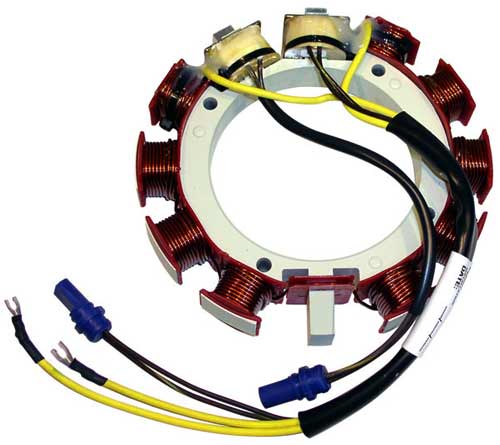

STATOR 173-3668


Click Image For Larger

STATOR 35A V6

$441.00

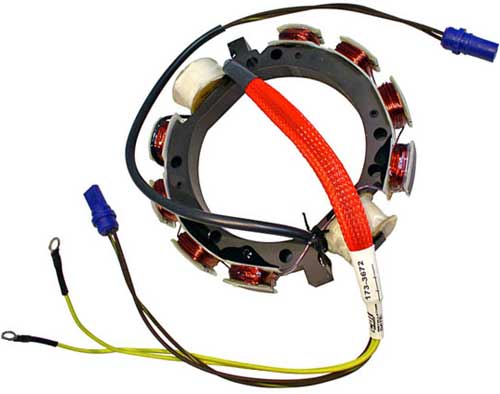

STATOR 173-3672

583672, 173-3672
Click Image For Larger

STATOR 9A V4 V6

$302.75

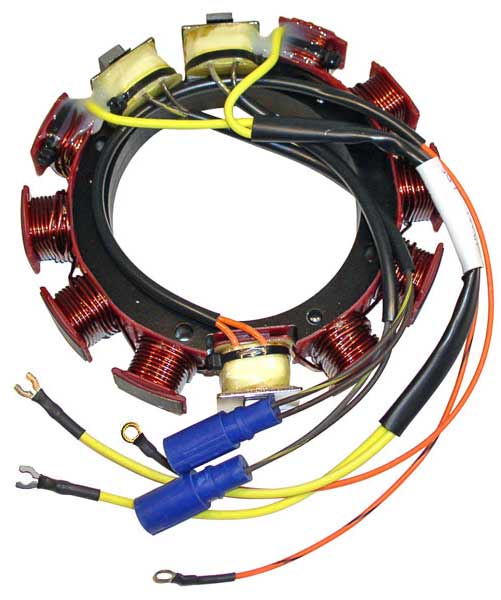

STATOR 173-4287
763765, 173-4287
Click Image For Larger

STATOR V6 V8 LOOPER

$449.00

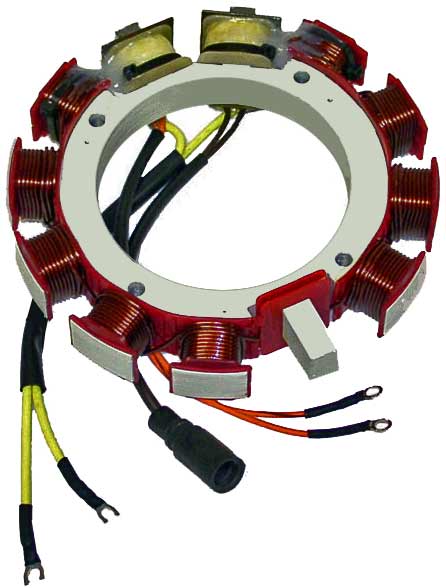

STATOR 173-4288
584288, 173-4288
Click Image For Larger

STATOR 35A 4-CYL LOOPER

$318.50

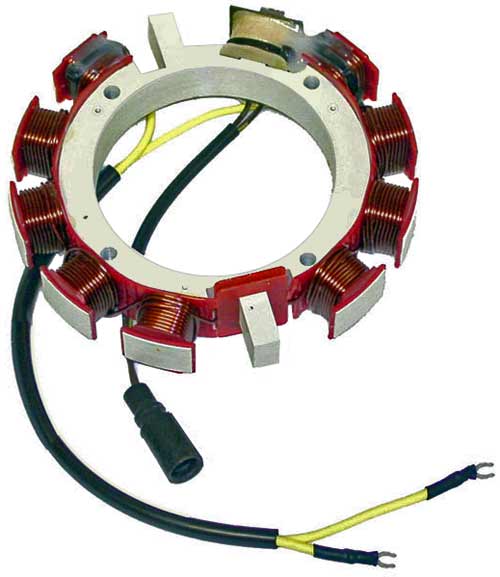

STATOR 173-4291
584291, 173-4291
Click Image For Larger

STATOR 35A UPGRADE V4

$293.04

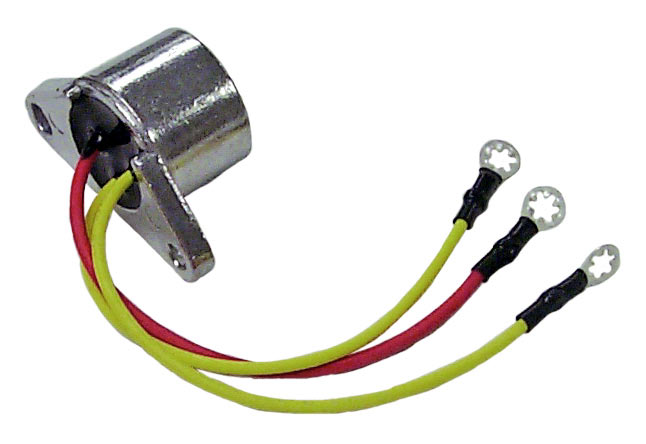

RECTIFIER AR103

582399, 583408, 153-3408
Click Image For Larger

RECTIFIER 3-WIRE RING TERMINAL PRO 5708

$29.00

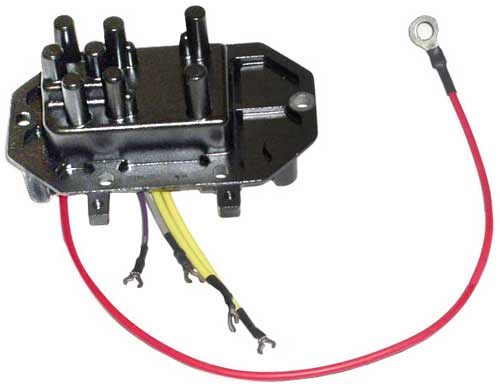

RECTIFIER/REGULATOR 193-3689

583689, 193-3689
Click Image For Larger

VOLT REG 35A V6 LOOPER

$280.75

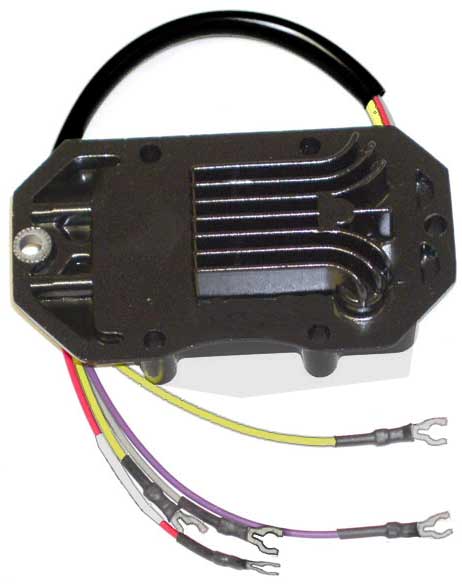

RECTIFIER-
REGULATOR
193-4204

585195, 193-4204
Click Image For Larger

VOLT REG

$99.75
RECTIFIER-
REGULATOR
193-5204

395204, 193-5204
Click Image For Larger

VOLT REG 35A WATER COOLED

$255.75
TIMER BASE 583375

583375
No Longer Made
By Bombardier

DOSCONTINUED
Contact Us
We can try to find one

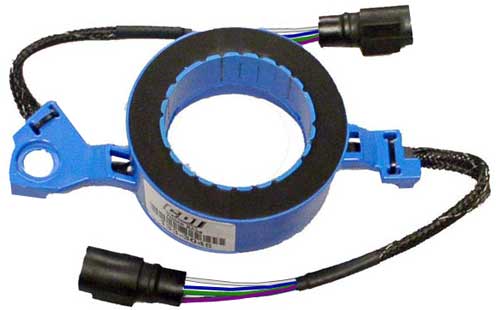

TIMER BASE 133-3048

583048, 133-3048
Click Image For Larger

TIMER BASE V6 200-225

$316.00

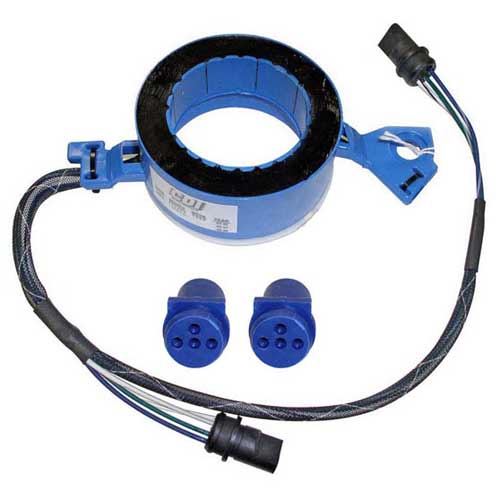

TIMER BASE 133-3376

581812, 582041, 583376, 133-3376
Click Image For Larger

EV-JO TIMER BASE V4

$327.00

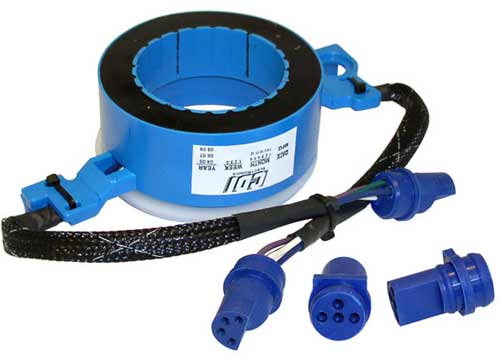

TIMER BASE 133-3377

583377, 133-3377
Click Image For Larger

TIMER BASE V6

$366.81

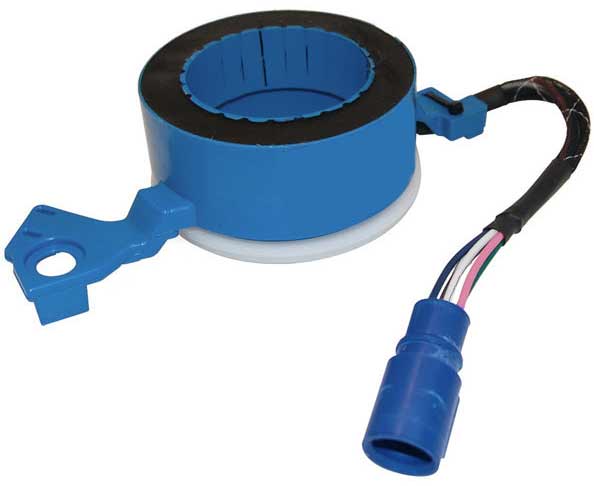

TIMER BASE 133-3379

763776, 133-3379
Click Image For Larger

TIMER BASE V4 X-FLOW

$296.90

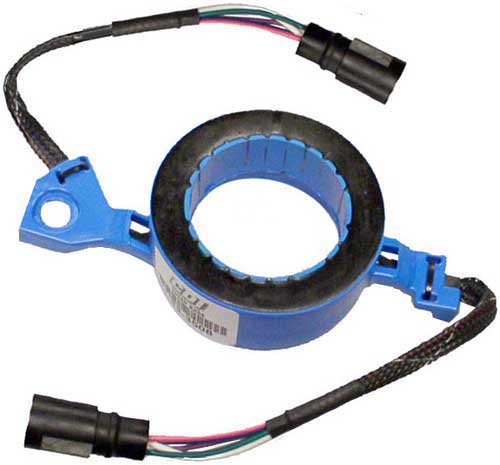

SENSOR 133-3508

763782, 133-3508
Click Image For Larger

TIMER BASE V4

$330.00

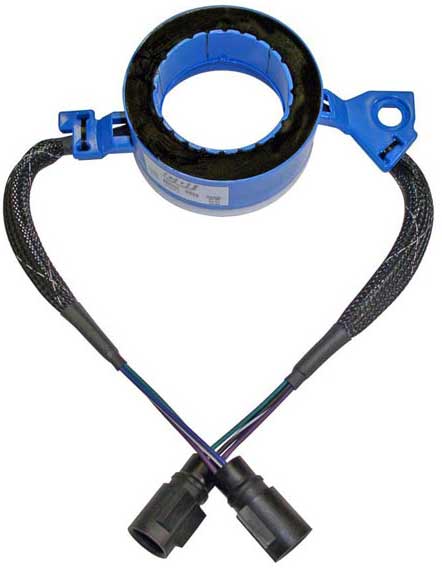

TIMER BASE 133-3533

763775, 133-3533
Click Image For Larger

TIMER BASE V6

$490.68

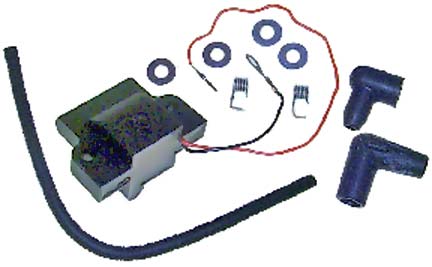

IGNITION COIL 5176


Click Image For Larger

IGNITION COIL 584561 USE WSM

$64.50

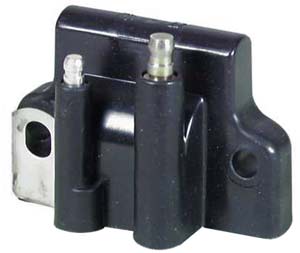

IGNITION COIL 5179


Click Image For Larger

IGNITION COIL 582508

$45.00

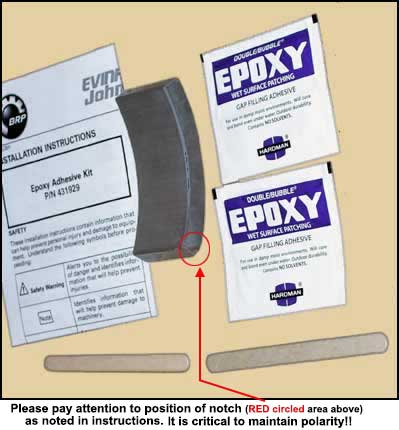

V4, V6, V8 Magnet Kit
for 35 AMP Alternators ONLY.
Includes magnet, epoxy kit
REPLACES ONE MAGNET
WILL NOT FIT 60° MOTORS!!!
584304



Click Image For Larger

FLYWHEEL MAGNET KIT NLA

$0.00
PER MAGNET



We pay the freight out in USA on all orders over $100.00. Orders less than this amount will have a shipping and handling charge of $8.75 added. Some bulky and heavy items will incur additional charges. You will be notified beforehand if this is the case. Remember, all orders receive free technical support from the MasterTech!




Please review our Warranty, Returns & Refunds policies before you place an order.
