ELECTRICAL PARTS
88 HP thru 100 HP


Flywheel Magnets Came Off Your V4 or V6 35-Amp Charging System
(90° Motors Only) ??
Don't buy a new flywheel; Get magnet kits HERE

Mastertech is your source for quality electronic ignition parts for all makes of US outboard motors. Some components of the outboard electrical system are not available from CDI, our preferred source; in this case we have listed the OEM or alternate aftermarket part in its place.

Engine wiring harnesses are also available for most motors. Please CONTACT US for price & availability.

OMC APPLICATION GUIDE

HP
MODEL
YEAR
CYL
POWER PACK
& RPM LIMIT
STATOR
RECTIFIER/
REGULATOR
TRIGGER
(TIMER
BASE)
IGNITION
COIL
88 - 87 4 58-3110
CD4 No Limit
173-3672 AR103 133-3379 5179
88 - 88 4 113-3101
CD4 6700
173-3536 AR103 133-3379 5179
88 w/o Trim 89-91 4 113-4028
CD4/8 No Limit
173-3536 AR103 133-3379 5179
88 with Trim 89-91 4 113-4028
CD4/8 No Limit
173-3536 193-4204 133-3379 5179
88 - 92-93 4 113-4028
CD4/8 No Limit
173-3536 AR103 133-3379 5179
88 w/o Trim 94 4 113-4030
CD4/8 5800
173-3536 AR103 133-3379 5179
88 with Trim 94 4 113-4030
CD4/8 5800
173-3536 193-4204 133-3379 5179
88 TS 20 Inch 94-95 4 113-4028
CD4/8 No Limit
173-3536 AR103 133-3379 5179
88 TS 25 Inch 94-95 4 113-4028
CD4/8 No Limit
173-3536 193-4204 133-3379 5179
88 MS 95-96 4 113-4028
CD4/8 No Limit
173-3536 AR103 133-3379 5179
88 TS 20 Inch 96 4 113-4028
CD4/8 No Limit
173-3536 AR103 133-3379 5179
88 TS 25 Inch 96 4 113-4028
CD4/8 No Limit
173-3536 193-4204 133-3379 5179
HP
MODEL
YEAR
CYL
POWER PACK
& RPM LIMIT
STATOR
RECTIFIER/
REGULATOR
TRIGGER
(TIMER
BASE)
IGNITION
COIL
90 6 Amp 81-84 4 113-2125
CD4 No Limit
173-3672 AR103 133-3376 183-2366
90 10 Amp 81-84 4 113-2125
CD4 No Limit
173-3672 193-5204 133-3376 183-2366
90 w/o Trim 85 4 18-5783
CD4 No Limit
173-3672 AR103 133-3376 5179
90 with Trim 85 4 18-5783
CD4 No Limit
173-3672 193-5204 133-3376 5179
90 w/o Trim 86-87 4 58-3110
CD4 No Limit
173-3672 AR103 133-3376 5179
90 with Trim 86-87 4 58-3110
CD4 No Limit
173-3672 193-5204 133-3376 5179
90 - 88 4 113-3101
CD4 6700
173-3536 AR103 133-3379 5179
90 w/o Trim 89-90 4  113-4028
   CD4/8 No Limit
173-3536 AR103 133-3379 5179
90 with Trim 89-90 4 113-4028
CD4/8 No Limit
173-3536 193-4204 133-3379 5179
90 - 91 4 113-4028
CD4/8 No Limit
173-3536 193-4204 133-3379 5179
HP
MODEL
YEAR
CYL
POWER PACK
& RPM LIMIT
STATOR
RECTIFIER/
REGULATOR
TRIGGER
(TIMER
BASE)
IGNITION
COIL
90 - 92-93 4 113-4028
CD4/8 No Limit
173-3536 193-4204 133-3379 5179
90 w/o Trim 94 4 113-4030
CD4/8 5800
173-3536 AR103 133-3379 5179
90 w/Trim 94 4 113-4030
CD4/8 5800
173-3536 193-4204 133-3379 5179
90 JE Turbojet 94 4 113-4030
CD4/8 5800
173-3536 193-4204 133-3379 5179
90 JLE 95 4 113-4028
CD4/8 No Limit
173-3536 193-4204 133-3379 5179
90 Turbojet 95 4 113-4030
CD4/8 5800
173-3536 193-4204 133-3379 5179
90 EL, EX, SL 60° 95 4 *113-6292
OPTICAL
173-4849 193-6048 133-6343 3740
HP
MODEL
YEAR
CYL
POWER PACK
& RPM LIMIT
STATOR
RECTIFIER/
REGULATOR
TRIGGER
(TIMER
BASE)
IGNITION
COIL
90 20 Inch 96-97 4 113-4028
CD4/8 No Limit
173-3536 AR103 133-3379 5179
90 25 Inch 96-97 4 113-4028
CD4/8 No Limit
173-3536 193-4204 133-3379 5179
90 60° 96-05 4 113-6292
OPTICAL
173-4849 193-6048 133-6343 3740
100 - 65-66 4 N/A N/A 193-0076 POINTS N/A
100 Starflite 67 4 113-8362
BATTERY CD
R580648 AR103 R580668 183-2382
100 Starflite 68 4 113-8362
BATTERY CD
173-0725 AR103 133-5008 183-2382
100 - 71 4 113-7123
BATTERY CD
NLA AR103 POINTS 183-2382
100 - 72 4 113-8362
BATTERY CD
NLA AR103 133-5008 183-2382
100 ALL 79 4 113-2125
CD4 No Limit
173-3672 AR103 133-3376 5176
100 ALL
Recreational
80 4 113-2125
CD4 No Limit
173-3672 173640
OEM Only
133-3376 5176
HP
MODEL
YEAR
CYL
POWER PACK
& RPM LIMIT
STATOR
RECTIFIER/
REGULATOR
TRIGGER
(TIMER
BASE)
IGNITION
COIL
100 ALL
Recreational
88 4 113-3101
CD4 6700
173-3536 193-4204 133-3379 5176
100 ALL
Recreational
89 4 113-4028
CD4/8 No Limit
173-3536 193-4204 133-3379 5179
100
Recreational

w/o Trim
90 4 113-4028
CD4/8 No Limit
173-3536 AR103 133-3379 5179
100 Recreational
with Trim
90 4 113-4028
CD4/8 No Limit
173-3536 193-4204 133-3379 5179
100 Recreational 91 4 113-4028
CD4/8 No Limit
173-3536 AR103 133-3379 5179
100 Recreational
w/o Trim
92-93 4 113-4028
CD4/8 No Limit
173-3536 AR103 133-3379 5179
100 Recreational
w/o Trim
94 4 113-4030
CD4/8 5800
173-3536 AR103 133-3379 5179
100 Recreational
with Trim
94 4 113-4030
CD4/8 5800
173-3536 193-4204 133-3379 5179
100 Commercial 84 4 113-2684
CD4 5700
173-3672 193-5204 133-3376 5176
100 Commercial 85 4 18-5783
CD4 No Limit
173-3672 193-5204 133-3376 5179
HP
MODEL
YEAR
CYL
POWER PACK
& RPM LIMIT
STATOR
RECTIFIER/
REGULATOR
TRIGGER
(TIMER
BASE)
IGNITION
COIL
100 Commercial 86 4 113-3116
CD4 5700
173-3672 193-5204 133-3376 5179
100 Commercial 87 4 113-3116
CD4 5700
173-3672 AR103 133-3376 5179
100 Commercial 88 4 113-3101
CD4 6700
173-3536 193-4204 133-3379 5179
100 Commercial 89 4 113-4030
CD4/8 5800
173-3536 193-4204 133-3379 5179
100 Commercial
w/o Trim
90 4 113-4030
CD4/8 5800
173-3536 AR103 133-3379 5179
100 Commercial
with Trim
90 4 113-4030
CD4/8 5800
173-3536 193-4204 133-3379 5179
100 Commercial 91 4 113-4030
CD4/8 5800
173-3536 193-4204 133-3379 5179
100 Commercial 92-93 4 113-4030
CD4/8 5800
173-3536 193-4204 133-3379 5179
100 Commercial 94 4 113-4030
CD4/8 5800
173-3536 193-4204 133-3379 5179
100 Commercial 95 4 113-4030
CD4/8 5800
173-3536 193-4204 133-3379 5179

We pay the freight out in USA on all orders over $100.00. Orders less than this amount will have a shipping and handling charge of $8.75 added. Some bulky and heavy items will incur additional charges. You will be notified beforehand if this is the case. Remember, all orders receive free technical support from the MasterTech!



CDI ELECTRONICS IGNITION COMPONENTS
DESCRIPTION PART # PRICE SELECT
POWERPACK 113-2125


Click Image For Larger

P-pack V4

$111.95
POWERPACK 18-5783


Click Image For Larger

POWER PACK EV-JO

$153.50
POWERPACK 113-3101


Click Image For Larger

P-PACK 6700 REV V4-V8 LOOPER

$169.50
POWERPACK 58-3110


Click Image For Larger

P-PACK NO LIMIT V4 88-110 (113-3110)

$131.00
POWERPACK 113-3116


Click Image For Larger

P-PACK V4 100 HP NO LIMIT

$146.00
POWERPACK 113-4028


Click Image For Larger

P-PACK NO LIMIT V4

$141.50
POWERPACK 113-4030


Click Image For Larger

P-PACK 5800 RPM V4

$185.50

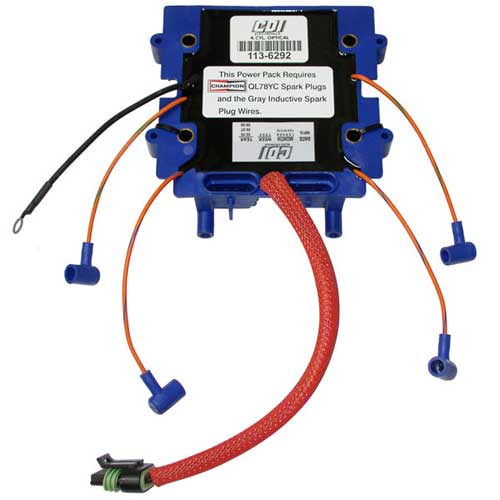

POWERPACK 113-6292


Click Image For Larger

P-PACK OPT IGN V4 6400 RPM

$278.43

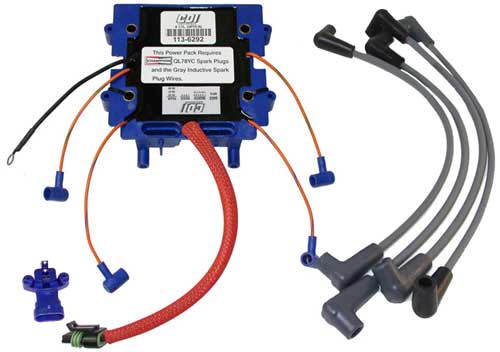

IGNITION REFRESH KIT
Same as above, but kit with wires and sensor.
Bombardier does not supply this in kit form.
6292K1


Click Image For Larger

P-PACK KIT w/SENSOR & WIRES

$416.50

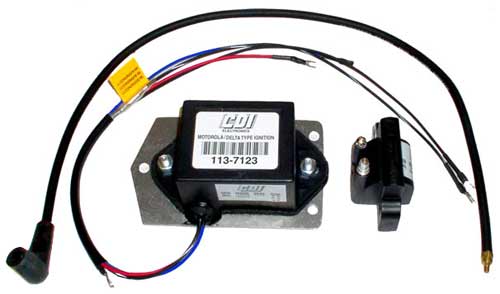

POWERPACK 113-7123


Click Image For Larger

P-PACK EV-JO

$468.00

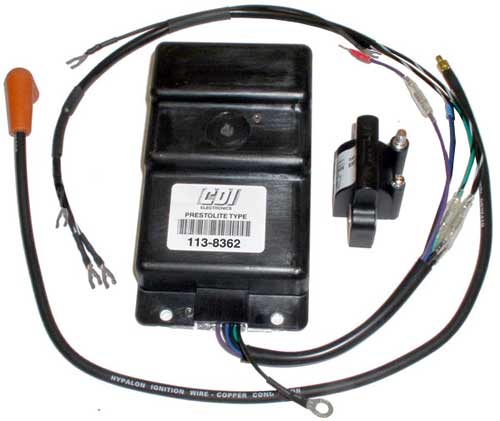

POWERPACK & COIL KIT

Replaces and upgrades
old-style battery CD components
(Prestolite ignitions)
113-8362


Click Image For Larger

PACK & COIL UPGRADE KIT PRESTOLITE

$561.97

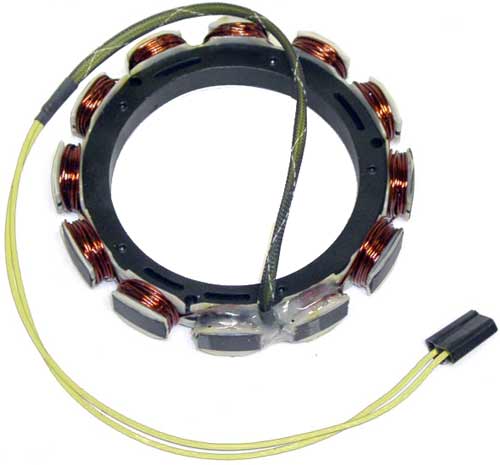

STATOR 173-0725

580725, 173-0725
Click Image For Larger



$
STATOR 173-3536

583340, 763767, 173-3536
Click Image For Larger

V4 X-FLOW STATOR 9A

$308.50
STATOR 173-3672

583672, 173-3672
Click Image For Larger

STATOR 9A V4 V6

$302.75

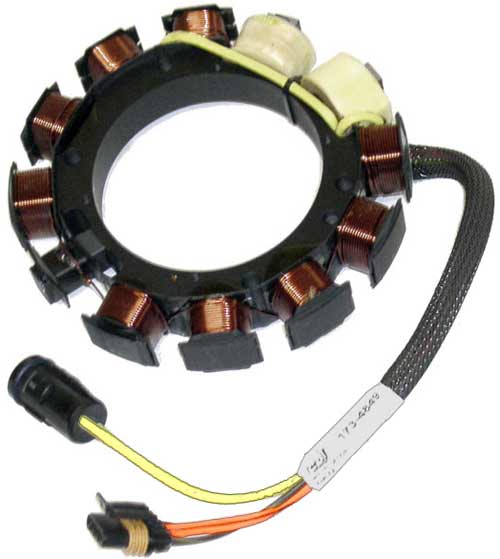

STATOR 173-4849


Click Image For Larger

STATOR V4 60 DEG

$369.00

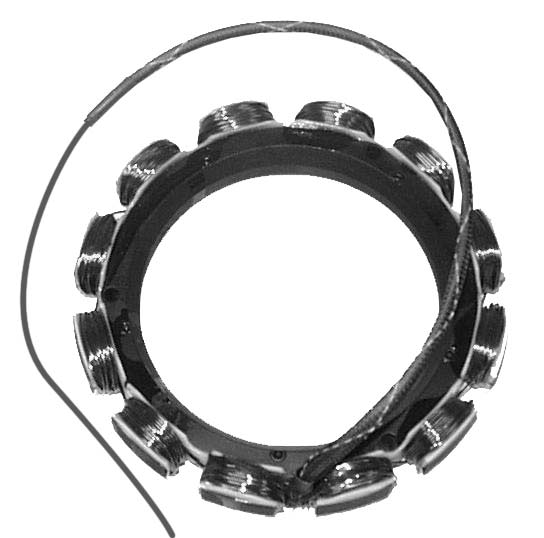

STATOR R580648
580648
REPAIR & RETURN ONLY
Click Image For Larger

STATOR R&R ONLY

$202.00
STATOR R580650
REPAIR & RETURN ONLY

STATOR R&R ONLY

$194.00
STATOR R580668
REPAIR & RETURN ONLY

STATOR R&R ONLY USE SWM580668

$75.00
RECTIFIER AR103

582399, 583408, 153-3408
Click Image For Larger

RECTIFIER 3-WIRE RING TERMINAL PRO 5708

$29.00
REGULATOR 193-0076


Click Image For Larger

VOLT REGULATOR 100 HP NLA

$0.00
RECTIFIER-
REGULATOR
193-4204

585195, 193-4204
Click Image For Larger

VOLT REG

$99.75
RECTIFIER-
REGULATOR
193-5204

395204, 193-5204
Click Image For Larger

VOLT REG 35A WATER COOLED

$255.75

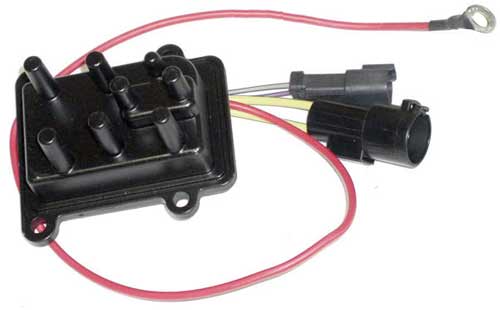

RECTIFIER-
REGULATOR
193-6048


Click Image For Larger

VOLT REG 35A V6 OPT IGN

$298.25
REGULATOR 173640

OEM ONLY


VOLAGE REG
NLA
TIMER BASE 133-3376

581812, 582041, 583376, 133-3376
Click Image For Larger

EV-JO TIMER BASE V4

$327.00
TIMER BASE 133-3379

763776, 133-3379
Click Image For Larger

TIMER BASE V4 X-FLOW

$296.90

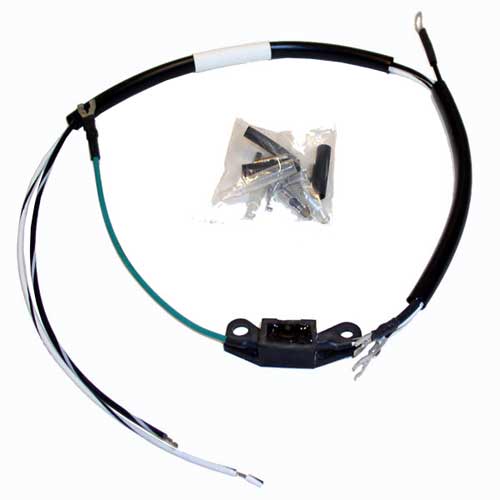

SENSOR 133-5008

385008, 133-5008
Click Image For Larger

TIMER BASE/SENSOR

$304.00
OPTICAL SENSOR 133-6343


Click Image For Larger

OPTICAL SENSOR V4 V6

$109.25
IGNITION COIL 5176


Click Image For Larger

IGNITION COIL 584561 USE WSM

$64.50

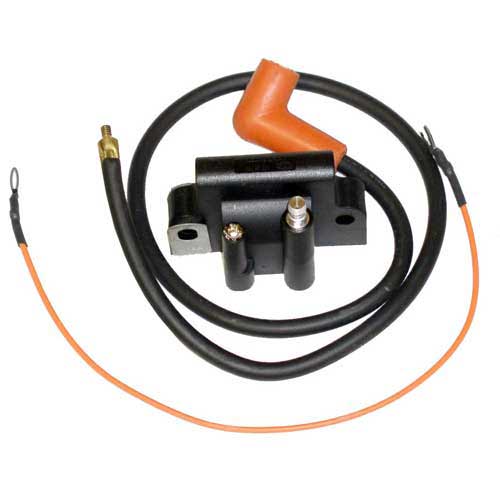

IGNITION COIL 183-2382

582382, 183-2382
Click Image For Larger

COIL V4 X-FLOW

$53.25
IGNITION COIL 5179


Click Image For Larger

IGNITION COIL 582508

$45.00

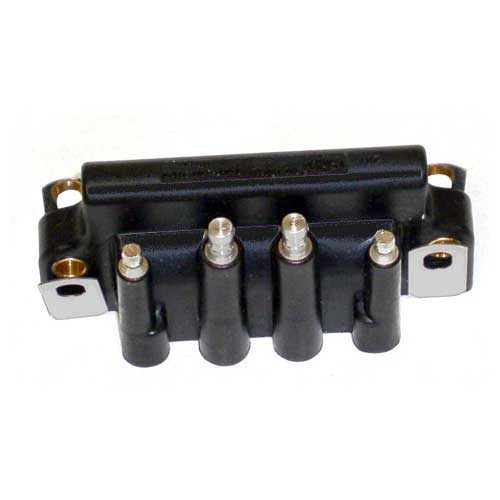

IGNITION COIL 3740


Click Image For Larger

IGNITION COIL 183-3740

$51.75
V4, V6, V8 Magnet Kit
for 35 AMP Alternators ONLY.
Includes magnet, epoxy kit
REPLACES ONE MAGNET
WILL NOT FIT 60° MOTORS!!!
584304
581304
Click Image For Larger


FLYWHEEL MAGNET KIT NLA

$0.00
PER MAGNET
