Mastertech is your source
for quality electronic ignition parts for all makes of US outboard
motors. Some components of the outboard electrical system are
not available from CDI, our preferred source; in this case we have listed the OEM or alternate aftermarket part
in its place.
Engine wiring harnesses are also
available for most motors. Please CONTACT US for price & availability.
OMC
APPLICATION GUIDE |
HP |
MODEL |
YEAR |
CYL |
POWER PACK
& RPM LIMIT |
STATOR |
RECTIFIER/
REGULATOR |
TRIGGER
(TIMER
BASE) |
IGNITION
COIL |
60 |
VX |
67 |
V4 |
- |
R580650 |
NLA |
POINTS |
N/A |
60 |
- |
70-71 |
3 |
113-7123
BATTERY CD |
NLA |
AR103 |
POINTS |
183-2382 |
60 |
Elec. Start |
79-84 |
2 |
113-2453
CD2 No Limit |
173-1651 |
153-1778 |
133-3387 |
5176 |
60 |
Rope Start |
79-84 |
2 |
113-2453
CD2 No Limit |
173-1670 |
N/A |
133-3387 |
5176 |
60 |
Rope Start |
85 |
2 |
113-2285
CD2 No Limit |
173-1670 |
N/A |
133-3387 |
5179 |
60 |
Elec. Start |
85 |
2 |
113-2285
CD2 No Limit |
173-1670 |
153-1778 |
133-3387 |
5179 |
60 |
EL, TL |
86-87 |
3 |
113-2115
CD3/6 No Limit |
173-3724 |
AR103 |
133-3378 |
5179 |
60 |
TTL |
88 |
3 |
113-2115
CD3/6 No Limit |
173-3724 |
AR103 |
133-4558 |
5179 |
60 |
EL,TL |
88 |
3 |
113-2115
CD3/6 No Limit |
173-3724 |
AR103 |
133-3378 |
5179 |
HP |
MODEL |
YEAR |
CYL |
POWER PACK
& RPM LIMIT |
STATOR |
RECTIFIER/
REGULATOR |
TRIGGER
(TIMER
BASE) |
IGNITION
COIL |
60 |
SST |
89 |
3 |
113-2115
CD3/6 No Limit |
173-3724 |
AR103 |
133-4558 |
5179 |
60 |
- |
89 |
3 |
113-3748
CD3 SL 6700 |
173-4766 |
AR103 |
133-3378 |
5179 |
60 |
EL, TL |
90 |
3 |
113-3748
CD3 SL 6700 |
173-4766 |
AR103 |
133-3378 |
5179 |
60 |
SST |
90 |
3 |
113-2115
CD3/6 No Limit |
173-3724 |
AR103 |
133-3378 |
5179 |
60 |
TTL |
90 |
3 |
113-3748
CD3 SL 6700 |
173-4766 |
AR103 |
133-4558 |
5179 |
60 |
EL, TL, TX |
91 |
3 |
113-3748
CD3 SL 6700 |
173-4766 |
AR103 |
133-3378 |
5179 |
60 |
TTL |
91 |
3 |
113-3748
CD3 SL 6700 |
173-4766 |
153-1778 |
133-4558 |
5179 |
60 |
EL, TL, TX |
92 |
3 |
113-3748
CD3 SL 6700 |
173-4560 |
193-4476 |
133-3378 |
5179 |
HP |
MODEL |
YEAR |
CYL |
POWER PACK
& RPM LIMIT |
STATOR |
RECTIFIER/
REGULATOR |
TRIGGER
(TIMER
BASE) |
IGNITION
COIL |
60 |
TTL |
92 |
3 |
113-3748
CD3 SL 6700 |
173-4560 |
193-4476 |
133-4558 |
5179 |
60 |
EL, TL, TX |
93 |
3 |
113-4808
CD3 AL 6700 |
173-4560 |
193-4476 |
133-4804 |
5179 |
60 |
TTL |
93 |
3 |
113-4808
CD3 AL 6700 |
173-4560 |
193-4476 |
133-4804 |
5179 |
60 |
EL, TL, TX |
94 |
3 |
113-4808
CD3 AL 6700 |
173-4560 |
193-4476 |
133-4804 |
5179 |
60 |
TTL |
94-95 |
3 |
113-4808
CD3 AL 6700 |
173-4560 |
193-4476 |
133-4804 |
5179 |
60 |
DT, JL, EL, TL |
95 |
3 |
113-4808
CD3 AL 6700 |
173-4560 |
193-4476 |
133-4804 |
5179 |
60 |
TTL |
96-97 |
3 |
113-4808
CD3 AL 6700 |
173-4560 |
193-4476 |
133-4804 |
5179 |
HP |
MODEL |
YEAR |
CYL |
POWER PACK
& RPM LIMIT |
STATOR |
RECTIFIER/
REGULATOR |
TRIGGER
(TIMER
BASE) |
IGNITION
COIL |
60 |
DT, JL, EL, TL |
96 |
3 |
113-4808
CD3 AL 6700 |
173-4560 |
193-4476 |
133-4804 |
5179 |
60 |
- |
97-01 |
3 |
113-4808
CD3 AL 6700 |
173-4560 |
193-4476 |
133-4804 |
5179 |
65 |
- |
68 |
3 |
113-7123
BATTERY CD |
173-0726 |
153-0705 |
POINTS |
183-2382 |
65 |
- |
72 |
3 |
113-1726
PP3/6 w/Cover |
173-1235 |
AR103 |
133-1251 |
183-2303 |
65 |
- |
73 |
3 |
113-1726
PP3/6 w/Cover |
173-1235 |
AR103 |
133-1251 |
183-2303 |
65 |
- |
89 |
3 |
113-3748
CD3 SL 6700 |
173-4766 |
AR103 |
133-3378 |
5179 |
65 |
Jet |
95 |
4 |
113-4030
CD4/6 5800 |
173-3536 |
193-4204 |
133-3379 |
5179 |
HP |
MODEL |
YEAR |
CYL |
POWER PACK
& RPM LIMIT |
STATOR |
RECTIFIER/
REGULATOR |
TRIGGER
(TIMER
BASE) |
IGNITION
COIL |
65 |
Comm. Rope Start |
84 |
3 |
113-2556
CD3/6 5800 |
173-4766 |
N/A |
133-3378 |
5176 |
65 |
Comm. Elect. Start |
84-85 |
3 |
113-2556
CD3/6 5800 |
173-3724 |
AR103 |
133-3378 |
5176 |
65 |
Commercial |
86 |
3 |
113-3122
CD3/6 5800 |
173-3724 |
AR103 |
133-3378 |
5179 |
65 |
Commercial |
87 |
3 |
113-3122
CD3/6 5800 |
173-3724 |
AR103 |
133-3378 |
5179 |
65 |
Commercial |
88 |
3 |
113-3122
CD3/6 5800 |
173-3724 |
AR103 |
133-3378 |
5179 |
65 |
Comm. Rope Start |
89-90 |
3 |
113-3748
CD3 SL 6700 |
173-4766 |
AR103 |
133-4558 |
5179 |
65 |
Comm. Elect. Start |
89-90 |
3 |
113-3748
CD3 SL 6700 |
173-4766 |
AR103 |
133-3378 |
5179 |
65 |
Comm. Elect. Start |
91 |
3 |
113-3748
CD3 SL 6700 |
173-4766 |
AR103 |
133-3378 |
5179 |
HP |
MODEL |
YEAR |
CYL |
POWER PACK
& RPM LIMIT |
STATOR |
RECTIFIER/
REGULATOR |
TRIGGER
(TIMER
BASE) |
IGNITION
COIL |
65 |
Comm. Rope Start |
91-95 |
3 |
113-3748
CD3 SL 6700 |
173-4766 |
153-1778 |
133-4558 |
5179 |
65 |
Comm. Rope Start |
92-95 |
3 |
113-3748
CD3 SL 6700 |
173-4766 |
N/A |
133-4558 |
5179 |
65 |
Comm. Elect. Start |
92 |
3 |
113-3748
CD3 SL 6700 |
173-4560 |
193-4476 |
133-4558 |
5179 |
65 |
Comm. Elect. Start |
93-94 |
3 |
113-4808
CD3 AL 6700 |
173-4560 |
193-4476 |
133-4804 |
5179 |
65 |
Comm. no VRO
Elect. Start |
95 |
3 |
113-3748
CD3 SL 6700 |
173-4766 |
193-4476 |
133-4558 |
5179 |
65 |
Comm. VRO
Elect. Start |
95 |
3 |
113-4808
CD3 AL 6700 |
173-4560 |
193-4476 |
133-4804 |
5179 |
65 |
Commercial |
1996-00 |
3 |
113-5274
CD3 AL |
173-4560 |
193-4476 |
133-3378 |
5179 |
CDI
ELECTRONICS IGNITION COMPONENTS |
DESCRIPTION |
PART # |
PRICE |
SELECT |
POWERPACK |
113-1726
Click Image For Larger
|
EV-JO POWERPACK
$139.75 |
|
POWERPACK |
113-2115
Click Image For Larger
|
EV-JO POWER PACK
$120.75 |
|
POWERPACK |
113-2285
Click Image For Larger
|
POWER PACK EV-JO 2 CYL
$101.75 |
|
POWERPACK |
113-2453
Click Image For Larger
|
P-PACK EV-JO 2 CYL 9.9 - 35 HP
$94.24 |
|
POWERPACK |
113-2556
Click Image For Larger
|
P-PACK STB 5800 RPM V6
$203.75 |
|

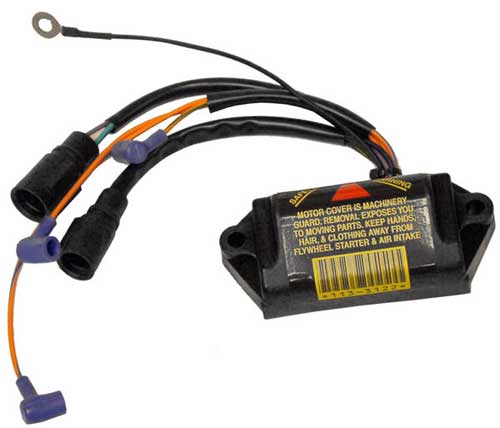

POWERPACK |
113-3122
Click Image For Larger
|
P-PACK 5800 LIMIT 3-CYL
$147.00 |
|
POWERPACK |
113-3748
Click Image For Larger
|
P-PACK 3 CYL 60-70 HP
$153.00 |
|
POWERPACK |
113-4030
Click Image For Larger
|
P-PACK 5800 RPM V4
$185.50 |
|
POWERPACK |
113-4808
Click Image For Larger
|
P-PACK EV-JO
$420.59 |
|
POWERPACK |
113-7123
Click Image For Larger
|
P-PACK EV-JO
$468.00 |
|
POWERPACK |
113-5274
Click Image For Larger
|
P-PACK 6700 LIMIT w/SLOW
$193.71 |
|
CDI
ELECTRONICS IGNITION COMPONENTS |
STATOR |
173-0726
Click Image For Larger
|
Stator 9A
$195.50 |
|
STATOR |
173-1235
Click Image For Larger
|
STATOR 6A 3-CYL
$253.00 |
|
STATOR |
173-1651
Click Image For Larger
|
STATOR 5A 2-CYL 9.9-60 HP
$402.00 |
|
STATOR
(COIL ONLY)
|
173-1670
Click Image For Larger
|
STATOR COIL ONLY
$34.50 |
|
STATOR |
173-3536
Click Image For Larger
|
V4 X-FLOW STATOR 9A
$308.50 |
|
STATOR |
173-3724
Click Image For Larger
|
STATOR 3-CTL EV-JO
$248.00 |
|
STATOR |
173-4560
Click Image For Larger
|
STATOR 6A 2-3 CYL EV-JO
$274.75 |
|
STATOR |
173-4766
Click Image For Larger
|
STATOR 3-CYL 9A
$314.75 |
|
STATOR |
R580650
REPAIR & RETURN ONLY |
STATOR R&R ONLY
$194.00 |
|
CDI
ELECTRONICS IGNITION COMPONENTS |
TIMER
BASE |
133-1251
Click Image For Larger
|
TIMER BASE 3-CYL
$370.75 |
|
TIMER
BASE |
133-3379
Click Image For Larger
|
TIMER BASE V4 X-FLOW
$296.90 |
|
TIMER
BASE |
133-3378
Click Image For Larger
|
TIMER BASE 3-CYL
$279.60 |
|
TRIGGER/
SENSOR |
133-3387
Click Image For Larger
|
TRIGGER-SENSOR EV-JO
$55.43 |
|
TIMER
BASE |
133-4558
Click Image For Larger
|
TIMER BASE 3-CYL
$211.97 |
|

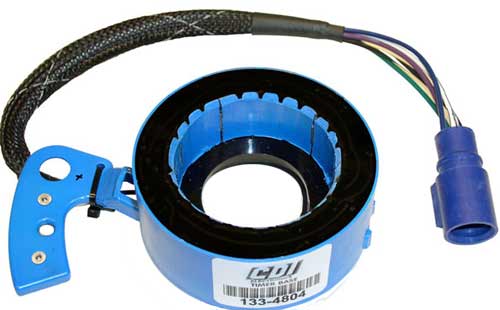

TIMER
BASE |
133-4804
Click Image For Larger
|
TIMER BASE 3-CYL
$250.39 |
|
RECTIFIER |
153-0705
Click Image For Larger
|
RECTIFIER 3-WIRE PLUG
$94.00 |
|
RECTIFIER |
153-1778
Click Image For Larger
|
RECTIFIER 4-WIRE RING TERMINALS
$54.00 |
|
RECTIFIER |
AR103
Click Image For Larger
|
RECTIFIER 3-WIRE RING TERMINAL PRO 5708
$29.00 |
|
RECTIFIER-
REGULATOR |
193-4204
Click Image For Larger
|
VOLT REG
$99.75 |
|
RECTIFIER-
REGULATOR |
193-4476
Click Image For Larger
|
RECTIFIER-REGULATOR 10A
$184.00 |
|
IGNITION COIL |
183-2303
Click Image For Larger
|
COIL KIT
$45.50 |
|
IGNITION COIL |
18-5176
Click Image For Larger
|
IGNITION COIL 584561 USE WSM
$64.50 |
|
IGNITION COIL |
183-2382
Click Image For Larger
|
COIL V4 X-FLOW
$53.25 |
|
IGNITION
COIL
|
5179
Click Image For Larger
|
IGNITION COIL 582508
$45.00 |
|
