ELECTRICAL PARTS
4 HP thru 20 HP
Mastertech is your source
for quality electronic ignition parts for all makes of US outboard
motors. Some components of the outboard electrical system are
not available from CDI, our preferred source; in this case we have listed the OEM or alternate aftermarket part
in its place.
Engine wiring harnesses are also
available for most motors. Please CONTACT US for price & availability.
OMC
APPLICATION GUIDE |
| HP |
MODEL |
YEAR |
CYL |
POWER PACK
& RPM LIMIT |
STATOR |
RECTIFIER/
REGULATOR |
TRIGGER
(TIMER
BASE) |
IGNITION
COIL |
| 2.5 |
Ultra/Excel |
87-88 |
2 |
--NLA-- |
--NLA- |
N/A |
--NLA- |
3740 |
| 4 |
|
77-84 |
2 |
113-2453
CD2 No Limit |
173-1670 |
N/A |
133-3387 |
5176 |
| 4 |
ROPE
START |
1985 |
2 |
113-2285
CD2 No Limit |
173-1670 |
N/A |
133-3387 |
18-5181 |
| 4 |
RL |
1989 |
2 |
--NLA-- |
--NLA- |
N/A |
--NLA- |
3740 |
| 4 |
RDH |
1989 |
2 |
113-4488
Conversion Kit |
173-1670 |
153-1778 |
133-3387¹ |
5179 |
| 4 |
Dual-coil Models |
90-93 |
2 |
113-4489
Conversion Kit |
173-1670 |
153-1778 |
133-3387¹ |
3740 |
| 4 |
|
94-96 |
2 |
113-2285
CD2 No Limit |
173-1670 |
N/A |
133-3387 |
5179 |
| 4.5 |
|
1985 |
2 |
113-2285
CD2 No Limit |
173-1670 |
N/A |
133-3387 |
183-2508 |
| HP |
MODEL |
YEAR |
CYL |
POWER PACK
& RPM LIMIT |
STATOR |
RECTIFIER/
REGULATOR |
TRIGGER
(TIMER
BASE) |
IGNITION
COIL |
| 5 |
DR, RC,
RL, BA |
89-90 |
2 |
113-4488
Conversion Kit |
173-1670 |
153-1778 |
133-3387¹ |
183-2508 |
5
6.5 |
COMM.
MODEL |
91-92
89-90 |
2 |
113-4488
Conversion Kit |
173-1670 |
153-1778 |
133-3387¹ |
5179 |
5
6 |
|
93-97
94-00 |
2 |
113-2285
CD2 No Limit |
173-1670 |
153-1778 |
133-3387 |
3740 |
| 5 |
DR, RE,
RL, SR |
1997 |
2 |
113-2285
CD2 No Limit |
173-1670 |
153-1778 |
133-3387 |
3740 |
| 5 |
DR |
1998 |
2 |
113-2285
CD2 No Limit |
173-1670 |
153-1778 |
133-3387 |
3740 |
| 5 |
RS, RL |
2000 |
1 |
N/A |
5030217
(FLYWHEEL) |
N/A |
N/A |
584451 |
| HP |
MODEL |
YEAR |
CYL |
POWER PACK
& RPM LIMIT |
STATOR |
RECTIFIER/
REGULATOR |
TRIGGER
(TIMER
BASE) |
IGNITION
COIL |
| 6 |
|
77-84 |
2 |
113-2453
CD2 No Limit |
173-1670 |
N/A |
133-3387 |
5176 |
| 6 |
ROPE
START |
1985 |
2 |
113-2285
CD2 No Limit |
173-1670 |
N/A |
133-3387 |
5179 |
| 6 |
ELECT.
START |
1985 |
2 |
113-2285
CD2 No Limit |
173-1670 |
153-1778 |
133-3387 |
183-2508 |
| 6, 8 |
|
89-90 |
2 |
113-4488
Conversion Kit |
173-1670 |
153-1778 |
133-3387¹ |
183-2508 |
| 6, 8 |
|
91-92 |
2 |
113-4488
Conversion Kit |
173-1670 |
153-1778 |
133-3387¹ |
3740 |
| 6 |
|
94-00 |
2 |
113-2285
CD2 No Limit |
173-1670 |
153-1778 |
133-3387 |
3740 |
| 8 |
ALL |
1984 |
2 |
113-2474
CD2 5800 |
582930
A/C MODELS |
153-1778 |
133-3387 |
5176 |
| 8 |
ROPE
START |
85 |
2 |
113-2285
CD2 No Limit |
173-1670 |
N/A |
133-3387 |
183-2508 |
| 8 |
ELECT.
START |
85 |
2 |
113-3241
CD2 5800 |
173-1670 |
153-1778 |
133-3387 |
183-2508 |
| HP |
MODEL |
YEAR |
CYL |
POWER PACK
& RPM LIMIT |
STATOR |
RECTIFIER/
REGULATOR |
TRIGGER
(TIMER
BASE) |
IGNITION
COIL |
| 8 |
DR, RE,
RL, SR |
94-97 |
3 |
113-4808
CD3 AL 6700 |
173-4560 |
193-4476 |
N/A |
5179 |
| 8 |
RE/RL/RS/
RV/RX |
98-03 |
2 |
113-2285
CD2 No Limit |
173-1670 |
153-1778 |
133-3387 |
3740 |
| 8 |
COMM.
MODEL |
97 |
3 |
113-2285
CD2 No Limit |
173-1670 |
N/A |
133-3387 |
3740 |
| 9.9 |
ROPE
Start |
77-82 |
2 |
113-2453
CD2 No Limit |
173-1670 |
N/A |
133-3387 |
5176 |
| 9.9 |
ELECT.
START |
77-83 |
2 |
113-2453
CD2 No Limit |
173-1651 |
153-1778 |
133-3387 |
5176 |
| 9.9 |
ROPE
Start
ELECT.
START |
83-84
1984 |
2 |
113-2453
CD2 No Limit |
173-1670 |
153-1778 |
133-3387 |
5176 |
| HP |
MODEL |
YEAR |
CYL |
POWER PACK
& RPM LIMIT |
STATOR |
RECTIFIER/
REGULATOR |
TRIGGER
(TIMER
BASE) |
IGNITION
COIL |
| 9.9 |
ELECT.
START
ALL |
1985
1988 |
2 |
113-2285
CD2 No Limit |
173-1670 |
153-1778 |
133-3387 |
5179 |
| 9.9 |
Rope
Start |
89-92 |
2 |
113-4488
Conversion Kit |
173-4333 |
N/A |
133-3387¹ |
5179 |
| 9.9 |
ELECT.
Start |
89-91 |
2 |
113-4488
Conversion Kit |
584341 |
153-1778 |
(OEM)
IN STATOR
or
133-3387 ¹
|
3740 |
| 9.9 |
ELECT.
START |
1992 |
2 |
113-4488
Conversion Kit |
584344 |
153-1778 |
IN STATOR |
5179 |
| 9.9 |
Rope
Start |
93-01 |
2 |
113-4783
CD2 No Limit |
173-1670 |
N/A |
133-3387 |
3740 |
| 9.9 |
ELECT.
START |
93-01 |
2 |
113-4783
CD2 No Limit |
173-1651 |
153-4597 |
IN STATOR |
3740 |
| 14 |
|
1988 |
2 |
113-2285
CD2 No Limit |
173-1670 |
N/A |
133-3387 |
5179 |
| HP |
MODEL |
YEAR |
CYL |
POWER PACK
& RPM LIMIT |
STATOR |
RECTIFIER/
REGULATOR |
TRIGGER
(TIMER
BASE) |
IGNITION
COIL |
| 14 |
|
1989 |
2 |
113-4488
Conversion Kit |
173-1670 |
153-1778 |
133-3387¹ |
5176 |
| 15 |
ROPE
Start |
77-82 |
2 |
113-2453
CD2 No Limit |
173-1670 |
N/A |
133-3387 |
5179 |
| 15 |
ELECT.
Start |
77-83 |
2 |
113-2453
CD2 No Limit |
173-1651 |
153-1778 |
133-3387 |
5179 |
| 15 |
ROPE
Start |
83-84 |
2 |
113-2453
CD2 No Limit |
N/A |
153-1778 |
133-3387 |
5179 |
| 15 |
ELECT.
Start |
1984 |
2 |
113-2453
CD2 No Limit |
173-1670 |
N/A |
133-3387 |
5176 |
| 15 |
ELECT.
Start |
85-88 |
2 |
113-2285
CD2 No Limit |
173-1670 |
N/A |
133-3387 |
5179 |
| 15 |
ALL |
89-91 |
2 |
113-4488
Conversion Kit |
173-1670 |
153-1778 |
133-3387 |
5179 |
| 15 |
ALL |
1992 |
2 |
113-4489
Conversion Kit |
173-1670 |
153-1778 |
133-3387 |
3740 |
| 15 |
ALL |
1993 |
2 |
113-4783
CD2 No Limit |
173-1651 |
153-4597 |
133-3387 |
3740 |
| 15 |
ALL |
1994 |
2 |
113-4783
CD2 No Limit |
173-1670 |
N/A |
133-3387 |
3740 |
| 15 |
ELECTRIC
Start |
1995 |
2 |
113-4783
CD2 No Limit |
173-1651 |
153-4597 |
IN STATOR |
3740 |
| HP |
MODEL |
YEAR |
CYL |
POWER PACK
& RPM LIMIT |
STATOR |
RECTIFIER/
REGULATOR |
TRIGGER
(TIMER
BASE) |
IGNITION
COIL |
| 18 |
JET (25JRE) |
95-98 |
2 |
113-4767
CD2 SL 6100 |
173-1670 |
N/A |
133-3387 |
5179 |
| 20 |
ROPE
Start |
85-87 |
2 |
113-2285
CD2 No Limit |
173-1670 |
N/A |
133-3387 |
5179 |
| 20 |
ELECTRIC
Start |
85-87 |
2 |
113-2285
CD2 No Limit |
2926K1 |
153-1778 |
133-3387 |
5179 |
| 20 |
ROPE
Start |
88 |
2 |
113-2285
CD2 No Limit |
173-1670 |
N/A |
133-3387 |
5176 |
| 20 |
ELECTRIC
Start |
88 |
2 |
113-2285
CD2 No Limit |
2926K1 |
153-1778 |
133-3387 |
5176 |
| 20 |
ROPE
Start |
89-92 |
2 |
113-4489
Conversion Kit |
173-4333 |
N/A |
133-3387¹ |
5179 |
| 20 |
ELECTRIC
Start |
89-92 |
2 |
113-4489
Conversion Kit |
584341 |
153-1778 |
IN STATOR |
183-2508 |
20
20 |
ROPE
Start
JET |
93-99
2000 |
2 |
113-4767
CD2 SL 6100 |
173-1670
STD. MODELS
584507
(BATT. CHRG.
MODELS ONLY) |
N/A |
133-3387 |
5179 |
| 20 |
ELECTRIC
Start |
93-98 |
2 |
113-4767
CD2 SL 6100 |
2926K1 |
153-1778 |
133-3387 |
5179 |
¹ only present if conversion kit has been
installed |
Please take the time to enter the model and serial number of your motor
in the shopping cart . Thanks!
| ELECTRONIC IGNITION
COMPONENTS |
| DESCRIPTION |
PART
# |
PRICE |
SELECT |

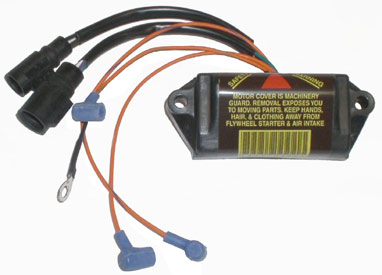

| POWERPACK |
113-2115
Click Image For Larger |
EV-JO POWER PACK
$120.75 |
|
| POWERPACK |
113-2285
Click Image For Larger |
POWER PACK EV-JO 2 CYL
$101.75 |
|
| POWERPACK |
113-2453
Click Image For Larger |
P-PACK EV-JO 2 CYL 9.9 - 35 HP
$94.24 |
|
| POWERPACK |
113-2474
Click Image For Larger |
P-PACK EV-JO 2 CYL 25 HP
$148.00 |
|
| POWERPACK |
113-3241
Click Image For Larger |
P-PACK 25 - 50 HP
$136.50 |
|
| POWERPACK |
113-3748
Click Image For Larger |
P-PACK 3 CYL 60-70 HP
$153.00 |
|

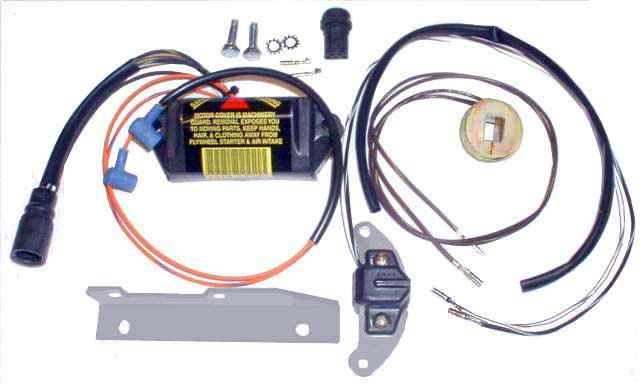

| POWERPACK
CONVERSION KIT |
113-4488
Click Image For Larger |
POWER PACK CONVERSION KIT
$198.75 |
|
| POWERPACK
CONVERSION KIT |
113-4489
Click Image For Larger |
POWER PACK CONVERSION KIT
$203.75 |
|
| POWERPACK |
113-4767
Click Image For Larger |
EV-JO P-PACK
$118.50 |
|
| POWERPACK |
113-4783
Click Image For Larger |
EV-JO P-PACK
$128.55 |
|
| POWERPACK |
113-4808
Click Image For Larger |
P-PACK EV-JO
$420.59 |
|
| POWERPACK |
113-5316
Click Image For Larger |
EV-JO POWER PACK
$158.61 |
|
| POWERPACK |
113-7123
Click Image For Larger |
P-PACK EV-JO
$468.00 |
|
| DESCRIPTION |
PART
# |
PRICE |
SELECT |
| TIMER
BASE |
133-3378
Click Image For Larger |
TIMER BASE 3-CYL
$279.60 |
|
| TRIGGER/
SENSOR |
133-3387
Click Image For Larger |
TRIGGER-SENSOR EV-JO
$55.43 |
|
| TIMER
BASE |
133-4558
Click Image For Larger |
TIMER BASE 3-CYL
$211.97 |
|
| RECTIFIER |
153-0705
Click Image For Larger |
RECTIFIER 3-WIRE PLUG
$94.00 |
|
| RECTIFIER |
153-1778
Click Image For Larger |
RECTIFIER 4-WIRE RING TERMINALS
$54.00 |
|
| RECTIFIER |
AR103
Click Image For Larger |
RECTIFIER 3-WIRE RING TERMINAL PRO 5708
$29.00 |
|
| RECTIFIER |
153-4597
Click Image For Larger |
RECTIFIER 4-WIRE BULLET
$64.00 |
|

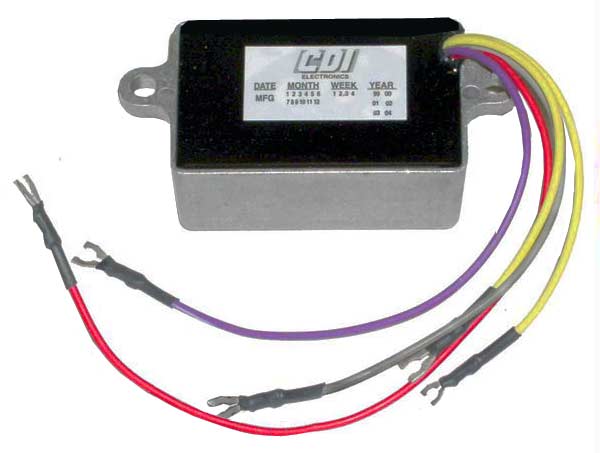

| RECTIFIER-REGULATOR |
193-4476
Click Image For Larger |
RECTIFIER-REGULATOR 10A
$184.00 |
|
| IGNITION
COIL |
5176
Click Image For Larger |
IGNITION COIL 584561 USE WSM
$64.50 |
|
| IGNITION
COIL |
183-2382
Click Image For Larger |
COIL V4 X-FLOW
$53.25 |
|
| IGNITION
COIL |
5179
Click Image For Larger |
IGNITION COIL 582508
$45.00 |
|
| IGNITION
COIL |
3740
Click Image For Larger |
IGNITION COIL 183-3740
$51.75 |
|
| IGNITION
COIL |
183-4632
Click Image For Larger |
IGNITION COIL
$47.00 |
|
IGNITION
COIL
(Coils Mounted Under Flywheel) |
18-5181
Click Image For Larger |
IGN COIL UNDER FLYWHEEL
$38.00 |
|
| IGNITION
COIL |
584451
OEM ONLY
DISCONTINUED |
Contact Us --
WE MAY BE
ABLE TO FIND
ONE |
CONTACT US |
| WIRING
HARNESS ALL LISTINGS PLEASE CONTACT US |
We pay the freight out in USA on all orders
over $100.00. Orders less than this amount will have a shipping
and handling charge of $8.75 added. Some bulky and heavy items
will incur additional charges. You will be notified beforehand
if this is the case. Remember, all orders receive free technical
support from the MasterTech!
|
|
| |
Please review our Warranty, Returns & Refunds policies before you place an order.
DISCLAIMER
The information provided on these pages is correct to the best of my knowledge, however the MasterTech makes no warranty, express or implied, regarding the use of, results of, or liability created from, application of this data. This information is disseminated in good faith, however MasterTech assumes NO LIABILITY whatsoever in regard to this service. The information, software, products, and services published on this web site may include inaccuracies or typographical errors. Changes are periodically added to the information herein. Mastertech may make improvements to this site at any time. Parts ordered from this website may or may not be in dealer stock at the time of order. Thank you for reading.
|
|
