Evinrude Johnson Replacement Parts

ELECTRICAL PARTS
25 HP thru 35 HP

Mastertech is your source for quality electronic ignition parts for all makes of US outboard motors. Some components of the outboard electrical system are not available from CDI, our preferred source; in this case we have listed the OEM or alternate aftermarket part in its place.

Engine wiring harnesses are also available for most motors. Please CONTACT US for price & availability.

OMC APPLICATION GUIDE

HP
MODEL
YEAR
CYL
POWER PACK
& RPM LIMIT
STATOR
RECTIFIER/
REGULATOR
TRIGGER
(TIMER
BASE)
IGNITION
COIL
25, 35
2 CYL
ELECTRIC
Start
1977 2 113-2453
CD2 No Limit
173-1651 153-1778 in stator 5176
25
2 CYL
ROPE
START
77-84 2 113-2453
CD2 No Limit
173-1670 N/A 133-3387 5176
25
2 CYL
ELECTRIC
Start
78-81 2 113-2453
CD2 No Limit
173-1651 153-1778 133-3387 5176
25
2 CYL
ELECTRIC
Start
82-84 2 113-2453
CD2 No Limit
173-2926K1 153-1778 133-3387 5176
25
2 CYL
ROPE
START
85-87 2 113-2285
CD2 No Limit
173-1670 N/A 133-3387 5176
25
2 CYL
ELECTRIC
Start
85-87 2 113-2285
CD2 No Limit
582930 153-1778 (OEM  IN
STATOR)
or
133-3387¹
5176
25
2 CYL
ROPE
Start
1988 2 113-2453
CD2 No Limit
173-1670 N/A 133-3387 5176
25
2 CYL
ELECTRIC
Start
1988 2 113-2285
CD2 No Limit
173-2926K1 153-1778 133-3387 5176
25
2 CYL
ALL UFI
IGNITION
89-91 2 113-4489
Conversion Kit
173-4333 N/A 133-3387¹ 5176
HP
MODEL
YEAR
CYL
POWER PACK
& RPM LIMIT
STATOR
RECTIFIER/
REGULATOR
TRIGGER
(TIMER
BASE)
IGNITION
COIL
25
2 CYL
ALL 89-92 2 113-4489
Conversion Kit
(OEM)
584341
153-1778 (OEM  IN
STATOR)
or
133-3387¹
5176
25
2 CYL
ROPE
Start
93-05 2 113-4767
CD2 SL 6100
173-1670 N/A 133-3387 5176
25
2 CYL
ELECTRIC
Start
93-05 2 113-4767
CD2 SL 6100
173-2926K1 153-1778 133-3387 5176
25 & 35
3 CYL
ROPE START
AC Lighting
&
Batt Chg
96-97,
& 2000 w/AC
Lighting
3 586472

176278
96-97
w/Batt Chg


173-4954
(AC Lighting)

Must Replace w/New OEM Kit
176278
584824
(Sensor)
586323
25 & 35
3 CYL
ELECTRIC
Start
96-00 3 586472 173-4821 193-4890 584824
(Sensor)
586323
HP
MODEL
YEAR
CYL
POWER PACK
& RPM LIMIT
STATOR
RECTIFIER/
REGULATOR
TRIGGER
(TIMER
BASE)
IGNITION
COIL
28 ALL 1986 2 113-2285
CD2 No Limit
173-2926K1 153-1778 133-3387 5176
28 ALL 87-88 2 113-2285
CD2 No Limit
173-2926K1 153-1778 133-3387 5176
28 ALL 89-92 2 113-4489
Conversion Kit
584341 153-1778 133-3387¹ 5176
28 ALL 93-94 2 113-4767
CD2 SL 6100
173-2926K1 153-1778 133-3387 5176
28 JET 95-98 2 113-4767
CD2 SL 6100
173-1670 N/A 133-3387 3740
28 ELECTRIC
Start
95-96 2 113-4767
CD2 SL 6100
173-2926K1 153-1778 133-3387 5176
30 ELECTRIC
Start
1984 2 113-2453
CD2 No Limit
173-2926K1 153-1778 133-3387 5176
30 ELECTRIC
Start
1985 2 113-2285
CD2 No Limit
R582426* 153-1778 133-3387 5176
HP
MODEL
YEAR
CYL
POWER PACK
& RPM LIMIT
STATOR
RECTIFIER/
REGULATOR
TRIGGER
(TIMER
BASE)
IGNITION
COIL
30 ELECTRIC
Start
86 2 113-2285
CD2 No Limit
173-2926K1 153-1778 133-3387 5176
30 ELECTRIC
Start
87 2 113-2285
CD2 No Limit
173-2926K1 153-1778 133-3387 5176
30 ELECTRIC
Start
88 2 113-2285
CD2 No Limit
173-2926K1 153-1778 133-3387 5176
30 ELECTRIC
Start
89-92 2 113-4489
Conversion Kit
173-2926K1 153-1778 133-3387¹ 5176
30 ELECTRIC
Start
93-05 2 113-4767
CD2 SL 6100
173-2926K1 153-1778 133-3387 5176
30 ROPE
Start
1984 2 113-2453
CD2 No Limit
173-1670 N/A 133-3387 5176
30 ROPE
Start
85-87 2 113-2285
CD2 No Limit
173-1670 N/A 133-3387 5176
30, 35 ROPE
Start
89-92 2 113-4489
Conversion Kit
173-4333 N/A 133-3387¹ 5176
30 ROPE
Start
93-05 2 113-4767
CD2 SL 6100
Std. Motor
173-1670

Batt. Chrg.
Models
584507
N/A 133-3387 5176
35 ROPE
Start
77-82 2 113-2453
CD2 No Limit
173-1670 N/A 133-3387 5176
35 ROPE
Start
83-84 2 113-2453
CD2 No Limit
173-1670 N/A 133-3387 5176
HP
MODEL
YEAR
CYL
POWER PACK
& RPM LIMIT
STATOR
RECTIFIER/
REGULATOR
TRIGGER
(TIMER
BASE)
IGNITION
COIL
35 ROPE
Start
1985 2 113-2285
CD2 No Limit
173-1670 N/A 133-3387 5176
35 ROPE
Start
86-88 2 113-2285
CD2 No Limit
173-4333 N/A 133-3387 5176
35 ROPE
Start
89-92 2 113-4489
Conversion Kit
173-4333 N/A 133-3387¹ 5176
35
2 CYL
ROPE
Start
93-94,
1996
2 113-4767
CD2 SL 6100
173-1670 N/A 133-3387 5176
35 JET 1992 2 113-4489
Conversion Kit
173-4333 N/A 133-3387¹ 3740
35 JET 93-97 2 113-4767
CD2 SL 6100
173-1670 N/A 133-3387 3740
HP
MODEL
YEAR
CYL
POWER PACK
& RPM LIMIT
STATOR
RECTIFIER/
REGULATOR
TRIGGER
(TIMER
BASE)
IGNITION
COIL
35 ELECTRIC
Start
77-82 2 113-2453
CD2 No Limit
173-1651 153-1778 133-3387 5176
35 ELECTRIC
Start
1984,
1986
2 113-2285
CD2 No Limit
173-2926K1 153-1778 133-3387 5176
35 ELECTRIC
Start
1987 2 113-2285
CD2 No Limit
173-1670 153-1778 133-3387 5176
35 ELECTRIC
Start
1988 2 113-2285
CD2 No Limit
173-2926K1 153-1778 133-3387 5176
35 ELECTRIC
Start
1989 2 113-4489
Conversion Kit
173-4333 153-1778 133-3387¹ 5176
  • ¹ only present if conversion kit has been installed

ELECTRONIC IGNITION COMPONENTS
DESCRIPTION PART # PRICE SELECT
POWERPACK 113-1397

18-5755, 581397
Click Image For Larger

POWER PACK

$164.50
POWERPACK 113-2115

582115, 113-2115
Click Image For Larger

EV-JO POWER PACK

$120.75
POWERPACK 113-2285

396141, 586697, 586600, 113-2285
Click Image For Larger

POWER PACK EV-JO 2 CYL

$101.75
POWERPACK 113-2453

582452, 113-2453
Click Image For Larger

P-PACK EV-JO 2 CYL 9.9 - 35 HP

$94.24
POWERPACK 113-2474

582901, 586690, 586692, 763790, 113-2474
Click Image For Larger

P-PACK EV-JO 2 CYL 25 HP

$148.00
POWERPACK 113-3241


Click Image For Larger

P-PACK 25 - 50 HP

$136.50
POWERPACK 113-3748

583748,583786,763801,113-3748
Click Image For Larger

P-PACK 3 CYL 60-70 HP

$153.00
POWERPACK 113-4767

585224,5001344,113-4767
Click Image For Larger

EV-JO P-PACK

$118.50
POWERPACK CONVERSION KIT 113-4488

584488,113-4488
Click Image For Larger

POWER PACK CONVERSION KIT

$198.75
POWERPACK CONVERSION KIT 113-4489

584487,584489,113-4489
Click Image For Larger

POWER PACK CONVERSION KIT

$203.75
POWERPACK 113-4783

586798,113-4783
Click Image For Larger

EV-JO P-PACK

$128.55
POWERPACK 113-4808

5004532,5004533,113-4808,584808,585189
Click Image For Larger

P-PACK EV-JO

$420.59
POWERPACK 113-5316

175316,585261,585262,113-5316
Click Image For Larger

EV-JO POWER PACK

$158.61
POWERPACK 113-7123

389549, 389550, 389551, 397123, 113-7123
Click Image For Larger

P-PACK EV-JO

$468.00
POWERPACK
586472
OEM only
These are ridiculously priced but there's no other source!

POWER PACK OEM ONLY

$515.99

DESCRIPTION PART # PRICE SELECT
STATOR 173-0726

173-0726,5830726
Click Image For Larger

Stator 9A

$195.50
STATOR 173-1232

580809, 581232, 775530, 173-1232
Click Image For Larger

STATOR EV-JO 50-55 HP 71-77

$242.00
STATOR 173-1651

581651, 585087, 763770, 173-1651
Click Image For Larger

STATOR 5A 2-CYL 9.9-60 HP

$402.00
STATOR (COIL ONLY) 173-1670

581635, 581670, 173-1670
Click Image For Larger

STATOR COIL ONLY

$34.50
STATOR 2926K1

582926, 173-2926K1
Click Image For Larger

STATOR COILS EV-JO

$81.00
STATOR 173-3724

583644, 583724,583830,173-3724
Click Image For Larger

STATOR 3-CTL EV-JO

$248.00
STATOR 173-4333

584333,173-4333
Click Image For Larger

STATOR COIL EV-JO

$35.53
STATOR 173-4560

173-4560,584560
Click Image For Larger

STATOR 6A 2-3 CYL EV-JO

$274.75
STATOR 173-4766

173-4766,583779,584236,584766,763762
Click Image For Larger

STATOR 3-CYL 9A

$314.75

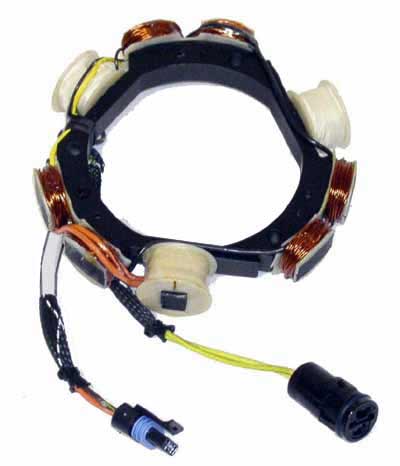

STATOR 173-4821

584548, 584821, 763761
Click Image For Larger

STATOR 9A 35 HP

$251.25

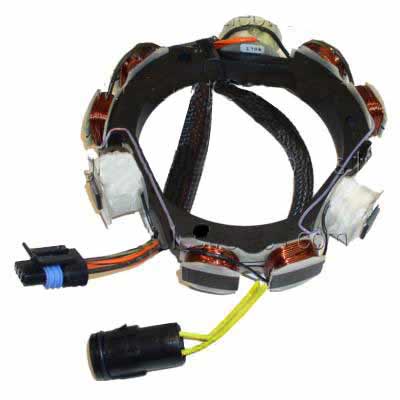

STATOR 173-4954


Click Image For Larger

STATOR EV-JO

$201.00
STATOR COIL
MODELS WITH ACCESSORY POWERING
582930
(OEM ONLY)

ACCESSORY STATOR COIL f/CHARGE NLA

$0.00
STATOR 584341
(OEM ONLY)

STATOR NLA

$195.00
STATOR
For Accessory/Lighting
584344
(OEM ONLY)

ACCESSORY STATOR OEM ONLY

$55.00
STATOR
For Accessory/Lighting
584507
(OEM ONLY)

ACCESSORY STATOR NLA

$0.00
STATOR R580650
(REPAIR & RETURN)

STATOR R&R ONLY

$194.00
STATOR R582426
(REPAIR & RETURN)

STATOR R&R ONLY

$64.00

DESCRIPTION PART # PRICE SELECT
TIMER BASE 133-3378

581949, 583060, 583378, 133-3378
Click Image For Larger

TIMER BASE 3-CYL

$279.60
TRIGGER/SENSOR 133-3387

584716, 583387, 133-3387
Click Image For Larger

TRIGGER-SENSOR EV-JO

$55.43
TRIGGER/
SENSOR
582296
OEM ONLY
DISCONTINUED
CONTACT US --
WE MAY BE
ABLE TO FIND
ONE
CONTACT US
OPTICAL
SENSOR
584824
(OEM ONLY)
These are ridiculously priced
but there's no other source!

OPTICAL SENSOR

$373.00
SENSOR COIL 133-0875

580875, 581508, 581585, 763804, 385454
Click Image For Larger

TIMER BASE KIT

$158.65
RECTIFIER 153-0705

580698, 580705, 580771,153-0705
Click Image For Larger

RECTIFIER 3-WIRE PLUG

$94.00
RECTIFIER 153-1778

581778, 153-1778
Click Image For Larger

RECTIFIER 4-WIRE RING TERMINALS

$54.00
RECTIFIER AR103

582399, 583408, 153-3408
Click Image For Larger

RECTIFIER 3-WIRE RING TERMINAL PRO 5708

$29.00
RECTIFIER 153-4597

584597,153-4597
Click Image For Larger

RECTIFIER 4-WIRE BULLET

$64.00
RECTIFIER- REGULATOR 193-4476

584476, 585001,193-4476
Click Image For Larger

RECTIFIER-REGULATOR 10A

$184.00

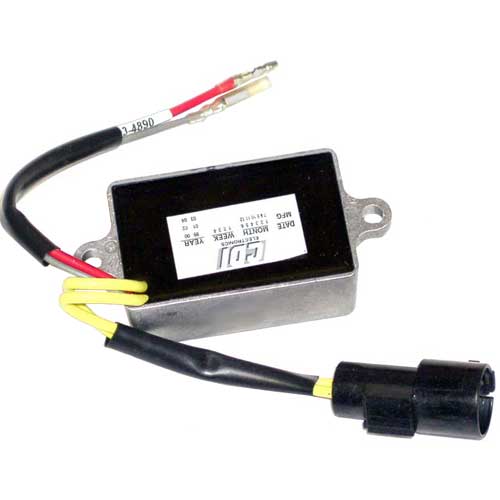

RECTIFIER-
REGULATOR
193-4890


Click Image For Larger

VOLT REG 20A

$247.50
ACC/Lighting Kit 176278
(OEM PART)

ACCESSORY LIGHTING KIT

$255.00

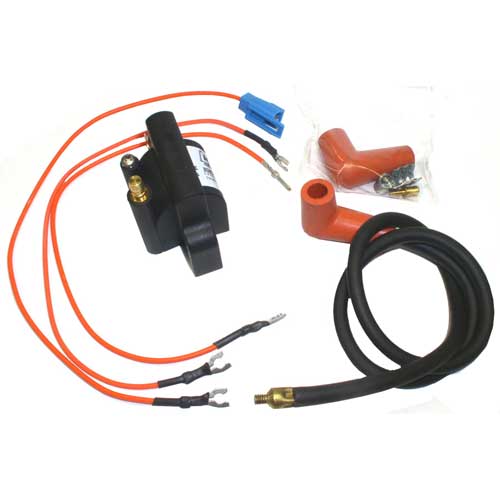

IGNITION COIL 5176

582366,583737,584561,183-2366,18-5176
Click Image For Larger

IGNITION COIL 584561 USE WSM

$64.50
IGNITION COIL 183-2382

502882,502884,580688,580730,580847,582382,183-2382
Click Image For Larger

COIL V4 X-FLOW

$53.25
IGNITION COIL 5179

582508,183-2508,18-5179
Click Image For Larger

IGNITION COIL 582508

$45.00
IGNITION COIL 183-3737


Click Image For Larger

IGNITION COIL

$44.00
IGNITION COIL 3740

183-3740,583740
Click Image For Larger

IGNITION COIL 183-3740

$51.75
IGNITION COIL 183-4632

502890, 183-4632
Click Image For Larger

IGNITION COIL

$47.00
IGNITION COIL 584451
OEM ONLY
DISCONTINUED
CONTACT US --
WE MAY BE
ABLE TO FIND
ONE
CONTACT US
IGNITION COIL 586323
OEM ONLY
DISCONTINUED
CONTACT US --
WE MAY BE
ABLE TO FIND
ONE
CONTACT US
WIRING  HARNESS ALL LISTINGS PLEASE      CONTACT US

We pay the freight out in USA on all orders over $100.00. Orders less than this amount will have a shipping and handling charge of $8.75 added. Some bulky and heavy items will incur additional charges. You will be notified beforehand if this is the case. Remember, all orders receive free technical support from the MasterTech!




Please review our Warranty, Returns & Refunds policies before you place an order.

DISCLAIMER

The information provided on these pages is correct to the best of my knowledge, however the MasterTech makes no warranty, express or implied, regarding the use of, results of, or liability created from, application of this data. This information is disseminated in good faith, however MasterTech assumes NO LIABILITY whatsoever in regard to this service. The information, software, products, and services published on this web site may include inaccuracies or typographical errors. Changes are periodically added to the information herein. Mastertech may make improvements to this site at any time. Parts ordered from this website may or may not be in dealer stock at the time of order. Thank you for reading.
