ELECTRICAL PARTS
185 HP thru 300 HP


Flywheel Magnets Came Off Your V4 or V6 35-Amp Charging System
(90° Motors Only) ??
Don't buy a new flywheel; Get magnet kits HERE

Plug wire sets HERE

Mastertech is your source for quality electronic ignition parts for all makes of US outboard motors. Some components of the outboard electrical system are not available from CDI, our preferred source; in this case we have listed the OEM or alternate aftermarket part in its place.

Engine wiring harnesses are also available for most motors. Please CONTACT US for price & availability.



OMC APPLICATION GUIDE

HP
MODEL
YEAR
CYL
POWER PACK
& RPM LIMIT
STATOR
RECTIFIER/
REGULATOR
TRIGGER
(TIMER
BASE)
IGNITION
COIL
185 - 77-78 6 113-1726
PP3 w/Cover
173-3672 AR103 133-1486 183-2303
185 - 79-83 6 113-2138
CD3/6 No Limit
173-3672 193-5204 133-3377 5176
185 TL, TX 84 6 113-2138
CD3/6 No Limit
173-3672 193-5204 133-3377 5176
185 TL, TX 85 6 113-2651
CD3/6 5800
173-3668 193-5204 133-3377 5179
185 - 90 6 113-4037
CD6AL 6700
173-4287 193-3689 133-3533 5179
185 - 91 6 113-4037
CD6AL 6700
173-4287 193-3689 133-3533 5179
185 - 92 6 113-4037
CD6AL 6700
173-4287 193-3689 133-3533 5179
185 - 93-94 6 113-6212
CD6AL 6700
173-4643 193-4641 133-3533 5179
200 - 76-78 6 113-1726
PP3 w/Cover
173-3672 AR103 133-1486 5176
200 - 79-83 6 113-2138
CD3/6 No Limit
173-3672 193-5204 133-3377 5176
200 - 86-87 6 113-3605
CD3/6 6200
173-3117 193-5204 133-3048 5179
HP
MODEL
YEAR
CYL
POWER PACK
& RPM LIMIT
STATOR
RECTIFIER/
REGULATOR
TRIGGER
(TIMER
BASE)
IGNITION
COIL
200 - 88-90 6 113-4037
CD6AL 6700
173-4287 193-3689 133-3533 5179
200 - 91 6 113-4037
CD6AL 6700
173-4643 193-3689 133-3533 5179
200 - 92 6 113-4037
CD6AL 6700
173-4643 193-3689 133-3533 5179
200 - 93-94 6 113-6212
CD6AL 6700
173-4643 193-4641 133-3533 5179
200 - 95 6 113-6212
CD6AL 6700
173-4643 193-4641 133-3533 5179
200 - 96 6 113-6212
CD6AL 6700
173-4643 193-4641 133-3533 5179
200 - 97-98 6 113-6212
CD6AL 6700
173-4643 193-4641 133-3533 5179
200 - 2000 6 113-6212
CD6AL 6700
173-4643 193-4641 133-3533 5179
200 Comm. 94 6 113-6212
CD6AL 6700
173-4643 193-4641 133-3533 5179
200 Comm. 2000 6 113-6212
CD6AL 6700
173-4643 193-4641 133-3533 5179
HP
MODEL
YEAR
CYL
POWER PACK
& RPM LIMIT
STATOR
RECTIFIER/
REGULATOR
TRIGGER
(TIMER
BASE)
IGNITION
COIL
225 - 86-87 6 113-3605
CD3/6 6200
173-3117 193-5204 133-3048 5179
225 - 88-89 6 113-4037
CD6AL 6700
173-4287 193-3689 133-3533 5179
225 - 91 6 113-4037
CD6AL 6700
173-4287 193-3689 133-3533 5179
225 - 92 6 113-4037
CD6AL 6700
173-4287 193-3689 133-3533 5179
225 - 93-94 6 113-6212
CD6AL 6700
173-4643 193-4641 133-3533 5179
225 - 95 6 113-6212
CD6AL 6700
173-4643 193-4641 133-3533 5179
225 - 96-98 6 113-6212
CD6AL 6700
173-4643 193-4641 133-3533 5179
225 - 2000 6 113-6212
CD6AL 6700
173-4643 193-4641 133-3533 5179
235 - 78 6 113-1726
PP3 w/Cover
173-3672 AR103 133-1486 183-2303
235 - 79-83 6 113-2138
CD3/6 No Limit
173-3672 193-5204 133-3377 5176
HP
MODEL
YEAR
CYL
POWER PACK
& RPM LIMIT
STATOR
RECTIFIER/
REGULATOR
TRIGGER
(TIMER
BASE)
IGNITION
COIL
235 ST. PORT
10 Amp
84 6 113-2138
CD3/6 No Limit
173-3672 193-5204 133-3377 5176
235 ST. STBD
10 Amp
84 6 113-2556
CD3/6 5800
173-3672 193-5204 133-3377 5176
235 ST. PORT
35 Amp
84 6 113-2138
CD3/6 No Limit
173-3668 193-5204 133-3377 5176
235 ST. STBD
35 Amp
84 6 113-2556
CD3/6 5800
173-3668 193-5204 133-3377 5176
235 TL, TX 85 6 113-2651
CD3/6 5800
173-3668 193-5204 133-3377 5179
235 ST
10 Amp
85 6 113-2537
CD3/6 5800
173-3672 193-5204 133-3377 5179
235 ST
35 Amp
85 6 113-2537
CD3/6 5800
173-3668 193-5204 133-3377 5179
250 - 91-92 8 113-4035
CD8AL 6700
173-4287 193-3689 133-3531 5179
250 - 93-94 8 113-4642
CD8AL 6700
173-4287 193-4641 133-3531 5179
HP
MODEL
YEAR
CYL
POWER PACK
& RPM LIMIT
STATOR
RECTIFIER/
REGULATOR
TRIGGER
(TIMER
BASE)
IGNITION
COIL
250 - 95 8 113-4642
CD8AL 6700
173-4287 193-4641 133-3531 5179
250 - 97 8 113-4642
CD8AL 6700
173-4643 193-4641 133-3531 5179
250 - 2000 6 113-6212
CD6AL 6700
173-4643 193-4641 133-3533 5179
275 - 85 8 113-3072
CD4 6700
173-3117 193-3689 583375 5179
275 3.6L 86-87 8 113-3101
CD4/8 6100
173-3117 193-3689 583375 5179
275 - 88-89 8 113-4035
CD8AL 6700
173-4287 193-3689 133-3531 5179
300 3.6L 85 8 113-3072
CD4 6700
173-3117 193-3689 583375 5179
300 3.6L 86-87 8 113-3101
CD4/8 6100
173-3117 193-3689 583375 5179
300 - 88-90 8 113-4035
CD8AL 6700
173-4287 193-3689 133-3531 5179
300 - 91-92 8 113-4035
CD8AL 6700
173-4287 193-3689 133-3531 5179
300 - 93-94 8 113-4642
CD8AL 6700
173-4287 193-4641 133-3531 5179
300 - 95 8 113-4642
CD8AL 6700
173-4287 193-4641 133-3531 5179


CDI ELECTRONICS IGNITION COMPONENTS
DESCRIPTION PART # PRICE SELECT
POWERPACK 113-1726

581726, 113-1726
Click Image For Larger

EV-JO POWERPACK

$139.75
POWERPACK 113-2138

582138, 582400, 582642, 582556, 113-2138
Click Image For Larger

EV-JO POWERPACK

$149.35

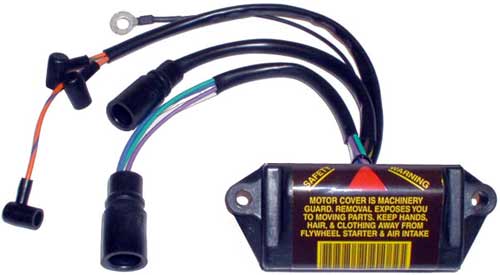

POWERPACK 113-2537

582537, 113-2537
Click Image For Larger

P-PACK 5800 LIMIT 65 HP

$153.75
POWERPACK 113-2556

582556, 582138, 582400, 582642, 113-2556
Click Image For Larger

P-PACK STB 5800 RPM V6

$203.75
POWERPACK 113-2651

582817, 582651, 763792, 113-2651
Click Image For Larger

EV-JO POWERPACK

$193.00

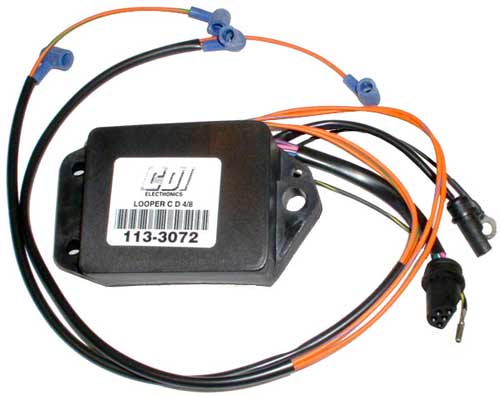

POWERPACK 113-3072

583072, 113-3072
Click Image For Larger

POWER PACK 6700 LIMIT

$172.46
POWERPACK 113-3101


Click Image For Larger

P-PACK 6700 REV V4-V8 LOOPER

$169.50
POWERPACK 113-3605

583030, 583605,763800, 113-3605
Click Image For Larger

P-PACK V6 6700 REV LIMIT

$190.75
POWERPACK 113-4035

583471, 584035, 113-4035
Click Image For Larger

P-PACK V8 6700 LIMIT

$344.81
POWERPACK 113-4037

586667, 113-4037
Click Image For Larger

P-PACK V6 6700 REV LIMIT

$257.50

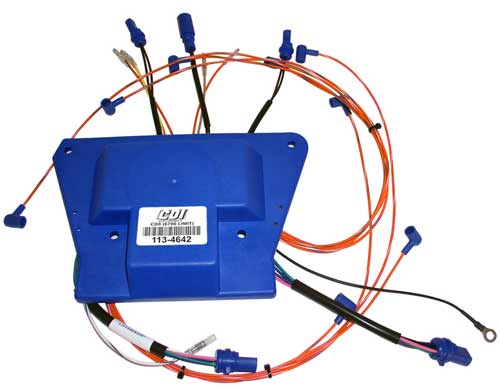

POWERPACK 113-4642

584642, 763803, 113-4642
Click Image For Larger

P-PACK V8 6700 LIMIT

$361.33

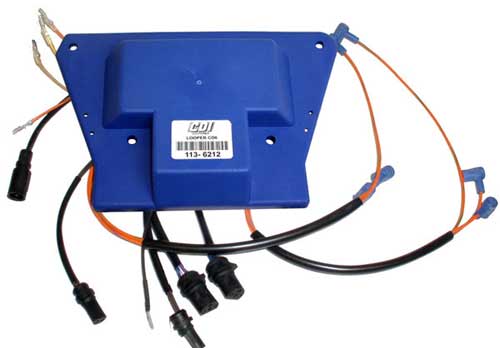

POWERPACK 113-6212

584636, 584637, 585114, 586212, 582661, 113-6212
Click Image For Larger

POWER PACK V6

$308.00
STATOR 173-3117

583670, 173-3117
Click Image For Larger

STATOR 35A V6 V8

$484.00
STATOR 173-3668


Click Image For Larger

STATOR 35A V6

$441.00
STATOR 173-3672

583672, 173-3672
Click Image For Larger

STATOR 9A V4 V6

$302.75
STATOR 173-4287
763765, 173-4287
Click Image For Larger

STATOR V6 V8 LOOPER

$449.00
STATOR 173-4643
584643, 763779, 173-4643
Click Image For Larger

STATOR V6 V8 35A

$460.00
RECTIFIER AR103

582399, 583408, 153-3408
Click Image For Larger

RECTIFIER 3-WIRE RING TERMINAL PRO 5708

$29.00
RECTIFIER/REGULATOR 193-3689

583689, 193-3689
Click Image For Larger

VOLT REG 35A V6 LOOPER

$280.75
RECTIFIER/REGULATOR 193-4641

584541, 585995, 586271, 193-4641
Click Image For Larger

STATOR V6 V8 35A LOOPER

$332.32
RECTIFIER-
REGULATOR
193-5204

395204, 193-5204
Click Image For Larger

VOLT REG 35A WATER COOLED

$255.75
TIMER BASE 133-1486

581486, 133-1486
Click Image For Larger

TIMER BASE V6

$346.00
TIMER BASE 133-3048

583048, 133-3048
Click Image For Larger

TIMER BASE V6 200-225

$316.00
TIMER BASE 133-3377

583377, 133-3377
Click Image For Larger

TIMER BASE V6

$366.81
TIMER BASE 133-3531

583531, 133-3531
Click Image For Larger

TIMER BASE V8

$521.00
TIMER BASE 133-3533

763775, 133-3533
Click Image For Larger

TIMER BASE V6

$490.68
TIMER BASE 583375

583375
No Longer Made
By Bombardier

DISCONTINUED
Contact Us
We can try to find one
IGNITION COIL 5176


Click Image For Larger

IGNITION COIL 584561 USE WSM

$64.50
IGNITION COIL 5179


Click Image For Larger

IGNITION COIL 582508

$45.00
IGNITION COIL 183-2303

502886, 183-2303
Click Image For Larger

COIL KIT

$45.50
V4, V6, V8 Magnet Kit
for 35 AMP Alternators ONLY.
Includes magnet, epoxy kit
REPLACES ONE MAGNET
WILL NOT FIT 60° MOTORS!!!
584304
581304

Click Image For Larger

FLYWHEEL MAGNET KIT NLA

$0.00
PER MAGNET
PLUG WIRE SETS
60° V6 Optical Ignition 931-4921

931-4921
Click Image For Larger



$

To Top

We pay the freight out in USA on all orders over $100.00. Orders less than this amount will have a shipping and handling charge of $8.75 added. Some bulky and heavy items will incur additional charges. You will be notified beforehand if this is the case. Remember, all orders receive free technical support from the MasterTech!




Please review our Warranty, Returns & Refunds policies before you place an order.
