ELECTRICAL PARTS
105 HP (including 105 Jet) thru 140 HP


Flywheel Magnets Came Off Your V4 or V6 35-Amp Charging System
(90° Motors Only) ??
Don't buy a new flywheel; Get magnet kits HERE

Mastertech is your source for quality electronic ignition parts for all makes of US outboard motors. Some components of the outboard electrical system are not available from CDI, our preferred source; in this case we have listed the OEM or alternate aftermarket part in its place.

Engine wiring harnesses are also available for most motors. Please CONTACT US for price & availability.


OMC APPLICATION GUIDE

HP
MODEL
YEAR
CYL
POWER PACK
& RPM LIMIT
STATOR
RECTIFIER/
REGULATOR
TRIGGER
(TIMER
BASE)
IGNITION
COIL
105 Jet no VRO 94 6 113-4985
OPTICAL

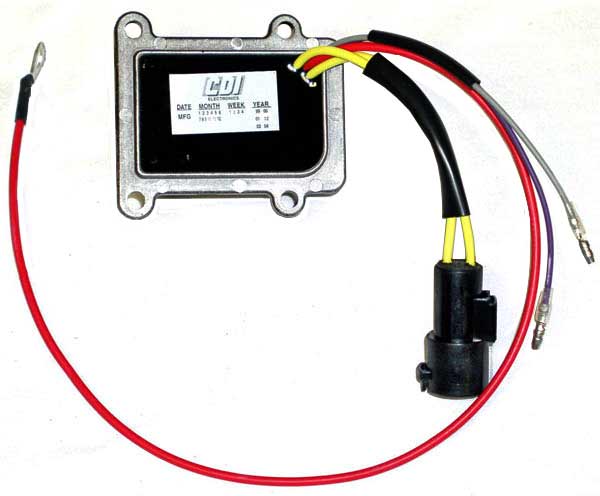

173-4981 193-4093 133-6343 5179
105 Jet with VRO 94 6 113-4985
OPTICAL
173-4981 193-4093 133-6343 5179
105 Jet 2000 6 113-4985
OPTICAL
173-4981 193-6048 133-6343 5179
105 Comm. Rope Start 2000 4 113-6292
OPTICAL
173-4849 193-6048 133-6343 3740
105 Commercial WE 2000 4 113-6292
OPTICAL
173-4849 193-6048 133-6343 3740
105 Commercial WP 2000 4 113-6292
OPTICAL
173-4849 193-6048 133-6343 3740
110 w/o Trim 86-87 4 58-3110
CD4 No Limit
173-3672 AR103 133-3376 5179
110 with Trim 86-87 4 58-3110
CD4 No Limit
173-3672 193-5204 133-3376 5179
110 TLCDF w/o Trim 86 4 113-2811
CD4 No Limit
173-3672 AR103 133-3376 5179
110 TLCDF w/Trim 86 4 113-2811
CD4 No Limit
173-3672 193-5204 133-3376 5179
HP
MODEL
YEAR
CYL
POWER PACK
& RPM LIMIT
STATOR
RECTIFIER/
REGULATOR
TRIGGER
(TIMER
BASE)
IGNITION
COIL
110 w/o Trim 88 4 113-3101
CD4 6700
173-3536 AR103 133-3379 5179
110 with Trim 88 4 113-3101
CD4 6700
173-3536 AR103 133-3379 5179
110 w/o Trim 89 4 113-4028
CD4/8 No Limit
173-3536 AR103 133-3379 5179
110 with Trim 89 4 113-4028
CD4/8 No Limit
173-3536 193-4204 133-3379 5179
112 20 Inch 94-95 4 113-4028
CD4/8 No Limit
173-3536 AR103 133-3379 5179
112 25 Inch 94-95 4 113-4028
CD4/8 No Limit
173-3536 193-4204 133-3379 5179
112 20 Inch 96 4 113-4028
CD4/8 No Limit
173-3536 AR103 133-3379 5179
112 25 Inch 96 4 113-4028
CD4/8 No Limit
173-3536 193-4204 133-3379 5179
115 - 69 4 113-8362
BATTERY CD
NLA AR103 133-5008 183-2382
115 - 70 4 113-8362
BATTERY CD
NLA AR103 133-5008 183-2382
115 6 Amp 73 4 113-1731
PP4 w/Cover
173-1225 AR103 133-1900 183-4632
115 6 Amp 74-78 4 113-1731
PP4 w/Cover
173-1225 AR103 133-1900 183-4632
115 12 Amp 74-78 4 113-1731
PP4 w/Cover
173-2099 AR103 133-1900 183-4632
HP
MODEL
YEAR
CYL
POWER PACK
& RPM LIMIT
STATOR
RECTIFIER/
REGULATOR
TRIGGER
(TIMER
BASE)
IGNITION
COIL
115 - 78-79 4 113-2125
CD4 No Limit
173-3672 AR103 133-3376 5179
115 - 80-82 4 113-2125
CD4 No Limit
173-3672 AR103 133-3376 5179
115 - 83 4 113-2125
CD4 No Limit
173-3672 AR103 133-3376 5179
115 6 Amp 84 4 113-2125
CD4 No Limit
173-3672 AR103 133-3376 5179
115 10 Amp 84 4 113-2125
CD4 No Limit
173-3672 193-5204 133-3376 5179
115 w/o Trim 85 4 113-2125
CD4 No Limit
173-3672 AR103 133-3376 5179
115 with Trim 85 4 113-2125
CD4 No Limit
173-3672 193-5204 133-3376 5179
115 w/o Trim 90 4 113-2125
CD4/8 No Limit
173-3672 AR103 133-3379 5179
115 with Trim 90 4 113-2125
CD4/8 No Limit
173-3536 193-5204 133-3379 5179
HP
MODEL
YEAR
CYL
POWER PACK
& RPM LIMIT
STATOR
RECTIFIER/
REGULATOR
TRIGGER
(TIMER
BASE)
IGNITION
COIL
115 w/o Trim 91 4 113-4028
CD4/8 No Limit
173-3536 193-4204 133-3379 5179
115 with Trim 91 4 113-4028
CD4/8 No Limit
173-3536 193-4204 133-3379 5179
115 - 92-93 4 113-4028
CD4/8 No Limit
173-3536 193-4204 133-3379 5179
115 w/o Trim 94 4 113-4030
CD4/8 5800
173-3536 AR103 133-3379 5179
115 with Trim 94 4 113-4030
CD4/8 5800
173-3536 193-4204 133-3379 5179
115 JKL w/o Trim 94 4 113-4030
CD4/8 5800

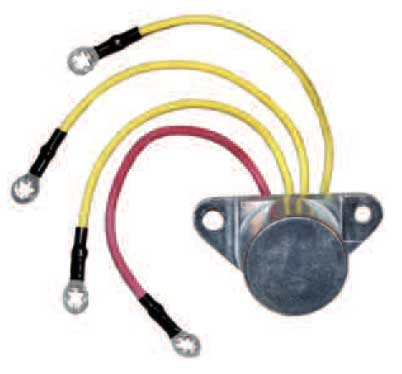

173-3536 OR104 133-3379 5179
115 JKL with Trim 94 4 113-4030
CD4/8 5800
173-3536 193-4204 133-3379 5179
115 JE TurboJet 94 4 113-4030
CD4/8 5800
173-3536 193-4204 133-3379 5179
115 ML, TL, MX 95 4 113-4028
CD4/8 No Limit
173-3536 193-4204 133-3379 5179
115 JLE 95 4 113-4028
CD4/8 No Limit
173-3536 193-4204 133-3379 5179
HP
MODEL
YEAR
CYL
POWER PACK
& RPM LIMIT
STATOR
RECTIFIER/
REGULATOR
TRIGGER
(TIMER
BASE)
IGNITION
COIL
115 JKL, 80 Jet 95 4 113-4028
CD4/8 No Limit
173-3536 OR104 133-3379 5179
115 60° 95 4 113-6292
CD4 Optical

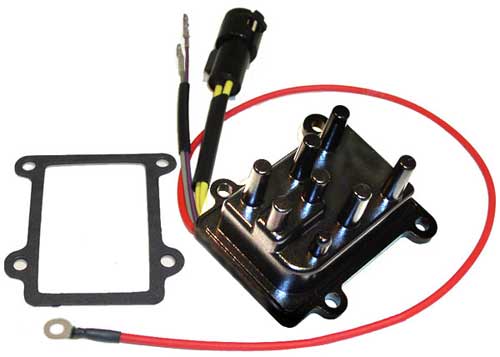

173-4849 193-4847 133-6343 5179
115 - 96 4 113-4028
CD4/8 No Limit
173-3536 193-4204 133-3379 5179
115 TurboJet 96 4 113-4030
CD4/8 5800
173-3536 193-4204 133-3379 5179
115 60° 96 4 113-6292
CD4 OPTICAL
173-4849 193-6048 133-6343 5179
115 20 Inch 97 4 113-4028
CD4/8 No Limit
173-3536 AR103 133-3379 5179
115 25 Inch 97 4 113-4028
CD4/8 No Limit
173-3536 193-4204 133-3379 5179
115 TurboJet 97 4 113-4030
CD4/8 5800
173-3536 193-4204 133-3379 5179
115 60° 97-06 4 113-6292
CD4 OPTICAL
173-4849 193-6048 133-6343 5179
120 - 85 4 113-3072
CD4 6100
173-3669 193-3689 133-3379 5179
120 - 86-87 4 113-3101
CD4 6700

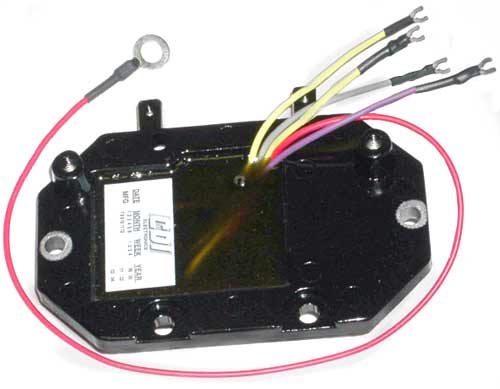

173-3669 193-4205 133-3379 5179
120 LOOPER 88-90 4 113-4041
CD4AL 6700
173-3410 193-4205 133-3508 5179
120 LOOPER 92-94 4 113-4041
CD4AL 6700
173-3410 193-4205 133-3508 5179
HP
MODEL
YEAR
CYL
POWER PACK
& RPM LIMIT
STATOR
RECTIFIER/
REGULATOR
TRIGGER
(TIMER
BASE)
IGNITION
COIL
125 - 71-72 4 113-8362
BATTERY CD
NLA AR103 133-5008 183-2382
125 - 91 4 113-4041
CD4AL 6700
173-3410 193-4205 133-3508 5179
125 - 92-94 4 113-4041
CD4AL 6700
173-3410 193-4205 133-3508 5179
125 Comm.
Rope Start
89-94 4 113-4032
CD4AL 6700
173-4821 N/A 133-3379 5179
125 Comm.
Elect. Start
89-93 4 113-4041
CD4AL 6700
173-3410 193-4205 133-3508 5179
125 Comm.
Elect. Start
94-95 4 113-4041
CD4AL 6700
173-3410 193-4205 133-3508 5179
130 - 94-95 4 113-4041
CD4AL 6700
173-3410 193-4205 133-3508 5179
130 - 96-00 4 113-4041
CD4AL 6700
173-3410 193-4205 133-3508 5179
HP
MODEL
YEAR
CYL
POWER PACK
& RPM LIMIT
STATOR
RECTIFIER/
REGULATOR
TRIGGER
(TIMER
BASE)
IGNITION
COIL
135 6 Amp 73 4 113-1731
PP4 w/Cover
173-1225 AR103 133-1900 183-4632
135 12 Amp 73 4 113-1731
PP4 w/Cover
173-2099 AR103 133-3508 183-4632
135 6 Amp 74-76 4 113-1731
PP4 w/Cover
173-1225 AR103 133-3508 183-4632
135 12 Amp 74-76 4 113-1731
PP4 w/Cover
173-2099 AR103 133-3508 183-4632
140 6 Amp 77 4 113-1731
PP4 w/Cover
173-1225 AR103 133-3508 183-2091
140 12 Amp 77 4 113-1731
PP4 w/Cover
173-2099 AR103 133-3508 183-2091
HP
MODEL
YEAR
CYL
POWER PACK
& RPM LIMIT
STATOR
RECTIFIER/
REGULATOR
TRIGGER
(TIMER
BASE)
IGNITION
COIL
140 - 78-79 4 113-2125
CD4 No Limit
173-3672 AR103 133-3379 5179
140 - 80-82 4 113-2125
CD4 No Limit
173-3672 AR103 133-3379 5179
140 - 83 4 113-2125
CD4 No Limit
173-3672 AR103 133-3379 5179
140 6 Amp 84 4 113-2125
CD4 No Limit
173-3672 AR103 133-3379 5179
140 10 Amp 84 4 113-2125
CD4 No Limit
173-3672 193-4204 133-3379 5179
140 - 85 4 113-3072
CD4 6700
173-3669 193-3689 133-3379 5179
140 - 86-87 4 113-3101
CD4 6700
173-3669 193-4205 133-3379 5179
140 LOOPER 88-90 4 113-4041
AL CD4 6700
173-3410 193-4205 133-3508 5179
140 LOOPER 91 4 113-4041
CD4AL 6700
173-3410 193-4205 133-3508 5179
140 LOOPER 92-94 4 113-4041
CD4AL 6700
173-3410 193-4205 133-3508 5179



>
CDI ELECTRONICS IGNITION COMPONENTS
DESCRIPTION PART # PRICE SELECT
POWERPACK 113-1731

581731, 113-1731
Click Image For Larger

POWER PACK V4

$178.25
POWERPACK 113-2125

582125, 113-2125
Click Image For Larger

P-pack V4

$111.95
POWERPACK 113-2811

582811, 113-2811
Click Image For Larger

P-PACK NO REV LIMIT V4

$193.00
POWERPACK 113-3072

583072, 113-3072
Click Image For Larger

POWER PACK 6700 LIMIT

$172.46
POWERPACK 113-3101

582262, 113-3101
Click Image For Larger

P-PACK 6700 REV V4-V8 LOOPER

$169.50
POWERPACK 58-3110

583110, 113-3110
Click Image For Larger

P-PACK NO LIMIT V4 88-110 (113-3110)

$131.00
POWERPACK 113-4028

584028,113-4028
Click Image For Larger

P-PACK NO LIMIT V4

$141.50
POWERPACK 113-4030

584030, 113-4030
Click Image For Larger

P-PACK 5800 RPM V4

$185.50

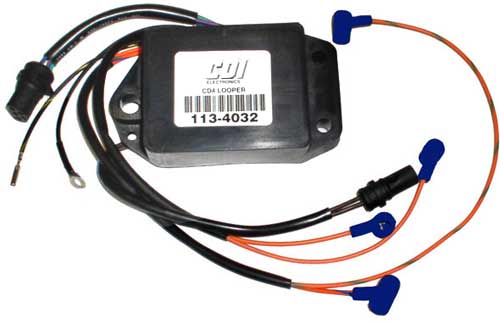

POWERPACK 113-4032

584032, 113-4032
Click Image For Larger

P-PACK 125 HP 6700 LIMIT

$210.00
POWERPACK 113-4041

584041, 113-4041
Click Image For Larger

OPTICAL POWERPACK

$242.54

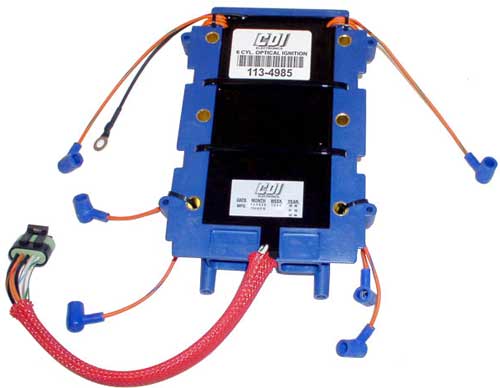

POWERPACK 113-4985

584985, 113-4985
Click Image For Larger

OPTICAL POWERPACK

$281.34
POWERPACK 113-6292

586292, 113-6292
Click Image For Larger

P-PACK OPT IGN V4 6400 RPM

$278.43
IGNITION REFRESH KIT
Same as above, but kit with wires and sensor.
Bombardier does not supply a kit version.
6292K1


Click Image For Larger

P-PACK KIT w/SENSOR & WIRES

$416.50
POWERPACK & COIL KIT

Replaces and upgrades
old-style battery CD components
(Prestolite ignitions)
113-8362

398362, 765987,113-8362
Click Image For Larger

PACK & COIL UPGRADE KIT PRESTOLITE

$561.97
STATOR 173-1225

763772, 173-1225
Click Image For Larger

STATOR 6A V4

$486.29

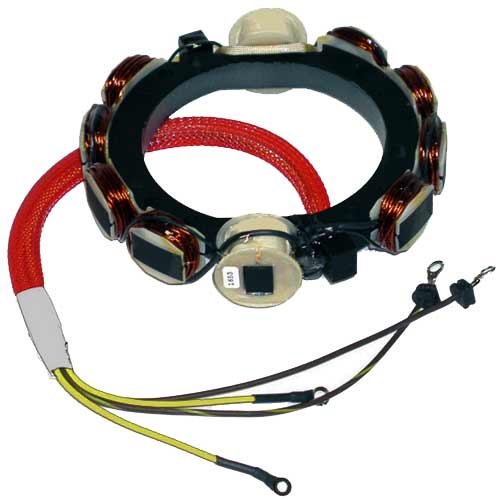

STATOR 173-2099

582099, 173-2099
Click Image For Larger

STATOR 12A EV-JO

$420.00

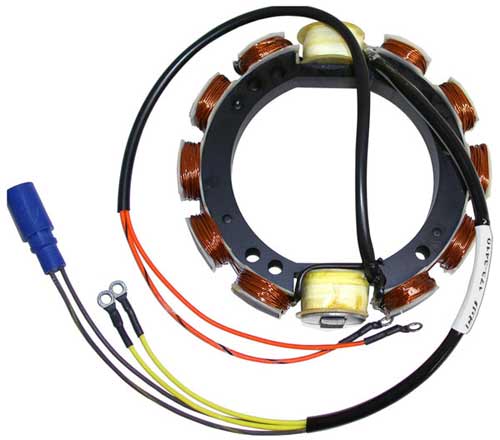

STATOR 173-3410

763769, 173-3410,583410
Click Image For Larger

STATOR 9A V4 LOOPER

$325.00
STATOR 173-3536

583340, 763767, 173-3536
Click Image For Larger

V4 X-FLOW STATOR 9A

$308.50

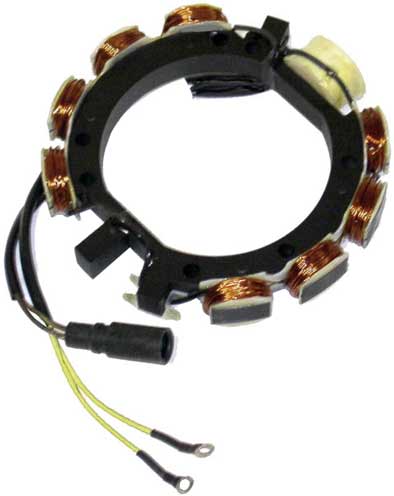

STATOR 173-3669

583669, 173-3669
Click Image For Larger

STATOR V4 120-140 9A

$305.25
STATOR 173-3672

583672, 173-3672
Click Image For Larger

STATOR 9A V4 V6

$302.75
STATOR 173-4821

763761,173-4821,
Click Image For Larger

STATOR 9A 35 HP

$251.25
STATOR 173-4849

763760,173-4849
Click Image For Larger

STATOR V4 60 DEG

$369.00

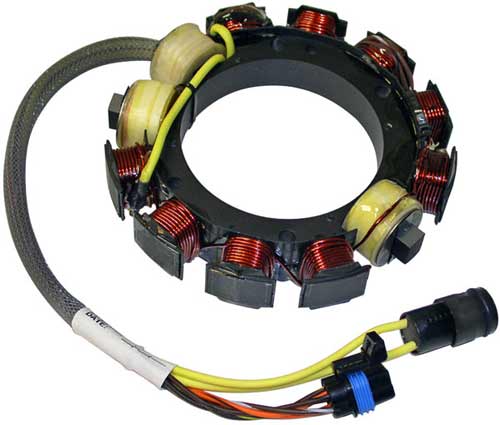

STATOR 173-4981

763759, 173-4981
Click Image For Larger

STATOR V6 OPTICAL 60 DEG

$349.75
TIMER BASE 133-1900

581900,763778,133-1900
Click Image For Larger

TIMER BASE V4 EV-JO

$393.00
TIMER BASE 133-3376

581812, 582041, 583376, 133-3376
Click Image For Larger

EV-JO TIMER BASE V4

$327.00
TIMER BASE 133-3379

763776, 133-3379
Click Image For Larger

TIMER BASE V4 X-FLOW

$296.90
SENSOR 133-3508

763782, 133-3508
Click Image For Larger

TIMER BASE V4

$330.00
SENSOR 133-5008

385008,133-5008
Click Image For Larger

TIMER BASE/SENSOR

$304.00
OPTICAL SENSOR 133-6343

586343,133-6343
Click Image For Larger

OPTICAL SENSOR V4 V6

$109.25
RECTIFIER AR103

582399, 583408, 153-3408
Click Image For Larger

RECTIFIER 3-WIRE RING TERMINAL PRO 5708

$29.00
RECTIFIER AR104

173692
Click Image For Larger

RECTIFIER 4-WIRE RING TERMINAL

$36.00
RECTIFIER/REGULATOR 193-3689

583689, 193-3689
Click Image For Larger

VOLT REG 35A V6 LOOPER

$280.75
RECTIFIER/REGULATOR 193-4093

439561,193-4093,584093
Click Image For Larger

VOLT REG 35A V6 60 DEG

$263.00
RECTIFIER-
REGULATOR
193-4204

585195, 193-4204
Click Image For Larger

VOLT REG

$99.75
RECTIFIER-
REGULATOR
193-4205

584675,763791,193-4205
Click Image For Larger

VOLT REG 10A V4

$108.75
RECTIFIER-
REGULATOR
193-4847

584847,193-4847
Click Image For Larger

VOLT REG 20A V4 60 DEG

$209.00
RECTIFIER-
REGULATOR
193-5204

395204, 193-5204
Click Image For Larger

VOLT REG 35A WATER COOLED

$255.75
RECTIFIER-
REGULATOR
193-6048

586048,193-6048
Click Image For Larger

VOLT REG 35A V6 OPT IGN

$298.25
IGNITION COIL 183-2091

502888,183-2091
Click Image For Larger

IGNITION COIL

$53.00
IGNITION COIL 5176

584561,583737,18-5176
Click Image For Larger

IGNITION COIL 584561 USE WSM

$64.50
IGNITION COIL 183-2382

582382,183-2382
Click Image For Larger

COIL V4 X-FLOW

$53.25
IGNITION COIL 5179

582508,18-5179,183-2508
Click Image For Larger

IGNITION COIL 582508

$45.00
IGNITION COIL 3740

583740,183-3740,18-5170
Click Image For Larger

IGNITION COIL 183-3740

$51.75
IGNITION COIL 183-4632

502890,183-4632
Click Image For Larger

IGNITION COIL

$47.00
V4, V6, V8 Magnet Kit
for 35 AMP Alternators ONLY.
Includes magnet, epoxy kit
REPLACES ONE MAGNET
WILL NOT FIT 60° MOTORS!!!
584304
581304

Click Image For Larger

FLYWHEEL MAGNET KIT NLA

$0.00
PER MAGNET






We pay the freight out in USA on all orders over $100.00. Orders less than this amount will have a shipping and handling charge of $8.75 added. Some bulky and heavy items will incur additional charges. You will be notified beforehand if this is the case. Remember, all orders receive free technical support from the MasterTech!




Please review our Warranty, Returns & Refunds policies before you place an order.

DISCLAIMER

The information provided on these pages is correct to the best of my knowledge, however the MasterTech makes no warranty, express or implied, regarding the use of, results of, or liability created from, application of this data. This information is disseminated in good faith, however MasterTech assumes NO LIABILITY whatsoever in regard to this service. The information, software, products, and services published on this web site may include inaccuracies or typographical errors. Changes are periodically added to the information herein. Mastertech may make improvements to this site at any time. Parts ordered from this website may or may not be in dealer stock at the time of order. Thank you for reading.
