Nissan Marine    Tohatsu Outboard


POWERHEAD GASKET KITS          HEAD GASKETS

NISSAN TOHATSU POWERHEAD GASKET KITS
Disregard the "NS" (Nissan) and "M" (Tohatsu) prefixes in your Model Number
for purposes of gasket applications. An
"F" in the model  is important
though, since it designates the motor as being a
4-Stroke.
Nissan & Tohatsu models are identical except for Brand Name and color scheme.
2-Stroke applications are in RED
4-Stroke applications are in BLUE
TLDI (Fuel Injected) applications are in GREEN
NISSAN TOHATSU GASKET KITS
Kits contain all engine gaskets & seals
Click on most pictures for larger
APPLICATION / DESCRIPTION PART # SELECT
2.5A, 3.5A 309871213M

309871213M

$34.50
2, 2.5A, 3.5A, 3.5B
4 STROKE MOTORS
3AB871210M

3AB871210M

$77.75
3.5B
2-STROKE
3F0871212M

3F0871212M

$40.00
4B
5C, 5BS
2 STROKE MOTORS
369871215M

369871215M

$59.00
4A
5A,
6A
4 STROKE MOTORS
3H6871210M

3H6871210M

$0.00
4A2
5A2,
6A2
4 STROKE MOTORS
3R1871210M

3R1871210M

$0.00
4B2
5B2,
6B2, 6C
4 STROKE MOTORS

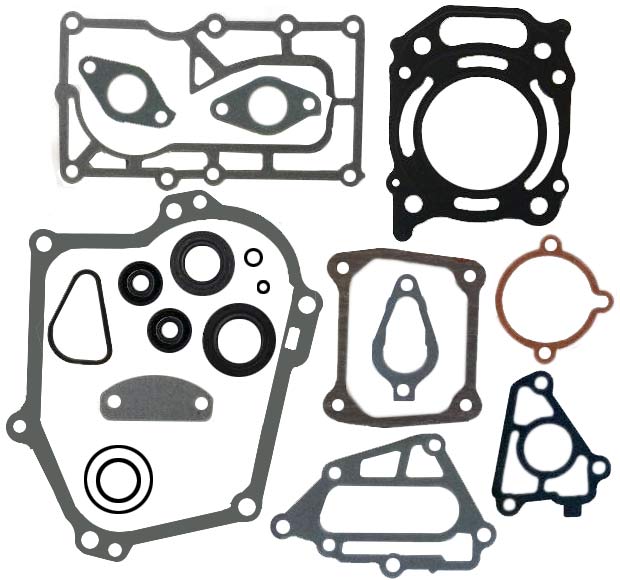

3AS871212M

3AS871211M

$61.00
6B
8B
2 STROKE MOTORS

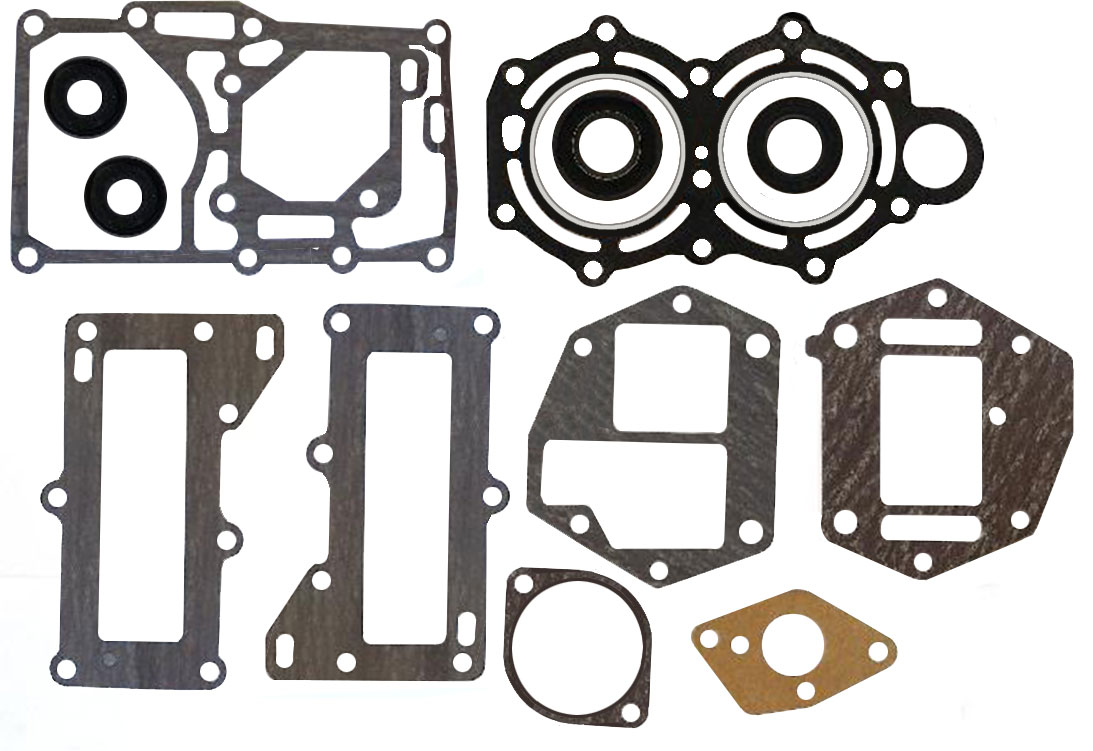

3B2871214M

3B2871214M

$81.50
9.8B
2 STROKE MOTORS
3K9871214M
$78.75
6A3
8A3
9.8A3
9.8B
4 STROKE MOTORS
3V1871210M

3V1871210M

$100.50
9.9B
15B
18B
4 STROKE MOTORS
3H8871212M
$87.75
9.9C
15C
20C
4 STROKE MOTORS
3BJ871210M
$116.25
9.9D2
15D2
2 STROKE MOTORS
3G2871217M

3G2871217M

$188.00
18D, E2
2 STROKE MOTORS
3G4871217M
$141.50
25C2 & C3
30A3 & A4
2 STROKE MOTORS
3A1871215M

3A1871215M
Temporarily Unavailable
(On Backorder)
25A
30A
4 STROKE MOTORS thru 2004

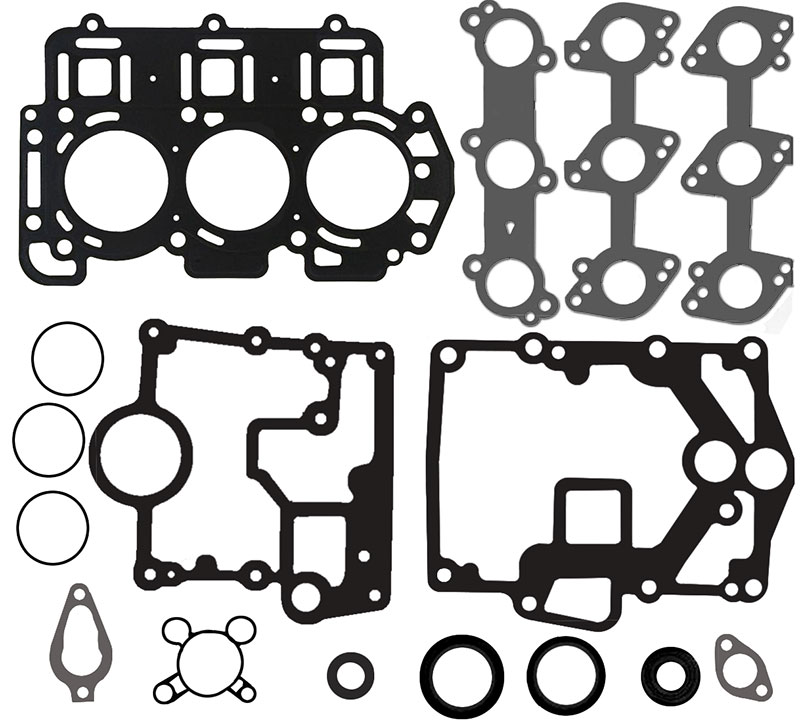

3R0871210M

3R0871210M

$171.00
25 B
30 B
4 STROKE MOTORS 2005 - UP
3AC871211M
$170.25
35C
40C
2 STROKE MOTORS
361871215M

361871215M

$101.00
40D & D2
50D & D2
2 STROKE MOTORS

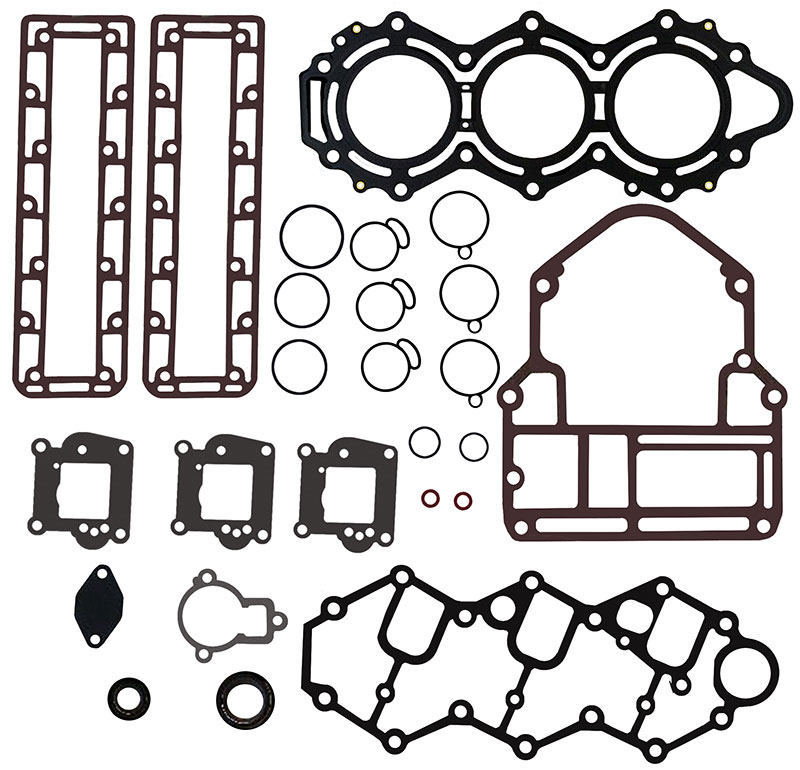

3C887121CM

3C887121CM

$163.50
40A, B, & B2
50A, B, & B2
TLDI (INJECTED) MOTORS
3T5871218M
$146.00
60B & C
70B & C
3F3871219M
$169.50
70A & B
90A & B
TLDI (INJECTED) MOTORS
3T9871216M
$205.00
75C2
90C2
TLDI (INJECTED) MOTORS
3FW871210M
$286.00
80A
90A 1998 & earlier
2 STROKE MOTORS
3B7871218M
+ 3C7012150M SEAL

$262.50
90A 1999 UP 3B7871218M
$246.00
115A & A2
120A & A2,
140A2
2 STROKE MOTORS
3C7871211M
$215.00
115A & A2
TLDI (INJECTED) MOTORS
3T1871213M
$218.00



NISSAN TOHATSU HEAD GASKETS
MODEL USAGE PART # SELECT
2.5A
3.5A & B
309010052M309010052M
$25.50
4C, 5B 369010052M369010052M
$28.25
4, 5, 6 HP
4 STROKE MOTORS
3H6010051M3H6010051M
$9.75
6B
8B
9.8B
2 STROKE MOTORS
3B2010051M3B2010051M
$34.50
8A2, A3, B
9.8A2, A3, B
4 STROKE MOTORS
3V1010050M3V1010050M
$25.50
9.9B2, C, D2
12C
15B, C, D
2 STROKE MOTORS
351010051M  351010051M
$31.75
9.9A, B, B2
15A, B, B2
18B, B2
4 STROKE MOTORS
3H8010050M3H8010050M
$19.00
9.9C
15C
20C
4 STROKE MOTORS
3BJ010050M3BJ010050M
$26.75
18C2, D, E2
2 STROKE MOTORS
350010051M350010051M
$37.50
25C2, 25C3
30A3, 30A4
2 STROKE MOTORS
346010052M346010051M
$62.00
25A & B
30A & B
4 STROKE MOTORS
3R0010050M3R0010050M
$37.75
35C
40C
2 STROKE MOTORS
345010051M345010051M
$42.25
40D, D2
50D, D2
2 STROKE MOTORS
3C8010055Mimage unavailable
$53.25
40A & B
50A & B
TLDI (INJECTED) MOTORS
3T5010050M3T5010050M
$45.25
45A2
50C
70A2
2 STROKE MOTORS
NO LONGER AVAILABLE NLA
60B & C
70B
70C
2 STROKE MOTORS
3F3010051M3F3010051M
$57.50
70B
75C2
90A & B
90C2
TLDI (INJECTED) MOTORS
3T9010050M3T9010050M
$42.25
90A
2 STROKE MOTORS
3B7010051M3B7010051M
$75.25
115A
120A
140A
2 STROKE MOTORS
3C7010051M3C7010051M
$132.75
115A & A2
TLDI (INJECTED) MOTORS
3T1010050Mimage unavailable
$80.50



We pay the freight out in USA on all orders over $100.00. Orders less than this amount will have a shipping and handling charge of $8.75 added. Some bulky and heavy items will incur additional charges. You will be notified beforehand if this is the case. Remember, all orders receive free technical support from the MasterTech!
