ALTERNATORS

API-SOURCED ALTERNATORS

WE SUPPLY NEW API-SOURCED ALTERNATORS, WITH THE SAME WARRANTY as Mercury Marine, AT MUCH BETTER PRICES.

MERCRUISER APPLICATION
PART NUMBER	APPLICATION & IMAGE		PRICE	SELECT
20051	1-wire hookup, Negative ground 78A Repl. # 56045, 59755, 69729, 78403A1, 78403A2 Has Tach lead	click image for larger	$142.00
20053	3-wire hookup, Negative ground 78A Red wire = Sensor Black wire = Exciter Repl. # 78477 Can replace 78403A2 but DOES NOT have a Tach lead	click image for larger	$160.00
20054	Internal regulated, 55A Negative ground 3-wire hookup w/ Tach lead Supplied w/ a V-pulley Red wire = Sensor Purple wire = Exciter Repl. # 12449, 817119A1	click image for larger	$160.00
20054-HO 65 AMP HEAVY DUTY	Internal regulated, 65A Negative ground 3-wire hookup w/ Tach lead Supplied w/ a V-pulley Red wire = Sensor Purple wire = Exciter Repl. # 805884T, 805447T	click image for larger	$170.00
20057	Internal regulated, 65A Negative ground 3-wire hookup w/ Tach lead Supplied w/ Serpentine pulley Red wire = Sensor Purple wire = Exciter Repl. # 807653T	click image for larger	$196.25

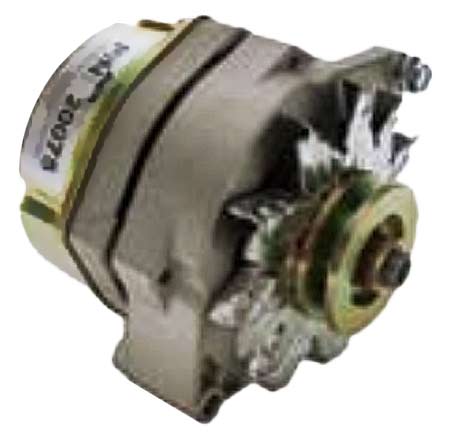

20075 94 AMP HEAVY DUTY	1-wire hookup, Negative ground 94A Repl. # 56045, 59755, 69729, 78403A1, 78403A2 DOES NOT have Tach lead	click image for larger	$160.00
20090 94 AMP HEAVY DUTY	3-wire hookup, Negative ground 94A Red wire = Sensor Black wire = Exciter Can replace # 78477 and # 78403A2 but DOES NOT have a Tach lead	click image for larger	$196.25

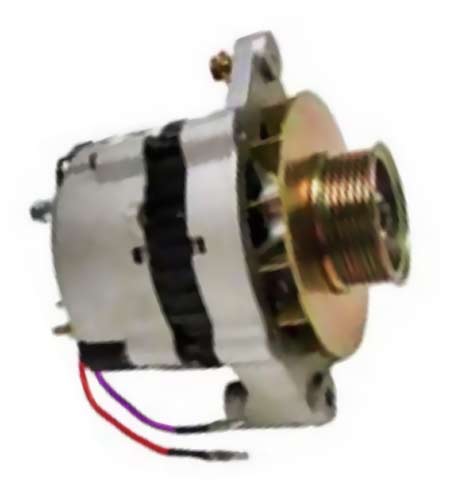

20093	Internal regulated, 65A Negative ground 3-wire hookup w/ Tach lead Supplied w/ Serpentine pulley Red wire = Sensor Purple wire = Exciter Repl. # 807652T	click image for larger	$178.00
Other Late-model & Hi-Performance alternators available. Please Contact Us.

We pay the freight out in USA on all orders over $100.00. Orders less than this amount will have a shipping and handling charge of $8.75 added. Some bulky and heavy items will incur additional charges. You will be notified beforehand if this is the case. Remember, all orders receive free technical support from the MasterTech!
