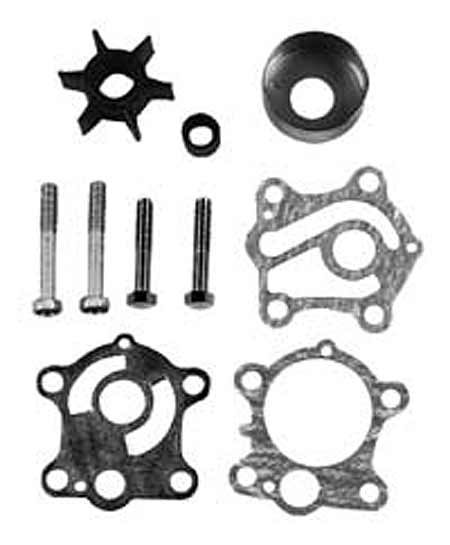

Mariner Water Pump Kit

Sign Reads "Wanted: Good Woman Must Be Able To Clean, Cook, Sew,  Dig Worms, and Clean Fish.  Must Have Boat and Motor. Please Send Picture of Boat and Motor.



Meet the MasterTech!
(click picture)

Bill the Master Tech



If your Mfgr. says:

That motor's 7 years old!!
Part is no longer available.
We lose $$ on service!
EPA made me do it!
Part's at central warehouse, you'll get it next month.
We don't make parts for those.
We only do warranty work.
Our techs only fix late models.
No clue what's wrong! So we'll work time & material.

Baloney!!

Contact
the Mastertech!






,


view shopping cart
In Your Cart:









JAPANESE-BUILT MARINER COOLING

28 THRU 60 HP
2 THRU 25 HP HERE


Japanese-built Mariner serial numbers are in the format ###-x-###### (example:. 6A1-L-123456)
Using the table below in the example you would look under "6A1" serial number code.
When specified, the serial number in the example would be "123456".

THE COMPONENTS LISTED HERE ARE FOR JAPANESE BUILT MARINERS FROM 2 THRU 25 HP.
MOST PART NUMBERS SHOWN ARE ORIGINAL EQUIPMENT MANUFACTURER.
WE MAY SUBSTITUTE EQUIVALENT AFTERMARKET DEPENDING ON APPLICATION AND AVAILABILITY

To install impeller, flip the housing upside down and turn impeller down into housing in direction shown:

(lubricate inside of housing first with a film of outboard oil or other lubricant)
  then flip housing right side up and slide down driveshft. Rotate the driveshaft CLOCKWISE until the keyway
mates with the impeller so housing slides all the way down and install housing to gearcase.

JAPANESE MARINER COOLING APPLICATIONS
HP/MODEL SERIAL NUMBER
CODE
SERIAL NUMBER
RANGE
IMPELLER PUMP KIT
28 M/ML
28 E/EL
664 ALL 3067 NLA
30A (M)
30A (ML)
689 00366-014805
301911-315315
3067 689-W0078-A4-00
30A (E)
30A (EL)
689 100251-103275
401216-407815
3067 689-W0078-A4-00
30A (M)
30A (ML)
689 014806-022058
315316-321376
3067 689-W0078-A4-00
30A (E)
30A (EL)
689 103276-105324
407816-411946
3067 689-W0078-A4-00
30A (M)
30A (ML)
689 022059 UP
321377 UP
3067 95661T
30A (E)
30A (EL)
689 105325 UP
411947 UP
3067 95661T
40 676, 6E9 ALL 3088 18-3397
serial #'s
676-000106 & UP
6E9-000106 & UP
ONLY
No kit below those serials
48 (M)
48 (ML)
670 00000-02415
00000-33125
3069 NLA
48 (M)
48 (ML)
670 02416-02640
33126-34580
3069 NLA
48,W48 (M)
48,W48 (ML)
670 02641 UP
34581 UP
3069 84187T
55 (M)
55 (ML)
663 00000-02730
00000-34925
3069 NLA
55 (M)
55 (ML)
663 02731 UP
34926 UP
3069 NLA
55 (E)
55 (EL)
W55 (ML)
663 004041 UP
315379 UP
578278 UP
3069 3425
60 (E)
60 (EL)
675, 6FO ALL 3069 3425

Impellers and Pump Kits
DESCRIPTION PART # SELECT
IMPELLER 306747-84797M  18-3067
$21.75
IMPELLER 306947-81423M 47-97108M 18-3069
$31.50
IMPELLER 3088
$23.50
WATER PUMP KIT 3425
Click Image For Larger

$64.00
WATER PUMP KIT
USE YAMAHA KIT
it's much cheaper
Yamaha Part Number
689-W0078-A4-00
Order 689-W0078-A4-00
From a Yamaha Dealership.

We can only get
aftermarket kits, which are
over triple the dealer price
WATER PUMP KIT 95661T
Click Image For Larger

$171.00
WATER PUMP KIT 3397
Click Image For Larger

$37.75
WATER PUMP KIT 84187T
DISCONTINUED BY MERCURY
USE YAMAHA # 696-W0078-00-00
Order From a Yamaha Dealership.
We can't order this
