Force Electrical, 120 Thru 150 HP Models

Electrical Parts Force 4 THRU 90 HP

Electrical Parts Chrysler 7.5 THRU 140 HP

Solenoids are HERE

FORCE APPLICATION GUIDE

HP MODEL YEAR IGNITION
STATOR TRIGGER RECTIFIER/
REGULATOR
COIL
120 L-DRIVE "A" 90 116-8301 176-3095 136-4029-4 155-9450 182-4475R
120 L-DRIVE "B" 90 116-8301 176-3095 136-4029-4 155-9450 182-4475R
120 L-DRIVE "C" 90 116-8301 176-3095 136-4029-4 152-9209 182-4475R
120 E0000001-E006550 90-91 116-8301 176-3095 136-4029-4 155-9450 182-4475R
120 L-DRIVE B & D 91-92
(16 AMP)
114-5772 174-9710K1
(16A)
134-7029-4 5279 5186
120 L-DRIVE B & D 91-92
(9 AMP)
114-5772 174-8778K1
(9A)
134-7029-4 5279 5186
120 E006551-E138599 92-95
(16 AMP)
114-5772 174-9710K1
(16A)
134-7029-4 5279 5186
120 E006551-E138599 92-95
(9 AMP)
114-5772 174-8778K1
(9A)
134-7029-4 5279 5186
120 E138600-E369299 96-99
(16 AMP)
114-7509K1 174-2075K2
(16A)
134-8303-4 5279 N/A
120 E138600-E369299 96-99
(9 AMP)
114-7509K1 174-2075K1
(9A)
134-8303-4 5279 N/A
125 ALL 83-85 116-5301 176-5095 136-5029-4 5279 182-4475R
125 A 86 116-5301 176-5095 136-5029-4 152-9209 182-4475R
125 B 86 116-3301 176-3095 136-4029-4 152-9209 182-4475R
125 A & B 87-88 116-3301 176-3095 136-4029-4 152-9209 182-4475R
HP MODEL YEAR IGNITION
STATOR TRIGGER RECTIFIER/
REGULATOR
COIL
125 C 88 116-8301 176-3095 136-4029-4 152-9209 182-4475R
125 A, B, C, D, E 89 116-8301 176-3095 136-4029-4 152-9209 182-4475R
125 L-DRIVE 89 116-8301 176-3095 136-4029-4 155-9450 182-4475R
150 ALL 89A-91A 116-8301 176-3095 136-4029-5 155-9450 182-4475R
150 ALL 91B-92C 116-7323 174-6231K2 136-4029-5 5279 5186
150 E000001-E093699 1992 thru 116-7323 174-6231K2 136-7029-5 5279 5186
150 STATOR, ELIMINATES
NEED FOR
CONVERTER BOX
Model # 91B thru
serial # E093699
- 176-4796 - - -
NOTES: N/A indicates item Not Applicable on this motor

STARTER SOLENOIDS
DESCRIPTION FORCE PART NUMBER ORDER PART #
SOLENOID  --  has rubber insulated feet OE #89-F460917-1 SW295
SOLENOID 89-F177917,  803822T SW774

FORCE ELECTRICAL COMPONENTS
DESCRIPTION PART # PRICE SELECT
SWITCHBOX 114-5772
Replaces Mercury 332-5772A7 114-5772
Click Image For Larger

Switchbox

$386.11
CDM Module
incl. bracket
& wires
Upgrade Kit
7509K1
Replaces Mercury 827509A12 114-7509K1
Click Image For Larger

MERC CDM Module Upgrade Kit

$178.25
CDM Module 114-7509
Replacement For Above Kit

Click Image For Larger

MERC CDM w/WIRE

$108.72
C.D. UNIT 300-817974A1 116-3301
Replaces Force/Mercury
300-817974A1

IGNI PACK PRESTOLITE RING TERMINALS

$562.25
SWITCHBOX 116-5301
REPL. PRESTOLITE BLACK CASE 475301-1,
300-F475301-1 F475301-1, 116-5301

IGNITION PACK PRESTOLITE IGNITION

$529.84

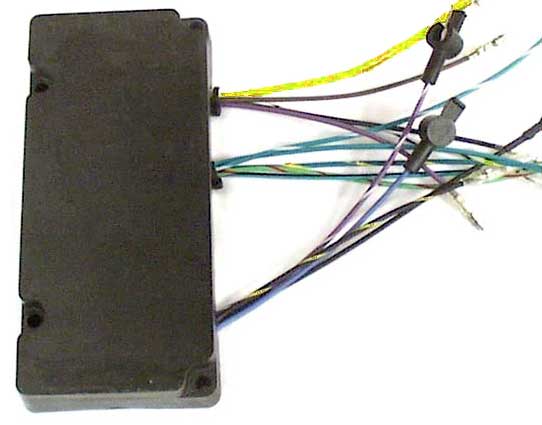

IGNITION 116-7323 116-7323
Click Image For Larger

CD PACK 150 HP FORCE

$482.00
C.D. UNIT F685301-2, 888788 116-8301
(replaces F685301-2)

FORCE BLUE CD PACK

$537.00
STATOR 2075K1 (9A)
Red Stator Replacement 398-9873A15

MERCURY RED STATOR REPLACEMENT 9A

$295.50
STATOR 2075K2 (16A)
Replaces Mercury 398-832075T18,
398-832075A21
Red Stator Replacement 398-832075T18

MERCURY RED STATOR REPLACEMENT 16A

$277.00

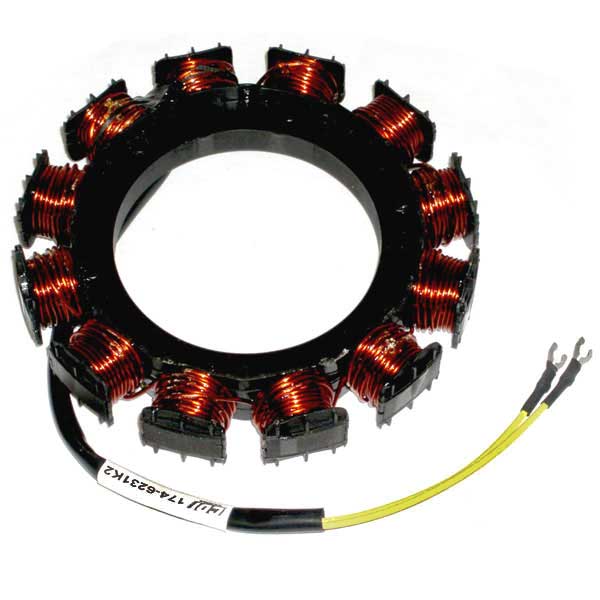

STATOR 6231K2 174-6231K2
Click Image For Larger

STATOR 15A FORCE 150 HP

$229.00
STATOR 174-8778
(9A) 1-piece flywheel 174-8778K1

STATOR 9A MERC FORCE

$335.00
STATOR 174-9710
(16A) 174-9710K1

STATOR 16A MERC FORCE

$388.25
STATOR 176-3095
Replaces Force F721095-1 300-F721095-1,  300-888793

STATOR 2-CYL FORK TERMINALS

$349.75

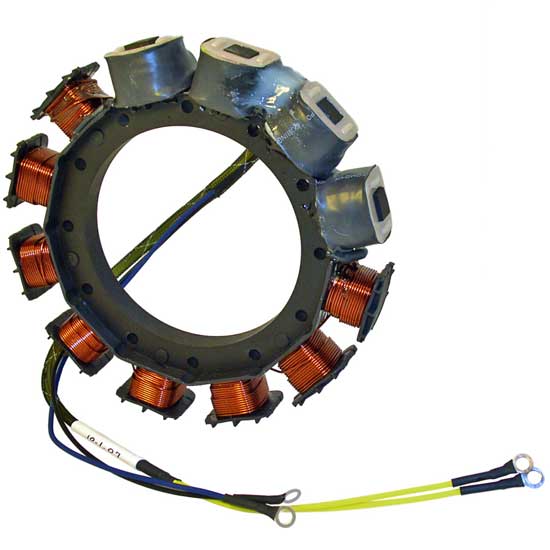

STATOR 176-4796
Eliminates original separate converter box!
And it's cheaper than a new converter box! 176-4796K1
Click Image For Larger

STATOR CONVERTER
BOX TYPE
REPLACEMENT

$395.00
STATOR 176-5095
Replaces Force F475095 300-888792

STATOR F616095

$395.00

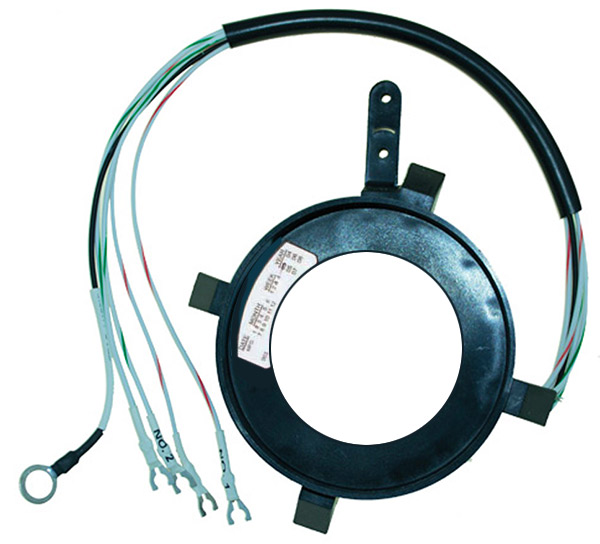

TRIGGER 4029-4
136-4029-4 Replaces Mercury 300-888797,
Force F654029-1





Click Image For Larger

TRIGGER 4-CYL

$473.50

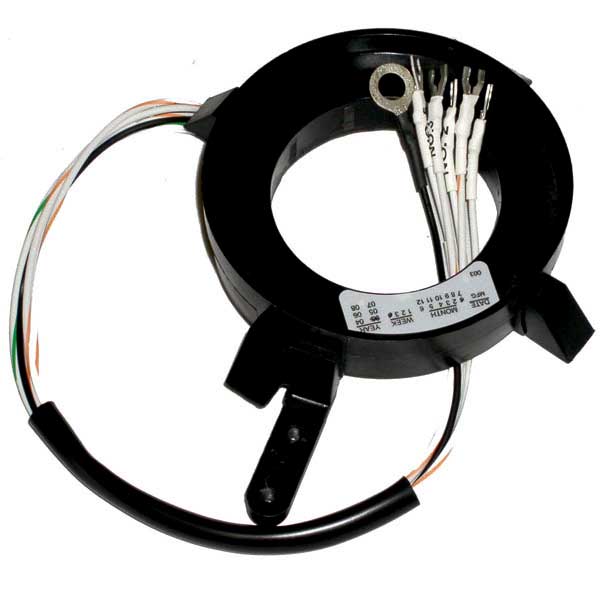

TRIGGER 4029-5
Replaces Force F694029-2
136-4029-5
Click Image For Larger

TRIGGER 150 HP
FORK TERMINALS

$386.50
TRIGGER 5029-4
Replaces Force/Mercury 300-888794

888794, 136-5029-4

TRIGGER/SENSOR
PLUG CONNECTORS

$381.50
TRIGGER 7029-4
134-7029-4 Replaces Mercury 817029A4





Click Image For Larger

TRIGGER LONG ARM 4-CYL

$126.00

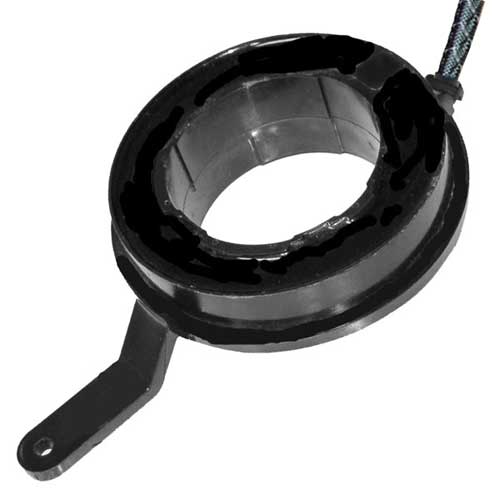

TRIGGER 7029-5
Replaces Mercury 817029A6
136-7029-5
Click Image For Larger

TRIGGER FORCE 150

$234.00
TRIGGER 8303-4
Replaces Mercury 828303A1

134-8303-4
Click Image For Larger

TRIGGER, CDM MOTORS

$103.60
TRIGGER 9527-2
Replaces Mercury 819527A1
134-9527-2

TRIGGER SHORT ARM

$76.50
RECTIFIER 152-9209
Replaces Force # FK650450 FK650450, 152-9209

RECTIFIER 20A FORCE CHRYSLER NTE522

$45.00
RECTIFIER 155-1450
Two mounting holes

(Force # F369450-1)


F369450-1, 155-9450 WILL REPLACE THIS STYLE:


Replaces both 4 and 5 terminal models
Terminal identifications are the same

VOLT REG 4-5 WIRE FORCE-CHRYSLER

$115.00

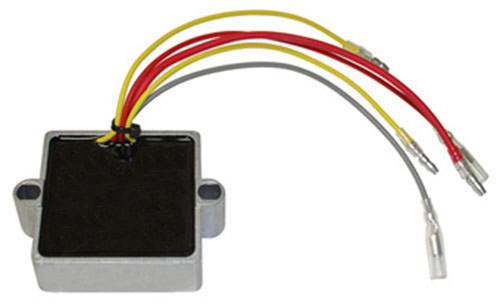

RECT./REG. 5279
w/ Bullet Terminals 883071A1
Click Image For Larger

VOLT REG 16A-40A Systems

$123.00
COIL 5186 339-832757A4


$

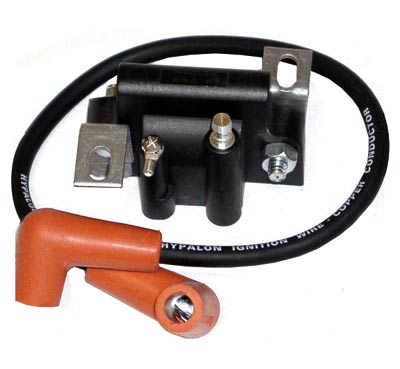

COIL 300-888791 182-4475
(incl. Bracket)
Upgrade, Replaces Blue Coil Available Below

Click Image For Larger

COIL w/BRACKET BLUE COIL UPGRADE

$124.25
COIL 300-888791
ORIGINAL BLUE COIL
Old # F684475 F684475


$166.00
Currently
Unavailable
temp unavailable

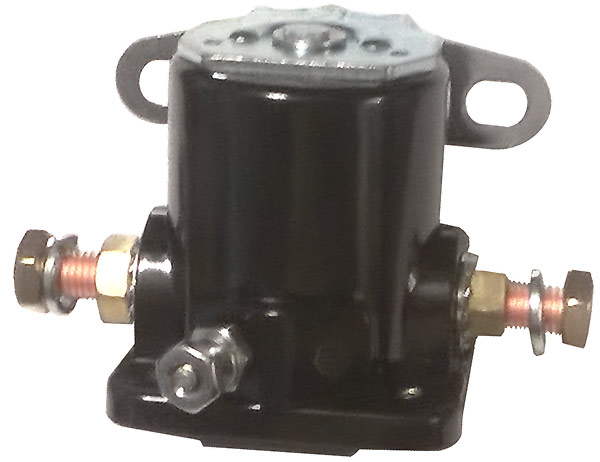

SOLENOID SW774
803822T Mercury # 803822T
Force # F177917




Click Image For Larger

SOLENOID F177917

$33.50
SOLENOID 89-F460917-1 SW295
OE 89-F460917-1
Has Rubber Insulators
on Feet



Click Image For Larger

SOLENOID F460917-1 RUBBER FEET

$32.00




We pay the freight out in USA on all orders over $100.00. Orders less than this amount will have a shipping and handling charge of $8.75 added. Some bulky and heavy items will incur additional charges. You will be notified beforehand if this is the case. All orders normally ship via USPS. Remember, all orders receive free technical support from the MasterTech!




Please review our Warranty, Returns & Refunds policies before you place an order.
