Chrysler Outboards

Chrysler Electrical, 7.5 Thru 140 HP Models

Electrical Parts Force 4 THRU 90 HP

Electrical Parts Force 120 THRU 150 HP

Need a distributor drive belt?
Need
points or condensers? Look HERE

Coils and Solenoids listed HERE


CHRYSLER APPLICATION GUIDE

HP MODEL YEAR IGNITION
STATOR TRIGGER RECTIFIER/
REGULATOR
7.5 ALL 72-84 116-5475 N/A R529029 N/A
8 ALL 1978 116-5475 R525301 R529029 N/A
8 82H8J, 87H8A 82 116-5475 R525301 R529029 N/A
9.9 ALL (Elect Start Only) 79-84 116-0301 NLA R529029 152-9209
10 (Elect Start Only) 76-78 116-0301 NLA R529029 152-9209
12, 15 (Elect Start Only) 76-84 116-0301 NLA R529029 152-9209
20, 25 (Elect Start Only) 75-82 116-0301 NLA R510029 152-9209
25 w/POINTS 75-77 N/A NLA POINTS 155-9450
25 (Elect Start Only) 83-84 116-9301 N/A R529029 152-9209
HP MODEL YEAR IGNITION
STATOR TRIGGER RECTIFIER/
REGULATOR
30 (Electric Start Only) 79-82 116-9301 N/A R529029 152-9209
35 MagnaPower
Electric Start
74-77 115-3301 R466095 POINTS 155-9450
35 w/CD ALTERNATOR 1978,
83-84
116-9301 N/A R529029 152-9209
45 w/POINTS 76-84 N/A R466095 POINTS 155-9450
45 MagnaPower 74-78 115-3301 R466095 POINTS 155-9450
50 w/POINTS 81-83 N/A NLA POINTS 155-9450
55 Motorola/MagnaPower Ignition Thru 1976 R345301 NLA POINTS 155-9450
55 MagnaPower II 77-80 R474301-1 R474095 R12352-1 155-9450
55 ALL 81-83 116-5301 176-5095 136-4029-2 155-9450
60 ALL 84 116-5301 176-5095 136-4029-2 155-9450
65 MagnaPower II 77-78 R474301-1 R474095 R12352-1 155-9450
70 MagnaPower 79-80 115-3301 -- NLA -- 135-4048 195-4470
75 MagnaPower 74-84 115-3301 -- NLA -- 135-4048 195-4470
80 MagnaPower 77-84 115-3301 -- NLA -- 135-4048 195-4470
80 w/CD ALTERNATOR 83-84 116-5301 176-5095 136-6029-3 155-9450
85 ALL (Magnapower) 77-84 115-3301 -- NLA -- 135-4048 195-4470
85 Except "A" & "L" Models 83-85 116-5301 176-5095 136-6029-3 155-9450
85 "A" &" L" Suffix Models 1986 116-5301 176-5095 136-6029-3 155-9450
90 MagnaPower 74-77 115-3301 -- NLA -- 135-4048 195-4470
90 w/CD ALTERNATOR 83-84 116-5301 176-5095 136-5029-4 155-9450
HP MODEL YEAR IGNITION
STATOR TRIGGER RECTIFIER/
REGULATOR
100 MagnaPower 79-84 115-3301 -- NLA -- 135-4048 195-4470
105 HA, BD, BE, HE, HD MODELS 1976 R474301-1 R474095 R12352-1 155-9450
105 HB, BF, HF MODELS 1976 115-3301 -- NLA -- 135-4048 195-4470
105 MagnaPower 76-78
82-83
115-3301 -- NLA -- 135-4048 195-4470
115 MagnaPower 77-82 115-3301 -- NLA -- 135-4048 195-4470
115 w/CD ALTERNATOR 83-84 116-5301 176-5095 136-5029-4 155-9450
120 BD, BE, HD, HE 76 R474301-1 R474095 R12352-1 155-9450
120 1976 BF, HF Models
1977 MagnaPower Models
76-77 115-3301 -- NLA -- 135-4048 195-4470
125 w/CD ALTERNATOR 81-82 116-5301 176-5095 136-5029-4 155-9450
135 BD, BE, HD, HE 76 R474301-1 R474095 R12352-1 155-9450
135 1976 BF, HF Models
1977 MagnaPower Models
76-77 115-3301 -- NLA -- 135-4048 195-4470
140 MagnaPower 78-84 115-3301 -- NLA -- 135-4048 195-4470
NOTES:

N/A  indicates item Not Applicable on this motor
NLA  indicates item No Longer Available


CHRYSLER STARTER SOLENOIDS AND COILS
SOLENOID  --  has rubber insulated feet OE #89-F460917-1 SW295
SOLENOID OE #89-F177917 SW774
COIL FOR SEARS-STYLE MAGNETO EQUIPPED MODELS OE #FA12345 185-2370
COIL FOR PRESTOLITE MAGNETO CD EQUIPPED MODELS OE #F525475 182-4475
COIL FOR 2-CYL ALL BREAKER POINT BATTERY IGNITION 1975-77 OE #F380475 818076A2
COIL FOR 2-CYL ALL BREAKER POINT BATTERY IGNITION 1978-UP OE #F380475 803830T
COIL FOR MOTOROLA MAGNAPOWER 1 EQUIPPED MODELS OE #F345475-2 182-5475
CDI COIL KIT FOR CHRYSLER MAGNAPOWER II EQUIPPED MODELS
2 CYLINDER
NO OE # 474475K2
CDI COIL KIT FOR CHRYSLER MAGNAPOWER II EQUIPPED MODELS
4 CYLINDER
NO OE # 474475K4


CHRYSLER ELECTRICAL COMPONENTS
DESCRIPTION PART # PRICE SELECT
STATOR 176-5095 F475095, 115-3301
STATOR F616095

$395.00
IGNITION KIT 817855A1, 115-3301 115-3301










Click Image For Larger

REPLACEMENT PACK & COIL

$440.75

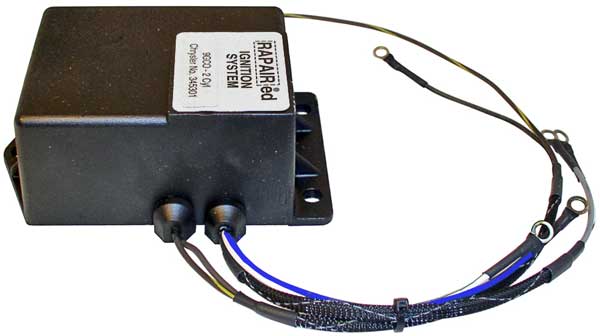

MOTOROLA MAGNAPOWER R345301
F345301 REPAIR & RETURN ITEM

AMPLIFIER MOTOROLA MAGNAPOWER R&R

$454.00
STATOR R466095
REPAIR & RETURN ITEM F466095

STATOR R&R ONLY

$462.00
STATOR R474095
DISCONTINUED --- WE HAVE NO SOURCE
---- DISCONTINUED
SWITCHBOX R474301-1
DISCONTINUED --- WE HAVE NO SOURCE
---- DISCONTINUED
STATOR R525301
F525301 (REPAIR & RETURN ITEM)

STATOR R&R ONLY

$230.00
SWITCHBOX 116-0301
REPLACES PRESTOLITE BOXES
FORCE # 510301, F510301, F510301,  116-0301
300-F510301

SWITCHBOX PRESTOLITE IGNITION

$442.50
SWITCHBOX 116-5301
REPLACES PRESTOLITE BLACK CASE
FORCE #475301-1,
300-F475301-1 F475301-1, 116-5301

IGNITION PACK PRESTOLITE IGNITION

$529.84

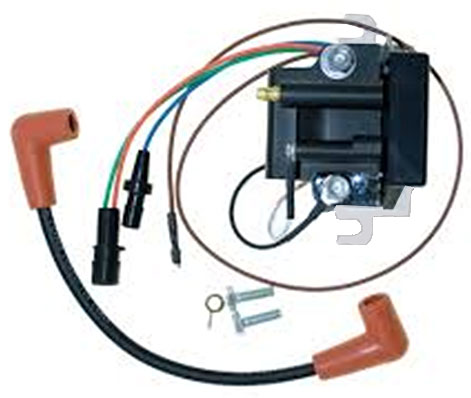

SWITCHBOX 116-5475
F525475, 116-5475 UPGRADE REPLACEMENT
FOR ORIGINAL
FORCE # F525475
Click Image For Larger

COIL & CD UPGRADE KIT

$243.25
SWITCHBOX 116-9301
REPLACES PRESTOLITE IGNITION
F529301, 116-9301 FORCE # F529301,
300-F529301, 300-888789

PRESTOLITE REPLACEMENT CD

$387.00
TRIGGER 135-4048
REPLACES FORCE # FA14048-2 FA14048-2, 135-4048

TRIGGER FA14048-2

$186.42
TRIGGER R510029
(REPAIR & RETURN)

TRIGGER R&R ONLY

$232.00
TRIGGER R529029
(REPAIR & RETURN)
DISCONTINUED, NOT AVAILABLE
NLA Discontinued
TRIGGER R12352-1
F12352-1 (REPAIR & RETURN)
DISCONTINUED, NOT AVAILABLE
NLA Discontinued
TRIGGER 5029-2
Replaces Force # F475029 F475029, 136-5029-2

TRIGGER/SENSOR w/PLUG

$236.75
TRIGGER 4029-2
Replaces FORCE/MERC # F684029-1,
300-888798 F684029-1, 136-4029-2

TRIGGER/SENSOR TERMINAL ENDS

$336.54
TRIGGER 5029-4
Replaces Force/Mercury # 300-888794 888794, 136-5029-4

TRIGGER/SENSOR
PLUG CONNECTORS

$381.50
TRIGGER 6029-3
Replaces Force/Mercury # 300-888795 888795, 136-6029-3

TRIGGER w/PLUG

$373.50
RECTIFIER 155-1450
Two mounting holes
155-1450, F369450-1
(Force # F369450-1)


F369450-1, 155-9450 WILL REPLACE THIS STYLE:


Replaces both 4 and 5 terminal models
Terminal identifications are the same

VOLT REG 4-5 WIRE FORCE-CHRYSLER

$115.00
RECTIFIER 152-9209
Replaces Force # FK650450 FK650450, 152-9209

RECTIFIER 20A FORCE CHRYSLER NTE522

$45.00
RECTIFIER 195-4470

The original (# F404470-1) looked like this and was about $350.00 from Mercury.
It's been replaced by new technology version # 152-9209 above.
OLD
TECHNOLOGY
SEE ------>
USE
152-9209
COIL 300-888791 182-4475
(incl. Bracket)
Upgrade, Replaces Blue Coil Available Below

COIL w/BRACKET BLUE COIL UPGRADE

$124.25
COIL 300-888791
ORIGINAL BLUE COIL
Old # F684475 F684475


$166.00
Currently
Unavailable
temp unavailable
COIL 185-2370
SEARS MAGNETO IGNITION
FK12369
ORIGINAL COIL (# FK12369) LOOKS LIKE THIS:








REPLACEMENT LOOKS LIKE THIS:

185-2370




COIL MAGNETO IGN FA12345

$123.75
COIL & BRACKET 182-5475
MAGNAPOWER
CD IGNITION

ORIGINAL COIL LOOKS LIKE THIS: F345475-2





REPLACEMENT KIT LOOKS LIKE THIS: 182-5475



IGNITION COIL

$112.00
COIL
803830T
BATTERY IGNITION w/POINTS
MOST 1978-UP BATTERY IGNITION
803830T, F380475

COIL for BATTERY IGNITION

$226.75
COIL
818076A2
BATTERY IGNITION w/POINTS
25-55 HP 1975-77
818076A2

COIL for BATTERY IGNITION

$133.00

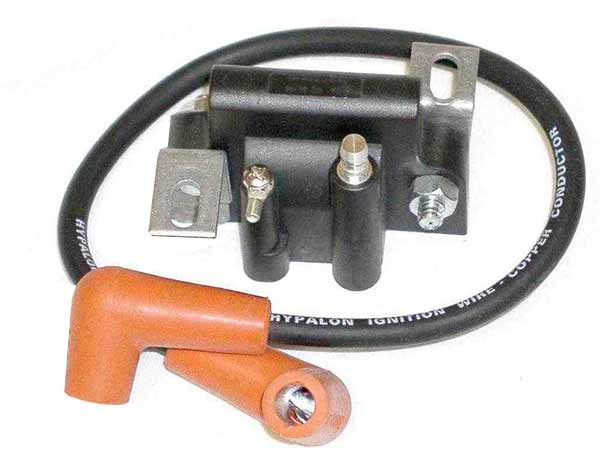

COIL 182-4475
Prestolite Magneto CD models

182-4475

COIL w/BRACKET BLUE COIL UPGRADE

$124.25

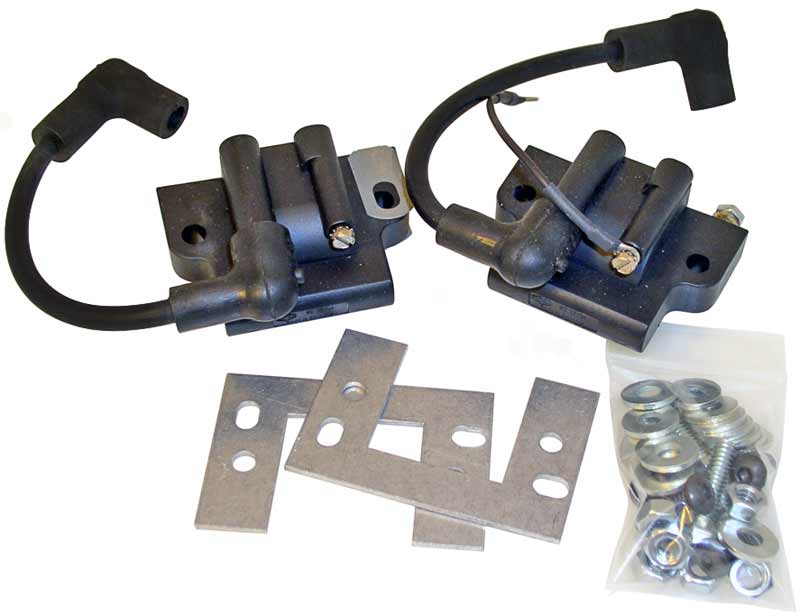

COIL KIT
474475K2
Replacement coil kit
for Chrysler Magnapower II






Click Image For Larger
NLA No Longer
Available
COIL KIT
474475K4
Replacement coil kit
for Chrysler Magnapower II





Click Image For Larger
NLA No Longer
Available
SOLENOID 89-F460917-1 SW109
OE 89-F460917-1
Has Rubber Insulators
on Feet




Click Image For Larger

SOLENOID RUBBER INSULATORS 5834

$36.00
SOLENOID F177917 SW774
OE 89-F177917

(click image for
larger view)

Click Image For Larger

SOLENOID F177917

$33.50



We pay the freight out in USA on all orders over $100.00. Orders less than this amount will have a shipping and handling charge of $8.75 added. Some bulky and heavy items will incur additional charges. You will be notified beforehand if this is the case. All orders normally ship via USPS. Remember, all orders receive free technical support from the MasterTech!




Please review our Warranty, Returns & Refunds policies before you place an order.
