COOLING SYSTEM PARTS

Here's a listing of what we have available in these aftermarket cooling parts for SUZUKI outboards.
Those not listed are OEM only and are not available to us at this time. They must be ordered from a franchised Suzuki dealer.

Concerned about your cooling system? Try our cooling system tips page.

To install impeller, flip the housing upside down and turn impeller down into housing in direction shown:

(lubricate inside of housing first with a film of outboard oil or other lubricant)
  then flip housing right side up and slide down driveshft. Rotate the driveshaft CLOCKWISE until the keyway
mates with the impeller so housing slides all the way down and install housing to gearcase.

Impellers are impeller only, no gaskets

SUZUKI COOLING APPLICATION
MODEL MODEL
YEAR
COMPLETE
IMPELLER KIT
IMPELLER
ONLY
DT4
  DT5
1984-98
1999-02
3260 3097
DT5 1977-83 3097
DT6
  DT8
1984-02
1986-97
3259 3097
DT8C
  DT9.9C
1988-97 3255 3000
DT9.9
  DT14
  DT16
1977-82
1977-80
1977-82
3092
DT9.9
  DT15
  DT15C
1983-87
1983-88
1989-97
3256 219207
MODEL MODEL
YEAR
COMPLETE
IMPELLER KIT
IMPELLER
ONLY
DF9.9,
  DF15
1997-04 3256 219207
DT20 1986-88 3242 2175
DT25
  DT25C
  DT30
  DT35
1983-88
1989-95
1983-87
1987-89
3242 2175
DT35
  DT40
  serials starting with 4001-
  DT50
1980-82
1980-83


1982 - BACK
2176
MODEL MODEL
YEAR
COMPLETE
IMPELLER KIT
IMPELLER
ONLY
DT40,
  DT40C
  serials starting with 04003-
1984-98 3242 2175
PU40 (Jet) 1989-94 2175
DT50
  DT50M
  PU55 (Jet)
  DT60
  DT65
1983 & OLDER
1980-84
1989-94
1983
1982 - BACK
2176
DT50,
  DT60
1984 - 2177
MODEL MODEL
YEAR
COMPLETE
IMPELLER KIT
IMPELLER
ONLY
DT60 1984   2177
DT60
  DT55,
  DT65
1983

1985-97


18-3243
2176
DT75
  DT85
1983-00
1980-97

3244


2177
PU85 (Jet) 1989-94 2177
DF60,
  DF70
  DF90


  DT90,
  DT100
1998-01
1998-01
1989-01
1989-01
725-520 18-3049
DT115,
  DT140
1983-01 3257 9451
DF90,
  DF115,
  DF140
2001-04 725-525 9451
DT150
  DT200
1986-01
1986-00
18-3253 9451
V6 150-225 HP 1986-03 18-3253 9451
PART YOU NEED NOT LISTED? PLEASE        CALL
QUICK ORDER FORM



SUZUKI COOLING COMPONENTS
DESCRIPTION PART # PRICE SELECT
IMPELLER 3000
$15.25
IMPELLER 9451
$35.50
IMPELLER 3049
$39.25
IMPELLER 3092
$27.50
IMPELLER 219207
$16.50
IMPELLER 2175
5033112, 18-3099

$16.75
IMPELLER 2176
$22.50
IMPELLER 2177
$24.25
IMPELLER 3097
$14.25
IMPELLER KIT 3242







Click for Larger View

$25.00

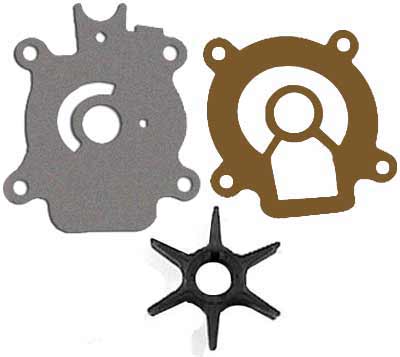

IMPELLER KIT 18-3243






Click for Larger View

$29.50
IMPELLER KIT 3244






Click for Larger View

$31.00

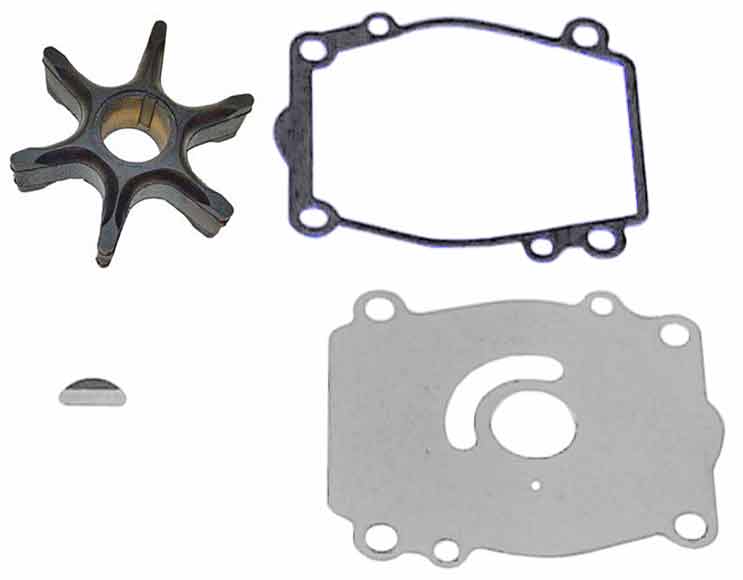

IMPELLER KIT 3253






Click for Larger View

$54.00

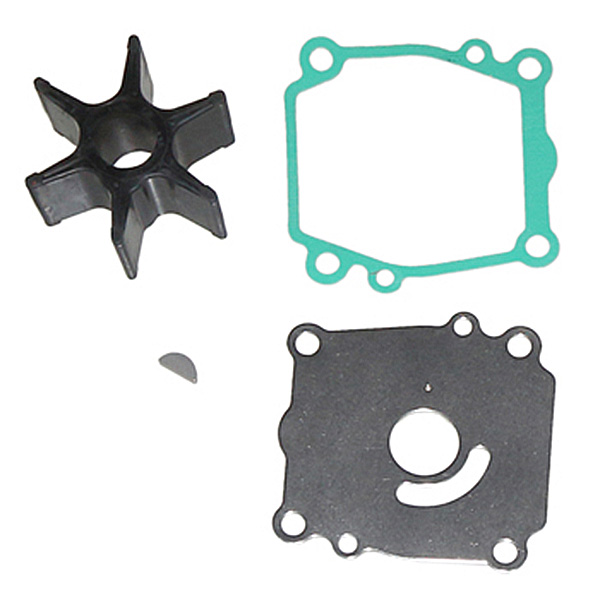

IMPELLER KIT 725-520





Click for Larger View

$46.50
IMPELLER KIT 3255





Click for Larger View

$31.50
IMPELLER KIT 3256






Click for Larger View

$23.25
IMPELLER KIT 3257







Click for Larger View

$49.50
IMPELLER KIT 725-525







Click for Larger View

$48.75
IMPELLER KIT 3259





Click for Larger View

$32.00
IMPELLER KIT 3260





Click for Larger View

$24.75
DON'T SEE WHAT YOU NEED? JUST ASK.
QUICK QUOTE FORM
QUICK SECURE ORDER FORM

We pay the freight out in USA on all orders over $100.00. Orders less than this amount will have a shipping and handling charge of $8.75 added. Some bulky and heavy items will incur additional charges. You will be notified beforehand if this is the case. Remember, all orders receive free technical support from the MasterTech!
