If your Mfgr. says:
That motor's 7 years old!! Part is no longer available. We lose $$ on service! EPA made me do it! Part's at central warehouse, you'll get it next month. We don't make parts for those. We only do warranty work. Our techs only fix late models. No clue what's wrong! So we'll work time & material.
YOU MUST GIVE US THE YEAR & MODEL I.D. IN ORDER FOR US TO SEND YOU THE RIGHT PARTS!
(THE SERIAL NUMBER IS NOT USED IN PARTS LOOKUP)
PLEASE BE AWARE THAT IF YOU HAVE A KING COBRA, MOST WERE CHANGED IN THE 1992 MODEL YEAR TO HAVE A LARGER OUTDRIVE WATER PUMP; many parts for those pumps may be no longer available. They were inconsistent as to which drive they put on which motor through around 1994, after which they began producing the Cobra SX model, which used an engine belt-driven seawater pump system.
These had their own issues; the belt-driven pumps did not always match the catalogs either (refer to note in the SX section).
As noted above, the Model I.D. (on a plate on the block) is very important. We can usually determine what is on your drive from that
.
OMC STERN DRIVE & COBRA APPLICATION OUTDRIVE WATER PUMPS
PART
NUMBER
APPLICATION
PRICE
SELECT
83218
Click Image for Larger
1964-86
400/800 STRINGER
DRIVES
$104.50
83218K
Click Image for Larger
1964-86
400/800 STRINGER
DRIVES
KIT MINUS HOUSING
$76.75
67461K
Click Image for Larger
ORIGINAL DESIGN KIT
FOR
ALL COBRA DRIVES
1986-93 EXCEPT 1990 2.3L*
and KING COBRA 1992-UP
This kit can replace the one below for the 2.3L
$45.50

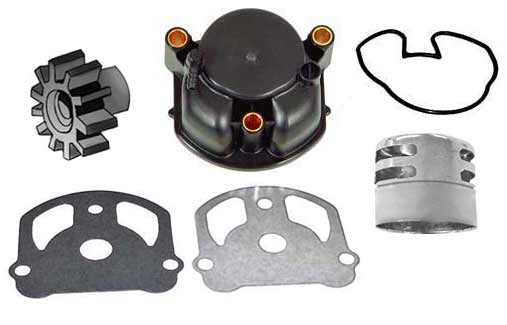

986486 (OEM ONLY)
ORIGINAL KIT
Click Image for Larger
* 1990 2.3L
w/SHORT IMPELLER
can be replaced as
ENTIRE KIT
with # 67461K above.
It's much cheaper, pumps more water. -OUR RECCOMENDATION- The only difference
is the
impeller "cage" & impeller dimensions are half height
in this original kit for 1990 models. In 1991 OMC switched to the full size pump as standard equipment.
$85.00
987745 (OEM ONLY)
1990-91 5.7LE, 7.4L
KING COBRA
$455.00
3854661
NOTE: KIT is discontinued completely!!
So is the impeller.
The other parts are available
1992-95
KING COBRA Except
front-mounted seawater
pump style
NOTE!!
These parts look the same as the 1990-91 parts but are not the same size.
NLA We may be
able to find
some of it, please
Contact Us
A Note on Cobra SX Water Pumps:
these were often switched around beteween OMC and VOLVO (they both made these drive packages as a joint operation from 1993-98 when OMC dropped out of the stern drive business). There were SOME pumps that look like the ones below but have different impeller parts than noted. PLEASE DISASSEMBLE YOURS AND CHECK THE SHAFT TYPE before ordering replacement impeller kits.
87217K
Cobra SX Belt-driven
Water Pump 3.0L - 5.8L
Usually Fits this type pump:
KEYED SHAFT Please check, SOME have SPLINED SHAFTS
$40.50
87203K
Cobra SX Belt-driven
Water Pump 3.0L - 5.8L
Usually Fits this type pump:
SPLINED SHAFT Please check, SOME have KEYED SHAFTS
$20.00
OMC COBRA DRIVE APPLICATION OUTDRIVE WATER PUMP HOUSINGS
986272 (OEM
ONLY)
1990-91 5.7LE KING COBRA
PLEASE BE AWARE THAT 1992 & UP KING COBRA DRIVES had a LARGER HOUSING, although it looks the same.
IT IS NO LONGER AVAILABLE
NLA Please
CONTACT US
, we can possibly find one for you
Discontinued
83639
1986-90 ALL COBRA EXCEPT KING COBRA
$30.25
OMC COBRA & STERN DRIVE APPLICATION OUTDRIVE WATER PUMP IMPELLERS
67895
ALL COBRA DRIVES
1986-93 EXCEPT 1990 2.3L
and KING COBRA
1992-UP. There is NO source for King Cobra impellers after the 1991 model year, they are discontinued. Although they look the same as this one, they were larger.
$17.50
986465 (OEM ONLY)
1993 2.3L
ORIGINAL IMPELLER (CAN BE REPLACED
WITH COMPLETE WATER
PUMP
KIT
#
67461K)
(Our recommendation)
OMC STERN DRIVE & COBRA APPLICATION CIRCULATING WATER PUMPS
64454
Click Image for Larger
1992-98 7.4L COBRA
454 CID INBOARD
1977-80
$154.00 includes shipping
64727
Click Image for Larger
3.0L 1986-93
$92.25 includes shipping
64399
Click Image for Larger
GM
V-6, V-8 1987-98
$108.50 includes shipping
64885
Click Image for Larger
FORD
V-8 5.0L, 5.8L
1989-96
$134.75 includes shipping
64889
Click Image for Larger
FORD
V-8 7.5L (460 CID)
1987-90
Discontinued
____
Please take the
time to enter the model number of your motor in the shopping cart.
Thanks!
We pay the freight out in USA on all orders over $100.00. Orders less than this amount will have a shipping and handling charge of $8.75 added. Some bulky and heavy items
will incur additional charges. You will be notified beforehand if this is the case. All orders normally ship via USPS. Remember, all orders receive free technical support from the MasterTech!
