     Tohatsu Outboard

TRIM MOTORS
ASSEMBLIES
RELAYS & SOLENOIDS


for MERCURY & U.S. MARINER Outboard Motors


APPLICATION MERCURY PART NUMBERS PAGE
25 - 50 HP
Late Model Mercury, Mariner, Force
Merc. # 827675A1
2-wire Connection
PT498NM
35 - 225 HP
Mercury 1985-92 Design 1, 3-Ram Side Fill Integral Trim System,
2-Wire  Motor, includes Relay Harness to Convert Older 3-Wire motors
Merc. # 99186, 99186-1, 99186T,
826729 A4, A07, A08, A09, A10
PT475TN-4
Motor, Pump, & Harness
35 - 225 HP
Mercury 1985-92 Design 1, 3-Ram Side Fill Integral Trim System,
2-Wire  Motor, includes Relay Harness to Convert Older 3-Wire motors
Merc. # 99186, 99186-1, 99186T,
826729 A4, A07, A08, A09, A10
PT476NMK-3
As Above, Motor & Harness ONLY
35 - 225 HP
Mercury 1993-95 Design 2, 3-Ram Aft Fill Integral Trim System,
2-Wire  Motor, includes Relay Harness to Convert Older 3-Wire motors
Merc. # 811628 PT485NMK-3
Motor & Harness
V6 135, 150 XRG MAGNUM III, 175, 200, 225, 250 HP 105-140 JET
3-Ram Aft Fill Integral Trim System 1996-UP
Merc. # 828708, 878265A1, A4  PT486NM-AM
Motor & O-Ring
Mercury Outboard, Older Mercruiser, & early Volvo Penta
Boat-mounted Rectangular Reservoir w/Motor, 3-wire Connection
Merc. #88475A5, 93247A4, A7,
92975 A6, A28,
76395 A2, A5, 67914A2
PT440ABN
Motor & Reservoir ONLY

Mercury & Mariner Late 80's - UP
3 & 4-Cylinder,
Force 3 & 4 Cyl 1995 - UP
with Original 3-Wire Motor

Fits Single Ram Assembly # 824051
3-Wire Motor, Includes Conversion Harness to 2-Wire w/Relays
PT495NK-3
Motor & Reservoir ONLY,
Includes Relay Harness
Mercury & Mariner 3 & 4-Cylinder,
Force 3 & 4 Cyl 1995 - UP
with Original 2-wire Motor
Replaces Single Ram Motors,
Merc. # 811674, 811699,
813447, 809885A1, A2
PT497NK-3
Motor & Reservoir ONLY
Mercury Outboard 225-275 HP
Oildyne Pump, 3-Wire Connection
Also Used with K-Planes

Replaces Merc. # 623653A5, 92459A4 PT501N-2
Motor, Pump, & Reservoir




NEW REPLACEMENT ASSEMBLIES

APPLICATION MERCURY PAGE

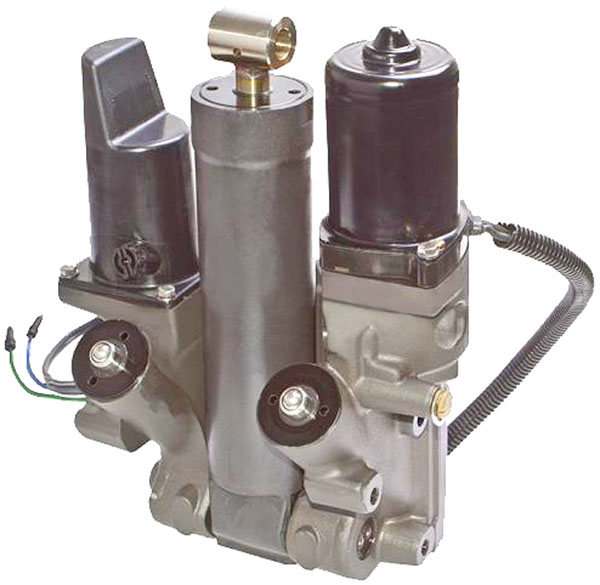

Mercury/Mariner 2.0L, 2.4L, 2.5L, 3.0L
3-Ram, 2-wire Design 2 Aft Fill
1996 - UP TT2001
Mercury/Mariner 2.0L, 2.4L, 2.5L V6
3-Ram, 3-wire
Design 1 SideFill
Design 2 Aft Fill
1984 - 1995 TT2000
CONVERSION RELAY HARNESS Converts Replacement 2-wire Motors
to Original 3-wire Trim Systems
WH476




REBUILT REPLACEMENT TRIM ASSEMBLIES

APPLICATION MERCURY PAGE
50-60 HP (& a few 40 HP)
Single Ram Design 1991-2006
1991-2006 ME-PT-02-R
70-125 HP
Single Ram Design
1987-2006 ME-PT-03-R
CONVERSION RELAY HARNESS Converts Replacement 2-wire Motors
to Original 3-wire Trim Systems
WH476






DON'T SEE WHAT YOU NEED? JUST ASK!
