FORCE TORQUE SPECS

SPECIAL SETTINGS FOR 3-4 CYLINDER 1996-UP MODELS
1995 & Older HERE

CYLINDER HEAD BOLTS THRU SERIAL # 0E138599		225 IN. LBS.
CYLINDER HEAD BOLTS FROM SERIAL # 0E138600		120 IN. LBS. + 90° (1/4 TURN) FINAL
CYLINDER HEAD COVER BOLTS		70 IN. LBS.
FLYWHEEL NUT		125 FT. LBS.
MAIN BEARING BOLTS		270 IN. LBS.
CONNECTING RODS SCREWS		120 IN. LBS. + 90° (1/4 TURN) FINAL
POWER HEAD MOUNTING BOLTS		50 FT. LBS.
EXHAUST PORT COVER BOLTS		115 IN. LBS.
GEAR HOUSING TO LEG BOLTS		160 IN. LBS.
PINION GEAR NUT		70 FT. LBS.

ALL OTHER STANDARD HARDWARE

SCREW or NUT SIZE		TORQUE
	6-32	9 IN. LBS.
	8-32	20 IN. LBS.
	10-24	30 IN. LBS.
	10-32	35 IN. LBS.
	12-24	45 IN. LBS.
	1/4-20	70 IN. LBS.
	5/16-18	160 IN. LBS.
	3/8-16	270 IN. LBS.

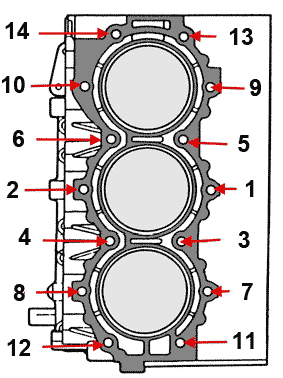

CYLINDER HEAD TORQUE SEQUENCE 1996-UP
(TORQUE IN 3 STAGES, INCREASING BY 1/3 EACH TIME THROUGH UNTIL FULL SPEC IS REACHED)


3 CYLINDER	4 CYLINDER
