CARBURETOR REBUILD KITS
V8 BIG BLOCK MOTORS

Looking for V8 SMALL BLOCKS? Click HERE

NOTE!! You MUST PROVIDE THE SERIAL NUMBER when ordering.
I cannot send you the correct parts otherwise!

Please take the time to enter the serial number of your motor the shopping cart. Thanks!

MODEL	C.I.D. # CYL	YEARS	SERIAL RANGE	MERCURY CARB #	MFG. & STYLE	MANUFACTURER'S		CARB KIT #
MODEL	C.I.D. # CYL	YEARS	SERIAL RANGE	MERCURY CARB #	MFG. & STYLE	PART #	MODEL	CARB KIT #
GM Big Block (427 C.I.D. & Larger) ENGINES
325 MCM & MIE	427/ V-8	1969 - 1970	2278747 - 3042730	1347 - 3342	Rochester 4bbl.	7027080	4MV	18-7095
325 MCM & MIE	427/V-8	1971 - 1972	3042731 - 3780449	1347 - 4533A10	Rochester 4bbl.	7041831	4MV	18-7095
325 MCM/MIE	427/ V-8	1969-1972	2278747 - 3780449	1347-3689A1	Rochester 4bbl.	7029280	4MV	18-7095
330 MCM	454/ V-8	1977-1978	4623115 - 5027230	1347-6493A1	Rochester 4bbl.	17057287	4MV	18-7095
330 MCM	454/ V-8	1977-1981	5027231 - 6083144	1347-7363A1	Rochester 4bbl.	17059290	4MV	18-7095
330 MCM	454/ V-8	1982-1987	6083145 - 0B816540	1347-8291A3	Rochester 4bbl.	17080563	4MV	18-7095
330 MIE	454/ V-8	1977-1978	4623115 - 5226384	1347-6493A1	Rochester 4bbl.	17057287	4MV	18-7095
330 MIE	454/ V-8	1979-1980	5226385 - 5889913	1347-7366A1	Rochester 4bbl.	17059287	4MV	18-7095
340 MIE	454/ V-8	1981-1987	5889914 - 0D788365	1347-8288A1	Rochester 4bbl.	17080560	4MV	18-7095
370	454/ V-8	1978-1987	4179554 - 0B714586	1347-7498A2	Rochester 4bbl.	17059280	4MV	18-7095
400	454/ V-8	1980-1986	4179554 - 0B457644	1347-7498A2	Rochester 4bbl.	17059280	4MV	18-7095
420	454/ V-8	1987-1989	0A398941 - 0B622418	13549A4	Holley 4bbl.		H4	13220
425	454/ V-8	1990-1993	0B622419 - 0D937011	13549A4	Holley 4bbl.		H4	13220
440	454/ V-8	1983-1986	41 79554 - 0B485220	1393-8862A1	Holley 4bbl.		H4	13220
450	454/ V-8	1995-1996	0F347100 - 0F347277	13549A14	Holley 4bbl.		H4	13220
454 Mag Alpha	454/ V-8	1986-1988	0A631894 - 0B785148	1347-8291A3	Rochester 4bbl.	17080563	4MV	18-7095
454 Mag Bravo	454/ V-8	1988-1992	0B721206 - 0D808068	1347-7498A2	Rochester 4bbl.	17059280	4MV	18-7095
454 Mag Bravo	454/ V-8	1992-1994	0D808069 - 0F304999	3310-806755A1	WEBER		9779	18-7748
454 Mag Bravo	454/ V-8	1995-1997	0F305000 - 0K999999	3310-806755A2	WEBER		9779	18-7748
525 SC	454/ V-8	1991-1995	0D456000 - 0F348963	12377A5	Holley 4bbl.		H4	8M0050786
525 SC	454/ V-8	1991-1997	0D456000 and up	12377A6	Holley 4bbl.		H4	8M0050786
7.4L Bravo l/ll	454/ V-8	1988-1991	0B771113 - 0D603117	1347-8291A3	Rochester 4bbl.	17080563	4MV	18-7095
7. 4L Bravo l/ll	454/ V-8	1992-1994	0D603118 - 0F351999	3310-806969A2	WEBER		9780	18-7748
7.4L Bravo l/ll	454/ V-8	1995-1997	0F352000 - 0K999999	3310-806969A1	WEBER		9780	18-7748
7.4L/Bravo III	454/ V-8	1993-1996	0D838819 - 0F800699	3310-806755A2	WEBER		9779	18-7748
7.4L/Bravo III	454/ V-8	1996-1997	0F800700 - 0K999999	3310-806969A1	WEBER		9780	18-7748
7.4LMIE	454/ V-8	1988-1992	5889914 - 0D715493	1347-8288A1	Rochester 4bbl.	17080560	4MV	18-7095
7.4L MIE with Hurth	454/ V-8	1992-1994	0071 5494 - 0F349999	3310-806969A2	WEBER		9780	18-7748
7.4L MIE with BORG WARNER	454/ V-8	1992-1994	0D715494 - 0F349999	3310-806969A3	WEBER		9780	18-7748
7.4L MIE	454/ V-8	1995-1997	0F350000 - 0K999999	3310-806969A1	WEBER		9780	18-7748
460	482/ V-8	1983-1986	41 79554 - 0B485220	1393-8862A1	Holley 4bbl.		H4	13220
465	502/ V-8	1990-1992	0C849992 - 0F213244	N.L.A.	Holley 4bbl.		H4	13220
465	502/ V-8	1990-1992	0C849992 - 0F213244	N.L.A.	Holley 4bbl.		H4	13220
500	502/ V-8	1994-1995	0F213293 - 0F615766	13549A12	Holley 4bbl.		H4	13220
500	502/ V-8	1996-1998	0F615767 - 0L001772	13549A15	Holley 4bbl.		H4	13220
500 EFI	502/ V-8	1999-2000	0L414639 and up	13549T21	Holley 4bbl.		H4	13220
502 Mag	502/ V-8	1990-1992	0C878221 - 0D824588	1347-814623A2	Rochester 4bbl.	17089112	4MV	18-7095
502 Mag	502/ V-8	1992-1993	0D824589 - 0F1 14528	3310-806971A1	WEBER		9782	18-7748
575	502/ V-8	1986-1992	0A677429 - 0D763716	12377A2	Holley 4bbl.		H4	42270A1
600 SC	502/ V-8	1991-1997	0D456489 and up	3312-821030A15	Holley 4bbl.		H4	42270A1
600 SC	502/ V-8	1991-1997	00456489 and up	3312-821030A16	Holley 4bbl.		H4	42270A1
8.2LMIE	502/ V-8	1990-1992	0C878221 - 0D857199	1347-814623A2	Rochester 4bbl.	17089112	4MV	18-7095
8.2LMIE	502/ V-8	1990-1996	0C878221 - 0F819619	3310-806971A1	WEBER		9782	18-7748
500 Bulld0g	540/ V-8	1990-1995	0C577254 - 0F348987	13549A10	Holley 4bbl.		H4	13220
500 Bulld0g	540/ V-8	1995-	0F615762 and up	13549A23	Holley 4bbl.		H4	13220
800 SC	572/ V-8	1993-1996	0D763836 and up	3312-821030A17	Holley 4bbl.		H4	42270A1
800 SC	572/ V-8	1993-1996	0D763836 and up	3312-821030A18	Holley 4bbl.		H4	42270A1

MERCRUISER COMPLETE CARB KITS
ENGINE	IMAGE	PART #	PRICE	SELECT

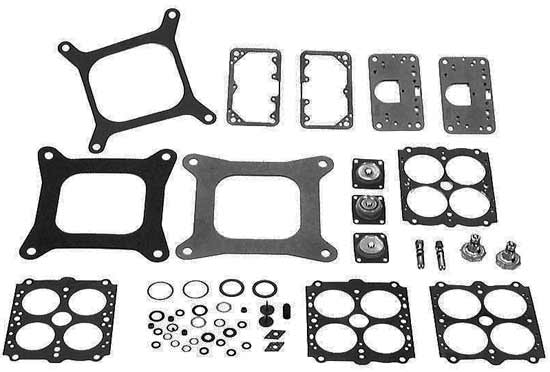

FOR HOLLEY USED ON: MANY 4-BBL GM 454 C.I.D.	Click Image For Larger	13220	$183.68

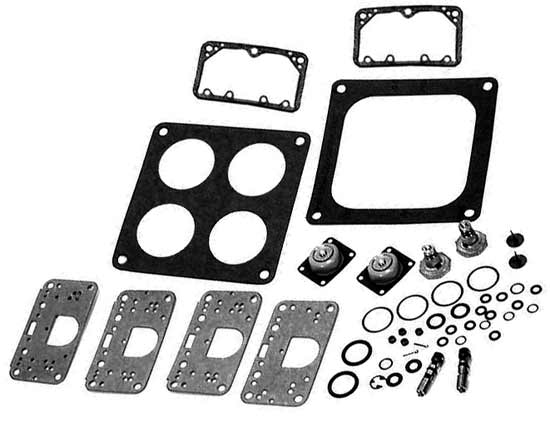

FOR HOLLEY USED ON: MCM 525SC 4-BBL GM 454 C.I.D. HI-PERF	Click Image For Larger	8M0050786	$322.00

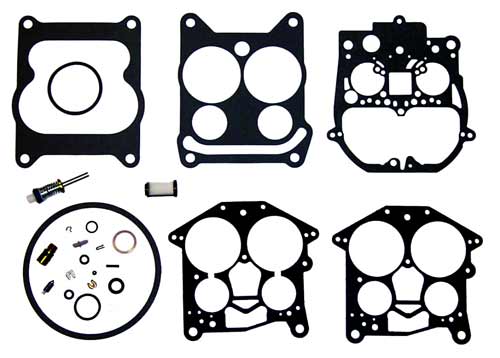

FOR ROCHESTER QUADRAJET USED ON: MOST 4-BBL ROCHESTER	Click Image For Larger	18-7095	$32.00

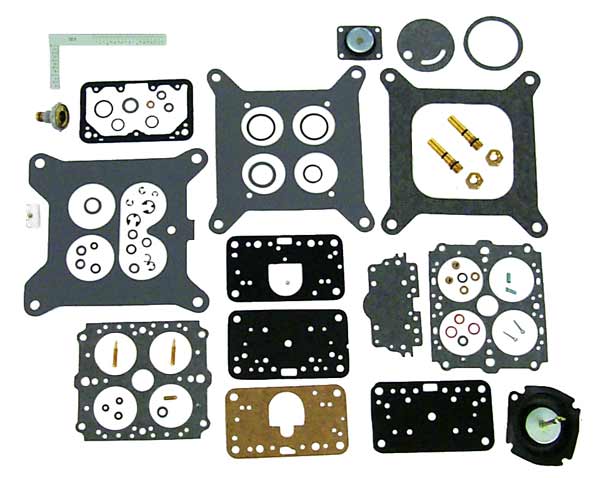

FOR HOLLEY 4160 USED ON: MCM 215, 225, 255 (FORD) 4-BBL 1970'S	Click Image For Larger	18-7096	$91.75

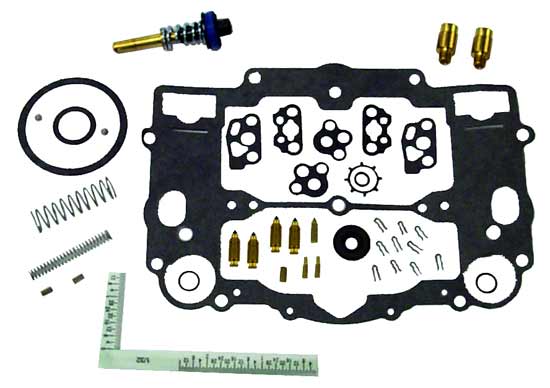

FOR WEBER USED ON: SOME 1990'S 5.7L PERFORMANCE MOTORS	Click Image For Larger	18-7748	$122.75

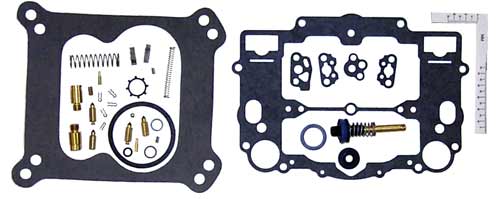

FOR WEBER USED ON: SOME 1990's 5.7L PERFORMANCE MOTORS	Click Image For Larger	18-7749	$122.75

We pay the freight out in USA on all orders over $100.00. Orders less than this amount will have a shipping and handling charge of $8.75 added. Some bulky and heavy items will incur additional charges. You will be notified beforehand if this is the case. All orders normally ship via USPS. Remember, all orders receive free technical support from the MasterTech!

Please review our Warranty, Returns & Refunds policies before you place an order.
