TRIM MOTORS, VALVE BODIES,
ASSEMBLIES, RELAYS & SOLENOIDS,
RESERVOIR KITS
for Outboard Motors
| TRIM MOTORS |
| APPLICATION/DESCRIPTION |
PART # |
PRICE |
SELECT |
PT498NM (New 12V Motor)
Fits Late-model 25-50 HP
Mercury & Mariner Outboards
Merc. # 827675A1
2-wire Connection |
PT498NM
REPLACES 827675A1
ALSO FITS SMALL FORCE MODELS.
Motor Only |
$166.00 |
|
PT475TN-4 (New 12V Motor & Reman Pump)
Fits Late-model 25-50 HP
Mercury & Mariner 35-220 HP
1985-92 w/Design 1, 3-Ram Side Fill Integral Trim/Tilt System
Merc. # 99186, 99186-1, 99186T
Repl. Round Prestolite Motor & Square Eaton Motor
3-wire Connection
 PICTURE IS OF NEW CONFIGURATION. NOW SHIPPING WITH 2 WIRE
MOTOR; INCLUDES RELAY KIT TO REPLACE SOLENOIDS. |
USED ON:
PT475TN-4
TOP FILL TRIM
NEW MOTOR/REBUILT PUMP
CLICK IMAGE TO ENLARGE
Reservoir looks like this
Motor/Pump ONLY
This is NOT the assembly |
$399.00 |
|
PT476NMK-3
Kit Includes New 2-wire Motor,
Mounting Flange For the Original Mercury Pump,
New Oil Seal, O-ring, Coupler, & Hardware
REPLACES SQUARE EATON
MOTOR,
MERC # 99186T, USED
FROM 1985-92
NEW 2 WIRE MOTOR.
INCLUDES ME-R100 RELAY HARNESS (REPLACES SOLENOIDS) |
PT476NMK-3
Motor & Harness ONLY |
$199.00 |
|
Refit
motor fits ARCO BRAND 6278 ONLY,
in case you have an ARCO replacement motor/pump assembly already installed.
 |
6277
MOTOR ONLY
FOR 6278 ARCO CARTRIDGE PUMP |
$249.00 |
|
Conversion Harness
Adapter Kit with Relays
Adapts Older 3-wire Motors to New Style 2-wire Replacements
 INCLUDED IN APPLICABLE MOTOR KITS.
USES REPLACEABLE STANDARD TRIM RELAYS
CLICK IMAGE FOR LARGER |
ME-R100
|
$50.00 |
|
PT485NMK-3 (New 12V Motor)
Fits
Mercury & Mariner1993-95
Design 2, Aft Fill 3-Ram Integral Trim/Tilt
Replaces 3-wire Square Motor
Merc #811628
3-wire Connection
Flat Blade Coupler, O-ring Included
PICTURE IS OF NEW CONFIGURATION.
INCLUDES ME-R100 RELAY KIT TO REPLACE SOLENOIDS. |
USED ON:
PT485NMK-3
SIDE FILL TRIM
CLICK TO ENLARGE

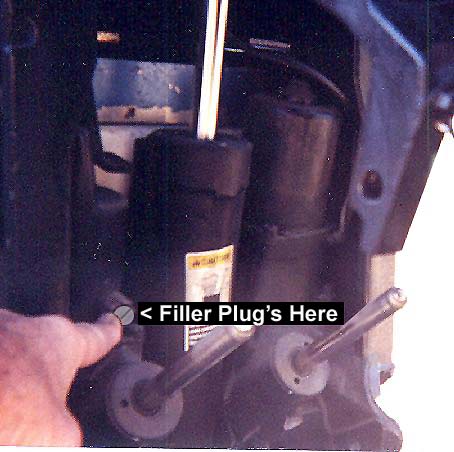

Reservoir looks like this
Motor ONLY
This is NOT the assembly |
$179.00 |
|
PT486NM-AM (New 12V Motor)
Fits
Mercury & Mariner1996-UP
135, 150 XRG MAGNUM III,
175, 200, 225, 250 HP
105-140 JET
Merc. # 828708, 878265A1, A4
2-wire Connection, O-RING INCLUDED  |
PT486NM-AM
V6 1996-UP
S/N OG201875 UP
2 WIRE MOTOR
MOTOR ONLY |
$160.00 |
|
PT440ABN (New 12V Motor & Reservoir)
Fits Mercury Outboard, Older Mercruiser,
& early Volvo Penta
Screws, Gasket, & Drive Shaft Coupler Included
Merc. #88475A5, 93247A4, A7,92975A6, A28,
76395A2, A5, 67914A2
3-wire Connection |
USED ON:
PT440ABN
FITS ALL PRIOR TO 1984
CLICK IMAGE TO ENLARGE
Motor/Reservoir ONLY
This is NOT the assembly |
$180.00 |
|
PT495NK-3
Fits Mercury, Mariner,& Force
Single Ram Tilt System.
Fits Assembly #824051
Includes O-ring, Coupler, & SS Bolts
3-wire Connection, 4-bolt Mounting
PICTURE IS OF NEW CONFIGURATION WITH ROUND
2 WIRE MOTOR AND RELAY KIT
TO REPLACE SOLENOIDS. |
USED ON:
PT495NK-3
OLDER MERC/MARINER FORCE SINGLE RAM, 3 WIRE SQUARE OR ROUND
MOTOR WITH HEX BOLTS.
CLICK IMAGE TO ENLARGE
Motor & Reservoir ONLY
This is NOT the assembly |
$286.00 |
|
6276
Fits Most 3-cyl 2-Ram Trim Systems
70 & 90 HP
 Replaces #811674,
811699, 813447,
809885A1, A2
Includes Coupler
Kit, O-ring,
S.S. Bolts
PICTURE IS OF NEW CONFIGURATION
2- wire Connection
|
6276
LATE MODEL 2- RAM SYSTEMS WITH
2-WIRE
2-1/4"
ROUND MOTORS WITH TEARDROP-
SHAPED HOUSING..
ALSO FITS 2-RAM
2-WIRE EXTERNAL
MOUNT WITH 3-3/4"
ROUND MOTOR. THERE
ARE ADAPTER SHAFTS WITH THIS TO FIT
SEVERAL MODELS.
MOTOR & RESERVOIR
ONLY!! |
$338.00 |
|

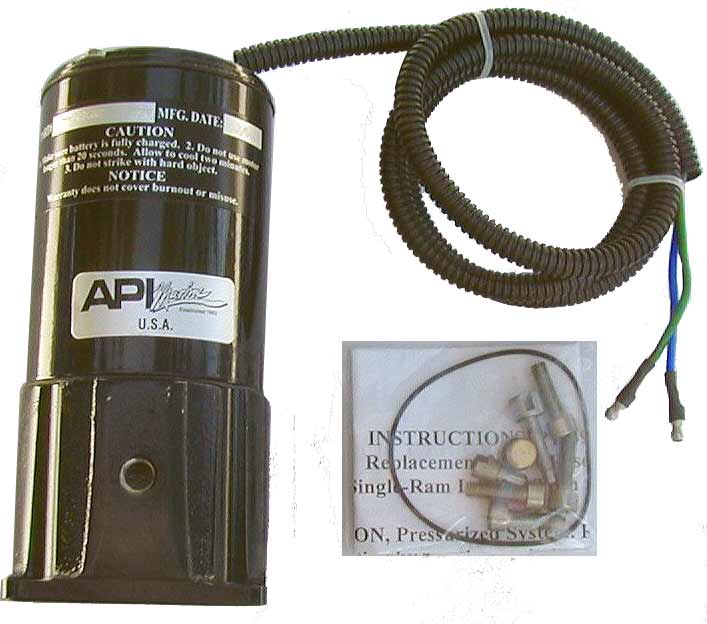

PT497NK
Fits Mercury & Mariner
Single Ram Tilt System. Replaces #811674, 811699,
813447, 809885A1, A2
Includes O-ring, Coupler, & SS Bolts
2-wire Connection, 4-bolt Mounting
FULL
COLOR PICTURE |
PT497NK
LATE MODEL MERC/MARINER/ FORCE WITH SINGLE RAM,
2-WIRE
2-1/4" ROUND MOTORS WITH TEARDROP SHAPED HOUSING..
ALSO FITS SINGLE RAM 2 WIRE EXTERNAL MOUNT WITH 3-3/4" ROUND MOTOR.
THERE ARE ADAPTER SHAFTS WITH THIS TO FIT SEVERAL
MODELS.
MOTOR & RESERVOIR
ONLY!! |
$228.00 |
|
PT501N-2
Fits Mercury Outboard 225-275 HP
Replaces #623653A5, 92459A5
Also used to drive K-Plane Trim Tabs
3-wire Connection
Pump Has 3.5" Long Reservoir |
PT501N-2
Includes Motor, Reservoir, Pump |
$399.00 |
|
PT504N-2
Fits Mercury Outboard
Replaces #92459A3, A8, 846859A4, 818161A2
Also used to drive K-Plane Trim Tabs
3-wire Connection,
High Pressure Pump for Racing Applications
Pump Has 5" Long Reservoir  |
PT504N-2
Includes Motor, Reservoir, Pump |
$499.00 |
|
REPLACEMENT VALVE BODIES
(REPAIR & RETURN ONLY) |
PLEASE NOTE THE FOLLOWING INFORMATION!!
THERE HAS BEEN A LOT OF CONFUSION REGARDING THE
CONFIGURATION
OF THE TRIM MOTORS AND VALVE BODIES. HERE'S THE LATEST.
THE MOTORS COME WITHOUT A HYDRAULIC VALVE
BODY EXCEPT AS NOTED. IF YOU
HAVE A HYDRAULIC
VALVE BODY PROBLEM, AND YOUR UNIT IS ONE OF THE REBUILD/EXCHANGE UNITS, THE REBUILD IS ORDERED THRU THE SITE AND
WE SEND YOU AN
INVOICE VIA E-MAIL AS TO WHERE TO SHIP. THE
RETURN SHIPPING IS VIA UPS AIR AND IS INCLUDED IN
THE PRICE
OF THE VALVE BODY. IN SOME CASES YOUR VALVE BODY MAY NOT BE
REPAIRABLE, LETS' HOPE
IT DOESN'T HAPPEN TO YOU! IF THIS IS
THE CASE YOUR ENTIRE REMITTANCE WILL BE REFUNDED. |
| APPLICATION/DESCRIPTION |
PART # |
PRICE |
SELECT |
VB440R
USED ON MERCURY, MERCRUISER,
& VOLVO PENTA
TRIM & TILT SYSTEMS
GASKET & 4 O-RINGS INCLUDED |
VB440R
REBUILD ONLY
ALLOW UP TO 4 WEEKS TO GET YOURS REPAIRED & RETURNED!!
Place your order, we will supply shipping information for sending in your valve body for repair |
$199.00 |
|
VB440AR
USED ON MERCURY OUTBOARD & MERCRUISER
TRIM & TILT SYSTEMS
2 HYDRAULIC LINE CONNECTION
GASKET INCLUDED |
VB440AR
REBUILD ONLY
ALLOW UP TO 4 WEEKS TO GET YOURS REPAIRED & RETURNED!!
Place your order, we will supply shipping information for sending in your valve body for repair |
$199.00 |
|
VB475TN
USED ON MERCURY & MARINER OUTBOARD
3-RAM TRIM & TILT SIDE FILL SYSTEMS
WITH SQUARE EATON MOTOR 30-225 HP 1987-92
O-RINGS INCLUDED
Bracket NOT included  |
VB475TN |
$228.00 |
|
VB485R
USED ON MERCURY & MARINER OUTBOARD
3-RAM TRIM & TILT AFT FILL SYSTEMS
WITH 2 or 3 Wire Motor 1993 & UP
O-RINGS INCLUDED
EXCHANGE UNIT, CORE REQUIRED |
VB485R
Place your order, we will supply shipping information for sending in your valve body for repair |
$258.00 |
|
VB501N-2 (NEW VALVE BODY & RESERVOIR)
USED ON MERCURY OUTBOARDS 225-275 hp
WITH STEEL CAN AND INVERTED FLAIR FITTINGS.
2 HYDRAULIC LINE CONNECTION
FITS PUMP PT501N-2 ABOVE  |
VB501N-2
NEW UNIT |
$238.00 |
|
| RESERVOIR REPLACEMENT KITS |
| APPLICATION/DESCRIPTION |
PART # |
PRICE |
SELECT |
RES 500E RESERVOIR KIT
USED ON LATE MODEL MERCRUISER
OILDYNE PUMP, SINGLE SCREW MOUNTING
INCLUDES RESERVOIR, CAP, O-RING, SCREW  |
RES 500E |
$46.00 |
|
RES 500L RESERVOIR KIT
USED ON LATE MODEL MERCRUISER
OILDYNE PUMP with 4 SCREW MOUNTING
INCLUDES RESERVOIR, CAP, & O-RING |
RES 500L |
$53.00 |
|
TRIM ASSEMBLIES SUBJECT TO AVAILABILITY |
| NEW TRIM/TILT UNITS |

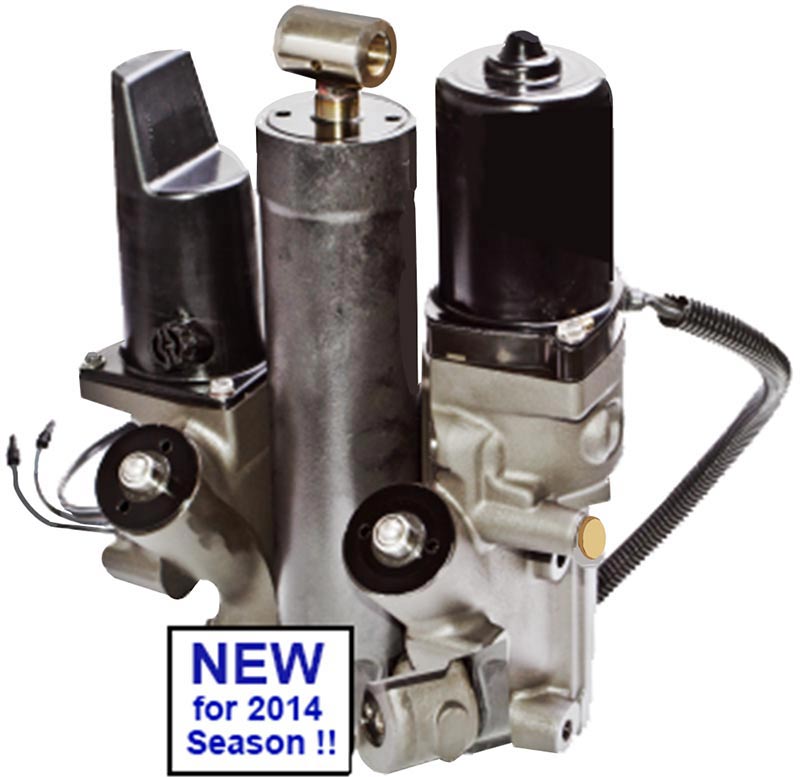

NEW for 2014!
MANY V6 Motors
|
2.0L, 2.4L, 2.5L
Click for Larger |
From 0G201875
(1989-UP)
To 0G201874
(1988-Back
3-wire motor
) |
2-Wire Motor, Ready to Install
2-Wire Motor, Requires Conversion Harness
ME-R100 Below For
Existing 3-wire Models |
BRAND NEW, Not a Rebuilt
TT2001
$995.00
|
MERCURY REBUILT TRIM/TILT ASSEMBLIES |
| IMAGE |
HP |
YEARS |
PRICE |
SELECT |
 |
35-250 HP |
1992-2000 |
ME-PT-01B-R
$885
NO CORE
This is a 2-wire system; you also need an updated harness to convert to the upgraded 2-wire unit if yours has a 3-wire motor.
|
NO CORE REQUIRED
|
ME-R100
$51.00
Conversion Kit to Use New Style 2-wire Motor with Older 3-wire Systems
(Click for Larger) |
|
|
35-250 HP
VERADO 4-Stroke |
2001-UP
2005-2012 |
ME-PT-01-R
$975
includes $50 Refundable Core Charge
This is a 2-wire system; you also need an updated harness to convert to the upgraded 2-wire unit if yours has a 3-wire motor.
|
INCLUDES $50 CORE CHARGE
|
ME-R100
$51.00
Conversion Kit to Use New Style 2-wire Motor with Older 3-wire Systems
(Click for Larger) |
|
 |
50-60 HP |
1991-2012 |
ME-PT-02-R
$850
NO CORE
This is a 2-wire system; you also need an updated harness to convert to the upgraded 2-wire unit if yours has a 3-wire motor.
|
NO CORE REQUIRED
|
ME-R100
$51.00
Conversion Kit to Use New Style 2-wire Motor with Older 3-wire Systems
(Click for Larger) |
|
 |
70-125 HP |
1987-2012 |
ME-PT-03-R
$850
This is a 2-wire system; you also need an updated harness to convert to the upgraded 2-wire unit if yours has a 3-wire motor.
|
NO CORE REQUIRED
|
ME-R100
$51.00
Conversion Kit to Use New Style 2-wire Motor with Older 3-wire Systems
(Click for Larger) |
|
We pay the freight out in USA on all orders
over $100.00. Orders less than this amount will have a shipping
and handling charge of $8.75 added. Some bulky and heavy items
will incur additional charges. You will be notified beforehand
if this is the case. Remember, all orders receive free technical
support from the MasterTech!
|
|
