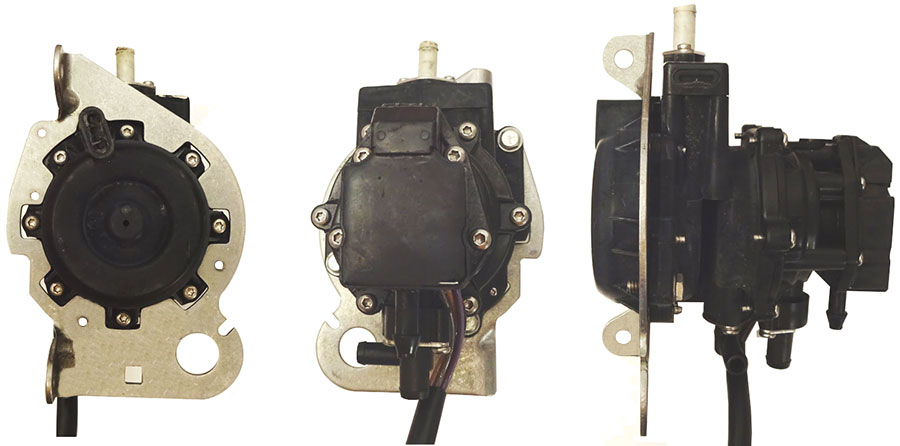

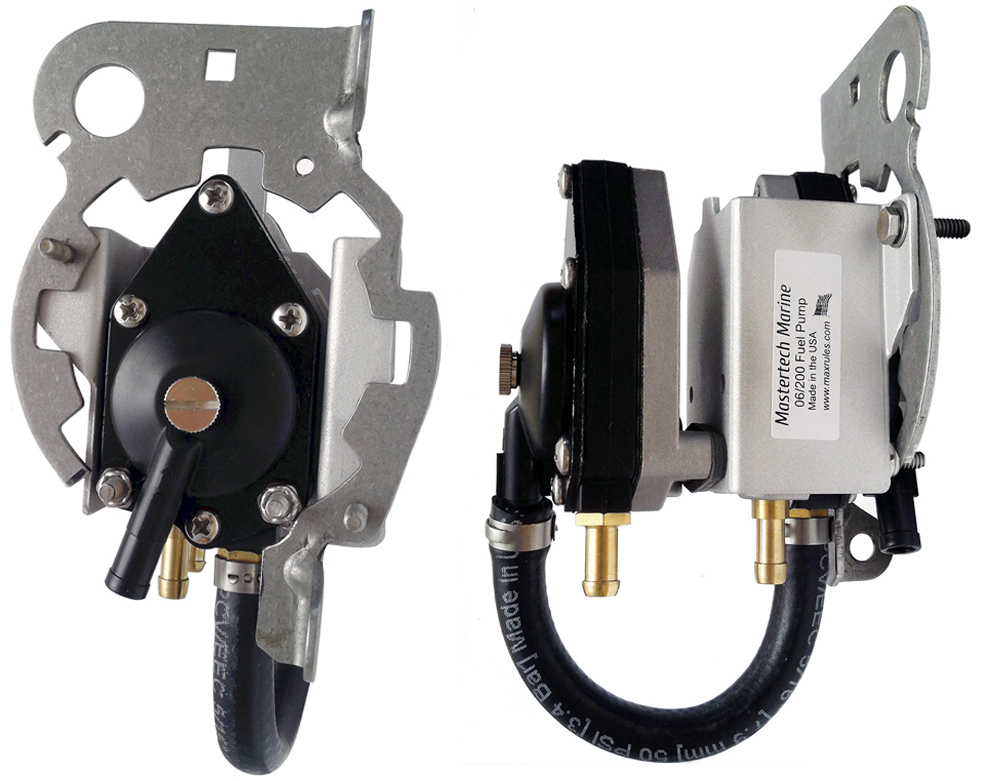

VRO pump on original bracket	Bracket Modification	New pump mounted on VRO bracket
Click Image For Larger	Click Image For Larger	Click Image For Larger

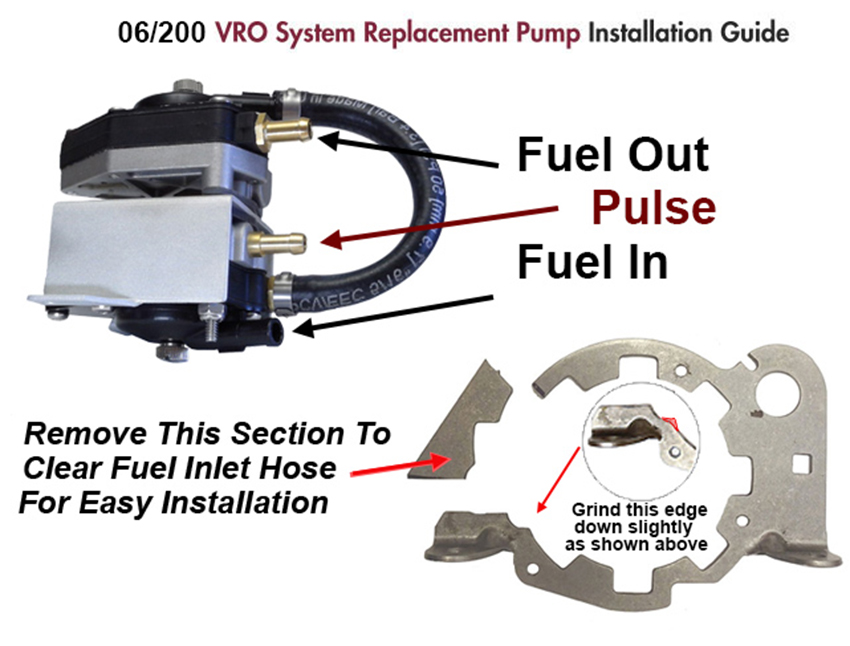

This pump uses the original VRO bracket. You modify the bracket as shown in the center picture and drawing below by cutting out the section as illustrated. The replacement pump screws on to the bracket in place, as pictured. Images open in new windows for easier printing.

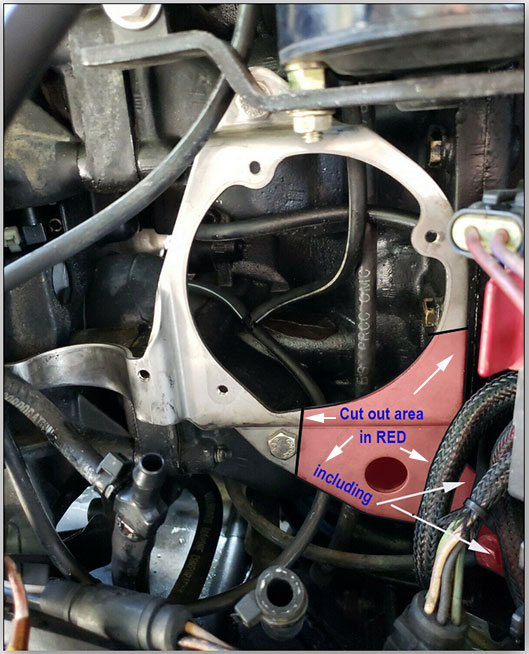

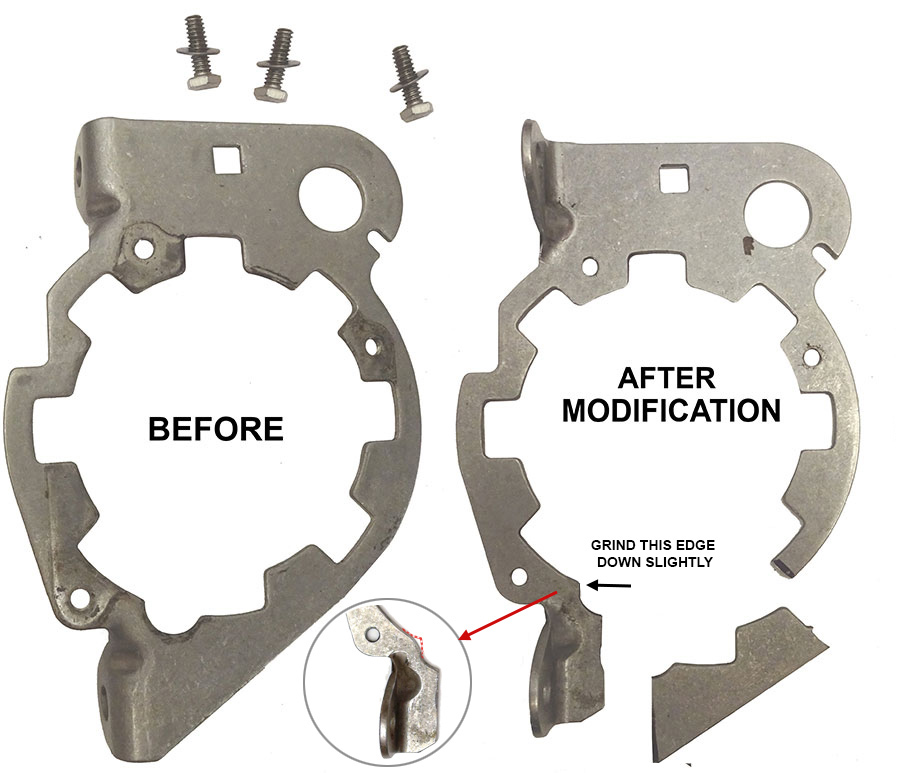

Bracket Modification, Most V6: Click Image For Larger		200/225 HP Bracket Modification: Click Image For Larger

Replace the pulse limiter (engine end of pulse hose) with the included hose barb fitting
