Intructions for mounting replacement fuel pump # 8556 on 2-cylinder motors:

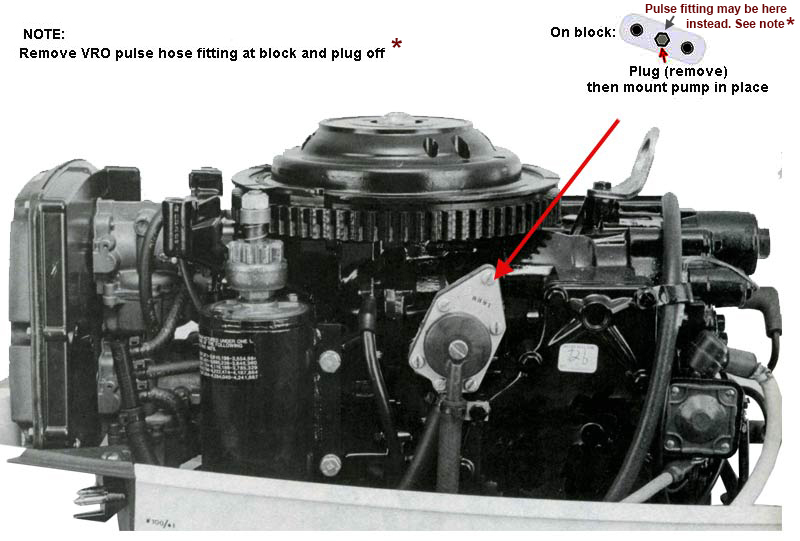

V4 crossflow pump 8556 installation

It mounts on the motor as illustrated above.

You will need a couple of 10-24 stainless screws to mount it. These are generally available at a good hardware store but typically come in either 2" or 1-1/2" lengths.

These are included in the kit but not with loose pumps.

On some motors they may bottom out; cut them to 1-3/4" if this happens (or shim the screw heads with something). 1-1/2" are usually are too short.

You will need to plug the VRO pulse hose source (on the block for most motors* ). These take a brass or SS 1/8" pipe plug (included in the kit, not included if buying just the pump only).

On most of these, you should invert the fuel log

fuel log

as shown:

fuel log new

to match the "fuel out" of the new pump (to feed from the bottom direction). This makes an easy arc between pump and fuel log.
Use the included extra section of hose if needed to reach.

The oil/fuel mix in the fuel tank will need to be 50:1

* NOTE: on some early (1984-86) motors the pulse hose fitting itself was installed on the manifold as above (where the plug is on later models), rather than on the block.
Remove that and install pump as otherwise directed.

There should be nothing to plug at the block if the pulse fitting was originally mounted on the manifold instead of the plug as shown at the top.
The pulse fitting was relocated to the block on later motors and the manifold was plugged off instead as illustrated at top of page.
