POWERHEAD GASKET SETS

FIND THE GASKET KIT YOU NEED IN THE TABLES BELOW. THEN CLICK ON THE ITEM # IN SHOPPING
CART TO PURCHASE, OR USE THE SECURE ORDER FORM. THESE ARE ALL ORIGINAL OMC KITS.

HEAD GASKETS LISTED HERE

EVINRUDE JOHNSON COMPLETE GASKET SETS 1 & 2 CYLINDER MOTORS. All include head gasket.
APPLICATION DESCRIPTION	PART #	PRICE	SELECT
1.5, 2 HP, MATE, JUNIOR • 1968-90	439080	$16.00
4 HP • 1978-82 2.5, 4, 4.5, EXCEL & ULTRA • 1983-90	439081	$45.50
3, 4 HP • 1991 UP	433426	$30.00
5, 6 HP • 1984-90 6, 7.5 HP • 1981-83 8 HP • 1980-90	439082	$32.00
6 HP • 1964-79	387321	$31.00

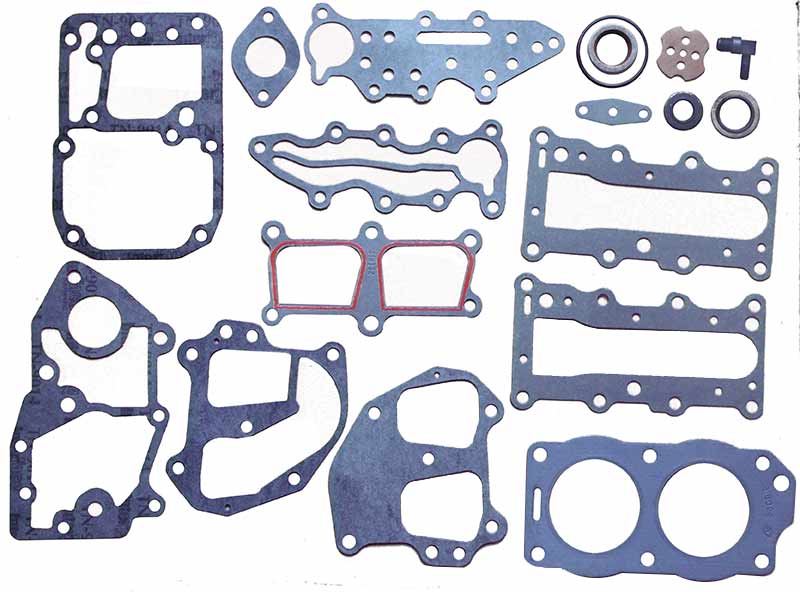

9.9, 15 HP • 1974-92	394546 PHOTO	$37.00

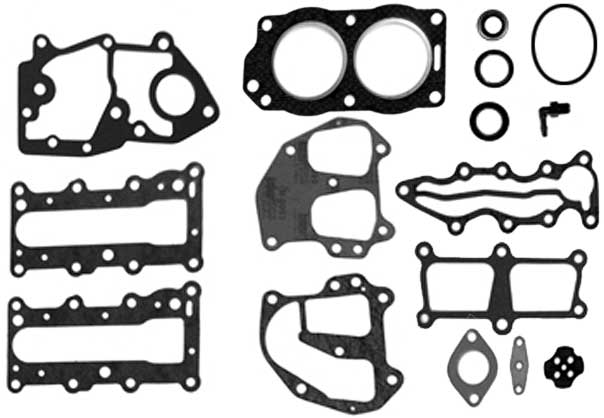

9.9, 15 HP • 1993 UP (2 STROKE)	436358 PHOTO	$41.00
18, 20, 25 HP • 1959-76	384960 With 322332 HEAD GSKT.	$68.00
25 HP • 1977-78 35 HP • 1976-78	387849	$80.00

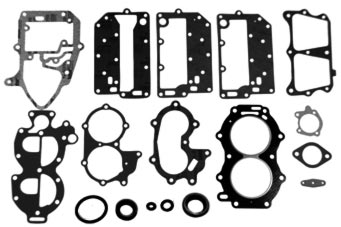

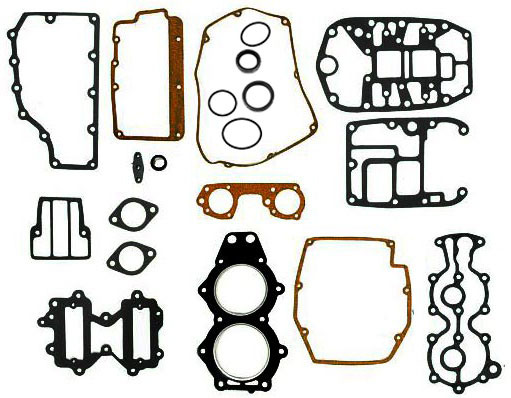

20, 25, 30, 35 HP • 1979 UP	433941 PHOTO	$69.00
40 HP • 1960-70	NLA Some Gaskets Available Individually	CALL	CALL
50 HP • 1971-75	439083 With 315539 HEAD GSKT. PHOTO	$145.00
40 THRU 60 HP • 1976 UP	439083 PHOTO	120.00

DON'T SEE WHAT YOU NEED? JUST ASK. QUICK QUOTE FORM
QUICK SECURE ORDER FORM

Now that you have found what you need, please order it using the shopping cart above, the secure quick order form, or call in your order . We pay the freight out in USA on all orders over $100.00. Orders less than this amount will have a shipping and handling charge of $8.75 added. Some bulky and heavy items will incur additional charges. You will be notified beforehand if this is the case. Remember, all orders receive free technical support from the MasterTech!

EVINRUDE JOHNSON COMPLETE GASKET SETS 3 CYLINDER MOTORS. All include head gasket.
APPLICATION DESCRIPTION	PART #	PRICE	SELECT
55, 60 HP (45 CID MODELS) • 1968-1971	383306	$106.50

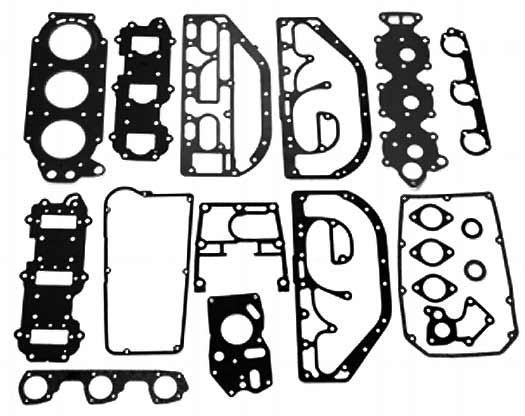

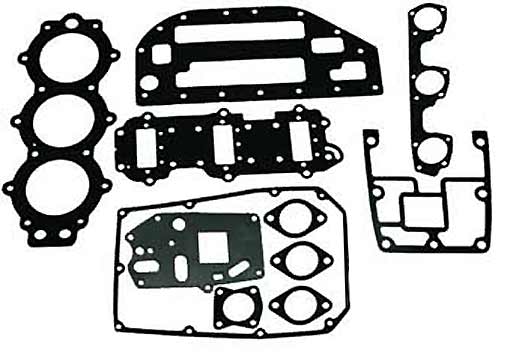

65, 70, 75 HP (49 CID MODELS) • 1972-88	439084 PHOTO	$109.00
40 JET, 50, 60, 70 HP (56 CID MODELS) • 1986 UP	438904 PHOTO	$70.00
V4 CROSSFLOW 4 CYLINDER MOTORS. All kits include head gaskets.
85 HP • 1969-1972 115 HP • 1969-70	384950 With (2) 306048 HEAD GSKTS	99.00
100, 125 HP • 1971-72	384950 WITH (2) 332820 HEAD GSKTS	118.00

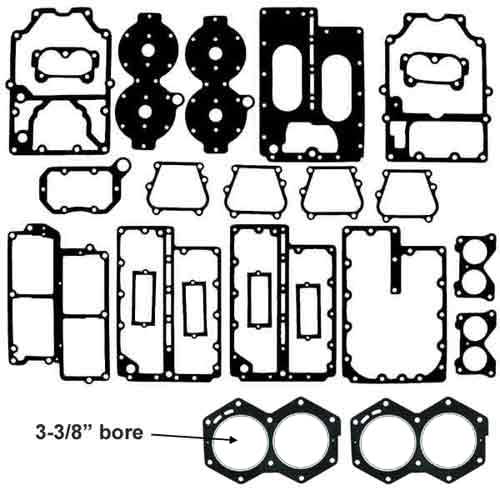

85 HP • 1973-77	388602 WITH (2) 318662 HEAD GSKTS PHOTO	$203.00

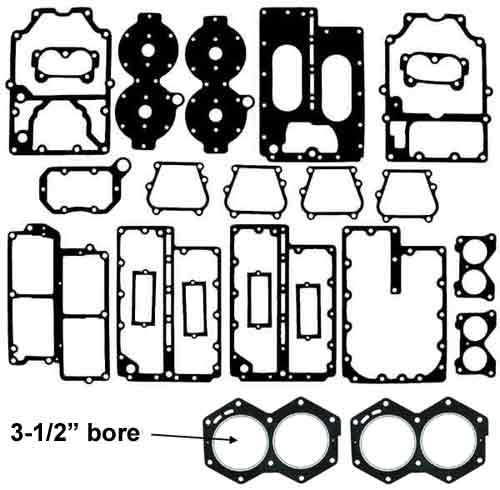

115, 135, 140 HP • 1973-77	388602 WITH (2) 318358 HEAD GSKTS PHOTO	$137.00

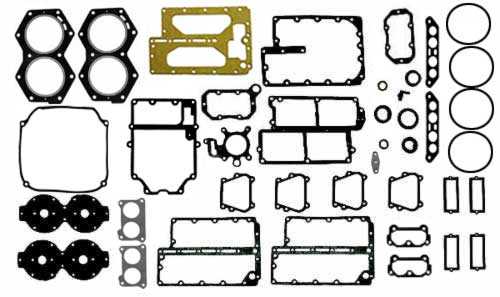

85 HP • 1978	389555	$108.00

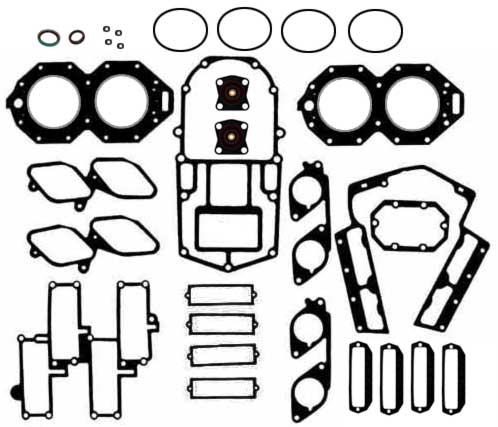

85, 88, 90, 100 110, 115, 140 HP • 1979 UP	439085 PHOTO	$147.00
V6 CROSSFLOW 6 CYLINDER MOTORS. All kits include head gaskets.

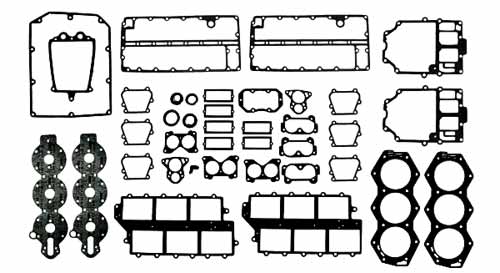

150 HP, 1978-91 155 HP, 1986-91 175 HP, 1977-85 175 HP, 1977-85 185 HP, 1984-85 200 HP, 1976-83 235 HP, 1978-79	391988 PHOTO	$149.00

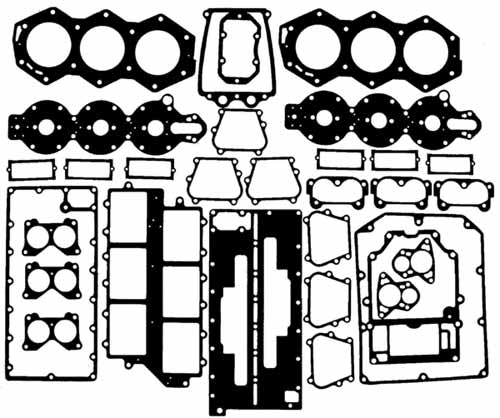

175 HP, 1986-91 235 HP, 1980-85	434381 PHOTO	$193.00
235XP/GT, 1983-85	(2) 329774 HEAD GASKETS ONLY (NO KIT, OTHER GASKETS SOLD SEPARATELY)	$82.00/Pair
V4 LOOPER 4 CYLINDER MOTORS. All kits include head gaskets if required.
90° 120, 140 HP • 1985-87	396750 PHOTO	$121.50
90° 120, 130, 140HP • 1988 UP	432570 PHOTO	$136.00
60° 90, 115HP • 1985-87	439559 PHOTO	$154.00

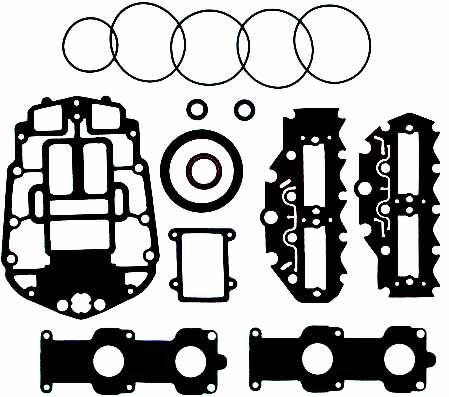

60° 90-115 FFI • 1998 UP	5000400 PHOTO	$103.00
V6, V8 LOOPER 6 and 8 CYLINDER MOTORS. All kits include head gaskets if required.
90° 200, 225 HP • 1985-87	398172 PHOTO	$152.50
90° 200, 225 HP • 1988-93	436891 PHOTO	$153.00
90° 200, 225 HP • 1994 UP	437725 PHOTO	$204.00
60° 150, 175 HP • 1991 UP	437155 PHOTO	$199.00
60° 150, 175 HP FFI • ALL	439202 PHOTO	$103.00
275 HP 3.6 LITRE V8 • 1985-87	(2) 329786 HEAD GASKET ONLY (OTHER GASKETS SOLD SEPARATELY) PHOTO	$96.00/Pair

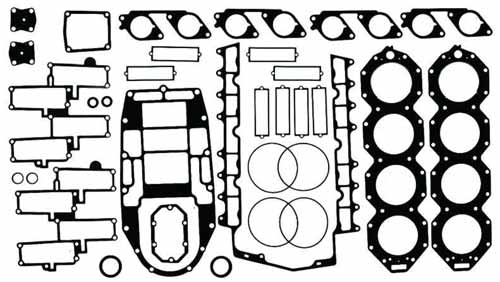

250, 275, 300 HP V8 • 1988 UP	398693 PHOTO	$285.00

DON'T SEE WHAT YOU NEED? JUST ASK. QUICK QUOTE FORM
QUICK SECURE ORDER FORM

Please review our Warranty, Returns & Refunds policies before you place an order.
